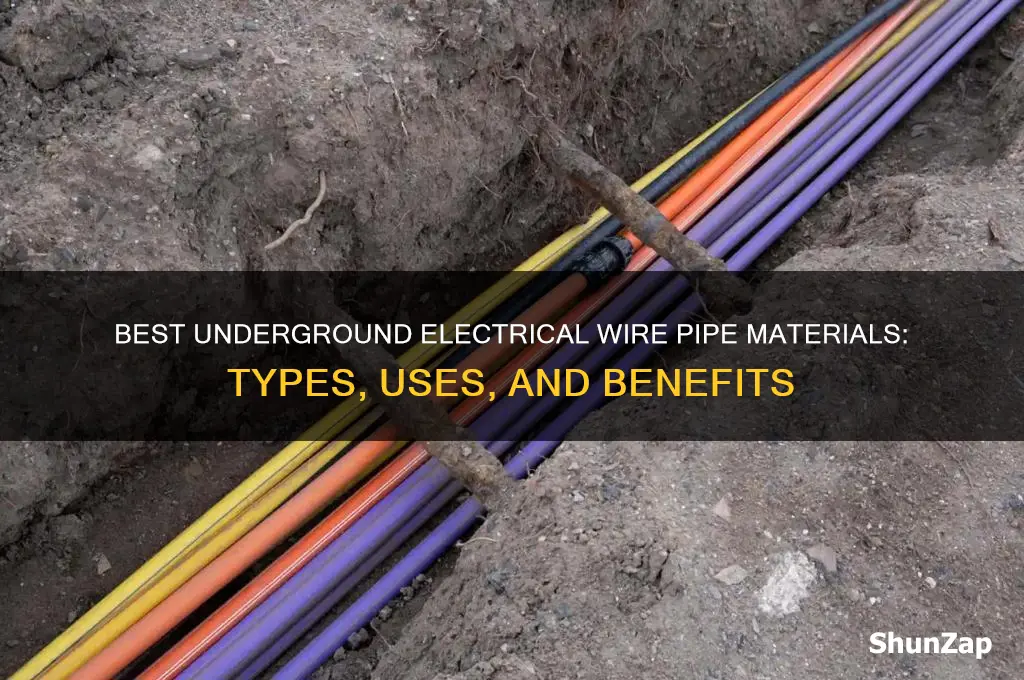

When it comes to underground electrical wiring, the choice of pipe material is crucial for ensuring safety, durability, and efficient performance. Commonly used materials include PVC (polyvinyl chloride), HDPE (high-density polyethylene), and galvanized steel. PVC is widely favored for its affordability, corrosion resistance, and ease of installation, making it ideal for residential and light commercial applications. HDPE offers superior flexibility and impact resistance, often used in areas prone to shifting soil or extreme temperatures. Galvanized steel, though more expensive and heavier, provides exceptional strength and protection against mechanical damage, making it suitable for high-traffic areas or industrial settings. The selection of pipe material ultimately depends on factors such as soil conditions, environmental exposure, and the specific requirements of the electrical system.
| Characteristics | Values |
|---|---|
| Material Types | PVC (Polyvinyl Chloride), HDPE (High-Density Polyethylene), RMC (Reinforced Thermosetting Resin), Fiberglass, Galvanized Steel |
| Common Use | PVC for residential and light commercial, HDPE for corrosive environments, RMC for heavy-duty applications, Fiberglass for high strength-to-weight ratio, Galvanized Steel for mechanical protection |
| Durability | PVC: 50+ years, HDPE: 50+ years, RMC: 50+ years, Fiberglass: 50+ years, Galvanized Steel: 20-50 years (depending on coating) |
| Cost | PVC: Low, HDPE: Moderate, RMC: High, Fiberglass: High, Galvanized Steel: Moderate to High |
| Flexibility | PVC: Rigid, HDPE: Flexible, RMC: Rigid, Fiberglass: Semi-rigid, Galvanized Steel: Rigid |
| Corrosion Resistance | PVC: Good, HDPE: Excellent, RMC: Excellent, Fiberglass: Excellent, Galvanized Steel: Moderate (without proper coating) |
| Temperature Resistance | PVC: -20°C to 60°C, HDPE: -40°C to 60°C, RMC: -40°C to 120°C, Fiberglass: -50°C to 150°C, Galvanized Steel: -40°C to 120°C |
| UV Resistance | PVC: Poor (needs protection), HDPE: Good, RMC: Excellent, Fiberglass: Excellent, Galvanized Steel: Good |
| Chemical Resistance | PVC: Moderate, HDPE: Excellent, RMC: Excellent, Fiberglass: Excellent, Galvanized Steel: Moderate |
| Mechanical Strength | PVC: Moderate, HDPE: Moderate, RMC: High, Fiberglass: High, Galvanized Steel: Very High |
| Environmental Impact | PVC: Moderate (concerns over phthalates), HDPE: Low, RMC: Low, Fiberglass: Moderate, Galvanized Steel: Moderate (due to zinc coating) |
| Installation Ease | PVC: Easy, HDPE: Easy, RMC: Moderate, Fiberglass: Moderate, Galvanized Steel: Difficult |
| Electrical Insulation | All materials provide good electrical insulation when properly installed |
| Standard Compliance | Must meet NEC (National Electrical Code) and local regulations |
Explore related products
What You'll Learn
- PVC Conduit: Flexible, durable, cost-effective, widely used for residential and commercial underground electrical wiring
- HDPE Conduit: High-density polyethylene, resistant to chemicals, ideal for corrosive environments and long-term use
- Galvanized Steel: Strong, rigid, and corrosion-resistant, suitable for heavy-duty underground electrical installations
- Fiberglass Conduit: Lightweight, non-conductive, and resistant to moisture, ideal for harsh underground conditions
- Concrete-Encased Ducts: Provides robust protection, commonly used for high-voltage underground power transmission lines
PVC Conduit: Flexible, durable, cost-effective, widely used for residential and commercial underground electrical wiring
PVC conduit is a highly popular and versatile choice for underground electrical wiring, offering a unique combination of flexibility, durability, and cost-effectiveness. This type of conduit, made from polyvinyl chloride (PVC), is specifically designed to protect and route electrical cables beneath the ground, making it an essential component in both residential and commercial electrical installations. Its widespread use can be attributed to its ability to withstand the challenges posed by underground environments, ensuring the safety and longevity of electrical systems.
One of the key advantages of PVC conduit is its flexibility. Unlike rigid metal pipes, PVC conduit can bend and adapt to the contours of the ground, making installation easier, especially in areas with obstacles or uneven terrain. This flexibility also allows for tighter turns and more precise routing of cables, which is crucial in complex electrical layouts. Despite its pliability, PVC conduit maintains its structural integrity, providing a robust protective layer for the wires within.
Durability is another critical aspect of PVC conduit's appeal. It is resistant to corrosion, a common issue with metal pipes, especially in moist underground conditions. PVC's inherent resistance to moisture and chemicals found in soil ensures that the conduit remains intact and functional over time. Additionally, PVC conduit is lightweight yet strong, capable of withstanding external pressures and impacts, which is vital for protecting cables from potential damage caused by heavy machinery, vehicles, or even natural ground shifts.
The cost-effectiveness of PVC conduit is a significant factor in its widespread adoption. PVC is generally more affordable than metal alternatives, making it an economical choice for large-scale projects. Its ease of installation further reduces labor costs, as it can be quickly cut, fitted, and joined using solvent cement or mechanical couplings. The long-term savings are also notable, as PVC's durability minimizes the need for frequent repairs or replacements, ensuring a reliable and low-maintenance solution for underground electrical wiring.
In residential and commercial applications, PVC conduit is the go-to choice for electricians and contractors. For homes, it is used to safely bring power to outdoor lighting, pools, and detached garages. In commercial settings, PVC conduit is employed for more extensive networks, supplying electricity to multiple buildings, streetlights, or underground parking lots. Its versatility allows it to accommodate various cable sizes and types, making it suitable for low-voltage residential wiring and high-voltage commercial applications. The use of PVC conduit ensures compliance with electrical codes and standards, providing a safe and efficient method for managing underground electrical infrastructure.
When considering underground electrical wire installation, PVC conduit stands out as a reliable and practical solution. Its flexibility simplifies the installation process, while its durability guarantees long-term performance. The cost-effectiveness of PVC makes it accessible for various projects, from small-scale residential upgrades to large commercial developments. With its ability to protect electrical cables from the harsh underground environment, PVC conduit is an indispensable material for modern electrical wiring systems.
Electric Vehicle Sales: Strong and Growing
You may want to see also
Explore related products
HDPE Conduit: High-density polyethylene, resistant to chemicals, ideal for corrosive environments and long-term use
When considering materials for underground electrical wire installations, HDPE (High-Density Polyethylene) conduit stands out as a top choice due to its exceptional properties. HDPE conduit is specifically engineered to provide long-term protection for electrical cables in demanding environments. Its primary advantage lies in its chemical resistance, making it ideal for areas where exposure to corrosive substances, such as acids, alkalis, or salts, is a concern. This resistance ensures that the conduit remains structurally intact and functional even in harsh soil conditions or industrial settings, where other materials might degrade over time.
The durability of HDPE conduit is another key factor that makes it suitable for underground electrical applications. High-density polyethylene is inherently tough and flexible, allowing it to withstand external stresses like ground movement, heavy loads, and temperature fluctuations without cracking or breaking. This flexibility also simplifies installation, as the conduit can be easily bent or maneuvered around obstacles, reducing labor costs and project timelines. Additionally, HDPE's smooth inner surface minimizes friction, ensuring that cables can be pulled through with ease during installation or maintenance.
For long-term use, HDPE conduit offers unparalleled reliability. Its resistance to moisture and UV degradation ensures that it remains effective even when buried underground for decades. Unlike metal conduits, HDPE does not rust or corrode, eliminating the need for frequent replacements or repairs. This longevity not only reduces maintenance costs but also minimizes disruptions to electrical systems, making it a cost-effective solution for both residential and industrial applications.
In corrosive environments, such as coastal areas or chemical plants, HDPE conduit is particularly advantageous. Its non-conductive nature prevents electrical interference and ensures safety, while its resistance to chemicals protects the integrity of the electrical wiring. This makes HDPE conduit an excellent choice for underground installations in challenging terrains or areas with aggressive soil conditions. Its ability to maintain performance over time, even in such environments, underscores its suitability for critical infrastructure projects.
Lastly, HDPE conduit is environmentally friendly, adding another layer of appeal for modern construction practices. It is lightweight, reducing transportation emissions, and can be recycled at the end of its lifespan, minimizing waste. Its long-term durability also means fewer resources are spent on replacements, aligning with sustainable building goals. For underground electrical wire protection, HDPE conduit combines chemical resistance, durability, and eco-friendliness, making it an ideal choice for corrosive environments and long-term applications.
Electric Vehicles in the US: Counting the Revolution
You may want to see also
Explore related products
Galvanized Steel: Strong, rigid, and corrosion-resistant, suitable for heavy-duty underground electrical installations
Galvanized steel is a highly regarded material for underground electrical wire installations, primarily due to its exceptional strength, rigidity, and corrosion resistance. The process of galvanization involves coating steel with a protective layer of zinc, which significantly enhances its durability, making it ideal for heavy-duty applications. This material is particularly well-suited for environments where the conduit will be subjected to substantial physical stress, such as in industrial or commercial settings. Its robust nature ensures that it can withstand external pressures, including soil movement and heavy machinery, without compromising the integrity of the electrical wires housed within.
One of the key advantages of galvanized steel is its ability to resist corrosion, a critical factor for underground installations where moisture and soil chemicals can accelerate deterioration. The zinc coating acts as a sacrificial layer, corroding before the underlying steel is exposed, thereby prolonging the lifespan of the conduit. This corrosion resistance is especially important in areas with high soil acidity or salinity, where other materials might degrade more rapidly. For electrical systems that require long-term reliability, galvanized steel provides a cost-effective solution by minimizing the need for frequent replacements or repairs.
The rigidity of galvanized steel is another feature that makes it a preferred choice for underground electrical wiring. Unlike more flexible materials, such as PVC, galvanized steel maintains its shape and structural integrity, even under significant external forces. This rigidity is essential for ensuring that the conduit remains straight and aligned, which is crucial for proper cable pulling and maintenance. Additionally, its stiffness helps prevent damage during installation, reducing the risk of bends or kinks that could impede the flow of electrical wires.
For heavy-duty installations, galvanized steel offers the necessary mechanical protection to safeguard electrical cables from potential hazards. Its thickness and strength provide a robust barrier against impacts, rodents, and other physical threats that could damage the wires. This level of protection is particularly important for high-voltage systems or critical infrastructure, where any disruption could have serious consequences. Furthermore, galvanized steel conduits are often designed with threaded connections, allowing for secure and watertight joints that enhance the overall resilience of the installation.
In summary, galvanized steel stands out as an excellent material for underground electrical wire installations, especially in demanding environments. Its combination of strength, rigidity, and corrosion resistance ensures long-term performance and reliability, making it a top choice for heavy-duty applications. While it may be more expensive and heavier than some alternatives, the benefits it provides in terms of durability and protection justify its use in critical electrical systems. When selecting materials for underground conduits, considering the specific requirements of the project will help determine whether galvanized steel is the most appropriate option.
Are Electric Cars Impractical? Debunking Myths and Real-World Challenges
You may want to see also
Explore related products
Fiberglass Conduit: Lightweight, non-conductive, and resistant to moisture, ideal for harsh underground conditions
When considering materials for underground electrical wire installations, fiberglass conduit stands out as an exceptional choice due to its unique properties. Fiberglass conduit is lightweight, making it easier to handle and install compared to traditional materials like steel or PVC. This reduces labor costs and minimizes physical strain on workers, especially in large-scale projects. Its lightweight nature also simplifies transportation and positioning, ensuring efficiency in underground electrical wiring applications.
One of the most significant advantages of fiberglass conduit is its non-conductive nature. Unlike metal conduits, fiberglass does not conduct electricity, which enhances safety by eliminating the risk of electrical shorts or grounding issues. This property is particularly crucial in underground environments where moisture and soil conditions can increase the likelihood of electrical hazards. Fiberglass conduit ensures that the electrical wiring remains protected and insulated, maintaining the integrity of the system.
Moisture resistance is another critical feature of fiberglass conduit, making it ideal for harsh underground conditions. Underground environments are often damp or wet, and traditional materials like steel can corrode over time, compromising the protection of electrical wires. Fiberglass, however, is inherently resistant to moisture, preventing corrosion and extending the lifespan of the conduit. This resistance also ensures that the electrical wires remain dry and functional, even in waterlogged soil or areas prone to flooding.
In addition to its lightweight, non-conductive, and moisture-resistant properties, fiberglass conduit offers durability in harsh conditions. It is resistant to chemicals, acids, and alkalis commonly found in soil, making it suitable for a wide range of underground environments. Fiberglass also withstands extreme temperatures, from freezing cold to scorching heat, without warping or degrading. This durability ensures long-term reliability, reducing the need for frequent maintenance or replacements.
Lastly, fiberglass conduit is cost-effective in the long run. While the initial investment may be higher than some alternatives, its longevity and low maintenance requirements offset these costs over time. Its resistance to corrosion and environmental factors means fewer repairs and replacements, saving money and minimizing downtime. For underground electrical wire installations, fiberglass conduit is a smart choice that balances performance, safety, and economic efficiency, making it an ideal material for harsh underground conditions.
Leading the Green Revolution: Countries Powered Entirely by Renewable Energy
You may want to see also
Explore related products
Concrete-Encased Ducts: Provides robust protection, commonly used for high-voltage underground power transmission lines
Concrete-encased ducts are a highly effective solution for protecting underground electrical wires, particularly in high-voltage power transmission applications. This method involves embedding ducts, typically made of durable materials like PVC or HDPE, within a concrete matrix. The concrete acts as a robust shield, providing exceptional mechanical strength and resistance to external forces such as soil pressure, vehicular loads, and environmental stresses. This combination ensures the longevity and reliability of underground electrical systems, making it a preferred choice for critical infrastructure projects.
One of the primary advantages of concrete-encased ducts is their ability to withstand harsh environmental conditions. The concrete encasement protects the ducts from corrosion, moisture ingress, and chemical exposure, which are common challenges in underground installations. Additionally, concrete’s thermal properties help dissipate heat generated by high-voltage cables, reducing the risk of overheating and ensuring optimal performance. This makes concrete-encased ducts ideal for urban areas, industrial zones, and other locations where underground power transmission lines are subjected to demanding conditions.
The installation process for concrete-encased ducts is systematic and requires careful planning. First, trenches are excavated to the required depth and width, ensuring proper alignment for the ducts. The ducts are then placed within the trench, and concrete is poured around them to create a solid encasement. Reinforcement bars (rebar) are often added to the concrete to enhance its structural integrity. Once cured, the concrete forms a rigid protective layer that safeguards the ducts and the cables within. This method minimizes the risk of damage during backfilling and ensures the system remains stable over time.
Concrete-encased ducts are particularly well-suited for high-voltage applications due to their ability to provide a high level of insulation and protection. The concrete acts as a grounding medium, reducing the risk of electrical faults and enhancing safety. Moreover, the system’s durability reduces the need for frequent maintenance, lowering long-term operational costs. This makes it a cost-effective solution for utilities and industries that rely on reliable power transmission.
In summary, concrete-encased ducts offer a robust and reliable solution for protecting underground electrical wires, especially in high-voltage power transmission scenarios. Their combination of mechanical strength, environmental resistance, and thermal properties ensures the safe and efficient operation of electrical systems. By providing unparalleled protection and durability, concrete-encased ducts play a crucial role in maintaining the integrity of underground power infrastructure, making them an indispensable choice for modern electrical networks.
Toyota's Electric Vehicle Plans: Fully Charged or Just Sparking?
You may want to see also
Frequently asked questions
High-Density Polyethylene (HDPE) is the most commonly used pipe material for underground electrical wire installations due to its durability, corrosion resistance, and ease of installation.
Yes, PVC (Polyvinyl Chloride) pipes are frequently used for underground electrical wiring because they are cost-effective, lightweight, and resistant to moisture and chemicals.
Yes, metal conduit (such as galvanized steel or aluminum) can be used for underground electrical wiring, but it requires proper grounding and corrosion protection to ensure long-term reliability.
Yes, materials like HDPE, PVC, and fiberglass-reinforced polyester (FRP) are recommended for direct burial due to their resistance to soil acids, moisture, and mechanical damage. Always follow local electrical codes for specific requirements.
