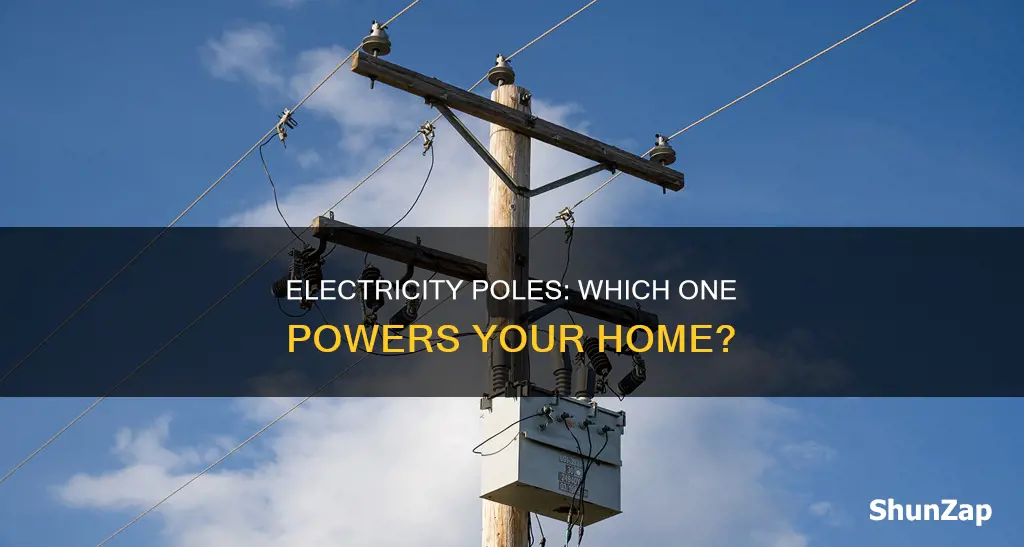

Utility poles are essential for delivering electricity to homes, carrying power lines and transformers that step down high voltages for safe household use. These poles, typically made of wood, are about 35 feet (10 meters) tall and are spaced at varying distances depending on the terrain. Each pole can carry one or multiple phases of power, with voltages ranging from 7,200 to 240 volts, and include a ground wire for safety. The ground wire, often the lowest on the pole, completes the circuit inside the transformer and protects against lightning strikes. From the pole, a service drop or service lateral, consisting of insulated and uninsulated cables, delivers electricity to residences. These cables are typically owned and maintained by utility companies, ensuring a consistent power supply to homes.
| Characteristics | Values |
|---|---|
| Height | 35 ft (10 m) above ground; can reach up to 120 ft (40 m) to meet clearance regulations |
| Buried Depth | 6 ft (2 m) |
| Spacing | 125 ft (40 m) apart in urban areas; 300 ft (100 m) in rural areas |
| Composition | Wood, pressure-treated with preservatives |
| Ownership | Owned by one utility company, which leases space to other cables |
| Carried Lines | Distribution lines ("feeders"), sub-transmission lines |
| Line Voltages | Distribution lines: 4.6-33 kV; Sub-transmission lines: 46 kV, 69 kV, 115 kV |
| Grounding | Some countries ground every pole; others ground every fifth pole and poles with transformers |
| Wires | Ground wire, communication wires, insulated wires carrying 120 volts each |
| Transformers | Reduces voltage from 7,200 to 240 volts for household electrical service |
| Service Drop | Bundle of electrical cables that run from the utility pole to the house, providing electricity |
Explore related products
What You'll Learn
Utility poles carry power distribution and sub-transmission lines
Utility poles are used by utility companies to support cables and equipment for public services. They are commonly used to carry two types of electric power lines: distribution lines and sub-transmission lines.
Distribution lines carry power from local substations to customers, including homes and businesses. They carry voltages from 4.6 to 33 kilovolts (kV) for distances up to 30 miles (50 km). They include transformers to step down the voltage to the lower secondary voltage used by the customer. This lower voltage is carried to the customer's premises through a service drop. Distribution poles can be tangent, guyed, or self-supporting.
Sub-transmission lines carry higher voltage power from regional substations to local substations. They typically carry voltages of 46 kV, 69 kV, or 115 kV for distances up to 60 miles (100 km).
In some cases, distribution lines and sub-transmission lines are carried on the same pole, with the distribution lines mounted under the higher voltage lines in a practice called "underbuild". This is done to save space in urban areas or for other economic or practical reasons. Telecommunication cables, such as telephone and internet lines, are also often carried on the same poles that support power lines. These poles are known as joint-use poles.
The standard utility pole in the United States is about 35 feet (10 meters) tall and is buried about 6 feet (2 meters) in the ground. They are typically spaced about 125 feet (40 meters) apart in urban areas and 300 feet (100 meters) in rural areas, although distances can vary depending on terrain.
Utility poles play a crucial role in supporting power distribution and sub-transmission lines, ensuring that electricity can be safely delivered to homes and businesses.
Replacing Blown Fuses: A Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Voltages are stepped down from primary to secondary
The electricity that powers your house travels a long way, starting from power plants and making its way through transmission lines and distribution systems before finally reaching your home. This is made possible by transformers, which are crucial in ensuring that electricity reaches your house at the appropriate voltage.
Transformers are used to change power voltages to other levels. Voltages are stepped up when electricity needs to be transmitted over long distances, and they are stepped down when electricity is closer to where it will be used or for equipment that uses the power. Transformers do not produce power but rather convert it, ensuring that the power coming into your house is at a safe voltage for everyday use.
A transformer that increases voltage from primary to secondary is called a step-up transformer. This type of transformer has more secondary winding turns than primary winding turns. Conversely, a transformer that decreases voltage from primary to secondary is called a step-down transformer, which has a high turn count on the primary winding and a low turn count on the secondary winding.
The step-up and step-down effect of transformers is similar to gear tooth ratios in mechanical gear systems, where speed and torque are adjusted. In the case of a step-down transformer, it converts high-voltage, low-current power into low-voltage, high-current power. The secondary winding requires a larger-gauge wire due to the increase in current, while the primary winding, which does not need to conduct as much current, can be made of smaller-gauge wire.
The process of stepping down voltage is the same as stepping up voltage, involving changing the number of windings on each side of the transformer core. By manipulating the number of windings, the amount of power leaving the transformer can be controlled. To step down the voltage, the secondary side of the transformer will have fewer windings than the primary side. For example, to step down the power from a 120-volt outlet to a 12-volt charger, there would be ten times more windings on the primary power side (120 volts) compared to the secondary power side (12 volts).
In the context of your house, the voltage is stepped down from the primary to the secondary. A transformer attached to the pole outside your house reduces the voltage from 7,200 volts to 240 volts, which is the standard voltage for household electrical service. This allows you to safely use both 120-volt and 240-volt appliances in your home.
Ground Conductivity: Electricity's Friend or Foe?
You may want to see also
Explore related products
![Power-Pole ONE Pump Dual Blade Anchor Kit [8' - Black]](https://m.media-amazon.com/images/I/61iv0aPJqYL._AC_UL320_.jpg)
Poles are grounded to prevent fire and shock hazards
Electrical power is delivered to homes through a complex system of power grids. Poles with one phase of power (at 7,200 volts) and a ground wire are used to bring electricity to houses. These poles have a transformer drum attached to them, which reduces the voltage to 240 volts, which is the standard for household electrical service.
Grounding, or electrical grounding, is an essential aspect of this process, providing a good return path for electrons. Ground wires, also known as "grounds," are copper wires or rods that run from the utility pole into the ground. They are critical safety mechanisms that direct excess electricity away from the utility wires and grid elements, including transformers, antennas, and public lights, in the event of a lightning strike or electrical surge.
Grounding conductors play a crucial role in preventing fire and shock hazards. By providing a low-resistance path directly into the ground, they safely discharge positive electrical charges into the earth. This controlled process ensures that excess electricity is diverted away from the grid infrastructure and prevents it from causing electrical shocks or fires.
However, it is important to note that grounding does not always provide absolute protection against electric shocks. While it can minimize the time of exposure to faults, it can also introduce current surges from the grid. Additionally, missing or stolen grounds can pose a serious safety risk. Regular inspections of utility pole grounds are necessary to ensure proper maintenance and mitigate potential hazards.
To protect against theft and vandalism, utilities can employ various methods, such as stapling cables closely together near the ground to make them harder to detach and disguising pole grounds as cable TV covers to make them less attractive to thieves. Overall, grounding conductors are an essential component of the electrical grid, helping to prevent fire and shock hazards and ensuring the safe distribution of electricity to homes.
Understanding Skeletal Muscle Cells' Electrical Insulation
You may want to see also
Explore related products
Power enters the house through a watt-hour meter
The watt-hour meter was invented in 1894 by Oliver Shallenberger of the Westinghouse Electric Corporation. Shallenberger's design used the induction principle previously employed in AC ampere-hour meters to create a watt-hour meter of a modern electromechanical form. The induction meter only works with alternating currents, but it eliminated the delicate commutator of previous designs.
The watt-hour meter consists of a small electric motor and a counter. A fraction of the current in the circuit is diverted to operate the motor, with the speed of the motor's rotation corresponding to the current in the circuit. The counter is connected to the rotor and displays the amount of power the circuit has carried based on the number of revolutions. The counter is usually marked in kilowatt-hours (1,000 watt-hours).
In the past, meter readers would periodically check a house's meter to record its usage. Now, as part of the national upgrade to smart grid technology, many residential meters have been replaced with smart meters that communicate directly with the power company. These smart meters allow for remote reading and instant notification in the case of a power outage.
The power that enters the house through the watt-hour meter is supplied via a pole with one phase of power (at 7,200 volts) and a ground wire. At each house, there is a transformer drum attached to the pole, which reduces the voltage from 7,200 to 240. This arrangement allows homeowners to use both 120-volt and 240-volt appliances.
Electric Garage Door Not Working? Try These Quick Fixes
You may want to see also
Explore related products
![Power-Pole ONE Pump Dual Blade Anchor Kit [10' - Black Out]](https://m.media-amazon.com/images/I/61z806lWgdL._AC_UL320_.jpg)
Service drops are key to funnel electricity into homes
Utility poles are essential for delivering electricity to homes. They carry two types of electric power lines: distribution lines and sub-transmission lines. Distribution lines transport power from local substations to customers, typically covering voltages from 4.6 to 33 kilovolts. These lines include transformers that step down the voltage to the lower secondary voltage used in homes, typically 240 volts. The service drop, or the bundle of electrical cables, then carries this reduced voltage from the utility pole to the house.
Service drops are crucial for delivering electricity to homes. They consist of three cables: two insulated hot cables each carrying 120 volts, and a third bare aluminium wire with a steel core acting as a neutral conductor and providing structural support. These cables are attached to the side of the house and connect to the utility pole, allowing electricity to flow into the home.
The arrangement of these cables enables homeowners to use both 120-volt and 240-volt appliances. The two insulated wires carrying 120 volts each are 180 degrees out of phase, resulting in a 240-volt difference between them. This setup ensures compatibility with the different voltage requirements of household appliances.
Service drops are typically owned by utility companies, and any issues with them should be reported to the company for repair. These cables are hazardous and should not be touched or tampered with by homeowners. In recent construction, underground service lines, known as service laterals, have become more common due to their resilience against harsh weather conditions and their ability to remain out of reach, reducing the risk of accidental contact.
Utility poles themselves are typically made of wood and are about 35 feet (10 meters) tall, with a standard spacing of 125 feet (40 meters) in urban areas and 300 feet (100 meters) in rural areas. They are essential structures that facilitate the distribution of electricity to homes through service drops, ensuring a consistent power supply for daily household needs.
Stop Electricity Theft: Smart Metering and Surveillance
You may want to see also
Frequently asked questions
Utility poles are used to carry two types of electric power lines: distribution lines and sub-transmission lines. Distribution lines carry power from local substations to customers, while sub-transmission lines carry higher voltage power from regional substations to local substations.
Through a service drop or service lateral, which is a bundle of electrical cables or three individual wires that run from the electric utility company's power pole to your house.
There are typically two insulated wires carrying 120 volts each, but 180 degrees out of phase, resulting in a difference of 240 volts. There is also a third bare wire that serves as the ground wire and completes the circuit inside the transformer.
The ground wire provides a good return path for electrons and directs electricity from lightning safely into the earth. It also provides protection against flashovers, lightning strikes, and leakage currents that could cause fires or shock hazards.
The standard utility pole in the United States is about 35 feet (10 meters) tall and is buried approximately 6 feet (2 meters) in the ground. However, to meet clearance regulations, poles can reach heights of at least 120 feet (40 meters).
