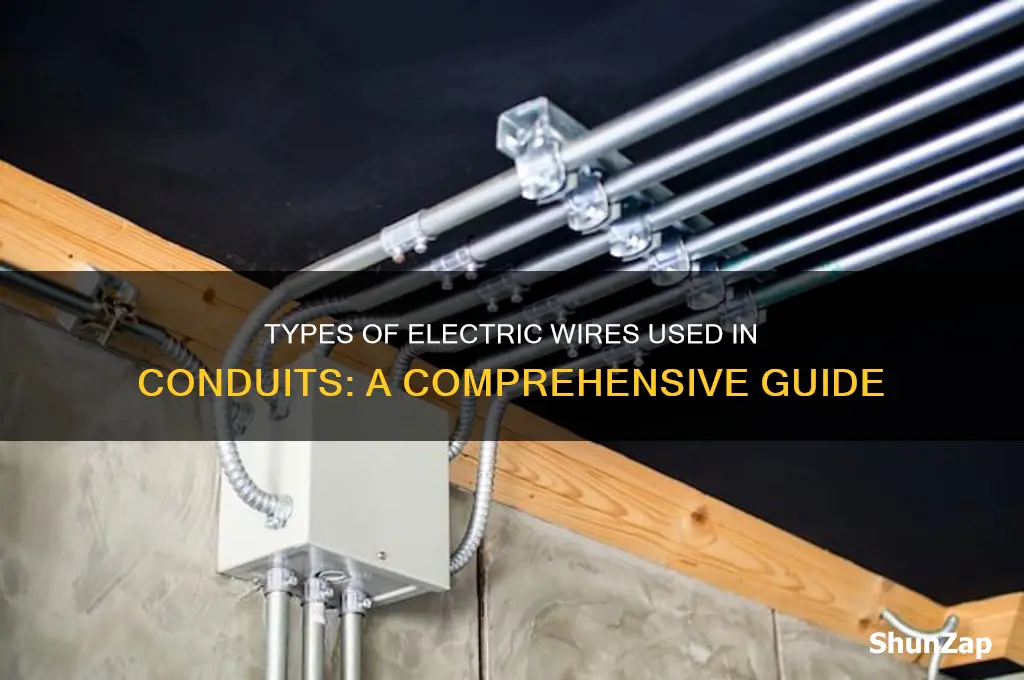

When installing electrical wires in a conduit, the type of wire used is crucial for safety, efficiency, and compliance with building codes. Typically, THHN/THWN-2 (Thermoplastic High Heat-resistant Nylon/Thermoplastic Heat and Water-resistant Nylon) wires are the most common choice due to their durability, resistance to heat, moisture, and chemicals, and ability to handle high temperatures. These wires are often insulated with PVC or nylon and are suitable for both wet and dry environments. Another option is XHHW-2 (Xtra Heavy-duty Heat and Water-resistant) wire, which offers similar benefits but with a higher temperature rating, making it ideal for demanding applications. Additionally, UF-B (Underground Feeder) wires are used for outdoor or underground conduit installations, as they are designed to withstand moisture and direct burial. The choice of wire depends on factors such as voltage, amperage, environmental conditions, and local electrical codes, ensuring the system operates safely and efficiently.
Explore related products
What You'll Learn
- THHN/THWN Wire: Commonly used for conduit, rated for high temps, moisture resistance, and insulation
- XHHW Wire: High-heat resistant, suitable for conduits in harsh environments, durable insulation
- UF-B Cable: Underground feeder, moisture-resistant, ideal for outdoor conduit installations
- SE Cable: Service entrance wire, weatherproof, used in conduit for outdoor power supply
- MC Cable: Metal-clad, flexible armor, often used in conduit for commercial applications
THHN/THWN Wire: Commonly used for conduit, rated for high temps, moisture resistance, and insulation
THHN/THWN wire is one of the most commonly used types of electrical wires in conduit applications due to its versatility and robust construction. The acronyms THHN and THWN stand for specific ratings that make this wire ideal for conduit installations. THHN stands for Thermoplastic High Heat-resistant Nylon-coated, indicating its ability to withstand high temperatures, while THWN stands for Thermoplastic Heat and Water-resistant Nylon-coated, highlighting its moisture resistance. These dual ratings ensure that THHN/THWN wire can perform reliably in a variety of demanding environments, making it a preferred choice for both residential and commercial conduit systems.
One of the key advantages of THHN/THWN wire is its high-temperature rating, which allows it to operate safely in environments where temperatures can reach up to 90°C (194°F). This makes it suitable for use in conduit systems that run through hot attics, near heating equipment, or in industrial settings where heat is a concern. The wire’s insulation is designed to maintain its integrity under these conditions, reducing the risk of electrical failures or fires. Additionally, the nylon coating provides an extra layer of protection against abrasion, which is particularly important when pulling wires through conduit, as it minimizes the risk of damage during installation.
Moisture resistance is another critical feature of THHN/THWN wire, making it suitable for conduit installations in damp or wet locations. The THWN rating ensures that the wire can withstand exposure to water without compromising its performance or safety. This is especially important in outdoor conduit systems, basements, or areas prone to condensation. The moisture-resistant properties of THHN/THWN wire also contribute to its longevity, as it is less likely to degrade over time due to environmental factors.
The insulation of THHN/THWN wire is designed to provide excellent electrical protection while remaining flexible enough for easy installation in conduit. The thermoplastic insulation is durable yet pliable, allowing electricians to pull the wire through long or complex conduit runs without excessive friction or resistance. This flexibility, combined with the wire’s resistance to heat and moisture, makes THHN/THWN wire a practical and cost-effective solution for conduit wiring projects. It is available in a variety of gauges to accommodate different amperage requirements, ensuring compatibility with a wide range of electrical systems.
In summary, THHN/THWN wire is a top choice for conduit applications due to its high-temperature rating, moisture resistance, and durable insulation. Its dual ratings (THHN and THWN) make it suitable for use in both dry and wet locations, while its nylon coating provides added protection against abrasion during installation. Whether for residential, commercial, or industrial projects, THHN/THWN wire offers the reliability and performance needed to ensure safe and efficient electrical systems within conduit. Its versatility and robust construction make it an essential component in modern electrical wiring practices.
