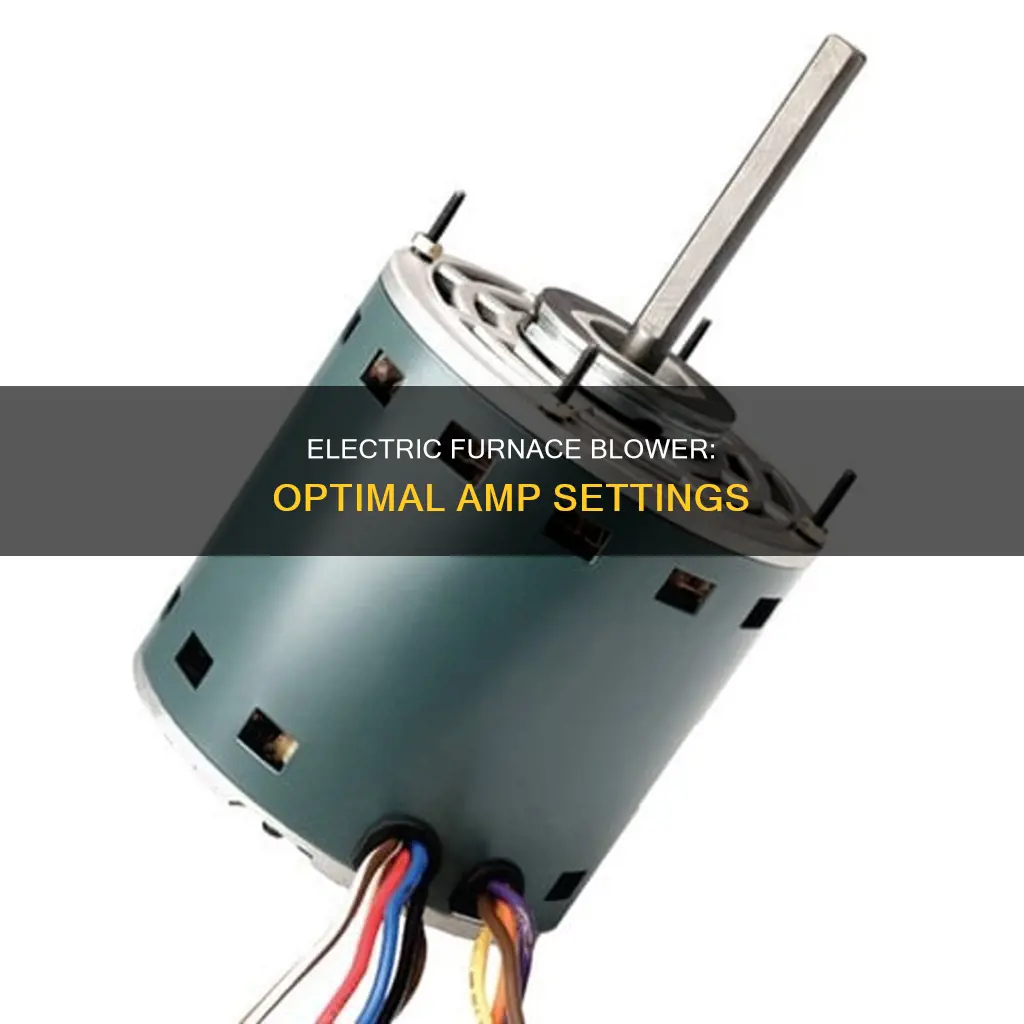

Electric furnace blowers have a set amp and voltage rating that they should run at, and this information should be listed on a name tag on the motor. Amperage is a measure of power being consumed by an electrical device, and the amp draw of a blower motor is a measurement of the power being consumed by the motor to move the air through your HVAC system. If a motor is over-amping, it is drawing more current than it was designed for, which will shorten its life and burn the motor up. To measure the amp draw of a blower motor, one must disconnect the power from the blower motor and open the blower compartment of the furnace. Then, one must find the FLA rating of the blower motor, which can be difficult to read on direct-drive motors. To measure the amp draw, one can use an amp clamp, which is clamped around one of the wires the motor is pulling power from, or a multimeter, which uses the leads from the meter set in the circuit to measure amps.
| Characteristics | Values |
|---|---|
| How to measure AMPs | Use a remote amp clamp attached to the end of a 3-4 ft. cord. |
| Use a multimeter with an Amp-Clamp feature. | |
| Use a clamp ampmeter. | |
| Safety precautions | Do not use bare fingers to test the wires. |
| Ensure test instruments are calibrated annually. | |
| Pay attention to personal safety when measuring electricity. | |
| Ensure your meter is set up to handle the voltage and AMPs required. | |
| Be aware of moving parts such as fan blades. | |
| AMP range | 0.01 to 20+ amps |
| Voltage range | 120, 240, or 460 volts |
| Possible causes of over-amping | Start Run capacitors |
| A motor that is getting hot and slowing its RPMs | |
| A clogged evaporator | |
| Leaky ductwork | |
| Low refrigerant charge | |
| Corroded condenser coils | |
| Weakening of the motor over time |
Explore related products
What You'll Learn
How to measure amp draw
Amp draw is a measurement of the power consumed by a blower motor to move air through your HVAC system. To measure amp draw, you can follow these steps:
Firstly, ensure you prioritise your safety. Do not reach into the system with your fingers to test wires, as you could risk serious injury.
Next, disconnect the power from the blower motor by shutting it off at the disconnect box or unplugging the power source. Then, open the blower compartment of the furnace or air handler. You may need to use a remote amp clamp attached to the end of a 3-4 ft cord to access the compartment.
Once you have accessed the compartment, find the FLA rating of the blower motor. This information is usually located on a nameplate on the side of the motor, and you may need an inspection mirror to read it.
After you have found the FLA rating, use a clamp meter or multimeter to take a measurement of the amp draw. Place the clamp onto the power lead of the motor, and measure the flow of the current pulled by the motor. Ensure your test instruments are calibrated annually for accurate readings.
If you are measuring amp draw at home, you can use a clamp multimeter to measure the amp draw from different cables. Add up the amps from each cable to get the total amp draw.
It is important to note that measuring amp draw is usually academic, as it is rare to need to measure the current load from one device. Additionally, it can be challenging to determine what an accurate "good" reading should be.
Fading Hair with Electric Razors: Mastering the Art
You may want to see also
Explore related products
Safety precautions
Electric furnace blower amps can be a tricky business, and it's important to take safety precautions when dealing with them. Here are some essential safety guidelines to follow:
- Always disconnect power from the blower motor before starting any work. Shut it off at the disconnect box or unplug the power source. This is crucial to prevent any accidents or damage to the system.
- Be cautious when opening the blower compartment. Use an inspection mirror if needed to locate the FLA rating of the blower motor, which is usually on the nameplate. Be careful not to read the numbers backward.
- Ensure you have the right tools, such as a remote amp clamp attached to a cord, to access the blower compartment safely. This helps maintain a safe distance from the moving parts.
- Pay close attention to personal safety when measuring electricity. The amperage measurement is taken with the power on, and the fan can move at high speeds, posing a risk to your fingers and test leads.
- Have your test instruments calibrated regularly to ensure accurate readings and diagnostics. This helps you make informed decisions about your electric furnace blower.
- Regularly inspect and maintain your furnace to ensure its safe operation. Schedule annual inspections and maintenance to spot problems early and replace any faulty or worn-out parts that may cause safety hazards.
By following these safety precautions, you can confidently work with electric furnace blower amps while minimizing risks and ensuring the optimal functioning of your equipment.
Sur-Ron: Electric Bicycle or Motorcycle?
You may want to see also
Explore related products
Over-amping and under-amping
When a motor is over-amping, it is drawing more current than it was designed for. This can be caused by Start Run capacitors. Over-amping will shorten the life of the motor and can burn it up. An over-amping motor will also get very hot. If the measured amp draw exceeds the capacity of the motor, the motor will fail prematurely.
Under-amping can be a sign of a serious airflow problem. If the measured amp draw is only half of the FLA, or Full Load Amps (the maximum the motor is rated to run at), then the system may not be functioning properly.
To measure the Amp draw of a blower motor, a correct multimeter must be used to avoid damaging the meter. Many HVAC multimeters use Amp-Clamps, which are clamped around one of the wires the motor is pulling power from. The motor's power lead will be connected to the clamp, which will then display the Amps. It is important to be cautious when measuring Amps or Voltage as HVAC units have high voltage running through them.
Electric Sheep Comic: Androids' Dreamy Escape
You may want to see also
Explore related products
$89.5 $95.95
$556.45
Reducing energy consumption
Electric furnaces are a popular choice for homeowners due to their simplicity, eco-friendliness, and safety. Unlike gas furnaces, they do not rely on natural gas or propane, but their energy consumption depends on electricity usage.
To reduce the energy consumption of an electric furnace blower, several strategies can be implemented:
- Seal and Insulate Your Home: Proper insulation and sealing gaps in windows, doors, and ducts are crucial for maintaining energy efficiency. Well-insulated homes retain heat better, reducing the workload on your furnace.
- Use Programmable Thermostats: Utilize programmable thermostats to maintain consistent indoor temperatures. Lowering the thermostat when you're away or sleeping helps conserve energy without compromising comfort. Creating heating zones can also optimize heating and further reduce energy consumption.
- Choose the Right Furnace Size: Ensure your furnace is properly sized for your home. An oversized furnace may short-cycle, turning on and off frequently, while an undersized furnace may run continuously. A properly sized furnace operates more efficiently.
- Maintain and Clean Your Furnace: Regular maintenance is essential. Keep the filter and blower motor clean, and ensure proper insulation and sealing. A clean and well-maintained furnace operates more efficiently.
- Upgrade to a Variable-Speed Blower Motor: Consider upgrading to a variable-speed blower motor, which adjusts its operation to meet heating demands. This can lead to significant energy savings, as they consume less power when running at lower speeds.
- Replace with an ECM Furnace: If feasible, replace your furnace with one equipped with an Electronically Commutated Blower Motor (ECM). ECMs are highly efficient, especially at low speeds, often drawing less than 100 watts. This can result in substantial energy savings.
- Wire for Continuous Fan Operation on Low Speed: Have your blower motor wired so that the continuous fan operates at low speed. This can reduce energy consumption, although the reduction may not exceed 50%.
- Choose a High-Efficiency Furnace: When selecting a new furnace, opt for a high-efficiency model with a good Annual Fuel Utilization Efficiency (AFUE) rating. This rating indicates how efficiently the furnace converts electricity into heat. A higher AFUE rating means greater energy efficiency.
- Consider a Mini-Fridge for Temperature-Controlled Storage: If you require temperature-controlled storage, a mini-fridge or compact freezer may be a more energy-efficient option than a larger appliance. Modern compact freezers operate for around eight hours a day, using less energy while maintaining desired temperatures.
- Monitor Amp Draw: Amp draw measures the power consumed by a blower motor. Excessive amp draw can lead to premature motor failure. Regularly monitoring amp draw can help identify potential issues and ensure your system is operating within safe parameters.
Green Energy Alternatives to Coal-Powered Electricity
You may want to see also
Explore related products
Interpreting results
Amp draw is a measurement of the power being consumed by a blower motor to move the air through your HVAC system. The amperage measurement is taken with the power on and a fan that often moves from 500 to 2,000 rpm.
To interpret the results, you must first understand the concept of FLA or Full Load Amps. Every electric motor has a set Amp and voltage rating that it should run at, and this information is typically listed on a name tag on the motor. The voltage can be 120 volts, 240 volts, or 460 volts, and the Amps can range from .01 to 20 amps or more. When a system has been renovated and system performance has been maximized, it is common to read amp draw at 80% to 90% of FLA on most direct-drive residential units.
If the measured amp draw exceeds the capacity of the motor, it will fail prematurely due to excessive heat. In such cases, the motor is working beyond its FLA, and its life expectancy is significantly decreased. For example, if a condensing fan motor is rated at 3 Amps, but after measuring the Amps, it is found to be using 5 Amps, then there is a problem that needs to be addressed.
On the other hand, if the measured amp draw is only half of the FLA, it indicates a serious airflow problem that will require additional work to get the system to function properly.
It is important to use the correct multimeter when measuring amps to avoid damaging the meter. HVAC multimeters often use Amp-Clamps, where the clamp is attached to one of the wires the motor is pulling power from, and it will display the Amps. Alternatively, some multimeters use the leads from the meter set in the circuit to measure Amps. Remember to have your test instruments calibrated annually to ensure accurate and reliable readings.
Exploring Androids' Dreams: Electric Sheep and Beyond
You may want to see also
Frequently asked questions
To measure the amp draw of an electric furnace blower, you must first disconnect the power from the blower motor. Then, open the blower compartment and locate the FLA rating of the blower motor. You can then use an electrical meter or multimeter to test the electrical properties.
A normal amp draw will vary depending on the furnace, but it should be within 80% to 90% of the FLA rating on the blower motor. If the amp draw exceeds the capacity of the motor, it will fail prematurely.
If your electric furnace blower is over-amping, it means that it is drawing more current than it was designed for. This will cause the motor to get very hot and will shorten its life. You should fix this problem as soon as possible.
