When discussing small electric motors, the size of the copper wire used is a critical factor that directly impacts the motor's efficiency, performance, and overall functionality. Typically, small electric motors utilize copper wire gauges ranging from 22 AWG (American Wire Gauge) to 30 AWG, with the specific gauge depending on the motor's power requirements, current capacity, and physical constraints. Thicker wires, such as 22 AWG or 24 AWG, are often employed in motors that handle higher currents or require reduced resistance, while thinner wires like 28 AWG or 30 AWG are used in applications where space is limited or lower current levels are sufficient. The choice of wire size is also influenced by factors such as heat dissipation, insulation thickness, and the motor's intended operating environment, ensuring optimal performance and longevity.
Explore related products
What You'll Learn
- Common Wire Gauges: AWG 18-22 are typical for small motors due to current and space requirements
- Current Capacity: Wire size depends on motor amperage; higher current needs thicker wire
- Insulation Types: Enamel or PVC insulation is used to prevent short circuits in compact motors
- Wire Flexibility: Stranded copper wire is preferred for flexibility in motor windings
- Temperature Rating: Wire must withstand motor operating temperatures without degrading
Common Wire Gauges: AWG 18-22 are typical for small motors due to current and space requirements
When it comes to small electric motors, the choice of copper wire gauge is critical for ensuring optimal performance, efficiency, and safety. Common Wire Gauges: AWG 18-22 are typical for small motors due to current and space requirements. These gauges strike a balance between carrying sufficient current for the motor's operation and fitting within the limited space available in compact motor designs. AWG (American Wire Gauge) is a standardized wire gauge system that defines the diameter of the wire, with smaller AWG numbers indicating larger diameters and greater current-carrying capacity. For small motors, AWG 18 to 22 wires are widely used because they can handle the current demands of these motors while remaining thin enough to be wound tightly around the motor's armature or stator cores.
The current requirements of small motors are a primary factor in selecting AWG 18-22 wires. Small motors typically operate at lower amperages compared to larger industrial motors, often ranging from a few hundred milliamps to a few amps. AWG 18 wire, for example, can safely carry up to approximately 7 amps in free air, while AWG 22 is suitable for currents below 1 amp. This range aligns well with the needs of small motors found in applications like power tools, household appliances, and hobbyist projects. Using a wire gauge that matches the motor's current requirements ensures minimal energy loss due to resistance while avoiding overheating, which could damage the motor or insulation.
Space constraints are another critical reason why AWG 18-22 wires are typical for small motors. These motors are often designed to fit into compact devices, leaving limited room for wiring. Thicker wires (lower AWG numbers) would occupy more space and make it difficult to achieve the necessary number of turns in the motor's windings. AWG 18-22 wires, being thinner, allow for more turns within the same physical space, which is essential for generating the required magnetic field strength and torque. Additionally, the flexibility of these smaller gauges makes them easier to work with during the winding process, reducing the risk of breakage or misalignment.
Insulation and thermal considerations also play a role in the selection of AWG 18-22 wires for small motors. Copper wire used in motors is typically insulated with materials like enamel or fiberglass to prevent short circuits between adjacent turns. Thinner wires in the AWG 18-22 range allow for a sufficient insulation layer without significantly increasing the overall diameter of the wire. This is crucial for maintaining the motor's efficiency and reliability. Moreover, the lower current densities in these gauges reduce the risk of excessive heat buildup, which could degrade the insulation or affect the motor's performance over time.
In summary, AWG 18-22 wires are typical for small motors due to current and space requirements because they offer the right balance of current-carrying capacity and physical dimensions. These gauges ensure that the motor operates efficiently within its design parameters while fitting into compact enclosures. Whether for DIY projects or commercial applications, understanding the role of wire gauge in motor design helps in selecting the appropriate materials for optimal performance and longevity. Always refer to the motor's specifications or consult a professional when in doubt to ensure the correct wire gauge is used.
The Revolutionary First Use of the Electric Motor Unveiled
You may want to see also
Explore related products
Current Capacity: Wire size depends on motor amperage; higher current needs thicker wire
When determining the appropriate copper wire size for small electric motors, current capacity is a critical factor. The wire must be able to handle the motor's amperage without overheating or causing voltage drop. As a general rule, higher current demands thicker wire to ensure safe and efficient operation. This relationship is governed by the wire's cross-sectional area, which directly affects its ability to conduct electricity. Thicker wires have larger cross-sectional areas, allowing them to carry more current without excessive resistance or heat generation.
The motor's amperage rating is the primary determinant of the required wire size. For small electric motors, amperage typically ranges from a few hundred milliamps to several amps, depending on the motor's power and application. For instance, a small DC motor rated at 2 amps will require a wire size that can safely handle this current. Common wire gauges for such applications include 18 AWG to 12 AWG, with thicker wires (lower AWG numbers) used for higher amperage motors. It’s essential to consult the motor's specifications or use a wire size calculator to ensure the selected wire can handle the motor's maximum current draw.
Another important consideration is the length of the wire run. Longer wire lengths increase resistance, which can lead to voltage drop and reduced motor performance. To compensate for this, a thicker wire may be necessary, even if the motor's amperage is relatively low. For example, a 20 AWG wire might suffice for a short run, but a 16 AWG wire could be required for longer distances to maintain efficiency. Always factor in wire length when determining the appropriate size to ensure the motor operates within its optimal voltage range.
Environmental conditions also play a role in wire size selection. Motors operating in high-temperature environments or enclosed spaces may require thicker wires to dissipate heat more effectively. Additionally, safety standards often dictate minimum wire sizes based on current capacity. For instance, the National Electrical Code (NEC) provides guidelines for wire sizing based on amperage and application. Adhering to these standards ensures the wiring is safe and compliant with regulations.
In summary, wire size for small electric motors is directly tied to current capacity, with higher amperage motors requiring thicker wires. Factors such as wire length, environmental conditions, and safety standards further influence the selection process. By carefully evaluating the motor's amperage and these additional considerations, you can choose the appropriate wire size to ensure reliable and efficient motor operation. Always prioritize safety and consult relevant guidelines to avoid overheating, voltage drop, or other electrical issues.
Are All Electric Cars AWD? Exploring Drivetrain Options in EVs
You may want to see also
Explore related products
Insulation Types: Enamel or PVC insulation is used to prevent short circuits in compact motors
When it comes to small electric motors, the choice of copper wire size is closely tied to the insulation type used, as both factors significantly impact the motor's performance, efficiency, and safety. Typically, small electric motors use copper wire sizes ranging from 22 AWG (American Wire Gauge) to 30 AWG, depending on the motor's power requirements and design. Finer gauges like 28 AWG or 30 AWG are common in compact motors due to their flexibility and space efficiency. However, the insulation type—enamel or PVC—plays a critical role in ensuring these wires function reliably without short circuits.

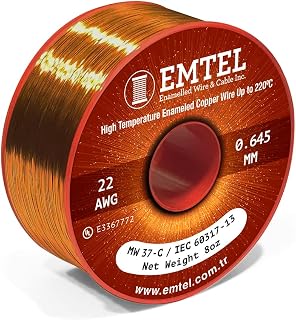

Enamel insulation is a popular choice for small electric motors due to its thin, durable coating that allows for tight winding in compact spaces. Enamel-insulated copper wire, often referred to as magnet wire, is coated with a polymer film that provides excellent electrical resistance and heat tolerance. This insulation type is ideal for high-temperature applications, as it can withstand temperatures up to 180°C (356°F) or more, depending on the grade. Its thin profile ensures minimal space usage, making it perfect for motors with intricate windings. However, enamel insulation requires careful handling during manufacturing, as it can be damaged by sharp edges or excessive bending.
PVC (Polyvinyl Chloride) insulation is another option for small electric motors, particularly in applications where flexibility and ease of installation are priorities. PVC insulation is thicker than enamel, providing robust mechanical protection and resistance to abrasion. It is also more forgiving during assembly, as it can withstand bending and manipulation without cracking. However, PVC has a lower temperature rating compared to enamel, typically up to 105°C (221°F), which limits its use in high-temperature environments. PVC-insulated wires are often used in motors where heat dissipation is less of a concern or in applications requiring additional mechanical durability.
The choice between enamel and PVC insulation depends on the motor's operating conditions and design constraints. For compact motors with high-temperature requirements and tight winding spaces, enamel insulation is the preferred option. Its thin layer ensures maximum copper conductor usage, optimizing the motor's efficiency. Conversely, PVC insulation is suitable for motors where flexibility, ease of assembly, and mechanical protection are more critical than heat resistance. In both cases, the insulation type must be carefully matched to the wire size and motor specifications to prevent short circuits and ensure reliable operation.
In summary, while the size of copper wire in small electric motors typically ranges from 22 AWG to 30 AWG, the insulation type—enamel or PVC—is equally important. Enamel insulation offers high-temperature resistance and space efficiency, making it ideal for compact, high-performance motors. PVC insulation, with its flexibility and durability, is better suited for applications where mechanical stress and ease of installation are key considerations. Proper selection of insulation type ensures that the motor operates safely and efficiently, avoiding short circuits and other electrical failures.
Are Electric Cars Truly Eco-Friendly? Uncovering the Environmental Impact
You may want to see also
Explore related products
Wire Flexibility: Stranded copper wire is preferred for flexibility in motor windings
When selecting copper wire for small electric motors, one of the critical factors to consider is wire flexibility, especially in the context of motor windings. Stranded copper wire is the preferred choice for this application due to its inherent flexibility compared to solid wire. Motor windings often require bending and shaping to fit into tight spaces within the motor's core, and stranded wire, composed of multiple smaller strands twisted together, allows for easier manipulation without compromising conductivity. This flexibility is essential during the manufacturing process, where precision and adaptability are key to ensuring efficient motor performance.
The flexibility of stranded copper wire also plays a vital role in the long-term reliability of small electric motors. During operation, motors experience vibrations and thermal expansion, which can cause rigid components to fatigue or break. Stranded wire, with its ability to absorb movement and stress, reduces the risk of wire breakage or insulation damage. This is particularly important in applications where motors are subjected to frequent starts, stops, or variable loads, as the wire must withstand repeated mechanical stresses without failing.
Another advantage of stranded copper wire in motor windings is its ability to maintain electrical integrity under flexing conditions. Solid wire, when bent repeatedly, can develop micro-cracks in its structure, leading to increased resistance and potential hotspots. In contrast, the individual strands in stranded wire distribute the stress more evenly, minimizing the risk of damage and ensuring consistent electrical performance. This property is crucial for small motors used in dynamic environments, such as automotive systems or portable devices, where wire flexibility directly impacts the motor's lifespan.
The size of the stranded copper wire used in small electric motors typically ranges from 18 AWG to 24 AWG, depending on the motor's power requirements and physical constraints. Finer strands within the wire (e.g., 7/0.2mm or 19/0.15mm) enhance flexibility further, making it easier to wind the wire around the motor's core without causing strain. However, it's important to balance flexibility with current-carrying capacity, as thinner wires may have higher resistance. Engineers often consult wire tables and motor design guidelines to select the optimal stranded wire size that meets both flexibility and performance criteria.
In summary, stranded copper wire is the material of choice for motor windings in small electric motors due to its superior flexibility. This flexibility not only simplifies the manufacturing process but also enhances the motor's durability and reliability under operational stresses. By carefully selecting the appropriate wire size and strand configuration, designers can ensure that the motor performs efficiently while withstanding the mechanical demands of its intended application.
Electric Vehicles and Horsepower: What's the Connection?
You may want to see also
Explore related products
Temperature Rating: Wire must withstand motor operating temperatures without degrading
When selecting copper wire for small electric motors, one of the most critical factors to consider is the temperature rating of the wire. Electric motors generate heat during operation, and the wire must be able to withstand these elevated temperatures without degrading in performance or integrity. Copper wire used in motors is typically insulated with materials like enamel, fiberglass, or Teflon, each with its own temperature rating. For instance, Class B insulation is rated for 130°C (266°F), Class F for 155°C (311°F), and Class H for 180°C (356°F). The wire's temperature rating must align with or exceed the expected operating temperature of the motor to ensure longevity and safety.
The operating temperature of a small electric motor depends on factors such as load, efficiency, and ambient conditions. For example, a motor running at full load in a high-temperature environment will generate more heat than one operating at partial load in a cooler setting. Therefore, it is essential to choose a wire with a temperature rating that accounts for the worst-case scenario. Using wire with insufficient temperature resistance can lead to insulation breakdown, short circuits, or even motor failure. For small motors, wires with Class B or Class F insulation are commonly used, as they strike a balance between cost and performance for typical operating conditions.
Copper wire size also plays a role in temperature management. Thicker wires (lower gauge numbers) have lower resistance, reducing heat generation due to electrical losses. However, even with thicker wires, the insulation's temperature rating remains crucial. For example, a 20-gauge copper wire with Class H insulation can handle higher temperatures than a 22-gauge wire with Class B insulation, even if both are used in the same motor. Engineers must consider both wire size and insulation class to ensure the wire can withstand the motor's operating temperatures without degrading.
In addition to insulation class, the wire's construction and material quality are vital for temperature resistance. High-purity copper ensures optimal conductivity, minimizing heat generation. The insulation must be uniformly applied and free from defects to prevent hot spots. Some motors use wires with additional protective layers, such as fiberglass braiding, to enhance thermal resistance. Regular testing and adherence to industry standards, such as NEMA or IEC, ensure the wire meets the required temperature ratings for motor applications.
Finally, environmental factors must be considered when determining the appropriate temperature rating. Motors used in automotive, industrial, or outdoor applications may be exposed to higher ambient temperatures or temperature fluctuations. In such cases, selecting wire with a higher temperature rating provides a safety margin. For example, a motor operating in a hot factory environment might require Class H insulation, even if Class F would suffice under milder conditions. By carefully matching the wire's temperature rating to the motor's operating conditions, engineers can ensure reliable performance and prevent premature failure due to thermal degradation.
Electrochemical Separation: How Electricity Divides Organic Compounds Effectively
You may want to see also
Frequently asked questions
Small electric motors commonly use copper wire sizes ranging from 24 AWG (American Wire Gauge) to 18 AWG, depending on the motor's power and current requirements.
Copper wire is preferred due to its high electrical conductivity, durability, and resistance to heat, making it ideal for efficient motor operation.
Thicker wire (lower AWG number) reduces resistance and heat loss, improving efficiency, while thinner wire (higher AWG number) is used for lower-power applications to save space and cost.
While aluminum wire is lighter and cheaper, it has lower conductivity and higher resistance, making copper the better choice for most small electric motors.
The correct wire size depends on the motor's current rating, operating temperature, and length of the wire. Use the motor's specifications or consult a wire gauge chart to determine the appropriate size.
