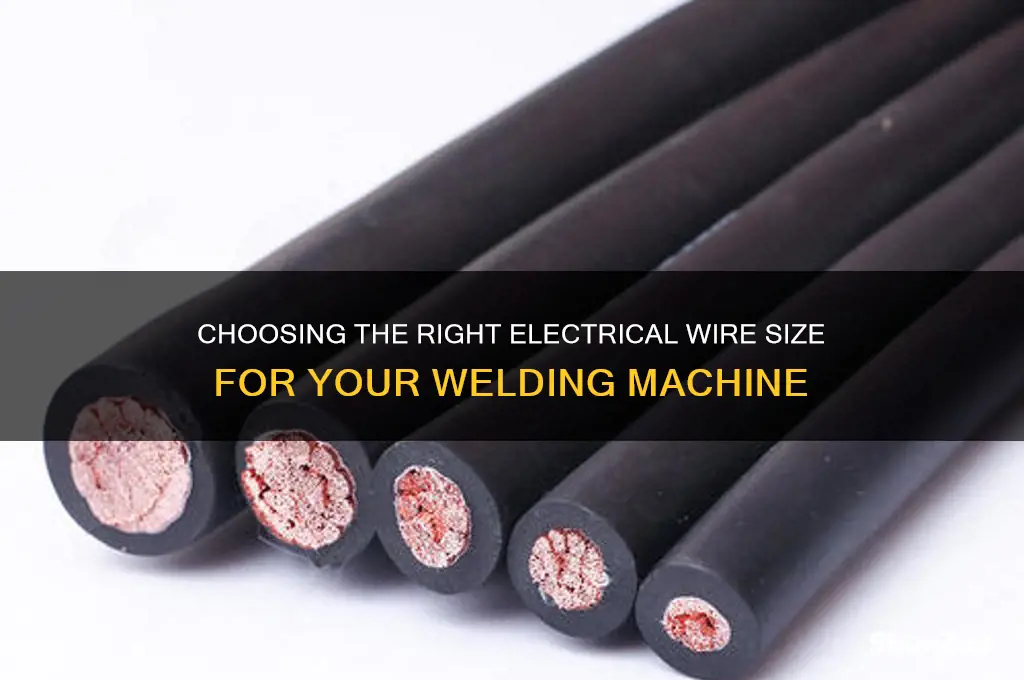

When selecting the appropriate size of electrical wire for a welding machine, it is crucial to consider factors such as the machine's amperage rating, the length of the wire run, and the voltage drop to ensure safe and efficient operation. The wire size, typically measured in American Wire Gauge (AWG), must be capable of handling the current draw of the welder without overheating or causing excessive voltage drop, which can lead to poor performance or damage to the equipment. Consulting the welding machine's manual for recommended wire sizes and adhering to local electrical codes are essential steps in making an informed decision. Additionally, using a wire size calculator or seeking advice from a professional electrician can help determine the optimal wire gauge for your specific welding setup.
Explore related products
What You'll Learn
- Wire Gauge Basics: Understanding AWG and its impact on welding machine performance
- Amperage Requirements: Matching wire size to welding machine amperage for safety
- Distance Considerations: Longer runs require larger wires to minimize voltage drop
- Material Types: Copper vs. aluminum wires and their conductivity differences
- Safety Standards: Adhering to NEC and OSHA guidelines for wire sizing
Wire Gauge Basics: Understanding AWG and its impact on welding machine performance
When selecting the appropriate electrical wire for a welding machine, understanding the American Wire Gauge (AWG) system is crucial. The AWG is a standardized wire gauge system used predominantly in the United States to denote the diameter of electric wires. The gauge number inversely relates to the wire’s diameter—the lower the gauge number, the thicker the wire. For welding machines, which often require high amperage, choosing the correct wire gauge is essential to ensure safety, efficiency, and optimal performance. A wire that is too thin can overheat, leading to potential hazards, while a wire that is too thick may be unnecessarily costly and difficult to manage.
The AWG directly impacts the welding machine’s performance by determining the wire’s current-carrying capacity, or ampacity. Welding machines typically draw significant amounts of power, and the wire must be capable of handling the required amperage without overheating. For instance, a 2 AWG wire can safely carry more current than a 10 AWG wire. The National Electrical Code (NEC) provides guidelines for ampacity ratings based on wire gauge, ensuring that the wire is matched to the load requirements of the welding machine. Ignoring these ratings can result in voltage drops, reduced welding quality, or even electrical fires.
Another critical factor influenced by wire gauge is voltage drop, which occurs when the electrical current encounters resistance as it travels through the wire. A higher gauge (thinner wire) increases resistance, leading to a greater voltage drop. For welding machines, excessive voltage drop can cause inconsistent arc stability, poor weld quality, and reduced machine efficiency. To minimize this, it’s recommended to use a lower gauge wire for longer cable runs or high-amperage applications. For example, a 2 AWG or 4 AWG wire is often suitable for heavy-duty welding machines, while lighter applications may only require 6 AWG or 8 AWG.
The length of the wire also plays a significant role in determining the appropriate gauge. Longer wire runs result in higher resistance, necessitating a thicker wire to compensate. As a rule of thumb, the longer the distance between the power source and the welding machine, the lower the gauge (thicker the wire) should be. Welding professionals often use online calculators or consult wiring tables to determine the optimal gauge based on amperage, wire length, and acceptable voltage drop. This ensures that the welding machine operates at its full potential without compromising safety.
Lastly, the type of welding being performed influences wire gauge selection. High-amperage processes like stick welding or heavy MIG welding demand thicker wires compared to low-amperage applications like TIG welding. Additionally, the duty cycle of the welding machine—the amount of time it can operate continuously at a given amperage—should align with the wire’s ampacity. Overloading the wire due to mismatched gauge and duty cycle can lead to premature failure or damage to the welding machine. By understanding AWG and its implications, welders can make informed decisions to enhance performance, safety, and longevity of their equipment.
