Molly Ayala

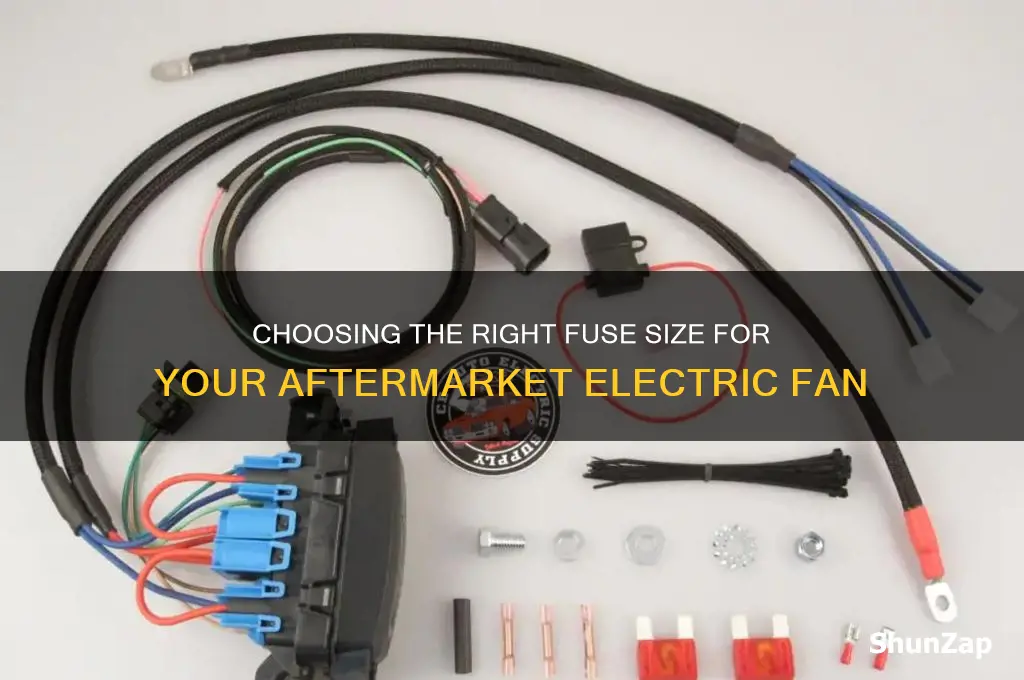

When installing an aftermarket automotive electric fan, selecting the correct fuse size is crucial for ensuring both performance and safety. The fuse acts as a protective device, preventing electrical overloads that could damage the fan or wiring, or even cause a fire. To determine the appropriate fuse size, start by checking the fan’s amperage rating, typically found in the manufacturer’s specifications or on the fan itself. The fuse should be rated slightly higher than the fan’s continuous amperage draw but not so high that it fails to protect the circuit in case of a fault. For example, if the fan draws 10 amps, a 15-amp fuse is often suitable, but always consult the fan’s documentation or an automotive electrician for precise guidance. Using the wrong fuse size can lead to premature failure or unsafe conditions, so accuracy is key.
Explore related products
What You'll Learn
- Fan Power Requirements: Determine the fan's amperage draw to match fuse size
- Wiring Gauge Compatibility: Ensure fuse rating aligns with wire gauge capacity
- Safety Margins: Use a fuse slightly higher than the fan's continuous draw
- Circuit Protection: Prevent overheating by selecting a fuse that avoids overcurrent
- Manufacturer Recommendations: Check fan specs for suggested fuse size guidance
Fan Power Requirements: Determine the fan's amperage draw to match fuse size
When installing an aftermarket automotive electric fan, determining the correct fuse size is crucial to ensure safety and optimal performance. The first step in this process is to understand the fan's power requirements, specifically its amperage draw. The amperage draw is the amount of electrical current the fan consumes while operating, and it directly influences the fuse size needed to protect the circuit. To begin, consult the fan's specifications provided by the manufacturer. These specifications typically include the fan's amperage draw, often listed in amps (A) or milliamperes (mA). If the specifications are not readily available, you may need to measure the amperage draw using a multimeter or clamp meter while the fan is running.
Once you have the amperage draw value, it’s essential to select a fuse with an appropriate rating. A common rule of thumb is to choose a fuse rated 125% to 150% of the fan’s continuous amperage draw. For example, if the fan draws 10 amps, a 12.5-amp to 15-amp fuse would be suitable. This range ensures the fuse can handle the fan’s normal operating current while providing protection against short circuits or overloads. Using a fuse that is too small may cause it to blow prematurely, while a fuse that is too large may fail to protect the circuit in case of a fault.
In addition to the fan’s amperage draw, consider the voltage of your vehicle’s electrical system, typically 12 volts for most cars. The power consumption of the fan can also be calculated using the formula: Power (W) = Voltage (V) × Current (A). While this calculation isn’t directly necessary for fuse selection, it provides a broader understanding of the fan’s electrical demands. Ensure that the wiring and relay used in the fan’s circuit are also rated to handle the amperage draw to maintain a safe and efficient installation.
Another factor to consider is whether the fan operates at a constant speed or has variable speed settings. Variable speed fans may have different amperage draws at different speeds, so it’s important to determine the maximum amperage draw to ensure the fuse can handle the highest load. If the fan includes additional features like built-in controllers or sensors, account for their amperage draw as well, as these components contribute to the overall electrical demand.
Finally, always refer to the vehicle’s wiring diagram and consult with a professional if you’re unsure about the installation. Proper fuse selection is not only about matching the fan’s amperage draw but also about integrating the fan into the vehicle’s electrical system safely. By carefully determining the fan’s power requirements and selecting the correct fuse size, you can ensure reliable operation and protect your vehicle’s electrical system from potential damage.
Graphite's Unique Structure: Unlocking Its Role as an Electrical Conductor
You may want to see also
Explore related products
Wiring Gauge Compatibility: Ensure fuse rating aligns with wire gauge capacity
When installing an aftermarket automotive electric fan, ensuring wiring gauge compatibility is crucial for safety and performance. The fuse rating must align with the wire gauge capacity to prevent overheating, electrical fires, or fan malfunction. The wire gauge determines the maximum current it can safely carry, while the fuse protects the circuit by interrupting excessive current flow. If the fuse rating exceeds the wire’s capacity, the wire may overheat before the fuse blows, creating a hazard. Conversely, an undersized fuse may blow prematurely, causing unnecessary interruptions.
To determine the correct fuse size, start by identifying the current draw of the electric fan, typically provided by the manufacturer in amperes (A). Next, select a wire gauge that can handle this current without overheating. For example, 12-gauge wire is commonly rated for 20A, while 10-gauge wire can handle up to 30A. The fuse rating should match or slightly exceed the fan’s current draw but must never surpass the wire’s maximum capacity. This ensures the fuse protects the circuit effectively without overloading the wire.
Using a fuse with a rating higher than the wire’s capacity is dangerous. For instance, if a 12-gauge wire (rated for 20A) is paired with a 30A fuse, the wire could melt or catch fire before the fuse blows. Always refer to wire gauge ampacity charts to confirm the wire’s safe current limit. These charts account for factors like temperature and wire insulation type, providing accurate guidelines for your specific application.
It’s also essential to consider the length of the wire run, as longer distances increase resistance and reduce current-carrying capacity. If the wire is unusually long, you may need to upgrade to a thicker gauge to maintain safety. In such cases, adjust the fuse rating accordingly to match the new wire’s capacity. Proper planning ensures the entire circuit, from the power source to the fan, operates within safe limits.
Finally, always use high-quality fuses and wires rated for automotive applications. Cheap or substandard components may not perform as expected, compromising safety. Double-check all connections for tightness and insulation to prevent shorts or arcing. By aligning the fuse rating with the wire gauge capacity, you create a reliable and safe electrical system for your aftermarket fan, protecting both your vehicle and yourself.
Best Oil for 1977 Electra Glide 1200 Harley Davidson
You may want to see also
Explore related products
Safety Margins: Use a fuse slightly higher than the fan's continuous draw
When selecting a fuse for an aftermarket automotive electric fan, it's crucial to consider the fan's continuous current draw and apply a safety margin. The primary purpose of a fuse is to protect the electrical circuit from overcurrent, which can cause damage or even fire. To ensure safety and reliability, the fuse rating should be slightly higher than the fan's continuous amperage draw. This approach prevents the fuse from blowing under normal operating conditions while still providing protection against excessive current. For example, if the fan draws 10 amps continuously, a 15-amp fuse would be appropriate, as it allows for minor fluctuations in current without unnecessarily tripping the fuse.
Using a fuse that is too close to the fan's continuous draw can lead to frequent fuse failures, especially if the fan experiences temporary spikes in current during startup or under load. These spikes are normal and should not cause the fuse to blow, as long as they are within the fuse's interrupt rating. By incorporating a safety margin, you ensure that the fuse can handle these transient currents without compromising the circuit's protection. A common rule of thumb is to choose a fuse rated 125% to 150% of the fan's continuous current draw, balancing safety and practicality.
Another critical aspect of safety margins is accounting for environmental factors and aging components. Over time, electrical connections can degrade, and resistance in the circuit may increase, leading to higher current draw. Additionally, extreme temperatures can affect the fan's efficiency and power consumption. A slightly higher-rated fuse provides a buffer against these variables, ensuring the system remains protected even under less-than-ideal conditions. This proactive approach minimizes the risk of electrical failures and enhances the overall reliability of the cooling system.
It's also important to consult the fan manufacturer's specifications and recommendations when determining the appropriate fuse size. Manufacturers often provide guidelines based on extensive testing and understanding of their product's performance. While their suggested fuse rating can serve as a starting point, applying a safety margin is still advisable to account for real-world operating conditions. Always prioritize safety and ensure that the selected fuse complies with automotive standards and regulations.
Lastly, proper installation and regular inspection are essential to maintaining the effectiveness of the fuse and the entire electrical system. Ensure that the fuse is correctly sized and installed in a suitable holder, and periodically check for signs of corrosion, damage, or overheating. By combining the right fuse size with good maintenance practices, you can maximize the safety and longevity of your aftermarket automotive electric fan setup. Remember, the goal is to protect both the fan and the vehicle's electrical system while ensuring consistent and reliable performance.
Electric Vehicles: CO2 Emission Secrets Revealed
You may want to see also
Explore related products
Circuit Protection: Prevent overheating by selecting a fuse that avoids overcurrent
When installing an aftermarket automotive electric fan, selecting the correct fuse size is crucial for circuit protection to prevent overheating and potential damage. The primary goal is to choose a fuse that avoids overcurrent, ensuring the electrical system operates within safe limits. Overcurrent occurs when the current flowing through the circuit exceeds the rated capacity of the wiring or components, leading to excessive heat generation and potential failure. To determine the appropriate fuse size, start by identifying the maximum current draw of the electric fan, which is typically provided in the fan’s specifications or user manual. This value represents the highest amount of current the fan will consume under normal operating conditions.
Once the maximum current draw is known, the next step is to select a fuse with a rating slightly higher than this value but not excessively so. A common rule of thumb is to choose a fuse rated 125% to 150% of the fan’s maximum current draw. For example, if the fan draws 10 amps, a 12.5-amp to 15-amp fuse would be appropriate. This ensures the fuse will not blow during normal operation but will trip if a fault causes the current to rise dangerously. Using a fuse that is too large can allow overcurrent to persist, leading to overheating of wires, connectors, and the fan motor itself, while a fuse that is too small will cause unnecessary interruptions in operation.
It’s also essential to consider the type of fuse being used. Automotive blade fuses are the most common and are available in standard ratings such as 5, 10, 15, 20, and 30 amps. Ensure the fuse holder and wiring are rated for the chosen fuse size to maintain consistent circuit protection. Additionally, verify that the wiring gauge is adequate for the current draw of the fan, as undersized wires can overheat even if the fuse is correctly sized. Proper wiring and fuse selection work together to prevent overcurrent and its associated risks.
Another critical aspect is to test the circuit after installation to confirm the fuse operates as intended. Use a multimeter to measure the current draw under load and ensure it does not exceed the fuse rating. If the fan is part of a larger system, such as a dual-fan setup or one connected to a relay, ensure the total current draw of all components is accounted for in the fuse selection. Ignoring the cumulative current draw can lead to overloading and potential failure of the circuit protection.
Lastly, always follow manufacturer recommendations and industry standards when selecting a fuse for an aftermarket electric fan. If in doubt, consult a professional or refer to automotive electrical guides to ensure compliance with safety practices. Proper circuit protection not only prevents overheating but also extends the lifespan of the fan and associated components, ensuring reliable performance in all driving conditions. By carefully selecting the correct fuse size, you can safeguard your vehicle’s electrical system and avoid costly repairs due to overcurrent-related damage.
Why Electric Power Plants Use Scrubbers to Reduce Emissions
You may want to see also
Explore related products
Manufacturer Recommendations: Check fan specs for suggested fuse size guidance
When installing an aftermarket automotive electric fan, one of the most critical steps is determining the correct fuse size to ensure safe and efficient operation. Manufacturer recommendations are the primary and most reliable source for this information. Every electric fan comes with a set of specifications that includes details about power consumption, amperage draw, and the recommended fuse size. These specs are tailored to the specific design and capabilities of the fan, making them essential for proper installation. Ignoring these guidelines can lead to electrical issues, such as blown fuses, overheating, or even damage to the fan or vehicle wiring.
To find the manufacturer’s recommendations, start by consulting the user manual or installation guide that comes with the fan. These documents typically include a section dedicated to electrical requirements, where the suggested fuse size is clearly stated. If the manual is unavailable, visit the manufacturer’s website or contact their customer support directly. Most reputable manufacturers provide detailed specifications online, often in the form of product datasheets or FAQs. Look for terms like "maximum amperage draw," "fuse rating," or "circuit protection" to identify the recommended fuse size.
Another important aspect is understanding the amperage draw of the fan, which is usually listed in the specifications. The fuse size should be rated slightly higher than the fan’s maximum amperage draw to allow for brief surges during operation while still providing adequate protection. For example, if the fan draws 10 amps, a 15-amp fuse might be recommended. However, always defer to the manufacturer’s guidance, as they account for factors like startup current and operating conditions.
In cases where the fan is part of a larger cooling system or is being used in conjunction with other electrical components, the manufacturer’s recommendations become even more crucial. Some fans may require a dedicated circuit with a specific fuse size to prevent overloading the vehicle’s electrical system. Additionally, if the fan is being installed in a custom or non-standard application, consult the manufacturer for tailored advice to ensure compatibility and safety.
Finally, while it may be tempting to use a higher-rated fuse "just to be safe," this can be dangerous. A fuse that is too large will fail to protect the circuit in case of an overload, potentially leading to electrical fires or damage. Always adhere to the manufacturer’s recommended fuse size to maintain the integrity of the electrical system and ensure the longevity of your aftermarket electric fan. By following these guidelines, you can enjoy reliable performance and peace of mind knowing your installation is both safe and compliant with the fan’s design specifications.
Electric Minivans: Are They the Eco-Friendly Family Car Solution?
You may want to see also
Frequently asked questions
The fuse size depends on the fan's amperage draw. Check the fan's specifications for its maximum current rating and use a fuse rated 10-20% higher than that value.
Measure the fan's current draw using a multimeter or refer to the manufacturer's documentation. Choose a fuse that exceeds this rating by 10-20% to ensure protection without frequent blowing.
No, using a higher-rated fuse can be dangerous. It may fail to protect the circuit in case of an overload, increasing the risk of fire or damage to the fan and wiring.
A fuse that’s too small will blow frequently under normal operation, as it cannot handle the fan's current draw. This disrupts functionality and indicates the need for a properly sized fuse.
Both blade and ATO fuses are common in automotive applications. Choose the type that matches your vehicle's fuse box or wiring harness, ensuring compatibility and ease of installation.
