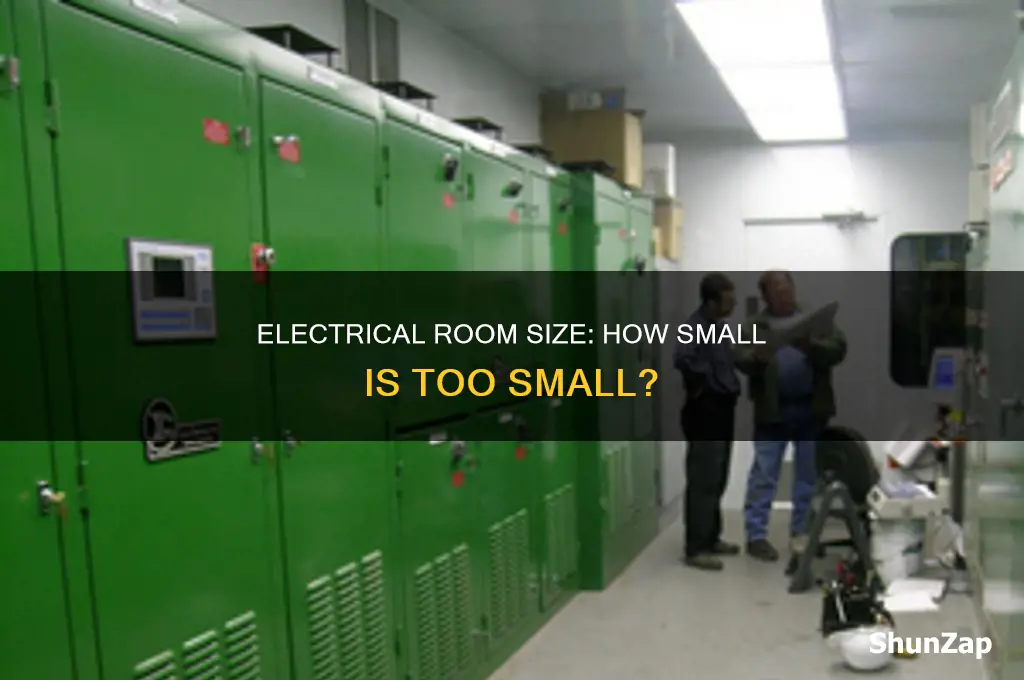

Electrical rooms are often an afterthought in building design, but they are essential for housing electrical equipment and ensuring safety. The size of an electrical room is typically proportional to the building's size, with larger buildings requiring bigger electrical rooms and possibly additional subsidiary rooms. The National Electrical Code (NEC) dictates the minimum space requirements around equipment for access, operations, safety, and conduit installation. The specific equipment and voltage used also influence the room's dimensions, with higher voltages needing more depth in the working area. The width should match the equipment's width, and the height should be at least 6 feet 6 inches. Fire safety, electrical hazards, and ventilation are other crucial factors considered when designing electrical rooms.
| Characteristics | Values |
|---|---|
| Minimum width | 30 inches or width of the equipment, whichever is greater |
| Minimum height | 6 feet 6 inches or height of the equipment, whichever is greater |
| Minimum depth | Depends on the voltage being used and the equipment |
| Minimum length | 8 feet for a single utility meter setup; up to 20 feet for multiple meters serving multiple tenants |
| Voltage | 120/208 volt or 277/480 volt |
| Foreign systems | Not allowed in the dedicated space per NEC code; may be allowed above the dedicated space if proper protection is provided |
| Fire safety | Fire detection and suppression systems may be installed; fire-resistant construction or active fire suppression equipment may be required |
| Electrical hazards | Unauthorized access is prohibited; two separate means of exit may be required |
| Ventilation | Additional ventilation or air conditioning may be needed to manage heat generated by electrical equipment |
| Conduit | Cannot be run through structural beams or slabs; must be coordinated with below-ground utilities |
Explore related products
$7.99
What You'll Learn
Electrical room size depends on building size
The size of an electrical room depends on several factors, including the building's size and the equipment used. Electrical rooms are often an afterthought in building design, leading to inadequate space allocation.
The National Electrical Code (NEC) specifies the minimum space requirements around electrical equipment for operation, safety, access, and conduit installation. The size of the electrical gear is based on the ampacity of the bus within. For instance, an electrical gear rated up to 800 amperes requires a minimum length of eight feet for a single utility meter setup. In contrast, a similar setup with multiple meters serving multiple tenants may need up to twenty feet, depending on individual service sizes.
The voltage used also influences the room size. Higher voltage systems require more depth in the working space. The width of the room should match the equipment's width, not exceeding 30 inches, and allowing panels and doors to open fully. The minimum height is six feet six inches, or the equipment's height if taller.
For larger buildings with higher mechanical, motor, and lighting loads, a 277/480 volt electrical service is more efficient. This higher voltage system reduces the size of the electrical distribution system, saving space for electrical rooms. On the other hand, smaller and multi-tenant buildings are better suited for a 120/208 volt service, as it eliminates the need for step-down transformers.
Finding Electric Types in PalWorld: Best Locations
You may want to see also
Explore related products
Minimum size requirements
The minimum size requirements for an electrical room depend on several factors, including the equipment used, the voltage, and the number of tenants or occupants.
Firstly, the width of the room should be at least 30 inches, matching the width of the equipment, and allowing any panels and doors to open fully. The height of the room should be at least six feet six inches, or the height of the equipment if it exceeds this. The depth of the room is also important, especially when using higher voltage equipment, as this requires more depth in the workspace.
The size of the electrical gear is primarily based on the ampacity of the bus within. For example, an electrical gear rated up to 800 amperes requires a minimum length of eight feet in a single utility meter setup. If multiple meters are serving multiple tenants, the length could be up to 20 feet.
In terms of the overall space, there are three types of interior electrical spaces to consider: main equipment rooms, distribution pathways, and local/branch equipment rooms. Distribution pathways are necessary for interconnecting all electrical equipment and end-user devices, and they can be routed above or below the equipment or in the ceiling space of the floor below.
Additionally, dedicated spaces refer to areas above the electrical equipment, reserved for future access, protection, and installation of raceways and conduits. This space should be at least six feet from the floor to the ceiling, or shorter if there is a structural ceiling.
It is important to note that the size of an electrical room is usually proportional to the size of the building. Large buildings may have a main electrical room and subsidiary electrical rooms.
The Electric Slide's Release: A Year to Remember
You may want to see also
Explore related products
Electrical equipment size
The size of electrical equipment is a critical factor in determining the overall dimensions of an electrical room. Electrical rooms are designed to accommodate the specific equipment they will house, with sufficient space for maintenance, ventilation, and safety measures.
The width of the room should match the width of the equipment, ensuring that panels and doors can open fully. The minimum width requirement is typically set at 30 inches. For example, electrical gear rated up to 800 amperes requires a minimum length of eight feet in a single utility meter setup.
The height of the room should be at least six feet six inches, or the height of the equipment if it exceeds this minimum. This height requirement also applies to dedicated spaces above electrical equipment, which provide future access and protection from foreign systems.
The depth of the room is influenced by the voltage of the equipment, with higher voltages demanding greater depth in the workspace. This depth consideration is crucial for the safe operation and maintenance of the electrical equipment.
In addition to these dimensional considerations, electrical rooms must also account for the layout and routing of distribution pathways. These pathways interconnect the electrical equipment and end-user devices, impacting the placement of rooms and the overall building design. Overhead conduits, for instance, require space within the rooms to transition to their desired routes.
Furthermore, electrical rooms may require additional space for fire detection and suppression systems, grounding and bonding enclosures, and electromagnetic shielding. These safety measures are essential to protect against electrical hazards, fire risks, and interference with sensitive equipment.
Electrical Adapter Essentials for Safe Towing
You may want to see also
Explore related products
Safety considerations
The width of the electrical room should match the width of the equipment, with a minimum width requirement of 30 inches. This allows for panels and doors to open fully without obstruction. The depth of the room is determined by the voltage used and the specific equipment housed within. Higher voltages require more depth in the workspace. The minimum height of the room is crucial for safety and is set at six feet six inches, or the height of the equipment if it exceeds this.
Dedicated spaces above electrical equipment are reserved for future access and protection from foreign systems. These spaces must adhere to minimum height requirements, typically set at six feet from the floor to the ceiling, unless a structural ceiling is lower. Foreign systems, such as mechanical or plumbing systems, are permitted above electrical equipment if they are at least six feet above or if proper protection is in place to prevent damage from condensation, leaks, or breaks.
Fire safety is a critical consideration in electrical room design. Fire detection and suppression systems, such as carbon dioxide, may be installed. Electrical rooms containing oil-filled equipment may require fire-resistant construction or active fire suppression equipment. Special measures may also be necessary for the fire resistance of cables and cable trays. In industrial buildings handling flammable substances, additional ventilation and explosion prevention measures are essential.
To ensure safety, electrical rooms must comply with building code and electrical code regulations. Local regulations dictate layout details, construction methods, and minimum working space requirements. Compliance with the National Electrical Code (NEC) is crucial, as it establishes the minimum space needed for access, operations, and safety. Electrical engineers must work closely with various specialists, including mechanical engineers and architects, to ensure that electrical rooms meet all applicable code requirements.
The First Electric Light: Who Was the Inventor?
You may want to see also
Explore related products
Voltage and power considerations
When considering the voltage and power requirements for an electrical room, several factors come into play. Firstly, the voltage used will dictate the depth of the workspace. Higher voltages require more depth in the working area. This is an important safety consideration, as electrical equipment requires sufficient clearance for safe operation and maintenance.
The power requirements of the building's electrical equipment will also influence the size of the electrical gear. For example, a building with a power demand of 20 watts/square foot for lighting, power, and HVAC would require roughly 2,400 kW of power. If a 120/208 volt, three-phase power supply is used, the distribution switchgear would need to be rated at 7,000 amperes. This highlights the relationship between voltage, power, and the size of electrical equipment.
In terms of voltage considerations, smaller and multi-tenant buildings are often served by a 120/208 volt, three-phase, four-wire electrical service. This lower voltage option has the advantage of not requiring step-down transformers. However, for larger buildings with higher power demands, a 277/480 volt, three-phase, four-wire service is more suitable. This higher voltage option allows for a more efficient distribution of power, reducing the size of the electrical distribution system and saving space in the electrical room.
The specific equipment housed in the electrical room will also influence the voltage and power considerations. Electrical rooms typically contain medium or low-voltage distribution equipment, such as switchboards, distribution boards, transformers, and switchgear. The voltage requirements of this equipment will impact the overall power demand and the layout of the electrical room.
It is important to note that the minimum size requirements for electrical rooms are regulated by codes such as the National Electrical Code (NEC). These codes specify the necessary clearances around equipment for safety and access. Therefore, voltage and power considerations must always adhere to these regulations to ensure a safe and functional electrical room design.
Electricity Crisis in Venezuela: Is the Power Back On?
You may want to see also
Frequently asked questions
The minimum size of an electrical room depends on the equipment and voltage. The width of the room should match the width of the equipment but should not be less than 30 inches. The minimum height of the room is six feet six inches, or the height of the equipment if it is taller. The depth of the room depends on the voltage, with higher voltages requiring more depth.
An electrical gear rated up to 800 amperes requires a minimum length of eight feet in a single utility meter setup.
An electrical room with multiple meters serving multiple tenants could be up to 20 feet in length, depending on the individual service sizes.
A dedicated space in an electrical room should have the same width and depth as the equipment and extend from the floor to a height of at least six feet above the equipment or up to a structural ceiling if it is lower.
