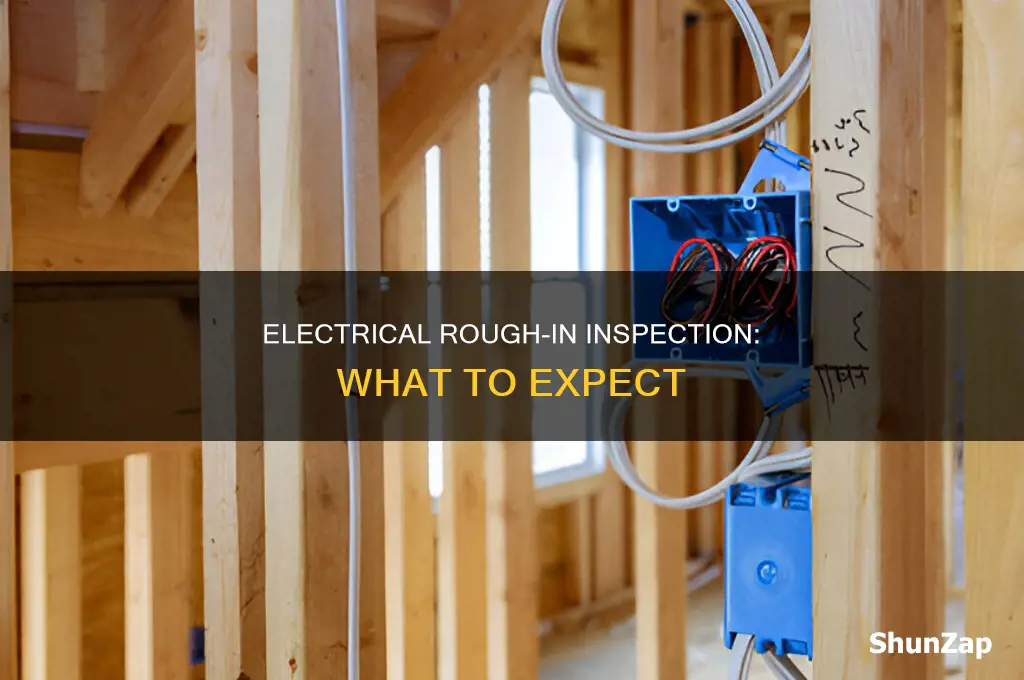

Electrical rough-in inspections are formal checks of electrical wiring and conduit/tubing support, as well as the design and execution of safety functions. They are conducted after electrical system installation but before the construction of finishing touches, such as walls or ceilings, to ensure crucial components are easy to access for inspection and to address any issues. During an electrical rough-in inspection, inspectors will check for proper cable anchoring, electrical circuits, electrical boxes, and safety features like ground fault circuit interrupters (GFCIs) in wet areas. Homeowners are advised to use spacious electrical boxes to ensure they pass inspection and make wire connections easier. Proper wiring installation, secure connections, and adherence to safety guidelines are crucial to passing an electrical rough-in inspection.
| Characteristics | Values |
|---|---|
| Purpose | To ensure that electrical components are functioning properly and to prevent potential hazards like fires, electrical shocks, and other safety risks. |
| Timing | After system installation but before the construction of finishing touches, such as walls or ceilings, to allow for easier access to electrical systems. |
| Inspector | Conducted by the authority having jurisdiction (AHJ) or a third-party inspector. |
| Scope | Inspection of electrical boxes, cables, conduit, and wires. |
| Requirements | Proper electrical circuits, cable anchoring, electrical box size and security, wire labeling, safety features like ground fault circuit interrupters (GFCIs) in wet areas, and proper grounding. |
| Preparation | Develop a detailed plan for the electrical system, gather blueprints and electrical plans, ensure safety by turning off the power supply, wear protective gear, and communicate effectively with the inspector. |
Explore related products
Electrical boxes
During a rough-in inspection, inspectors will check that all electrical boxes are flush with the wall and securely fastened. They will also verify that the boxes are large enough to accommodate the number of wire conductors they will contain, along with any devices that will be installed. For instance, in a child's room, outlet heights may be lower to allow for access, and larger boxes may be required to accommodate this.
To ensure safety and functionality, inspectors will also check that the cable clamps grip the sheathing of the cable and not the conducting wires themselves. The cable sheathing should protrude into the box by at least 1/4 inch at the point of attachment to the box. Proper cable anchoring will also be inspected, with cables secured to wall studs and the first staple no further than 8 inches from a box, followed by additional staples at least every 4 feet.
In addition to physical inspections, inspectors will review how the cables are clamped and spliced within the boxes. Grounds will need to be tied together so that the inspector can verify adequate grounding for circuit energization. Wire labeling is also important, and while not always required, it can be reassuring for inspectors to see wires in electrical boxes labeled with circuit numbers and amperage.
Overall, the rough-in inspection for electrical boxes aims to ensure that all components are up to code and safe to use, preventing potential hazards such as electrical fires and shocks.
Baby-Proofing Electric Baseboard Heaters: A Step-by-Step Guide
You may want to see also
Explore related products
Cable anchoring
Proper cable anchoring involves securely attaching cables to wall studs. This is crucial for ensuring the stability and safety of the electrical installation. The first staple or fastener should be placed no more than 8 inches from an electrical box, and subsequent staples should be spaced at intervals of at least every 4 feet. This ensures that the cables are firmly held in place.
Cable Routing:
Cables should be strategically routed through the centre of wall studs. This routing helps protect the cables from accidental penetration by drywall screws and nails during installation or future renovations. It adds an extra layer of safety for the electrical system.
Horizontal Cable Runs:
Horizontal cable runs should maintain a specific height range above the floor. Inspectors will check that these runs are at least 20 to 24 inches above the floor. This height ensures that the cables are clear of potential obstructions and reduces the risk of damage.
Wall Stud Penetration Protection:
Each penetration point where a cable passes through a wall stud should be protected by a metal protective plate. These plates provide a critical safeguard against screws and nails that may be driven into the wall during drywall installation or future wall modifications. The plates prevent accidental contact between penetrating objects and the cables, reducing the risk of electrical hazards.
Cable Clamping in Electrical Boxes:
Inspectors will also examine how cables are clamped within electrical boxes. At the point where the cable enters the box, the cable sheathing should protrude into the box by at least 1/4 inch. This ensures that the cable clamps grip the sheathing securely, avoiding any direct contact with the conducting wires.
Spacious Electrical Boxes:
While not directly related to cable anchoring, inspectors will also assess the size of electrical boxes. Spacious electrical boxes are recommended, especially in newly constructed buildings. These larger boxes make it easier to work with wire connections and help ensure compliance with electrical demand requirements.
Finding a Ground Fault with a Multimeter
You may want to see also
Explore related products
Proper circuits
During a rough-in electrical inspection, the inspector will check that the building has the appropriate number of circuits for the area's electrical requirements. All appliances inside the building must have proper circuits. This includes dedicated circuits for appliances such as microwaves, garbage disposals, and dishwashers, especially in kitchens. The inspector will also check that each room has the proper number of circuits for general lighting and appliances.
To ensure proper circuits, the inspector will verify that there is sufficient wiring extending from the electrical box. There should be at least 8 inches of usable wire length. The cables should be secured properly to the wall studs, with the first staple no further than 8 inches from a box and then at least every 4 feet thereafter. Cables should be run through the centre of wall studs to prevent penetration from drywall screws and nails. The horizontal runs should be at least 20 to 24 inches above the floor, and each wall stud penetration should be protected by a metal protective plate.
In addition to the above, inspectors will also check that all grounds are tied together for circuit energization. They will also confirm the presence of safety features such as ground fault circuit interrupters (GFCIs) in wet areas like kitchens, bathrooms, and outdoor areas. GFCIs protect against electric shock by cutting off power if a fault is detected.
Electric Toothbrush Leaks Black: What's the Problem?
You may want to see also
Explore related products
Safety features
Electrical rough-in inspections are an essential step in ensuring the safety of your home's electrical system. They are typically conducted after the initial installation of electrical wiring and before the walls and ceilings are closed up, providing easy access for a thorough inspection. Here are some key safety features that inspectors will focus on during a rough-in electrical inspection:
Proper Wiring Installation
Inspectors will carefully examine all wiring to ensure it is correctly installed. This includes checking that each wire is properly stapled and supported at specified intervals, running through drilled holes in the framing, free from any damage or pinching that could lead to electrical shorts or fires.
Electrical Boxes
Electrical boxes are another critical component that inspectors will scrutinize. They will verify that the boxes are large enough to accommodate the number of wire conductors and devices they will contain. Inspectors will also check that the boxes are securely fastened and flush with the wall. Spacious electrical boxes are recommended to ensure safety and facilitate easier wire connections.
Cable Anchoring and Protection
Proper cable anchoring is essential for safety. Inspectors will check that cables are securely attached to wall studs, with the first staple no further than 8 inches from a box and then at least every 4 feet thereafter. Metal protective plates are also required where cables penetrate wall studs to prevent screws and nails from penetrating the cables when drywall is installed.
Ground Fault Circuit Interrupters (GFCIs)
GFCIs are safety devices that protect against electric shock by cutting off power if a fault is detected. Inspectors will check for the presence of GFCIs in wet areas, including kitchens, bathrooms, and outdoor spaces, to ensure compliance with safety standards.
Electrical Circuits
Inspectors will verify that the building has the appropriate number of circuits to meet the electrical requirements of the area. They will also check that each room has sufficient general lighting and appliance circuits. Every appliance that needs a dedicated circuit, such as a microwave, garbage disposal, or dishwasher, must have one, especially in kitchens.
Remember, a rough-in electrical inspection is a crucial step in preventing future electrical failures and hazards. By paying close attention to these safety features and ensuring your electrical system meets the required standards, you can help safeguard your home and family.
Unlocking the Secrets: Passing Electric Area in Zeffo
You may want to see also
Explore related products
System tests
A rough-in inspection is a formal check of important systems, such as MEP or fire safety, that occurs after system installation but before the construction of finishing touches. It ensures that components of important systems are up to code and safe to use. It also often represents significant project milestones.
During a rough-in inspection, inspectors will check that all electrical boxes are flush with the wall and large enough to accommodate the number of wire conductors they will contain, along with any devices. They will also measure outlet and switch heights to ensure consistency and compliance with local codes.
Inspectors will also review how the cables are clamped and anchored. Cables should be attached to wall studs to secure them, with the first staple no further than 8 inches from a box and then at least every 4 feet thereafter. Horizontal runs should be at least 20 to 24 inches above the floor, and each wall stud penetration should be protected by a metal protective plate to keep wires safe from penetration by drywall screws and nails.
Proper circuits are another important aspect of rough-in inspections. Inspectors will verify that the building has the appropriate number of circuits to meet the area's electrical requirements. All appliances inside the building must have proper circuits, and there must be sufficient general lighting and general appliance circuits in each room.
Overall, system tests and rough-in inspections are crucial to ensuring that electrical systems are safe, up to code, and functioning properly.
Electric Windows: Are They Standard on 2002 Toyota RAV4s?
You may want to see also
Frequently asked questions
A rough-in electrical inspection is a formal check of important systems, such as MEP or fire safety, that occur after system installation but before the construction of finishing touches. It ensures that components of important systems are up to code and safe to use.
An inspector will check that all electrical boxes are flush with the wall and that they are large enough to accommodate the number of wire conductors they will contain. They will also check for proper cable anchoring, where cables should be attached to wall studs to secure them. They will also confirm that each room has the proper number of circuits for general lighting and appliances.
Before a rough-in electrical inspection, it is important to review local and national electrical codes to ensure that your building is compliant. You should also plan the electrical system with your contractor, including the location of electrical panels, outlets, switches, and other components. It is also important to keep your workspace organized and ensure that all plans and documents are easily accessible for reference.
