When addressing electrical interference, selecting the right sleeving material is crucial for protecting wires and cables while maintaining signal integrity. Commonly used options include braided sleeving made from materials like polyester or nylon, which offer flexibility and durability, and are effective at reducing electromagnetic interference (EMI). For more demanding applications, shielded sleeving with conductive materials such as aluminum or copper is recommended, as it provides superior protection against EMI and radio frequency interference (RFI). Additionally, heat-shrink tubing with adhesive liners can be used for a secure, insulated fit, while split loom tubing offers easy installation and ventilation. The choice ultimately depends on the specific interference levels, environmental conditions, and the desired balance between protection and cost-effectiveness.
| Characteristics | Values |
|---|---|
| Material | Braided Polyester, Braided Nylon, Braided Aramid (Kevlar), Expandable Sleeving (Polyolefin, Polyester), Metal Braided Sleeving (Tin-Plated Copper, Aluminum), EMI Shielding Sleeving (Conductive Materials) |
| EMI/RFI Shielding Effectiveness | Up to 80 dB (depending on material and construction) |
| Flexibility | High (braided and expandable options) |
| Temperature Resistance | -40°C to 150°C (varies by material) |
| Chemical Resistance | Resistant to oils, solvents, and fuels (especially polyester and nylon) |
| Abrasion Resistance | High (braided aramid and nylon) |
| Cut and Tear Resistance | High (braided aramid) |
| UV Resistance | Good (polyester and nylon with UV stabilizers) |
| Flame Retardancy | UL Recognized (many options comply with UL 94V-0) |
| Ease of Installation | Easy (expandable sleeving), Moderate (braided sleeving) |
| Cost | Low to High (depending on material and shielding requirements) |
| Applications | Automotive, Aerospace, Industrial, Consumer Electronics, Military |
| Availability | Widely available from suppliers like 3M, Techflex, Alpha Wire, and RS Components |
Explore related products
What You'll Learn

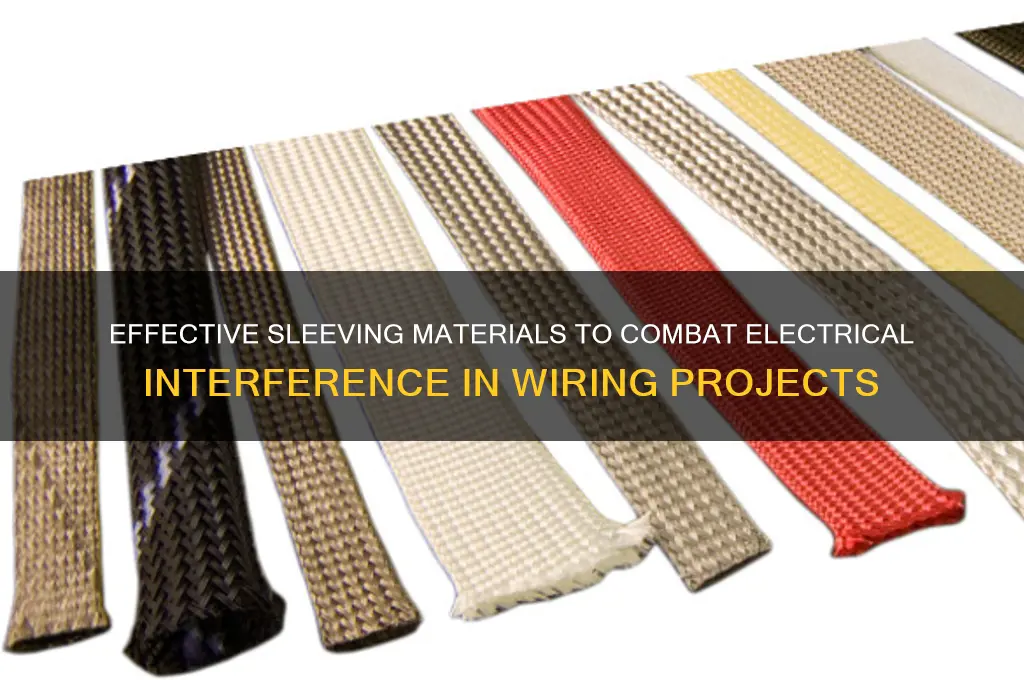

Braided Sleeving Materials
When addressing electrical interference, braided sleeving materials are a popular and effective solution due to their flexibility, durability, and ability to shield cables from electromagnetic interference (EMI) and radiofrequency interference (RFI). Braided sleeving is constructed by weaving together multiple strands of material into a tubular shape, which expands to fit over wires and cables while providing a snug, protective fit. This design not only organizes and protects cables but also minimizes the impact of external electrical noise, making it ideal for applications in automotive, industrial, and consumer electronics.
One of the most common materials used for braided sleeving in EMI/RFI shielding is aluminum-coated polyester. This material combines the lightweight and flexibility of polyester with a conductive aluminum layer, which reflects and absorbs interference. The aluminum coating is often applied in a way that maintains the sleeving's expandability while ensuring consistent conductivity. It is particularly effective in high-frequency applications where interference is a significant concern. Additionally, aluminum-coated polyester is resistant to chemicals, moisture, and abrasion, ensuring long-term performance in harsh environments.
Another widely used material is copper or tinned copper braided sleeving. Copper is highly conductive, making it one of the most effective materials for shielding against electrical interference. Tinned copper, which is copper plated with a layer of tin, offers enhanced corrosion resistance while maintaining excellent conductivity. This type of sleeving is often used in high-performance applications, such as aerospace and military systems, where superior shielding is critical. However, copper sleeving is heavier and less flexible than polyester-based options, so it’s important to consider the specific requirements of your application.
For applications requiring a balance between shielding effectiveness and cost, polyester or nylon braided sleeving with integrated metal fibers is a viable option. These materials incorporate thin strands of metal, such as stainless steel or aluminum, into the weave, providing moderate EMI/RFI protection without the added weight or cost of fully metallic sleeving. This hybrid approach is suitable for general-purpose applications where interference is present but not at extreme levels. The polyester or nylon base also offers excellent flexibility and resistance to wear and tear.
Lastly, monel braided sleeving is a specialized option for extreme environments. Monel, a nickel-copper alloy, is highly resistant to corrosion, heat, and mechanical stress, making it ideal for marine, industrial, and high-temperature applications. While monel sleeving is more expensive than other options, its durability and shielding properties make it a worthwhile investment in demanding scenarios. Its conductivity is lower than pure copper, but it still provides adequate protection against electrical interference in most cases.
In summary, the choice of braided sleeving material depends on the specific requirements of your application, including the level of interference, environmental conditions, and budget. Aluminum-coated polyester, copper, hybrid metal-fiber blends, and monel each offer unique advantages, ensuring there’s a suitable option for nearly any scenario involving electrical interference. Proper installation and grounding of the sleeving are also crucial to maximize its effectiveness in shielding cables from unwanted noise.
