Electrical flux is a fundamental concept in electromagnetism, representing the total number of electric field lines passing through a given surface. It quantifies the electric field's interaction with that surface and is crucial for understanding how electric charges distribute and interact in space. The unit used to measure electrical flux is the volt-meter (V·m), which is derived from the International System of Units (SI). This unit combines the volt (V), the unit of electric potential difference, and the meter (m), the unit of length, reflecting the relationship between the electric field and the area it penetrates. Understanding the unit of electrical flux is essential for analyzing and solving problems in electrostatics, such as calculating the electric field through a closed surface or determining the charge enclosed within a Gaussian surface.
| Characteristics | Values |
|---|---|
| Unit Name | Volt-meter (V·m) |
| Base Units | kg·m³·s⁻³·A⁻¹ (kilogram·meter³·second⁻³·ampere⁻¹) |
| Derived From | Electric field (V/m) multiplied by area (m²) |
| Symbol | Φ (Phi) |
| SI Unit | Yes |
| Common Usage | Electromagnetism, Gauss's Law |
| Related Units | Weber (Wb) for magnetic flux |
| Dimension | M·L³·T⁻³·I⁻¹ (Mass·Length³·Time⁻³·Current⁻¹) |
| Alternative Units | None (V·m is the standard) |
Explore related products
What You'll Learn
- SI Unit of Flux: The SI unit for electric flux is the voltmeter (Vm)
- Definition of Electric Flux: Measures electric field passing through a surface, linked to charge distribution
- Relation to Gauss's Law: Flux equals enclosed charge divided by vacuum permittivity (ε₀)
- Units in CGS System: In CGS, flux is expressed in statvolt-centimeters (stat·cm)
- Practical Applications: Used in capacitors, insulators, and electric field calculations in engineering

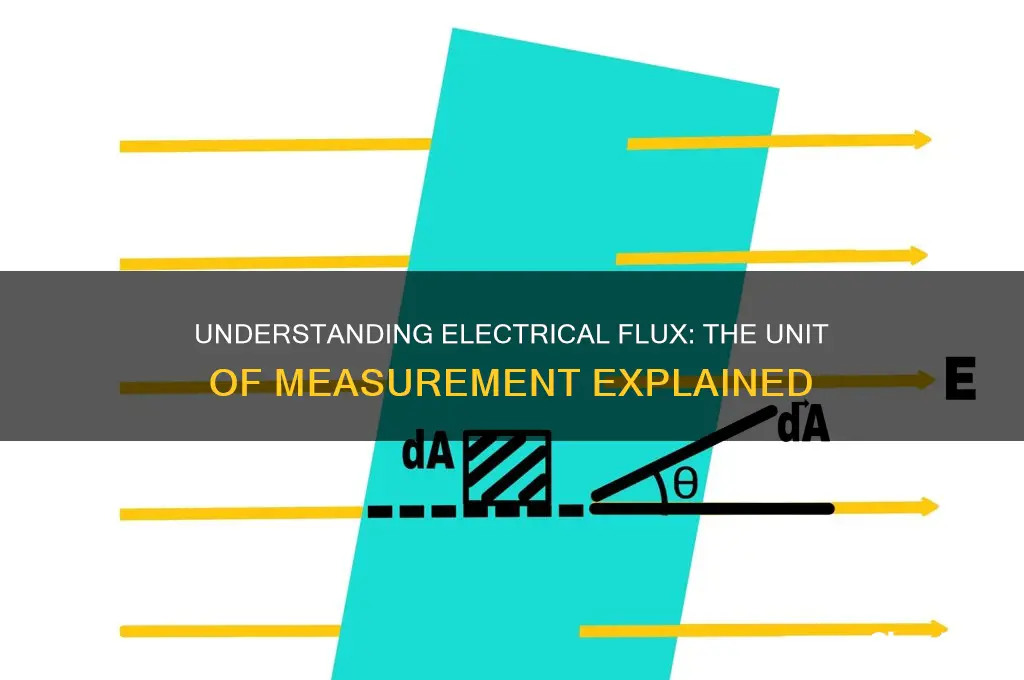

SI Unit of Flux: The SI unit for electric flux is the voltmeter (Vm)
The SI unit of electric flux is a fundamental concept in electromagnetism, and it is essential to understand its measurement to analyze electric fields and their interactions with surfaces. Electric flux quantifies the total number of electric field lines passing through a given surface, providing insights into the distribution and strength of the electric field. When discussing the SI unit for electric flux, it is crucial to clarify that the correct unit is volt meters (V·m), not "voltmeter," which is a device used to measure voltage. The confusion may arise from the similarity in terminology, but the unit itself is a product of volts (V) and meters (m), reflecting the relationship between electric field strength and the area through which it passes.
Electric flux (Φ) is mathematically defined as the dot product of the electric field (E) and the differential area (dA) of a surface, integrated over the entire surface: Φ = ∫ E · dA. The SI unit of the electric field is volts per meter (V/m), and the unit of area is square meters (m²). When these units are multiplied together (V/m × m²), the meter units cancel out in part, leaving volt meters (V·m) as the resulting unit for electric flux. This unit directly ties the electric field's strength to the area it permeates, making it a meaningful measure in practical applications such as capacitance, Gauss's law, and the analysis of electric fields in materials.
It is important to emphasize that the term "voltmeter" refers to an instrument used to measure voltage, not a unit of electric flux. The SI unit volt meters (V·m) is derived from the physical properties being measured, ensuring consistency and standardization across scientific and engineering disciplines. This distinction is critical for accurate communication and calculation in electromagnetism, as using incorrect terminology or units can lead to misunderstandings or errors in analysis.
In practical scenarios, understanding the SI unit of electric flux allows engineers and physicists to quantify how electric fields interact with surfaces, such as in the design of capacitors or the study of charged particles. For example, in the application of Gauss's law, electric flux is directly related to the enclosed charge, with the unit V·m facilitating the conversion between field measurements and charge distributions. This unit also plays a role in determining the energy stored in electric fields and the behavior of dielectric materials under the influence of an electric field.
To summarize, the SI unit for electric flux is volt meters (V·m), derived from the product of electric field strength (V/m) and surface area (m²). This unit is essential for quantifying electric field interactions with surfaces and is widely used in theoretical and applied electromagnetism. Avoiding confusion with the term "voltmeter" ensures clarity and precision in scientific discourse, reinforcing the importance of accurate unit usage in physics and engineering.
Why Brown Coal Remains a Key Player in Electricity Generation
You may want to see also
Explore related products
Definition of Electric Flux: Measures electric field passing through a surface, linked to charge distribution
Electric flux is a fundamental concept in electromagnetism that quantifies the total number of electric field lines passing through a given surface. It provides a measure of how much electric field penetrates a specific area, offering insights into the distribution of electric charges. Mathematically, electric flux (Φ) is defined as the dot product of the electric field (E) and the differential area vector (dA) integrated over a surface: Φ = ∫ E · dA. This definition highlights that electric flux depends on both the strength of the electric field and the orientation of the surface relative to the field lines.
The unit of electric flux is derived from its constituent components: the electric field (E) and the area (A). The electric field is measured in volts per meter (V/m), and the area is measured in square meters (m²). Therefore, the unit of electric flux is the volt-meter (V·m), which is equivalent to the newton-meter squared per coulomb (N·m²/C). This unit reflects the relationship between electric flux, electric field strength, and the geometry of the surface through which the field passes.
Electric flux is intimately linked to the distribution of electric charges. According to Gauss's Law, the total electric flux through a closed surface is proportional to the enclosed electric charge (Q) divided by the permittivity of free space (ε₀): Φ = Q / ε₀. This law underscores the direct connection between electric flux and charge distribution, making it a powerful tool for analyzing electrostatic systems. For example, a uniformly charged sphere will have a symmetric electric field, resulting in a predictable flux through any enclosing surface.
Understanding electric flux is crucial for solving problems in electrostatics and designing electrical systems. It helps in determining how electric fields interact with surfaces, such as in capacitors, where the flux through the plates is directly related to the stored charge. Additionally, electric flux is essential in calculating the electric field due to complex charge distributions using Gauss's Law, simplifying problems that would otherwise require intricate integration.
In summary, electric flux measures the electric field passing through a surface, with its unit being the volt-meter (V·m) or newton-meter squared per coulomb (N·m²/C). It is a key concept that bridges the electric field and charge distribution, enabling the analysis of electrostatic phenomena. By quantifying the interaction between electric fields and surfaces, electric flux provides valuable insights into the behavior of charged systems, making it an indispensable tool in the study of electromagnetism.
Electric Vehicles: Fire Risks and Realities
You may want to see also
Explore related products
Relation to Gauss's Law: Flux equals enclosed charge divided by vacuum permittivity (ε₀)
The concept of electrical flux is intimately tied to Gauss's Law, one of the fundamental principles in electrostatics. Gauss's Law states that the total electric flux through a closed surface is proportional to the total charge enclosed by that surface. Mathematically, this relationship is expressed as Φ = Q_enclosed / ε₀, where Φ represents the electric flux, Q_enclosed is the total charge enclosed by the surface, and ε₀ (epsilon naught) is the vacuum permittivity, a fundamental constant with a value of approximately 8.854 × 10⁻¹² C²/N·m². This equation highlights that electric flux is a measure of the electric field lines passing through a surface, normalized by the vacuum permittivity.
The unit of electrical flux, derived from this relationship, is the volt-meter (V·m). This unit arises because flux (Φ) is calculated as the integral of the electric field (E) over a surface area (A), i.e., Φ = ∫ E · dA. Since the electric field is measured in volts per meter (V/m) and area in square meters (m²), the product yields V·m. However, when using Gauss's Law, the flux is directly related to the enclosed charge and vacuum permittivity. The charge is measured in coulombs (C), and ε₀ has units of C²/N·m². Dividing charge by ε₀ results in units of N·m²/C, which is equivalent to V·m, reinforcing the consistency of the units in this relationship.
Gauss's Law provides a powerful tool for calculating electric fields in situations with high symmetry, such as spherical, cylindrical, or planar symmetry. By choosing an appropriate Gaussian surface that matches the symmetry of the charge distribution, the flux calculation simplifies significantly. For example, in the case of a spherically symmetric charge distribution, the electric field is radial and has the same magnitude at every point on the Gaussian sphere. The flux through this sphere is simply the product of the field magnitude and the surface area of the sphere, which directly relates to the enclosed charge via Gauss's Law.
The role of ε₀ in this equation is crucial, as it serves as the proportionality constant between the flux and the enclosed charge. Vacuum permittivity characterizes how electric fields propagate in free space and is essential for normalizing the relationship between charge and flux. Without ε₀, the units would not balance, and the physical interpretation of flux as a measure of field lines passing through a surface would be lost. Thus, ε₀ ensures that the equation remains dimensionally consistent and physically meaningful.
In summary, the relation Φ = Q_enclosed / ε₀ in Gauss's Law establishes a direct connection between electric flux, enclosed charge, and vacuum permittivity. This relationship not only defines the unit of electrical flux as the volt-meter but also provides a practical method for calculating electric fields in symmetric systems. Understanding this relation is essential for applying Gauss's Law effectively and for grasping the deeper principles of electrostatics.
Are Electric Car Door Latches Secure and Reliable for Drivers?
You may want to see also
Explore related products
Units in CGS System: In CGS, flux is expressed in statvolt-centimeters (stat·cm)
The CGS (Centimeter-Gram-Second) system is one of the earliest metric systems used in physics and engineering, and it offers a unique approach to measuring electrical quantities, including electric flux. In this system, the unit of electric flux is the statvolt-centimeter (stat·cm), which is derived from the fundamental units of length, mass, and time in the CGS system. This unit is particularly significant in the context of electrostatics, where it provides a concise way to quantify the electric field's effect over a given area.
To understand the statvolt-centimeter, it's essential to break down its components. The 'statvolt' is the CGS unit of electric potential difference, equivalent to the potential difference between two points in a vacuum when one volt of potential difference would produce an electric field of one statvolt per centimeter. This unit is closely related to the electrostatic system of units, where the charge is measured in statcoulombs (statC). One statvolt is defined as the potential difference that would drive one statcoulomb of charge through a resistance of one centimeter in a vacuum. The 'centimeter' in statvolt-centimeter refers to the area over which the electric field is measured, emphasizing the system's focus on smaller, more localized scales compared to the SI system.
In the CGS system, electric flux (Φ) is defined as the product of the electric field (E) and the area (A) over which it acts, perpendicular to the field. Mathematically, this is expressed as Φ = E * A. When using CGS units, the electric field is measured in statvolts per centimeter (statV/cm), and the area is in square centimeters (cm²). Consequently, the unit of electric flux becomes statvolt-centimeters (stat·cm), which simplifies the calculation and expression of flux in this system. This unit is particularly useful in theoretical calculations and in fields where the CGS system is traditionally employed, such as in certain areas of physics and engineering.
The use of statvolt-centimeters highlights the CGS system's emphasis on simplicity and coherence in unit definitions. Unlike the SI system, which uses the volt (V) and the meter (m) for electric potential and length, respectively, the CGS system integrates these quantities into a more compact framework. This integration is advantageous in scenarios where the physical dimensions are small, and the calculations involve electrostatic phenomena. However, it's important to note that the CGS system is not as widely used as the SI system in modern scientific and engineering applications, primarily due to the latter's broader acceptance and standardization.
Despite its limited contemporary use, understanding the CGS unit of electric flux, statvolt-centimeters, is valuable for historical context and for working with older literature or specialized fields. Converting between CGS and SI units requires careful attention to the conversion factors, as the two systems differ significantly in their base units and scaling. For instance, 1 statV/cm is equivalent to 299.792458 V/m, illustrating the substantial difference in magnitude between the two systems. This conversion factor is crucial for ensuring accuracy when translating measurements or theoretical values between the CGS and SI systems.
In summary, the CGS system expresses electric flux in statvolt-centimeters (stat·cm), a unit that reflects the system's unique approach to measuring electrostatic quantities. This unit is derived from the CGS definitions of electric potential and area, providing a concise and coherent framework for calculations in electrostatics. While the CGS system is less prevalent today, its units remain relevant in specific contexts, and understanding them is essential for a comprehensive grasp of electrical measurements across different systems.
Electric Vehicles: Road-Worthy or Too Heavy to Handle?
You may want to see also
Explore related products
Practical Applications: Used in capacitors, insulators, and electric field calculations in engineering
The unit used for electrical flux is the volt-meter (V·m), which is derived from the product of the electric field strength (volts per meter, V/m) and the surface area (square meters, m²) over which the flux is calculated. This fundamental unit is crucial in understanding and quantifying how electric fields interact with surfaces, a principle that underpins many practical applications in engineering, particularly in the design and operation of capacitors, insulators, and electric field calculations.
In capacitors, electrical flux plays a central role in determining the device's performance. A capacitor stores energy by accumulating electric charge on two conductive plates separated by an insulating material (dielectric). The electrical flux passing through the dielectric is directly proportional to the charge stored and the voltage applied across the plates. Engineers use the unit V·m to calculate the flux density, ensuring the dielectric can withstand the electric field without breaking down. This is critical in designing high-efficiency capacitors for applications like power supply smoothing, signal filtering, and energy storage in electric vehicles.
Insulators rely on the control of electrical flux to prevent unwanted current flow. Materials such as ceramics, plastics, and composites are chosen for their ability to minimize flux leakage, which could lead to electrical breakdown or energy loss. By quantifying the flux in V·m, engineers can assess the insulating properties of materials under various electric field strengths. This is essential in high-voltage systems, such as transformers, circuit breakers, and power transmission lines, where insulation failure can result in catastrophic failures.
In electric field calculations, the unit V·m is indispensable for analyzing and optimizing field distributions in engineering designs. For instance, in the development of electronic devices, understanding the flux through different components helps in minimizing interference and ensuring signal integrity. Similarly, in electromagnetic compatibility (EMC) studies, engineers use flux calculations to predict how devices will interact with external electric fields, ensuring compliance with regulatory standards. This is particularly important in industries like aerospace and automotive, where electronic systems must operate reliably in diverse environments.
Furthermore, the concept of electrical flux is applied in electrostatic shielding, where materials are designed to redirect or absorb electric fields. By calculating the flux in V·m, engineers can determine the effectiveness of shielding materials in protecting sensitive equipment from external electric fields. This is vital in applications such as medical devices, where electromagnetic interference can compromise patient safety, and in consumer electronics, where shielding ensures devices function without disruption.
In summary, the unit V·m for electrical flux is a cornerstone in engineering applications involving capacitors, insulators, and electric field calculations. Its practical use enables precise design, optimization, and safety assessments, ensuring the reliability and efficiency of electrical and electronic systems across various industries. Mastery of this concept allows engineers to tackle complex challenges, from energy storage to electromagnetic compatibility, with confidence and precision.
Electric Vehicle Tax Credits: What You Need to Know
You may want to see also
Frequently asked questions
The unit used for electrical flux is the volt-meter (V·m), which is equivalent to the newton-meter squared per coulomb (N·m²/C).
The volt-meter (V·m) is used because electrical flux (Φ) is defined as the product of the electric field (E, in volts per meter, V/m) and the surface area (A, in square meters, m²) through which the field passes, resulting in units of V·m.
No, the unit for electrical flux is the volt-meter (V·m), while magnetic flux is measured in webers (Wb) or tesla-square meters (T·m²).
The coulomb (C) is indirectly related to the unit of electrical flux through Gauss's law, where electrical flux (Φ) equals the charge (Q, in coulombs) enclosed divided by the permittivity of free space (ε₀). However, the direct unit of electrical flux remains volt-meter (V·m) or N·m²/C.
