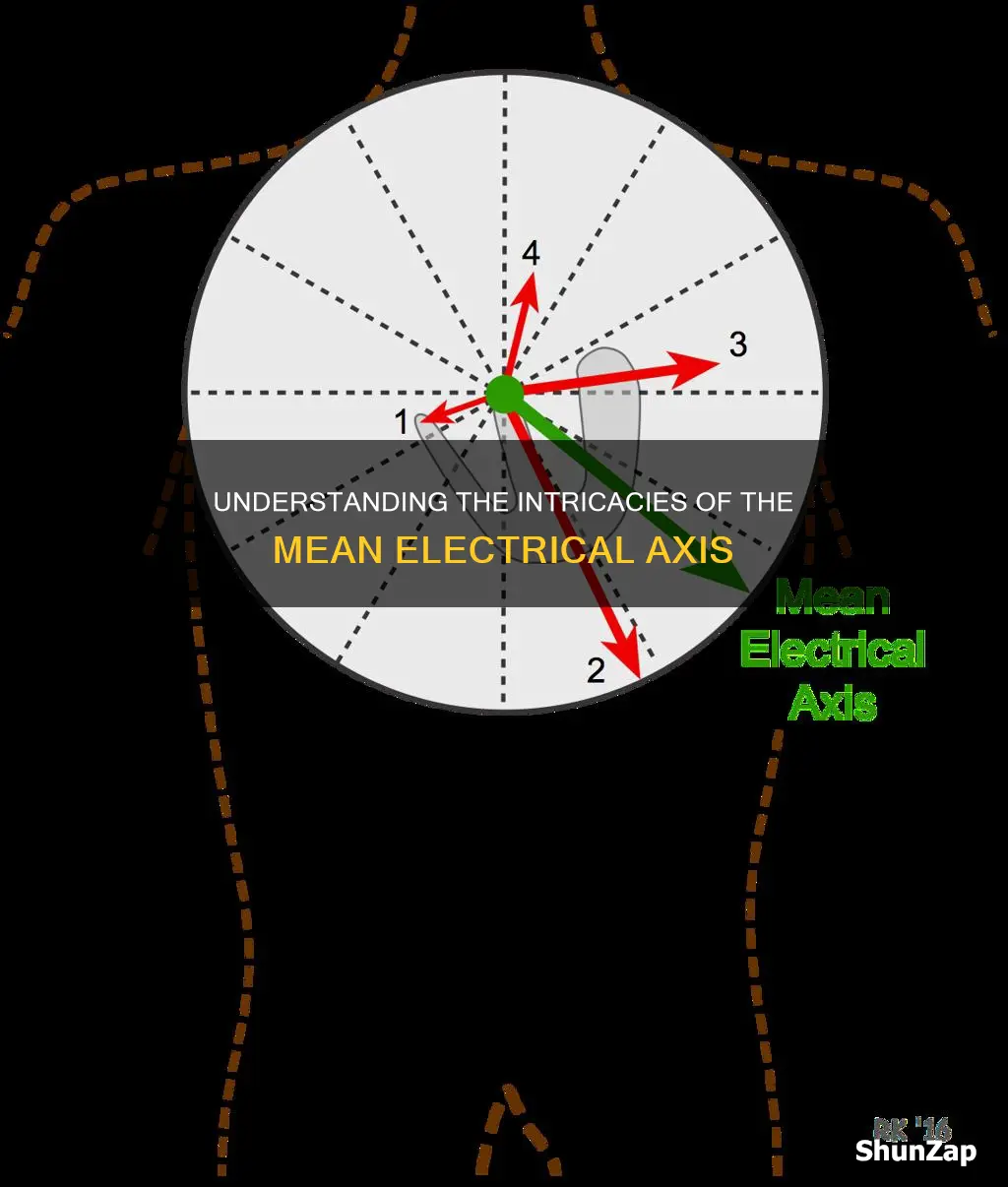

The mean electrical axis is an important aspect of ECG interpretation, reflecting the average direction of ventricular depolarization during ventricular contraction. It is determined using 3 unipolar and 3 bipolar ECG leads, with the vertical axis calculated using chest leads. The mean electrical axis is typically around 59° in a healthy heart, pointing downward and slightly to the left. This value can help diagnose conduction abnormalities, ventricular hypertrophy, and arrhythmia origins. The normal range for the mean electrical axis in adults is between −30° and +90°, with values above +90° indicating right axis deviation and values below −30° indicating left axis deviation.
| Characteristics | Values |
|---|---|
| Normal adult QRS axis range | -30° to +90° |
| Normal adult QRS axis direction | Down and to the left |
| Normal QRS axis range in newborns | +30° to +190° |
| Normal QRS axis range in children (8-16 years) | 0° to +120° |
| Normal QRS axis range in cats | 0° to +160° |
| Mean QRS vector in a normally situated heart | 59° |
| Mean QRS vector direction | Down and slightly to the left |
| Positive axis | More than 90° |
| Negative axis | Less than -30° |
| Extreme axis deviation range | -90° to 180° |
Explore related products
What You'll Learn
- The mean electrical axis is important for diagnosing conduction abnormalities
- The normal range for the QRS axis in adults is between -30° and +90°
- The QRS axis moves leftward throughout childhood and continues into adulthood
- The mean electrical axis can be identified by graphing the net deflections of leads I and III
- The hexaxial lead system is the standard multilead system used in veterinary medicine
The mean electrical axis is important for diagnosing conduction abnormalities
The mean electrical axis is a crucial aspect of electrocardiogram (ECG) interpretation and plays a significant role in diagnosing conduction abnormalities. It involves determining the heart's electrical axis or the sum of all depolarization vectors of the heart. This is important because it provides valuable insights into the underlying disease states and helps guide the differential diagnosis.
The mean electrical axis is calculated using a multilead ECG, which is a standard procedure in veterinary medicine. This multilead system, known as the hexaxial lead system, consists of six limb leads, including three bipolar leads (Leads I, II, and III) and three unipolar leads (aVR, aVL, and aVF). By convention, the label for a lead is placed at the position of its positive pole on the ECG lead diagram.
To determine the mean electrical axis, one of the basic methods is to find an isoelectric lead, which is a lead where the positive and negative deflections of the QRS complex are equal. The lead that is perpendicular to the isoelectric lead identifies the mean electrical axis. If the QRS complex is predominantly positive in this perpendicular lead, the mean electrical axis is directed toward the positive pole. Conversely, if the QRS complex is negative, the mean electrical axis veers away from the positive pole.
Abnormalities in the mean electrical axis can indicate conduction abnormalities, ventricular hypertrophy, and arrhythmias. For example, a shift in the mean electrical axis toward the ventricle may suggest an intraventricular conduction defect caused by a defective bundle branch or fascicle. This shift occurs because the depolarization of the myocardium is now dependent on slow myocyte-to-myocyte conduction, resulting in a prolonged depolarization process.
Additionally, the ventricular (QRS) axis in a bundle branch block setting can provide valuable insights. For instance, in a right bundle branch block (RBBB), RAD or LAD may indicate a bifascicular block. By examining the initial 80 to 100 milliseconds of QRS deflection, which reflects left ventricular activation, we can estimate the frontal plane axis. Similarly, in a left bundle branch block (LBBB) or other intraventricular conduction delays, the same initial portion of the QRS deflection or the entire complex can be used to determine the axis.
Understanding Electrical Component Polarization: What's the Meaning?
You may want to see also
Explore related products
The normal range for the QRS axis in adults is between -30° and +90°
The QRS axis is determined by the sum of depolarisation vectors generated by individual cardiac myocytes. The QRS complex is a representation of ventricular depolarisation. The QRS axis is at 90° to the isoelectric lead, pointing in the direction of the positive leads. An isoelectric lead is one in which the positive and negative deflections of the QRS complex are equal. The QRS axis must be ±90° from the isoelectric lead.
The QRS axis moves leftward throughout childhood and continues into adulthood. At birth, the normal QRS axis lies between +30° and +190°. Between 8 and 16 years, the axis moves leftward, typically lying between 0° to +120°. The normal adult QRS axis is directed down and to the left.
The QRS axis can be used to help diagnose underlying disease states and identify certain life-threatening arrhythmias. For example, a QRS axis less than -30° indicates left axis deviation, while a QRS axis greater than +90° indicates right axis deviation.
Understanding Electrical Frequency: Its Meaning and Applications
You may want to see also
Explore related products
The QRS axis moves leftward throughout childhood and continues into adulthood
The QRS axis, or the ventricular axis, is an important component of electrocardiogram (ECG) interpretation. It provides insight into underlying disease states and helps steer the differential diagnosis towards or away from certain diagnoses. The QRS axis moves leftward throughout childhood and continues into adulthood, reflecting the maturation of the heart's electrical axis.
At birth, the normal QRS axis lies between +30° and +190°. This range is considered the normal cardiac axis in paediatric ECG interpretation. As children grow, the QRS axis gradually moves leftward, and by the age of 8 to 16 years, it typically shifts to a range between 0° and +120°. This leftward shift indicates a change in the heart's electrical axis, which is influenced by the growth and development of the heart during childhood.
The leftward movement of the QRS axis continues into adulthood. In adults, the normal QRS axis range is between -30° and +90°, directed down and slightly to the left. This range is considered the typical adult QRS axis, and it represents the final maturation of the heart's electrical axis. The QRS axis in adults can sometimes extend beyond +90°, up to +100°, and still be considered within the normal range.
The movement of the QRS axis throughout childhood and into adulthood is a natural process and is used as a reference for identifying deviations or abnormalities. The QRS axis is determined by evaluating specific leads, such as leads I, II, and aVF, in a multilead ECG system. These leads have positive, negative, or isoelectric QRS complexes, which help determine the position of the QRS axis. By combining the evaluation of these leads, healthcare professionals can accurately assess the QRS axis and identify any deviations that may indicate underlying health conditions.
Understanding Polarity in Electric Circuits: Positive and Negative Charges
You may want to see also
Explore related products
The mean electrical axis can be identified by graphing the net deflections of leads I and III
The mean electrical axis is an important aspect of ECG axis interpretation, which is a graphical representation of the electrical activity of the patient's heart. It is a useful tool to identify underlying disease states and steer the diagnosis towards or away from certain conditions. It is also important for correctly identifying certain life-threatening arrhythmias.
The lead graphing method is a more accurate approach than the simple quadrant approach, which considers leads I, aVF, and lead II (the 3-lead method). The multilead ECG is necessary to detect changes in the mean electrical axis. The mean electrical axis is typically within 30 degrees of the positive pole of the tallest R wave.
The normal adult QRS axis is between -30° and +90°, directed down and to the left. This range is sometimes extended from -30° to +100°. The QRS axis moves leftward throughout childhood and continues into adulthood. At birth, the normal QRS axis lies between +30° and +190°.
Static Electricity: Understanding the Science Behind the Spark
You may want to see also
Explore related products
![Shars Precision Magnetic Z Axis Zero Setter 2" Height x 0.001" 303-3104 P]](https://m.media-amazon.com/images/I/71wNggx4XsL._AC_UY218_.jpg)
The hexaxial lead system is the standard multilead system used in veterinary medicine
The hexaxial lead system, also known as the Cabrera system, is the standard multilead system used in veterinary medicine. It is a convention to present the extremity leads of the 12-lead electrocardiogram (ECG), which provides an illustrative logical sequence that helps in interpreting the ECG, particularly in determining the heart's electrical axis in the frontal plane. This system is arranged around the heart in a short-axis plane, referred to as the frontal plane, where the left ventricular apex is generally oriented towards the positive pole of lead II. The circumference of this plane is labelled in degrees, ranging from 0 to +180 and 0 to -180.
The hexaxial lead system is formed by six limb leads, including bipolar and unipolar leads. Leads I, II, and III are bipolar leads, meaning they have both a positive and negative pole. On the other hand, leads aVR (augmented voltage right arm), aVL (augmented voltage left arm), and aVF (augmented voltage left foot) are unipolar leads, which only have a positive pole. The activity of the positive pole in unipolar leads is compared with the average of the other two leads. The label for a lead is typically placed at the position of its positive pole on the ECG lead diagram.
To determine the mean electrical axis, a six-lead ECG is obtained from a patient positioned in right lateral recumbency, with their limbs perpendicular to the long axis of their body. There are four basic methods for estimating the mean electrical axis, with the first two methods considered more accurate than the latter two. The first method involves finding an isoelectric lead, where the positive and negative deflections of the QRS complex are equal. The lead perpendicular to the isoelectric lead identifies the mean electrical axis. If the QRS complex is predominantly positive in the perpendicular lead, the mean electrical axis is directed towards the positive pole. Conversely, if the QRS complex is negative, the mean electrical axis shifts away from the positive pole.
The second method, known as the lead graphing method, involves measuring the net deflections of leads I and III from the baseline (P-R segment). Perpendicular lines are drawn at these values, and their intersection point represents the mean electrical axis. The third method identifies the lead with the tallest R wave, and the mean electrical axis is within 30 degrees of its positive pole. The fourth method is employed when no lead is isoelectric. It involves using the 3-lead method, which considers leads I, II, and aVF. If the net QRS deflection is positive in both leads I and II, the QRS axis is considered normal.
The hexaxial lead system is particularly useful in veterinary medicine for diagnosing conduction abnormalities, detecting ventricular hypertrophy, and differentiating the origin of arrhythmias. It helps rule out artifacts as the cause of electrocardiographic abnormalities seen in single-lead tracings. While thoracic radiography and echocardiography are more sensitive for diagnosing chamber enlargement, an abnormal ECG may indicate the need for additional diagnostic tests.
The Intriguing Science Behind Solid Electric Silver
You may want to see also
Frequently asked questions
The normal range for the mean electrical axis in adults is between -30° and +90°.
The normal QRS axis at birth lies between +30° and +190°.
The mean electrical axis represents the average direction of ventricular depolarization during ventricular contraction.
To determine the mean electrical axis, you must obtain a six-lead ECG from a patient positioned in right lateral recumbency. Four basic methods exist for estimating the mean electrical axis, with the first two methods considered more accurate.
