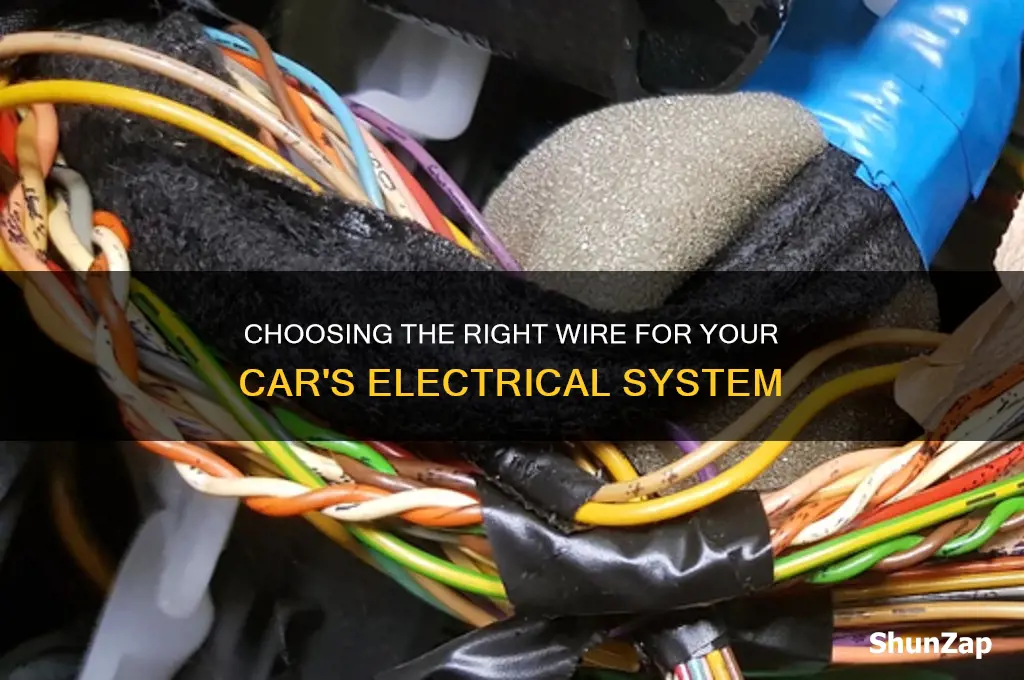

When it comes to car electrics, selecting the right wire is crucial for ensuring safety, reliability, and optimal performance. The choice of wire depends on factors such as current load, voltage, temperature resistance, and the specific application within the vehicle. Automotive wiring typically uses stranded copper wire due to its flexibility and conductivity, with gauges ranging from 10 to 20 AWG being common for most applications. High-temperature insulation, such as cross-linked polyethylene (XLPE) or PVC, is essential to withstand the harsh conditions under the hood. Additionally, wires for high-current applications, like starter motors or alternators, require thicker gauges to minimize voltage drop and heat buildup. Always consult the vehicle’s manual or a wiring diagram to ensure compatibility and compliance with safety standards.
| Characteristics | Values |
|---|---|
| Wire Gauge (AWG) | 10-18 AWG (most common); 10-12 AWG for high-current applications (e.g., alternator, starter); 14-18 AWG for accessories and lighting |
| Wire Type | Stranded copper (for flexibility and durability); solid copper (less common, mainly for short runs) |
| Insulation Material | Cross-linked polyethylene (XLPE), PVC, or GPT (General Purpose Thermoplastic) for heat and chemical resistance |
| Temperature Rating | Minimum 105°C (221°F), preferably 125°C (257°F) or higher for engine bay applications |
| Voltage Rating | 600V or higher (standard for automotive use) |
| Color Coding | Follow SAE J1128 standards (e.g., red for positive, black for ground, yellow for switched power) |
| Strand Count | 7-19 strands per wire (higher strand count for flexibility) |
| Wire Jacket Thickness | 0.020-0.030 inches (0.5-0.76 mm) for durability |
| Resistance to Chemicals | Resistant to oil, fuel, and coolant |
| Flexibility | High flexibility for routing in tight spaces |
| Abrasion Resistance | Durable outer jacket to withstand friction and wear |
| Current Capacity | Varies by gauge; e.g., 10 AWG: ~30A, 14 AWG: ~15A, 18 AWG: ~7A (at 12V systems) |
| Compliance Standards | SAE J1128, ISO 6722, or UL standards for automotive wiring |
| Shielding | Not typically required unless in high EMI environments |
| Water Resistance | Waterproof or water-resistant insulation for exposed areas |
| UV Resistance | UV-resistant jacket for wires exposed to sunlight |
| Connector Compatibility | Compatible with standard automotive connectors (e.g., bullet, spade, ring terminals) |
Explore related products
What You'll Learn
- Gauge Selection: Match wire gauge to current load for safety and efficiency in car electrical systems
- Insulation Types: Choose heat-resistant insulation like PVC or Teflon for durability in engine environments
- Color Coding: Follow standard color codes for easy identification and troubleshooting of car wiring
- Wire Materials: Use copper for conductivity or tinned copper for corrosion resistance in automotive wiring
- Specialty Wires: Opt for stranded wires for flexibility or shielded wires to reduce electromagnetic interference
Gauge Selection: Match wire gauge to current load for safety and efficiency in car electrical systems
Selecting the correct wire gauge is critical in car electrical systems, as it directly impacts safety and efficiency. A wire that’s too thin for the current load can overheat, melt insulation, or even start a fire, while a wire that’s too thick wastes space and adds unnecessary weight. The American Wire Gauge (AWG) system provides a standardized way to match wire thickness to current requirements, ensuring optimal performance. For instance, a 12-gauge wire is commonly used for high-current applications like alternators or amplifiers, handling up to 25 amps, while 18-gauge wire is suitable for low-current tasks like LED lighting, typically under 5 amps.
To determine the right gauge, start by calculating the maximum current draw of the component. Use the formula *Amps = Watts / Volts* for devices rated in watts, or consult the manufacturer’s specifications. Next, refer to an AWG current capacity chart, factoring in wire length and temperature, as longer runs and higher temperatures reduce current-carrying capacity. For example, a 10-foot run of 14-gauge wire can safely carry 20 amps at 12 volts, but the same wire at 20 feet should be derated to 15 amps to prevent overheating. Always round up to the next gauge size if in doubt.
Efficiency is another key consideration. Thicker wires reduce voltage drop, ensuring components receive consistent power. A voltage drop calculator can help assess this, especially in systems with high-power accessories like subwoofers or winches. For instance, a 4-gauge wire is ideal for a 1,000-watt amplifier, minimizing power loss over long distances. Conversely, using overly thick wire in low-current circuits is wasteful and can complicate installation due to reduced flexibility.
Practical tips include using color-coded wires for easy identification and selecting stranded wire over solid core for flexibility in tight spaces. Always use high-temperature insulation rated for automotive environments, such as GPT (General Purpose Thermoplastic) or TXL (Machine Tool Wire). When in doubt, consult a professional or use pre-assembled wiring kits designed for specific applications. Proper gauge selection isn’t just about functionality—it’s about safeguarding your vehicle and passengers while maximizing system performance.
