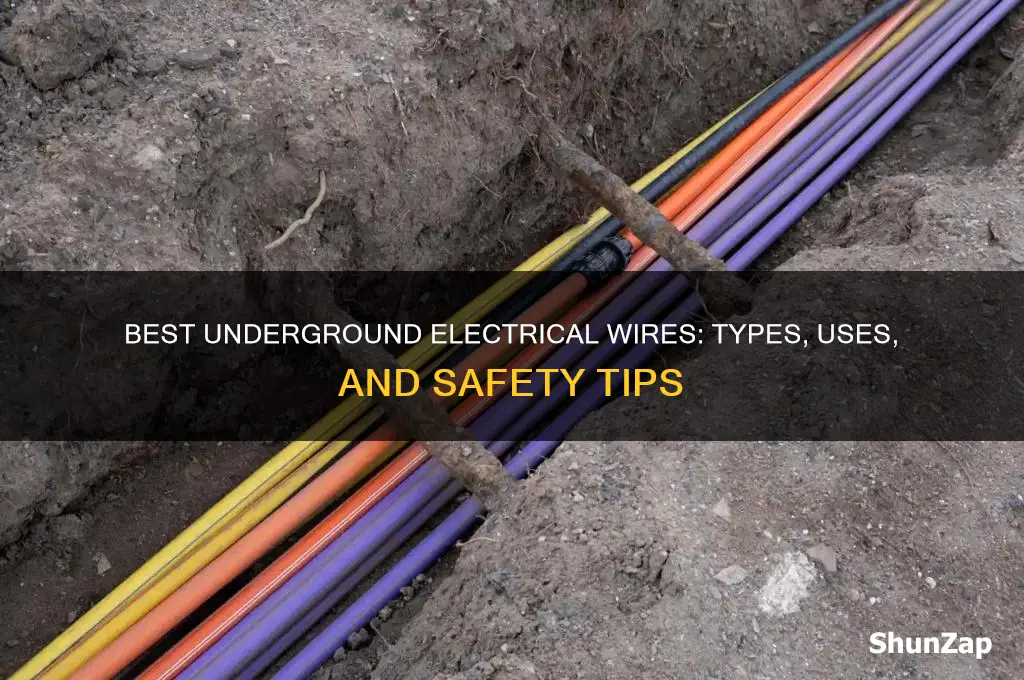

When installing underground electrical systems, selecting the appropriate wire is crucial for safety, durability, and compliance with local codes. Underground wires must withstand moisture, temperature fluctuations, and physical stress, making it essential to choose cables specifically designed for burial. The most common types include direct burial cables, such as UF-B (Underground Feeder), which have a durable outer jacket to protect against water and corrosion, and THWN-2 wires, often used in conduit for added protection. Additionally, factors like voltage requirements, amperage, and the depth of burial must be considered to ensure the wire meets the demands of the electrical load and adheres to safety standards. Consulting local building codes and a licensed electrician is highly recommended to make an informed decision.
Explore related products
What You'll Learn
- Wire Material Options: Copper vs. Aluminum for durability and cost-effectiveness in underground electrical installations
- Wire Gauge Selection: Choosing the right gauge based on amperage and distance requirements
- Direct Burial Cables: UF-B and THWN-2 wires designed for underground use without conduit
- Conduit Protection: Using PVC or metal conduits to shield wires from damage and moisture
- Local Code Compliance: Ensuring wire types and installation methods meet regional electrical codes
Wire Material Options: Copper vs. Aluminum for durability and cost-effectiveness in underground electrical installations
When considering wire material options for underground electrical installations, the choice between copper and aluminum is a critical decision that impacts both durability and cost-effectiveness. Copper is widely regarded as the premium choice due to its superior conductivity, corrosion resistance, and long-term reliability. It has a higher tensile strength than aluminum, making it less prone to damage during installation and more resistant to environmental stresses. Copper’s conductivity allows for the use of smaller-gauge wires, which can reduce material costs and ease installation in tight spaces. However, copper is significantly more expensive than aluminum, which can be a limiting factor for large-scale projects. Despite the higher upfront cost, copper’s durability and lower maintenance requirements often make it a more cost-effective option over the lifespan of the installation.
Aluminum, on the other hand, is a more budget-friendly alternative that has gained popularity in underground electrical applications. It is lighter and more flexible than copper, making it easier to handle and install, especially in long runs. Aluminum is also highly resistant to corrosion when properly installed with corrosion-resistant connectors and insulation. However, aluminum has a lower conductivity than copper, which means larger-gauge wires are required to achieve the same performance. This can offset some of the cost savings by increasing the amount of material needed and potentially complicating installation. Additionally, aluminum is more susceptible to creep (gradual deformation under stress) and requires careful attention to connections to prevent overheating and failure.
In terms of durability, copper outperforms aluminum in most underground environments. Copper’s natural resistance to corrosion and its ability to withstand temperature fluctuations make it ideal for direct burial applications. Aluminum, while still durable, requires additional protective measures, such as conduit or specialized coatings, to ensure longevity in moist or chemically aggressive soils. The choice between the two materials often depends on the specific conditions of the installation site, including soil type, moisture levels, and potential exposure to corrosive substances.
Cost-effectiveness is a key consideration, and aluminum often wins in this category due to its lower material cost. For projects with tight budgets or extensive wiring needs, aluminum can provide significant savings upfront. However, it’s important to factor in long-term maintenance and potential replacement costs. Copper’s longevity and reliability may result in lower overall expenses over time, especially in demanding environments. Additionally, local electrical codes and regulations may dictate the use of one material over the other, further influencing the cost-benefit analysis.
Ultimately, the decision between copper and aluminum for underground electrical installations should be based on a careful evaluation of project requirements, environmental conditions, and budget constraints. Copper offers unmatched durability and performance but comes with a higher price tag, while aluminum provides a cost-effective solution with some trade-offs in conductivity and maintenance. Consulting with a qualified electrician or engineer can help ensure the chosen material meets safety standards and delivers the best value for the specific application.
Laser Printers: How Lasers and Electricity Power Your Prints
You may want to see also
Explore related products
Wire Gauge Selection: Choosing the right gauge based on amperage and distance requirements
When selecting the appropriate wire gauge for underground electrical installations, it's crucial to consider both the amperage (current) requirements and the distance the electricity needs to travel. Wire gauge is essentially the thickness of the wire, and it directly impacts the wire's ability to carry current without excessive energy loss or overheating. The American Wire Gauge (AWG) system is commonly used, where a lower gauge number indicates a thicker wire. For underground applications, the most common gauges range from 8 AWG to 2/0 AWG, depending on the load and distance. The first step in wire gauge selection is to determine the maximum current the circuit will carry. This is typically found in the electrical plans or calculated based on the connected devices.
Once the amperage is known, the next factor to consider is the distance the wire will run underground. As the distance increases, the resistance of the wire also increases, leading to voltage drop—a reduction in voltage at the end of the wire compared to the source. The National Electrical Code (NEC) provides guidelines for voltage drop, generally recommending that it should not exceed 3% for most circuits. To minimize voltage drop, thicker wires (lower gauge numbers) are required for longer runs. For example, a 30-amp circuit running 100 feet may require 8 AWG wire, while the same circuit running 200 feet might necessitate 6 AWG or thicker.
Another critical aspect is the type of wire used for underground installations. Direct burial cables, such as UF-B (Underground Feeder) or THWN-2 (Thermoplastic Heat and Water-resistant Nylon-coated), are designed to withstand moisture, soil acidity, and temperature fluctuations. These cables often have a thicker insulation and jacketing to protect against environmental factors. When selecting the gauge, ensure the wire is rated for direct burial and meets local electrical codes. Additionally, consider using conduit for added protection, especially in areas with high moisture or mechanical damage risks.
To accurately determine the correct wire gauge, consult wire sizing charts or calculators that account for amperage, distance, and voltage drop. These tools often factor in the specific material of the wire (e.g., copper or aluminum) and the ambient temperature, as these can affect resistance. For instance, aluminum wire has a higher resistance than copper, so a larger gauge may be needed for the same amperage and distance. Always err on the side of a thicker wire if in doubt, as undersized wires can lead to overheating, reduced efficiency, and potential safety hazards.
Lastly, local building codes and regulations play a significant role in wire gauge selection for underground electrical systems. Some jurisdictions may have specific requirements for wire types, burial depths, and protection methods. It’s essential to verify these requirements before installation to ensure compliance and safety. Working with a licensed electrician or using approved resources can help ensure the correct wire gauge is chosen for the specific application, balancing efficiency, safety, and cost-effectiveness. Proper wire gauge selection is a critical step in ensuring the longevity and reliability of underground electrical systems.
The Evolution of Electric Vehicle Chargers: Types and Variations
You may want to see also
Explore related products
Direct Burial Cables: UF-B and THWN-2 wires designed for underground use without conduit
When it comes to underground electrical installations, choosing the right wire is crucial for safety, durability, and compliance with electrical codes. Direct burial cables are specifically designed to be buried underground without the need for conduit, making them a popular choice for outdoor lighting, landscape projects, and connecting outbuildings. Among the most commonly used direct burial cables are UF-B (Underground Feeder) and THWN-2 wires, both engineered to withstand the harsh conditions of underground environments. These cables are constructed with materials that resist moisture, corrosion, and physical damage, ensuring long-term reliability.
UF-B cable is one of the most widely recognized direct burial cables. It features a solid core of stranded copper conductors, each insulated with a moisture-resistant thermoplastic material. The entire assembly is then encased in a durable, sunlight-resistant outer jacket, which protects the cable from water, soil acids, and other environmental factors. UF-B is rated for direct burial and is suitable for use in wet or dry locations, making it ideal for outdoor electrical applications. It is available in various gauges to accommodate different amperage requirements, ensuring compatibility with the specific needs of your project.
THWN-2 wire, on the other hand, is a type of building wire that is also approved for direct burial. The designation "THWN-2" stands for Thermoplastic High Heat-resistant Nylon-coated, Wet or Dry conditions, with an additional 90°C temperature rating. This wire is often used in conjunction with other wires in a cable assembly or can be installed individually. Its nylon jacket provides excellent resistance to moisture, oil, and abrasion, making it a robust choice for underground installations. THWN-2 is commonly used in applications where higher temperatures may be encountered, such as near outdoor lighting fixtures or in areas with heavy electrical loads.
When installing UF-B or THWN-2 wires, it’s essential to follow local electrical codes and manufacturer guidelines. These cables should be buried at a minimum depth, typically 18 to 24 inches, to protect them from damage caused by digging or other activities. Additionally, they should be installed in a trench with proper backfill material, such as sand or fine soil, to prevent sharp rocks or debris from compromising the cable’s integrity. It’s also recommended to use warning tape or markers above the burial area to indicate the presence of underground electrical lines.
Both UF-B and THWN-2 wires are cost-effective solutions for underground electrical projects, offering a balance of performance and affordability. However, it’s important to select the appropriate wire gauge based on the circuit’s amperage and length to avoid voltage drop issues. Consulting with a licensed electrician can help ensure that your installation meets safety standards and functions optimally. By choosing direct burial cables like UF-B or THWN-2, you can achieve a reliable and long-lasting underground electrical system tailored to your specific needs.
Charging Your Yoyo Electric Car in Bermuda: Locations and Tips
You may want to see also
Explore related products
Conduit Protection: Using PVC or metal conduits to shield wires from damage and moisture
When installing underground electrical wiring, protecting the wires from damage and moisture is crucial for safety and longevity. One of the most effective methods to achieve this is by using conduits, specifically PVC (polyvinyl chloride) or metal conduits. These conduits act as a protective barrier, shielding the wires from external elements such as soil, water, and physical impacts. PVC conduits are lightweight, corrosion-resistant, and cost-effective, making them a popular choice for residential and light commercial applications. Metal conduits, on the other hand, offer superior strength and durability, making them ideal for heavy-duty or industrial environments where additional protection is required.
PVC conduits are widely used for underground electrical installations due to their ease of installation and resistance to moisture. They are available in various sizes and thicknesses, allowing for flexibility in accommodating different wire gauges and quantities. When using PVC conduits, it is essential to ensure they are rated for direct burial, as this ensures they can withstand the soil’s weight and environmental conditions. Additionally, PVC conduits should be installed with proper bends and supports to prevent stress on the wires inside. To further protect against moisture, it is recommended to seal all joints and ends with waterproof fittings and to use a conduit sealer or tape to create a tight barrier.
Metal conduits, such as those made from galvanized steel or aluminum, provide robust protection for underground electrical wires. They are particularly advantageous in areas prone to mechanical damage or where rodents and pests may pose a threat. Metal conduits are also fire-resistant, adding an extra layer of safety. However, they require careful installation to prevent corrosion, especially in areas with high soil acidity or moisture content. Applying a corrosion-resistant coating or using stainless steel conduits can mitigate this risk. Metal conduits are typically more expensive than PVC but are a worthwhile investment for applications demanding maximum durability and protection.
Regardless of the conduit material chosen, proper installation is key to ensuring effective protection. The conduit should be buried at the appropriate depth, typically 18 to 24 inches below the surface, to avoid damage from digging or surface activities. It is also important to follow local electrical codes and regulations, which may specify minimum burial depths, conduit types, and installation practices. For added safety, consider installing warning tape or markers above the conduit to alert future excavators to its presence.
In summary, using PVC or metal conduits for underground electrical wiring provides essential protection against damage and moisture. PVC conduits offer a cost-effective and versatile solution, while metal conduits provide unmatched strength and durability. By selecting the appropriate conduit material, ensuring proper installation, and adhering to safety standards, you can safeguard your underground electrical system for years to come. Always consult with a professional electrician or local codes to determine the best conduit and wiring solution for your specific needs.
The Future of Hybrid and Electric Vehicles: Innovations and Challenges
You may want to see also
Explore related products
Local Code Compliance: Ensuring wire types and installation methods meet regional electrical codes
When planning an underground electrical installation, one of the most critical aspects is ensuring compliance with local electrical codes. These codes are designed to guarantee safety, reliability, and consistency in electrical systems, and they vary significantly from one region to another. Local Code Compliance begins with understanding the specific requirements of your area, which can typically be found through your local building department or electrical inspector’s office. Codes often dictate the types of wire that can be used underground, such as THWN-2 (Thermoplastic High Heat-resistant Nylon-coated) or UF (Underground Feeder) cables, which are specifically designed to withstand moisture, corrosion, and physical damage. Ignoring these requirements can lead to failed inspections, costly rework, or even safety hazards.
In addition to wire types, installation methods are another key area where local codes must be followed. For instance, many regions require that underground wires be buried at a minimum depth (often 18 to 24 inches) to protect them from damage caused by digging or environmental factors. Codes may also mandate the use of conduit for added protection, especially in areas prone to moisture or soil acidity. Direct burial cables, while convenient, may not be permitted in all jurisdictions, so it’s essential to verify whether they meet local standards. Additionally, codes often specify how wires should be spliced, connected, and grounded to ensure long-term safety and functionality.
Another important consideration is the ampacity and voltage ratings of the wires, which must align with both the intended load and local regulations. Overloading wires can lead to overheating, fires, or system failures, so selecting the correct gauge and type is crucial. Local codes may also require the use of GFCI (Ground Fault Circuit Interrupter) protection for outdoor circuits to prevent electrical shocks. These requirements are particularly stringent for installations near water sources, such as pools or irrigation systems.
Documentation and permitting are often overlooked but essential components of local code compliance. Most regions require permits for underground electrical work, and inspections are typically mandatory at various stages of the project. Keeping detailed records of the materials used, installation methods, and compliance with code requirements can streamline the inspection process and provide proof of adherence to regulations. Failure to obtain necessary permits or pass inspections can result in fines, project delays, or even legal consequences.
Finally, staying informed about updates to local codes is vital, as regulations can change over time. Working with a licensed electrician who is familiar with regional requirements can help ensure that your underground electrical installation meets all current standards. While it may be tempting to cut corners or rely on general guidelines, strict adherence to local codes is the best way to protect your investment, ensure safety, and avoid legal issues. By prioritizing Local Code Compliance, you can achieve a reliable and code-compliant underground electrical system that stands the test of time.
Electric Vehicles: The Future or a Costly Detour?
You may want to see also
Frequently asked questions
For underground electrical installations, use UF-rated (Underground Feeder) cable. It is specifically designed for direct burial and has a durable, moisture-resistant jacket to protect against soil, water, and corrosion.
No, regular Romex (NM-B) wire is not suitable for underground use. It lacks the necessary insulation and protection for burial. Always use UF-rated cable or THWN-2 conductors in conduit for underground applications.
While not always required, using PVC conduit for underground wiring provides additional protection against damage from digging, rocks, and roots. It’s especially recommended for areas prone to shifting soil or heavy foot traffic. Check local codes for specific requirements.
