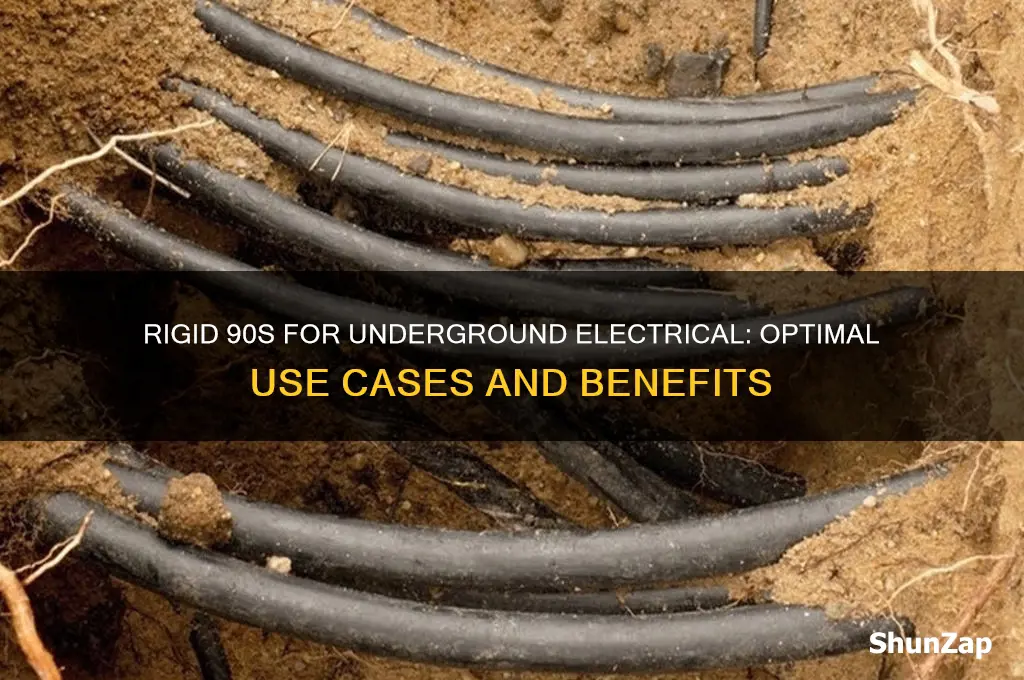

Rigid 90s, also known as rigid conduit elbows, are essential components in underground electrical installations, offering critical benefits in specific scenarios. They are primarily used when making 90-degree turns in electrical conduit runs, ensuring a secure and durable pathway for wiring while maintaining proper bending radii to protect cables from damage. Rigid 90s are ideal for underground applications due to their robust construction, which provides superior protection against moisture, corrosion, and physical stress compared to flexible alternatives. They are particularly recommended in high-traffic areas, industrial settings, or environments prone to soil movement, where long-term reliability and structural integrity are paramount. Additionally, their rigid design simplifies inspections and maintenance, making them a cost-effective choice for underground electrical systems requiring longevity and compliance with safety standards.
Explore related products
What You'll Learn
- Soil Conditions: Use in stable, non-shifting soils to prevent conduit misalignment and damage over time
- Heavy Loads: Ideal for areas with high traffic or construction to withstand pressure without collapsing
- Long-Term Durability: Resists corrosion and cracking, ensuring longevity in harsh underground environments
- Straight Runs: Best for linear installations where flexibility is unnecessary, reducing material and labor costs
- Code Compliance: Meets NEC requirements for specific applications, ensuring safety and regulatory adherence
Soil Conditions: Use in stable, non-shifting soils to prevent conduit misalignment and damage over time
When considering the use of rigid 90s for underground electrical installations, soil conditions play a critical role in determining their suitability. Rigid 90s, which are 90-degree conduit fittings, are particularly effective in stable, non-shifting soils where the ground maintains its integrity over time. These soils, such as well-compacted clay or dense sand, provide a solid foundation that minimizes movement and settling. In such environments, rigid 90s ensure that the conduit remains properly aligned, reducing the risk of bends, cracks, or disconnections that could compromise the electrical system. This stability is essential for maintaining the structural integrity of the conduit and protecting the cables within.
In contrast, unstable or shifting soils, such as loose sand, silt, or areas prone to erosion, can cause conduit misalignment and damage over time. Rigid 90s are not flexible and cannot adjust to ground movement, making them unsuitable for these conditions. However, in stable soils, their rigidity becomes an advantage, as it prevents the conduit from shifting or bending under normal ground pressures. This is particularly important in underground electrical systems, where even minor misalignment can lead to long-term issues, including water infiltration, cable abrasion, or electrical faults.
Another reason to use rigid 90s in stable soils is their ability to maintain consistent conduit angles and directions. In stable ground, the rigid fittings ensure that the conduit follows the intended path without deviation, which is crucial for meeting electrical code requirements and facilitating future maintenance or upgrades. Flexible alternatives, such as sweeps, may be more forgiving in shifting soils but lack the precision and durability of rigid 90s in stable conditions. This precision is especially valuable in complex layouts or where multiple conduit runs intersect.
Additionally, rigid 90s in stable soils provide long-term reliability and reduce the need for repairs. Since the soil does not shift, the conduit remains securely positioned, minimizing stress points that could lead to failure. This is particularly important for critical infrastructure, where downtime or repairs can be costly and disruptive. By using rigid 90s in the appropriate soil conditions, installers can ensure a robust and enduring electrical system that withstands environmental factors and the test of time.
Lastly, proper installation techniques are essential when using rigid 90s in stable soils. The trench must be carefully prepared, ensuring the soil is compacted and level to provide a firm base. Backfilling should be done meticulously, using appropriate materials to maintain soil stability around the conduit. When these practices are followed, rigid 90s in stable, non-shifting soils offer a dependable solution for underground electrical installations, preventing conduit misalignment and damage while ensuring the system's longevity.
