Wiktor Wise

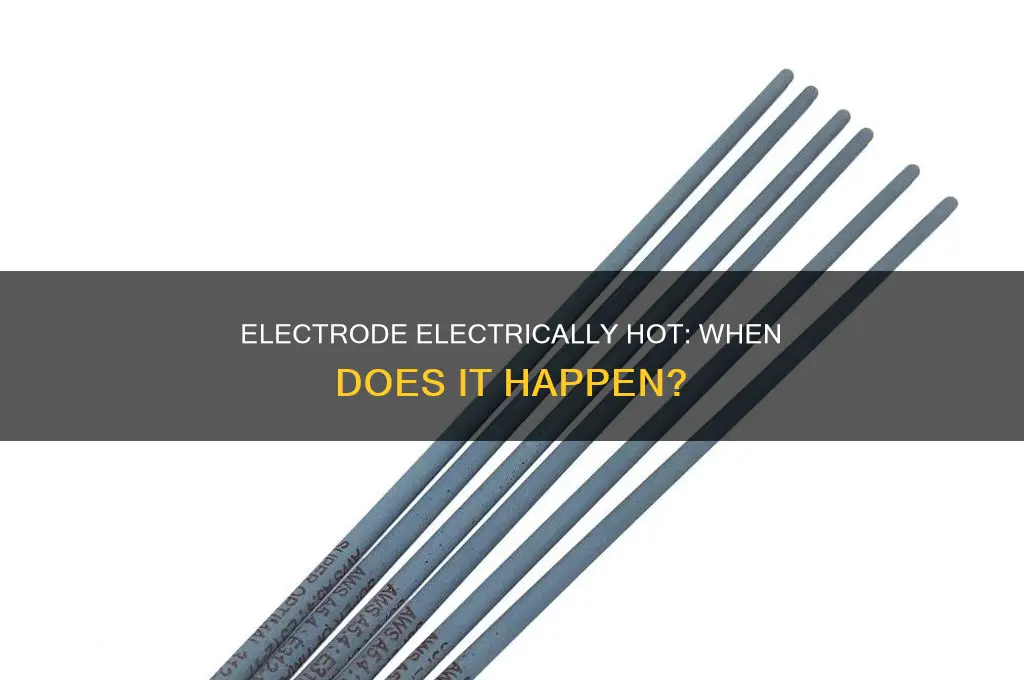

A stick electrode becomes electrically hot when an electric current is flowing through it, such as during welding operations. This occurs because the electrode resists the flow of the electric current, which generates heat. When welding, it is important to take safety precautions to avoid burns and other injuries from electric shocks. Electric shocks can occur when an individual touches two metal objects with a voltage between them or touches a hot component of the inner welding machine while also touching other grounded metal.
| Characteristics | Values |
|---|---|
| When a stick electrode is electrically hot | When electrical current is flowing through it during welding operations |
| Why does an electrical current flow through it | Due to the resistance it poses to the current |
| What happens when an electrical current flows through it | The electrode is used to create an arc and melt the metals to be joined |
| What happens when the electrode becomes extremely hot | It can emit light and become hot to the touch |
| What precautions should be taken | Do not touch the electrode or metal parts of the electrode holder with skin or wet clothing |
| What is the common voltage found in homes in the US | 120 volts |
| What voltage can cause injury or death | 50 volts or less |
| What type of current is more hazardous | Alternating Current (AC) |
| What is the voltage range in arc welding | 20 volts to 100 volts |
| What is the voltage inside welding equipment | 120 volts to 575 volts or more |
Explore related products
What You'll Learn
- A stick electrode is electrically hot when the welder is on
- Electric shock occurs when touching two metal objects with voltage between them
- Primary shock happens when touching a hot component and grounded metal
- Secondary shock happens when touching the electrode and work
- Safety precautions must be taken to avoid burns and injuries
A stick electrode is electrically hot when the welder is on
Stick welding is a common welding process, but it can be dangerous due to the high voltages involved. A stick electrode is electrically hot when the welder is on, and the current is flowing through it. This current generates heat due to the resistance to the flow of the electric current.
When the welder is on, the voltage increases, and this can present a hazard if you are not actively welding. Touching the electrically hot electrode and grounded base piece can cause electrical shocks. The voltage, or open circuit voltage (OCV), can be exceptionally high, typically ranging from 50 to 85 volts. While this voltage is generally safe in dry conditions, moisture or sweat can create conditions for a more serious electric shock.
To prevent electrical shocks, it is important to follow standard safety procedures. This includes not placing your hand on the electrode itself, but rather using your second hand to support the one holding the welder. This provides more precision and helps maintain the proper rod angle. Other safety measures include insulating your body from the metal you are welding by using plywood, rubber mats, or other dry insulation to stand or lie on. It is also important to wear dry gloves and avoid touching the electrode or metal parts of the electrode holder with bare skin or wet clothing.
Additionally, it is crucial to be aware of the dangers of electric shock. Electric shock occurs when an electric current passes through the body, causing burns to internal and external tissue, organ damage, and cardiac arrest. The type of current, alternating current (AC), or direct current (DC), also plays a role in the severity of the shock. In stick welding, DC is the most commonly used because it flows in only one direction, creating a smoother and more stable arc.
The Spark of Electricity: Unlocking the Power of Energy
You may want to see also
Explore related products
Electric shock occurs when touching two metal objects with voltage between them
Electric shock is a serious concern in any environment where electricity is in use, especially in work environments where electric power tools are used. An electric shock occurs when a person touches two metal objects with a voltage between them, which can cause a current to flow through the body, resulting in electrical injury. This injury can range from a light tingling sensation to painful muscle spasms, broken bones, dislocated joints, cardiac arrhythmia, and even death.
The risk of electric shock is ever-present when working with power tools or electrical circuits. Electricians and welders are particularly at risk due to the nature of their work, which often involves handling live wires and electrical components. A stick electrode, for example, is always electrically hot when the welder is on and the current is flowing through it. This means that safety precautions, such as insulating your body from the metal being welded and wearing dry gloves, are crucial to prevent accidental contact with electrically hot components.
The human body can act as a conductor, allowing current to flow through it when in contact with a live wire or component. This is because, unlike birds, humans usually stand on the ground, which can act as a grounding point. When a person touches a live wire, they make contact between two points in the circuit, allowing current to flow through their body. This is why it is crucial to always ensure that one side of the circuit is safe to touch or grounded, providing a safe point of contact in case of accidental contact with the live wire.
The voltage between the two objects also plays a crucial role in the severity of the electric shock. While a voltage of 50 volts or less may not be enough to injure a person, voltages above 450-600 volts can result in dielectric breakdown of the skin, increasing the potential for serious injury or death. Additionally, the path the current takes through the body and the duration of contact can also affect the severity of the shock. For example, establishing an electrical circuit through the heart can be extremely dangerous.
To prevent electric shock, it is important to follow safety practices such as using insulated power tools, working in dry conditions, and wearing appropriate protective gear. Additionally, regularly inspecting equipment and work areas for potential hazards is crucial to identify and mitigate risks. By following these precautions, the risk of electric shock can be significantly reduced.
Electrical Heart Problems: Causes and Underlying Reasons
You may want to see also
Explore related products
Primary shock happens when touching a hot component and grounded metal
A stick electrode becomes electrically hot when an electrical current flows through it during processes such as welding, due to the resistance it poses to the current. A stick electrode is always electrically hot when the welder is on. This is important to know to avoid primary voltage shocks.
Primary voltage shock happens when touching a hot component and grounded metal. This occurs when you touch a lead or other electrically hot components inside the welder while your body or hand is on the welder case or other grounded metal with the power on. This is because current flows from one voltage to another, and it is often a ground connection that allows current to flow through a person's body when touching a conductive portion of a circuit.
In an electric circuit, one side is intentionally connected to earth ground. This means that a person touching a single wire is making contact between two points in the circuit (the wire and earth ground). This is why it is important to insulate your body from the metal you are welding and not to rest your body, arms, or legs on the workpiece.
Additionally, certain conditions can increase the risk of electric shock. These include welding in damp locations, wearing wet clothing, working on metal structures, or being in cramped positions. It is also important to note that alternating current (AC) is generally more hazardous than direct current (DC).
To avoid primary voltage shocks, always ensure that you are properly insulated from the metal you are working on. Use plywood, rubber mats, or other dry insulation to stand or lie on. Wear dry gloves and avoid touching the electrode or metal parts of the electrode holder with your skin or wet clothing.
Electric Fan Thermal Fuse: DIY Repair Guide
You may want to see also
Explore related products
Secondary shock happens when touching the electrode and work
Electric shock occurs when an electrical current touches or travels through the body. The effects of an electric shock vary depending on its source and severity. For example, shocks from light switches may be mild, while contact with industrial power sources can cause severe effects. High-voltage shocks can cause deep burns, while low-voltage shocks typically result in muscle spasms. However, low-voltage shocks can still be dangerous or even fatal.
Secondary shock can occur when touching the electrode and work. A stick electrode is electrically hot when an electrical current is flowing through it, which occurs during welding operations. The current passing through the electrode generates heat due to the resistance to the flow of the electric current. This heat generation can make the electrode hot to the touch and can even cause it to emit light if it becomes extremely hot. Therefore, it is crucial to take safety precautions when handling or being near electrodes that are part of an active electrical circuit.
To protect yourself from electric shock when welding, it is essential to insulate your body from the metal you are welding. This includes not resting your body, arms, or legs on the workpiece (the metal being welded), especially if your clothing is wet or your skin is exposed. It is recommended to use plywood, rubber mats, or other dry insulation to stand or lie upon. Always wear dry gloves in good condition and avoid touching the electrode or metal parts of the electrode holder with your skin or wet clothing.
Additionally, welding under certain conditions can be electrically hazardous. These conditions include damp locations, cramped positions, or working on metal structures such as floors, gratings, or scaffolds. If you experience an electric shock, it is important to think of it as a warning and check your equipment, work habits, and work area before continuing. Seek medical advice if necessary.
How Fast Does Electricity Travel?
You may want to see also
Explore related products
Safety precautions must be taken to avoid burns and injuries
A stick electrode becomes electrically hot when an electrical current flows through it during processes such as welding, due to the resistance it poses to the current. The current passing through the electrode generates heat due to the resistance to the flow of the electric current. This heat generation can make the electrode hot to the touch and can even cause it to emit light if it becomes extremely hot.
- Do not touch the electrode or metal parts of the electrode holder with your skin or wet clothing. Insulate your body from the metal you are welding.
- Avoid resting your body, arms, or legs on the workpiece (the metal being welded), especially if your clothing is wet or your skin is exposed. Use plywood, rubber mats, or some other dry insulation to stand or lie on.
- Wear dry gloves in good condition when welding.
- Ensure the connection pins of the electrode cords are free of dirt before use. Dirty pins can cause contact failures, resulting in a sudden change of electric current, which can lead to burns or inflammation.
- Do not heat the treatment area by placing hot packs or similar products on top of the electrode. Heat may concentrate in a small area and cause burns or inflammation.
- When using self-adhesive electrodes, do not use them on injured areas of the skin or if they have lost their adhesion strength. The electric current may concentrate in a certain area, resulting in burns or inflammation.
- Clean the skin with soap and lukewarm water, and dry it thoroughly before attaching self-adhesive electrodes.
- If you experience an electric shock, check your equipment, work habits, and work area to identify the issue. Seek medical attention if necessary.
Locating Electrical Cables: A DIY Guide
You may want to see also
Frequently asked questions
A stick electrode is electrically hot when an electrical current is flowing through it during processes such as welding.
The current passing through the electrode generates heat due to the resistance to the flow of the electric current.
A stick electrode is not electrically hot when the welder is off.
Insulate your body from the metal you are welding. Do not touch the electrode with your skin or wet clothing.
Touching a stick electrode can cause electric shock, resulting in burns to internal and external tissue, organ damage, and cardiac arrest.
