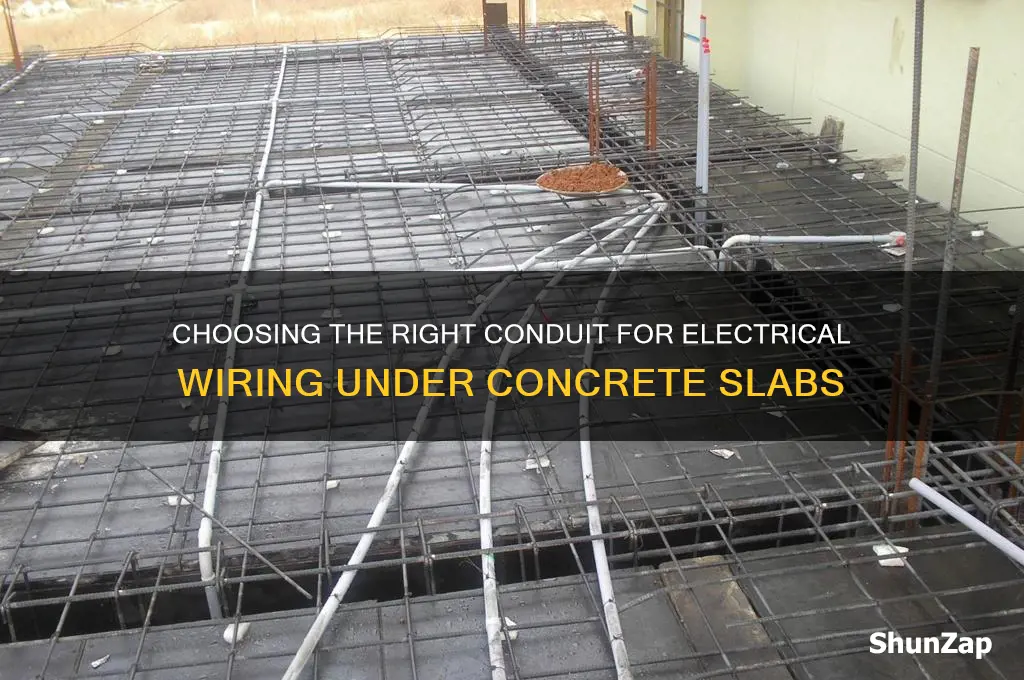

When running electrical wiring under concrete, selecting the appropriate conduit is crucial for ensuring safety, durability, and compliance with building codes. The most commonly recommended pipe for this purpose is Schedule 80 PVC conduit, which offers superior strength and resistance to crushing under heavy loads, making it ideal for buried applications. Alternatively, Rigid Metal Conduit (RMC) or Intermediate Metal Conduit (IMC) can be used for added protection against physical damage and environmental factors, though they are more expensive and require proper grounding. Regardless of the material chosen, it is essential to use conduits rated for direct burial, ensure proper depth (typically 18-24 inches below grade), and comply with local electrical codes to prevent hazards and ensure long-term functionality.
Explore related products
What You'll Learn
- PVC Conduit: Flexible, durable, and cost-effective for protecting wires under concrete
- Rigid Metal Conduit: Offers superior protection against damage and moisture intrusion
- EMT Conduit: Lightweight, corrosion-resistant, ideal for short runs under concrete
- Waterproof Sealants: Essential for preventing moisture damage to electrical wiring
- Conduit Depth: Ensure proper burial depth to avoid damage from concrete work
PVC Conduit: Flexible, durable, and cost-effective for protecting wires under concrete
When running electrical wires under concrete, choosing the right conduit is crucial for ensuring safety, durability, and cost-effectiveness. PVC conduit stands out as an excellent option due to its flexibility, durability, and affordability. Unlike rigid metal conduits, PVC conduit is lightweight and easy to bend, making it ideal for navigating around obstacles and ensuring a smooth installation process. Its flexibility also reduces the need for additional fittings, which can simplify the project and save time. For DIY enthusiasts and professionals alike, PVC conduit offers a practical solution for protecting wires in demanding environments like concrete slabs.
One of the key advantages of PVC conduit is its durability. PVC is resistant to corrosion, moisture, and chemicals, making it well-suited for underground applications. When buried under concrete, it provides a robust barrier against physical damage, soil acidity, and water infiltration, which are common concerns in such installations. Additionally, PVC conduit is non-conductive, reducing the risk of electrical shorts or ground faults. This durability ensures that the electrical wiring remains protected over the long term, minimizing maintenance and repair needs.
Another significant benefit of PVC conduit is its cost-effectiveness. Compared to metal conduits, PVC is generally less expensive to purchase and install. Its lightweight nature reduces labor costs, as it is easier to handle and transport. Furthermore, PVC conduit’s resistance to corrosion and degradation means it has a longer lifespan, providing better value for money. For projects with budget constraints, PVC conduit offers a reliable and economical solution without compromising on quality or safety.
Installing PVC conduit under concrete requires careful planning and adherence to local electrical codes. It’s essential to ensure the conduit is buried at the correct depth and properly secured to prevent damage during concrete pouring. Using PVC conduit with a smooth interior also facilitates wire pulling, reducing friction and the risk of insulation damage. For added protection, consider using schedule 40 or schedule 80 PVC conduit, which offers thicker walls and greater impact resistance. Proper installation ensures the conduit remains intact and functional for years to come.
In summary, PVC conduit is a top choice for running electrical wires under concrete due to its flexibility, durability, and cost-effectiveness. Its ability to withstand harsh underground conditions, coupled with its ease of installation, makes it a preferred option for both residential and commercial projects. By selecting PVC conduit, you can ensure your electrical wiring is well-protected, compliant with safety standards, and built to last. Whether you’re a homeowner or a professional electrician, PVC conduit provides a reliable and practical solution for your underground electrical needs.
Surge Protectors: Electric Vehicle Charging Safeguards?
You may want to see also
Explore related products
Rigid Metal Conduit: Offers superior protection against damage and moisture intrusion
When running electrical wiring under concrete, selecting the right conduit is crucial for ensuring long-term protection and safety. Rigid Metal Conduit (RMC) stands out as a top choice due to its exceptional durability and resistance to damage and moisture intrusion. RMC is made from thick-walled galvanized steel or aluminum, providing a robust shield for electrical cables buried beneath concrete slabs. Its rigid structure ensures that it can withstand heavy loads, making it ideal for applications where concrete will be poured directly over the conduit. This is particularly important in construction settings where machinery, vehicles, or foot traffic may exert pressure on the surface.
One of the primary advantages of RMC is its superior protection against moisture intrusion, a common concern when running electrical wiring under concrete. Concrete is porous, and over time, water can seep through, potentially damaging electrical cables. RMC’s galvanized coating acts as a barrier, preventing moisture from reaching the wires inside. Additionally, RMC can be sealed at joints and connections using specialized fittings, further minimizing the risk of water penetration. This makes it an excellent choice for environments prone to high humidity or water exposure, such as basements, garages, or outdoor installations.
Another key benefit of RMC is its resistance to physical damage. Unlike PVC or other flexible conduits, RMC cannot be easily crushed or punctured, ensuring the integrity of the electrical system even in demanding conditions. This is especially critical when wiring is buried under concrete, as repairs can be costly and time-consuming. RMC’s strength also makes it suitable for use in areas where concrete may shift or settle over time, as it can maintain its shape and protect the cables within. For added security, RMC can be embedded deeper into the concrete slab, providing an extra layer of protection against accidental damage during construction or future renovations.
Installation of RMC requires careful planning and execution to maximize its protective benefits. It is essential to ensure that the conduit is properly sized to accommodate the number and type of cables being run, allowing for easy pulling and future upgrades. RMC should be securely fastened to the subgrade using appropriate supports to prevent movement during concrete pouring. Proper grounding is also critical, as RMC itself serves as a grounding conductor, enhancing the overall safety of the electrical system. While RMC may be more labor-intensive to install compared to other conduits, its long-term reliability and protection justify the initial effort.
In summary, Rigid Metal Conduit (RMC) is the preferred choice for running electrical wiring under concrete due to its unmatched protection against damage and moisture intrusion. Its durable construction, moisture resistance, and ability to withstand heavy loads make it an ideal solution for buried electrical systems. By investing in RMC, contractors and homeowners can ensure the safety and longevity of their electrical installations, even in the most challenging environments. When it comes to protecting electrical wiring under concrete, RMC is a proven and reliable option that meets the highest standards of performance and durability.
Electric Cars: The Future of Automotive Industry?
You may want to see also
Explore related products
EMT Conduit: Lightweight, corrosion-resistant, ideal for short runs under concrete
When running electrical wiring under concrete, choosing the right conduit is crucial for ensuring safety, durability, and compliance with building codes. EMT (Electrical Metallic Tubing) conduit is a popular choice for short runs under concrete due to its lightweight design and corrosion-resistant properties. Made from galvanized steel, EMT conduit offers a balance of strength and flexibility, making it easier to handle and install compared to heavier options like PVC or rigid metal conduits. Its thin-walled construction reduces weight without compromising structural integrity, which is particularly beneficial when working in tight or confined spaces.
One of the standout features of EMT conduit is its corrosion resistance, which is essential when embedding electrical wiring in concrete. Concrete can be highly alkaline, and moisture intrusion is a common concern, especially in outdoor or below-grade applications. The galvanized coating on EMT conduit provides a protective barrier against rust and corrosion, ensuring the conduit remains intact and functional over time. However, for added protection in highly corrosive environments, consider using additional coatings or opting for stainless steel EMT, though this may increase costs.
EMT conduit is ideal for short runs under concrete because it is designed for exposed or embedded applications where the conduit is not subjected to heavy mechanical stress. Its smooth interior allows for easy wire pulling, reducing the risk of damage to the conductors during installation. When installing EMT under concrete, it’s important to ensure the conduit is securely anchored and properly sloped to prevent water accumulation. Use appropriate fittings and seals to maintain a watertight system, as moisture can compromise the integrity of the wiring and conduit over time.
Another advantage of EMT conduit is its compatibility with standard electrical fittings, making it a versatile option for various installation needs. It can be easily cut, bent, and threaded on-site, allowing for precise customization to fit the specific requirements of the project. However, when embedding EMT in concrete, it’s crucial to follow local building codes and guidelines, which may dictate minimum cover depths, spacing, and support requirements. Proper planning and adherence to these standards will ensure a safe and long-lasting electrical installation.
In summary, EMT conduit is a lightweight, corrosion-resistant, and cost-effective solution for running electrical wiring under concrete in short runs. Its ease of installation, durability, and compatibility with standard fittings make it a preferred choice for many electricians and contractors. While it may not be suitable for long runs or heavy-duty applications, EMT conduit excels in scenarios where flexibility, corrosion resistance, and simplicity are prioritized. Always consult local codes and consider environmental factors to ensure the conduit is appropriately protected and installed for its intended use.
Electric Car Idling: How Long Can Heat Stay On?
You may want to see also
Explore related products
Waterproof Sealants: Essential for preventing moisture damage to electrical wiring
When running electrical wiring under concrete, one of the most critical considerations is protecting the wiring from moisture damage. Concrete is porous and can allow water to seep through, posing a significant risk to electrical systems. This is where waterproof sealants become indispensable. These sealants act as a barrier, preventing water intrusion and ensuring the longevity and safety of the electrical wiring. Without proper sealing, moisture can cause corrosion, short circuits, or even electrical failures, leading to costly repairs and potential safety hazards.
The first step in using waterproof sealants is selecting the appropriate type for the specific application. Silicone-based sealants are highly recommended for their excellent water-resistant properties and durability. They remain flexible over time, allowing them to withstand movement and settling in concrete structures without cracking. Polyurethane sealants are another viable option, offering strong adhesion and resistance to water. When choosing a sealant, ensure it is rated for underground or concrete applications and compatible with the materials used in the electrical conduit system.
Applying the sealant correctly is just as important as selecting the right product. Before sealing, thoroughly clean and dry the joints, connections, and surfaces where the electrical conduit penetrates the concrete. Any debris or moisture left behind can compromise the sealant's effectiveness. Apply the sealant generously to all gaps and openings, ensuring complete coverage. For added protection, consider using a sealant with antimicrobial properties to prevent mold or mildew growth in damp environments.
In addition to sealing the conduit joints, it’s essential to use a waterproof enclosure or junction box when running electrical wiring under concrete. These enclosures should be sealed with gaskets and waterproof sealants to prevent water from entering. The cables themselves should also be rated for direct burial or wet locations, providing an additional layer of protection against moisture. Combining these measures with proper sealant application creates a robust defense against water damage.
Regular maintenance and inspection are key to ensuring the continued effectiveness of waterproof sealants. Over time, sealants can degrade due to exposure to environmental factors, so periodic checks for cracks, gaps, or signs of wear are necessary. Reapply sealant as needed to maintain a watertight barrier. By prioritizing the use of waterproof sealants and following best practices, you can safeguard electrical wiring under concrete, ensuring reliable performance and preventing moisture-related issues.
Building Your Own Electric Vehicle: A Guide
You may want to see also
Explore related products
Conduit Depth: Ensure proper burial depth to avoid damage from concrete work
When running electrical conduits under concrete, ensuring the proper burial depth is critical to protect the conduit and the electrical cables inside from damage during concrete work and over the lifespan of the installation. The depth at which the conduit is buried must be sufficient to prevent it from being struck by tools, machinery, or heavy equipment used during concrete pouring and finishing. As a general rule, the conduit should be buried at least 4 to 6 inches below the surface of the concrete slab. This depth provides a protective layer of concrete above the conduit, reducing the risk of accidental damage. Local building codes and regulations may specify minimum burial depths, so it’s essential to consult these requirements before proceeding.
In addition to meeting code requirements, the burial depth should account for the type of concrete work being performed. For example, if the concrete slab is part of a heavy-duty industrial floor or a driveway where vehicles or machinery will operate, a deeper burial depth of 8 to 12 inches may be necessary. This extra depth ensures that the conduit can withstand the increased pressure and potential impacts from heavy loads. Proper planning and coordination with the concrete contractor are crucial to ensure the conduit is placed at the correct depth before the concrete is poured.
Another factor to consider when determining conduit depth is the potential for settlement or shifting of the soil beneath the concrete slab. If the soil is prone to movement, the conduit should be buried deeper to avoid stress or strain on the pipes. Using a compacted sand or gravel bed beneath the conduit can also help distribute weight evenly and reduce the risk of damage. Additionally, installing conduit supports or spacers at regular intervals can maintain the proper depth and alignment during the concrete pour.
It’s also important to consider the accessibility of the conduit for future maintenance or repairs. Burying the conduit too deep can make it difficult to access if issues arise, while burying it too shallow increases the risk of damage. Striking the right balance ensures that the conduit is protected yet remains accessible if needed. Using PVC or rigid metal conduits with appropriate fittings and seals can further enhance durability and ease of access.
Finally, marking the location of the buried conduit is essential to prevent accidental damage during future construction or renovation work. Use warning tape or markers above the conduit’s location to indicate its presence. This simple step can save time, money, and potential hazards by avoiding accidental strikes during excavation or drilling. By carefully planning and executing the burial depth of electrical conduits under concrete, you can ensure a safe, durable, and code-compliant installation.
Specialized EV Home Installers: Are Companies Offering This Service?
You may want to see also
Frequently asked questions
Use Schedule 80 PVC conduit or Rigid Metal Conduit (RMC) for running electrical wires under concrete. These materials are durable, resistant to moisture, and provide adequate protection against physical damage.
No, standard PVC pipe is not recommended for electrical wiring under concrete. Use Schedule 80 PVC conduit instead, as it is thicker and more durable, meeting NEC (National Electrical Code) requirements for underground installations.
Yes, conduit is necessary when running electrical wires under concrete. It protects the wires from moisture, physical damage, and ensures compliance with electrical codes for underground installations.
No, flexible conduit is not suitable for underground installations under concrete. Use Rigid Metal Conduit (RMC) or Schedule 80 PVC conduit for proper protection and code compliance.
The conduit should be buried at a minimum depth of 18 inches below the surface of the concrete, as required by most electrical codes. This depth helps protect the conduit from damage and ensures safety.
