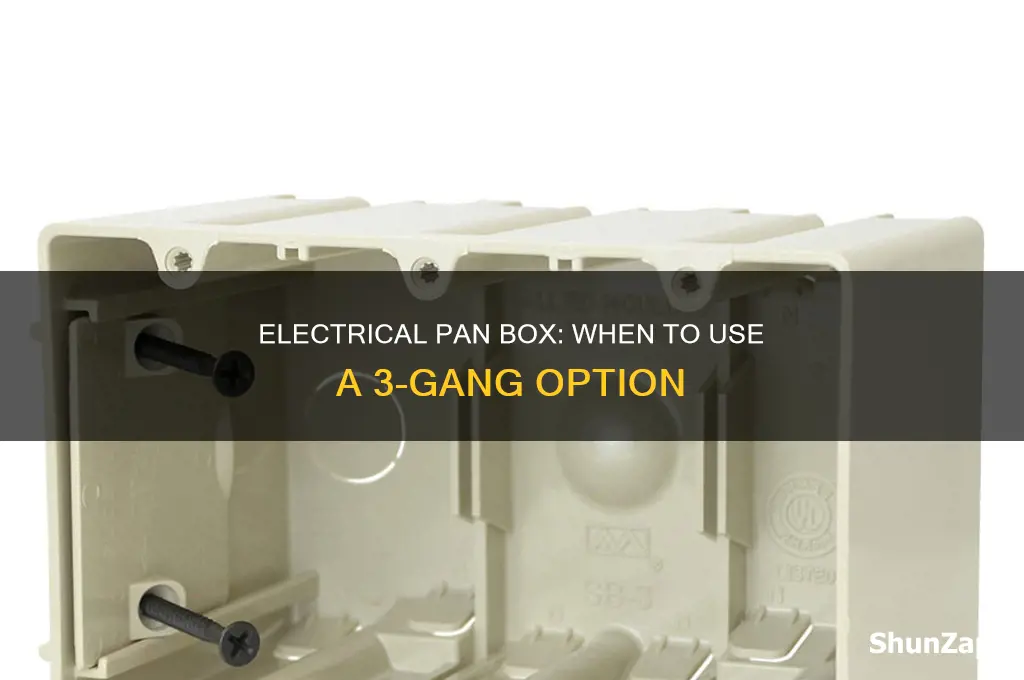

A 3-gang electrical pan box is an essential component in electrical installations, particularly when multiple switches or outlets need to be grouped together in a single location. It is ideal for use in scenarios where space is limited or when a neat, organized appearance is desired, such as in kitchens, living rooms, or offices. This type of box is designed to accommodate three devices, providing a centralized and efficient solution for managing electrical connections. Typically made from durable materials like metal or PVC, it ensures safety and compliance with electrical codes. Knowing when to use a 3-gang electrical pan box depends on the specific requirements of the project, including the number of devices, wall space availability, and the need for a streamlined installation.
Explore related products
What You'll Learn
- Sizing for Multiple Devices: Determine box size based on the number of switches or outlets installed
- Wall vs. Ceiling Mounts: Choose box type depending on installation location for stability and safety
- Old Work Applications: Use for renovations where cutting into existing walls is necessary
- New Construction Needs: Ideal for framing stages in new builds for precise fitting
- Material Compatibility: Ensure box material suits environment (e.g., plastic for dry, metal for damp areas)
Sizing for Multiple Devices: Determine box size based on the number of switches or outlets installed
When determining the appropriate size of an electrical box for multiple devices, such as switches or outlets, it’s crucial to ensure the box provides enough space for safe and efficient wiring. A 3-gang electrical box is commonly used when installing three devices in a single location, but the sizing process involves more than just counting the devices. The National Electrical Code (NEC) provides guidelines to ensure the box is large enough to accommodate the wiring, devices, and necessary clearances. Start by identifying the type of devices (switches, outlets, or a combination) and their specific space requirements, as different devices may have varying depths and widths.
The NEC requires that the box volume must be sufficient to house all enclosed conductors, devices, and fittings. For a 3-gang box, calculate the total volume needed by considering each device and its associated wiring. A standard rule of thumb is to allocate 2 cubic inches for each conductor (wire) entering the box, 1 cubic inch for each yoke or mounting strap, and additional space for the devices themselves. For example, if you have three devices with two wires each, you’ll need at least 12 cubic inches (3 devices × 2 wires × 2 cubic inches per wire). Always round up to the nearest standard box size to ensure compliance and ease of installation.
When using a 3-gang box, consider the physical dimensions of the devices. Standard switches and outlets are typically 1.4 inches wide, so a 3-gang box should be at least 4.2 inches wide to accommodate them side by side. However, larger devices, such as GFCI outlets or smart switches, may require additional width or depth. Measure the devices beforehand and select a box that provides ample space for their dimensions, ensuring they fit without overcrowding.
Depth is another critical factor when sizing a 3-gang box. The box must be deep enough to allow wires to bend naturally without sharp angles, which can damage the insulation. A standard 3-gang box is often 2.25 inches deep, but if you’re using larger cables or additional fittings (like wire connectors or grounding clips), a deeper box may be necessary. Always account for the space needed to secure wires and ensure they are not pinched or strained.
Finally, consider future upgrades or modifications when sizing the box. While a 3-gang box may meet current needs, leaving extra space can simplify future expansions or device replacements. Opting for a slightly larger box than the minimum requirement ensures flexibility and adheres to best practices for electrical installations. By carefully evaluating the number of devices, their dimensions, and wiring needs, you can confidently select the right 3-gang box size for a safe and functional installation.
