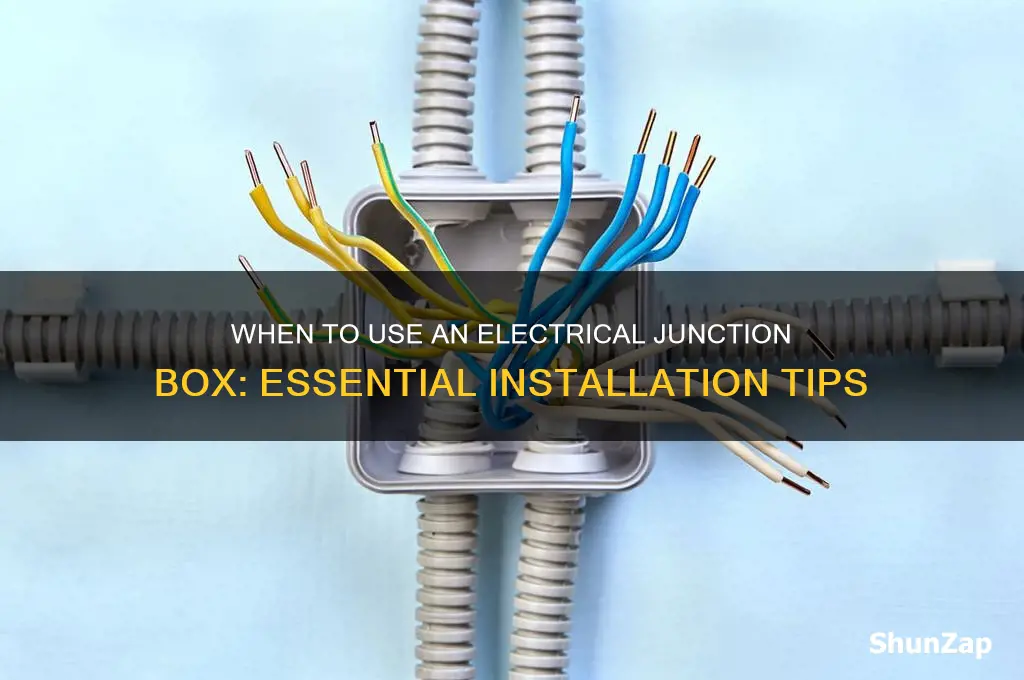

An electrical junction box is an essential component in any wiring system, serving as a critical enclosure for connecting and protecting electrical wires. It is typically used when multiple circuits or devices need to be interconnected, providing a safe and organized way to manage wiring. Ideal scenarios for using a junction box include home renovations, where new fixtures or outlets are added, or in outdoor settings where weatherproofing is necessary. Additionally, junction boxes are crucial in commercial and industrial applications to ensure compliance with electrical codes and to prevent hazards like short circuits or fires. Understanding when to use a junction box is key to maintaining a safe and efficient electrical system.
| Characteristics | Values |
|---|---|
| Purpose | To safely enclose and protect electrical connections, splices, or terminations. |
| When to Use | 1. When splicing wires in walls, ceilings, or floors. 2. For adding new fixtures or outlets. 3. When replacing or repairing damaged wiring. 4. In outdoor or damp locations (use weatherproof boxes). 5. To comply with electrical codes (e.g., NEC requires junction boxes for concealed splices). |
| Types | Plastic, metal, weatherproof, surface mount, flush mount, and more. |
| Code Compliance | Must meet local electrical codes (e.g., NEC, IEC). |
| Size | Depends on the number of wires and connectors; must accommodate all components without overcrowding. |
| Material | Plastic (indoor), metal (indoor/outdoor), or weatherproof (outdoor). |
| Location | Indoor, outdoor, concealed (walls/ceilings), or surface-mounted. |
| Safety | Prevents short circuits, fires, and electrical hazards. |
| Accessibility | Must be accessible for future repairs or inspections (unless buried in walls with proper labeling). |
| Grounding | Metal boxes must be grounded; plastic boxes do not require grounding. |
| Cover Requirements | Must have a secure cover to protect connections from dust, moisture, and physical damage. |
| Wire Capacity | Must not exceed the box's cubic inch capacity (calculated based on wire gauge and number of conductors). |
| Labeling | Recommended to label for identification, especially in concealed locations. |
| Common Applications | Lighting circuits, switches, outlets, and complex wiring systems. |
| Cost | Varies by type, size, and material (typically $1–$20 per box). |
| Installation | Requires proper wiring techniques, secure mounting, and compliance with codes. |
Explore related products
What You'll Learn
- Outdoor Installations: Protect connections from weather and moisture damage in exterior electrical setups
- High-Density Wiring: Manage multiple wires safely in tight spaces with organized junction boxes
- Retrofit Projects: Update old wiring systems without replacing entire circuits using junction boxes
- Appliance Connections: Safely splice wires for large appliances like ovens or AC units
- Code Compliance: Meet electrical safety standards by using junction boxes for accessible, secure connections
Outdoor Installations: Protect connections from weather and moisture damage in exterior electrical setups
In outdoor electrical installations, protecting connections from weather and moisture damage is critical to ensure safety, reliability, and longevity. Electrical junction boxes play a vital role in safeguarding wiring connections from environmental elements such as rain, snow, humidity, and temperature fluctuations. These boxes are specifically designed to provide a secure, weatherproof enclosure for splicing or connecting wires in exterior setups. When installing outdoor lighting, landscape fixtures, or exterior outlets, using a junction box is essential to prevent water ingress, which can cause corrosion, short circuits, or electrical failures. Always select a junction box rated for outdoor use, ensuring it meets local electrical codes and standards.
For exterior electrical setups, the choice of junction box material is equally important. Opt for boxes made from durable, weather-resistant materials such as PVC, fiberglass, or corrosion-resistant metal. PVC junction boxes are lightweight, cost-effective, and ideal for most residential outdoor applications. Fiberglass and metal boxes offer enhanced durability and are better suited for industrial or high-moisture environments. Ensure the junction box has a secure, gasketed lid to create a watertight seal, preventing moisture from entering the enclosure. Proper sealing is non-negotiable, as even small gaps can lead to significant damage over time.
Installation of outdoor junction boxes requires careful planning and execution. Position the box in a location that minimizes exposure to direct water flow, such as under eaves or in areas with natural drainage. Use weatherproof cable connectors and conduit to feed wires into the box, maintaining the integrity of the weatherproof seal. Secure all connections inside the box with waterproof wire nuts or connectors, and avoid overfilling the box to ensure proper airflow and heat dissipation. Follow manufacturer guidelines for mounting and sealing to guarantee optimal performance.
Regular maintenance is key to preserving the effectiveness of outdoor junction boxes. Inspect the box periodically for cracks, loose seals, or signs of water intrusion. Clean debris from the exterior and ensure the lid remains securely fastened. Replace gaskets or seals as needed to maintain a watertight barrier. In regions with extreme weather conditions, consider adding additional protective measures, such as silicone sealant around the box edges or installing the box in a sheltered location.
Lastly, compliance with local electrical codes is mandatory for all outdoor installations. Many jurisdictions require outdoor junction boxes to be listed for wet locations and installed at specific heights or distances from the ground. Failure to adhere to these regulations can result in unsafe conditions, electrical hazards, or legal consequences. Consult a licensed electrician if unsure about code requirements or installation procedures. By using the right junction box and following best practices, you can effectively protect outdoor electrical connections from weather and moisture damage, ensuring a safe and reliable system for years to come.
Fridge vs. Toaster: Uncovering the Energy Efficiency Mystery
You may want to see also
Explore related products
High-Density Wiring: Manage multiple wires safely in tight spaces with organized junction boxes
In high-density wiring scenarios, where multiple wires converge in tight spaces, electrical junction boxes become indispensable for ensuring safety, organization, and efficiency. These boxes serve as central hubs for connecting, protecting, and managing wires, preventing hazards such as short circuits, overheating, or damage to insulation. When dealing with compact areas like behind walls, in ceilings, or within control panels, junction boxes provide a structured solution to handle the complexity of numerous wires while maintaining compliance with electrical codes. Without them, wires can become tangled, exposed, or overloaded, posing significant risks in both residential and commercial settings.
One of the primary reasons to use junction boxes in high-density wiring is to protect connections from environmental factors and physical damage. In tight spaces, wires are often subjected to stress, moisture, or debris, which can compromise their integrity. Junction boxes, typically made of durable materials like metal or high-grade plastic, shield these connections, ensuring they remain secure and functional. Additionally, they allow for proper insulation and spacing between wires, reducing the risk of arcing or overheating, especially in areas with limited ventilation.
Organizing wires within junction boxes is crucial for maintaining clarity and accessibility during installation, maintenance, or troubleshooting. High-density wiring can quickly become chaotic without a systematic approach. Junction boxes enable the grouping of wires by function or circuit, making it easier to identify and address issues. Labeling and color-coding wires within the box further enhances organization, saving time and minimizing errors in complex systems. This structured approach is particularly vital in industrial or commercial applications where downtime can be costly.
Another critical aspect of using junction boxes in tight spaces is ensuring compliance with electrical safety standards. Many building codes mandate the use of junction boxes to enclose wire splices and connections, as exposed wires are a violation and a safety hazard. In high-density wiring, where the number of connections increases, junction boxes provide the necessary containment to meet these regulations. They also facilitate inspections, as all connections are centralized and accessible, rather than hidden or scattered throughout the space.
Finally, junction boxes offer scalability and flexibility in high-density wiring projects. As systems evolve or expand, these boxes can accommodate additional wires or modifications without requiring a complete overhaul of the wiring infrastructure. This adaptability is especially valuable in tight spaces where rewiring or reconfiguring connections would otherwise be challenging or impractical. By investing in organized junction boxes, professionals can future-proof their installations, ensuring they remain safe, efficient, and compliant over time. In essence, junction boxes are not just a practical necessity but a strategic solution for managing the complexities of high-density wiring in confined areas.
Why Rabbits Can't Use Electro: Unraveling the Biological Mystery
You may want to see also
Explore related products
Retrofit Projects: Update old wiring systems without replacing entire circuits using junction boxes
In retrofit projects, electrical junction boxes are invaluable for updating old wiring systems without the need to replace entire circuits. Many older homes and buildings have outdated wiring that may not meet current safety standards or support modern electrical demands. Instead of rewiring the entire circuit, which can be costly and disruptive, junction boxes allow for targeted upgrades. For example, if you need to add new outlets or switches, a junction box can be installed to connect the new devices to the existing wiring, ensuring a safe and efficient electrical system. This approach minimizes labor and material costs while maintaining the integrity of the original circuit.
One common scenario in retrofit projects is the need to extend wiring for new fixtures or appliances. Junction boxes serve as intermediate points where wires can be spliced and connected securely. When adding a ceiling fan, for instance, a junction box can be installed in the attic or above the fixture to connect the new wiring to the existing circuit. This eliminates the need to run new wires from the main panel, saving time and effort. It’s crucial to ensure the junction box is properly sized and rated for the application, as this ensures compliance with electrical codes and prevents overheating or other hazards.
Another use of junction boxes in retrofit projects is to consolidate wiring connections in a safe and organized manner. Older wiring systems often have exposed or loose connections that pose a fire risk. By installing a junction box, these connections can be enclosed and protected, reducing the risk of electrical faults. This is particularly important in areas where wiring may have been modified over the years, leading to cluttered or unsafe configurations. Junction boxes also provide a convenient access point for future maintenance or upgrades, making it easier to troubleshoot issues without dismantling walls or ceilings.
In situations where old wiring needs to be repaired or replaced in sections, junction boxes act as transition points between the old and new wiring. For example, if a portion of the wiring is damaged or degraded, a junction box can be used to connect the new wire to the existing circuit. This method is especially useful in hard-to-reach areas, such as behind walls or under floors, where replacing the entire wire run would be impractical. By using a junction box, you can isolate the problem area and restore the circuit’s functionality without extensive rework.
Lastly, junction boxes are essential in retrofit projects involving smart home upgrades or energy-efficient lighting systems. When installing smart switches, dimmers, or LED fixtures, a junction box provides a secure location to connect the new devices to the existing wiring. This ensures that the added technology integrates seamlessly with the old system, avoiding compatibility issues or overloading circuits. Always consult local electrical codes and, if unsure, hire a licensed electrician to ensure the retrofit is done safely and correctly. With proper planning and execution, junction boxes make it possible to modernize old wiring systems efficiently and cost-effectively.
The Dawn of Electrical Streetlights: A Historical First
You may want to see also
Explore related products
Appliance Connections: Safely splice wires for large appliances like ovens or AC units
When connecting large appliances such as ovens or air conditioning (AC) units, ensuring safe and reliable electrical wiring is crucial. One effective method to achieve this is by using an electrical junction box. A junction box provides a secure enclosure for splicing wires, protecting connections from damage, moisture, and accidental contact, which can prevent electrical hazards like short circuits or fires. For large appliances, which often draw significant power, the integrity of the wiring connections is paramount, making a junction box an essential component.
To safely splice wires for large appliances, start by selecting the appropriate junction box rated for the amperage and environment where the appliance is installed. For instance, outdoor AC units require weatherproof junction boxes to protect against rain and humidity. Once the box is chosen, turn off the power at the circuit breaker to ensure safety during installation. Strip the ends of the wires according to the manufacturer’s instructions, typically about ½ inch, and connect them using wire nuts or terminal blocks, ensuring a tight and secure connection. Always match wire gauges and types (e.g., copper to copper) to maintain consistency and safety.
After splicing the wires, carefully tuck them into the junction box, avoiding overcrowding, which can lead to overheating. Secure the wires with cable clamps to prevent strain on the connections. Close the junction box with its cover, ensuring all screws are tightened to maintain a watertight seal if applicable. Label the box clearly to identify the appliance it serves, which aids in future maintenance or troubleshooting. Properly grounding the junction box is also critical, especially for large appliances, as it provides a safe path for electrical faults to dissipate.
In some cases, local electrical codes may dictate specific requirements for junction box installations, such as minimum box size or the use of certain connectors. Always consult these codes or a licensed electrician to ensure compliance. Additionally, for appliances with high power demands, consider using a junction box with ample space to accommodate thicker wires and additional connections. This foresight can prevent issues like overheating or loose connections that may arise over time.
Finally, test the appliance after installation to ensure everything functions correctly. Restore power at the circuit breaker and check for any signs of malfunction, such as flickering lights or unusual noises. If any issues arise, immediately turn off the power and inspect the connections within the junction box. By following these steps and using a junction box correctly, you can safely splice wires for large appliances, ensuring a secure and long-lasting electrical connection.
Electric Vehicles: Pollution Solution or Just Hype?
You may want to see also
Explore related products
Code Compliance: Meet electrical safety standards by using junction boxes for accessible, secure connections
Electrical junction boxes are essential components in any wiring system, serving as critical enclosures that ensure safe and organized connections. Code Compliance is a cornerstone of electrical safety, and using junction boxes is a fundamental requirement to meet industry standards. According to the National Electrical Code (NEC), junction boxes must be used whenever electrical conductors are spliced, tapped, or connected to devices. This ensures that all connections are accessible for inspection, maintenance, and repairs, reducing the risk of electrical hazards such as short circuits, overheating, or fires. By adhering to these regulations, electricians and homeowners alike can maintain a safe and reliable electrical system.
One of the primary reasons to use junction boxes is to protect connections from physical damage and environmental factors. Exposed wires or poorly secured splices can pose significant risks, especially in areas prone to moisture, dust, or mechanical stress. Junction boxes provide a secure enclosure that shields connections, ensuring they remain intact and insulated. For instance, outdoor wiring projects require weatherproof junction boxes to comply with safety codes, preventing water ingress and corrosion. Similarly, in indoor settings, junction boxes safeguard connections from accidental contact, ensuring they meet accessibility and safety standards outlined in electrical codes.
Accessibility is another critical aspect of code compliance when using junction boxes. The NEC mandates that all electrical connections must be readily accessible for inspection and maintenance. Junction boxes fulfill this requirement by providing a designated space for splices and connections, eliminating the need for wires to be hidden within walls, ceilings, or other inaccessible areas. This accessibility not only facilitates troubleshooting and repairs but also ensures that all work meets local and national electrical codes. Failure to use junction boxes in required situations can result in code violations, which may lead to fines, failed inspections, or unsafe conditions.
Proper installation and sizing of junction boxes are equally important for code compliance. The NEC specifies that junction boxes must be large enough to accommodate all enclosed wires and devices without overcrowding, which can cause insulation damage or overheating. Additionally, boxes must be securely mounted and properly grounded to ensure safety. For example, when splicing wires in a ceiling or wall, the junction box must be attached to a structural element and covered with a suitable faceplate. Following these guidelines ensures that the installation meets safety standards and provides long-term reliability.
In summary, using electrical junction boxes is a non-negotiable aspect of Code Compliance for meeting electrical safety standards. They provide accessible, secure connections that protect against hazards, facilitate maintenance, and ensure adherence to regulations like the NEC. Whether for indoor or outdoor applications, selecting the right type and size of junction box, and installing it correctly, are critical steps in maintaining a safe and compliant electrical system. By prioritizing the use of junction boxes, professionals and DIY enthusiasts alike can avoid code violations and contribute to the overall safety of their electrical installations.
Are Gas-Electric Cars Truly Renewable? Exploring Hybrid Energy Sustainability
You may want to see also
Frequently asked questions
An electrical junction box is an enclosure designed to protect and organize electrical connections. Use it whenever you need to join, split, or terminate wires in a safe and accessible manner, such as in walls, ceilings, or outdoor installations.
Yes, but ensure the junction box is rated for outdoor use and weatherproof. Outdoor junction boxes are designed to protect connections from moisture, dust, and other environmental factors.
Always use a junction box when connecting wires in a concealed space, like inside walls or ceilings. It ensures compliance with electrical codes, provides safety by preventing wire damage, and allows for future maintenance or inspections.
Yes, even low-voltage wiring should be enclosed in a junction box to protect connections and comply with safety standards. Some low-voltage boxes are specifically designed for these applications.
Select a junction box that provides enough space for all wires and connections, following the "fill capacity" guidelines in your local electrical code. Ensure it accommodates the number of wires, devices, and any future expansions.
