Electric furnace control boards are an integral part of any heating system, but they can be challenging to locate and diagnose for issues. When a furnace malfunctions, it is essential to identify the exact cause to determine the necessary repairs or replacements. This process can be complex, and it is advisable to consult a professional HVAC repair service to avoid personal injury or system damage. However, some troubleshooting steps can be taken to check if the control board is functioning correctly, such as inspecting the diagnostic light and testing the power flow with a voltage meter.
| Characteristics | Values |
|---|---|
| Location | At the front of the blower and at the rear of the lower access panel |
| Appearance | Identifiable by the several wires running through it |
| Diagnostics | Errors such as low voltage or a lack of blinking lights may indicate a faulty control board |
| Testing | Use a multimeter to test for electricity in a furnace |
| Repair | A licensed HVAC technician should be consulted to perform complex repairs |
Explore related products
$36.99 $39.99
What You'll Learn
Locating the control board

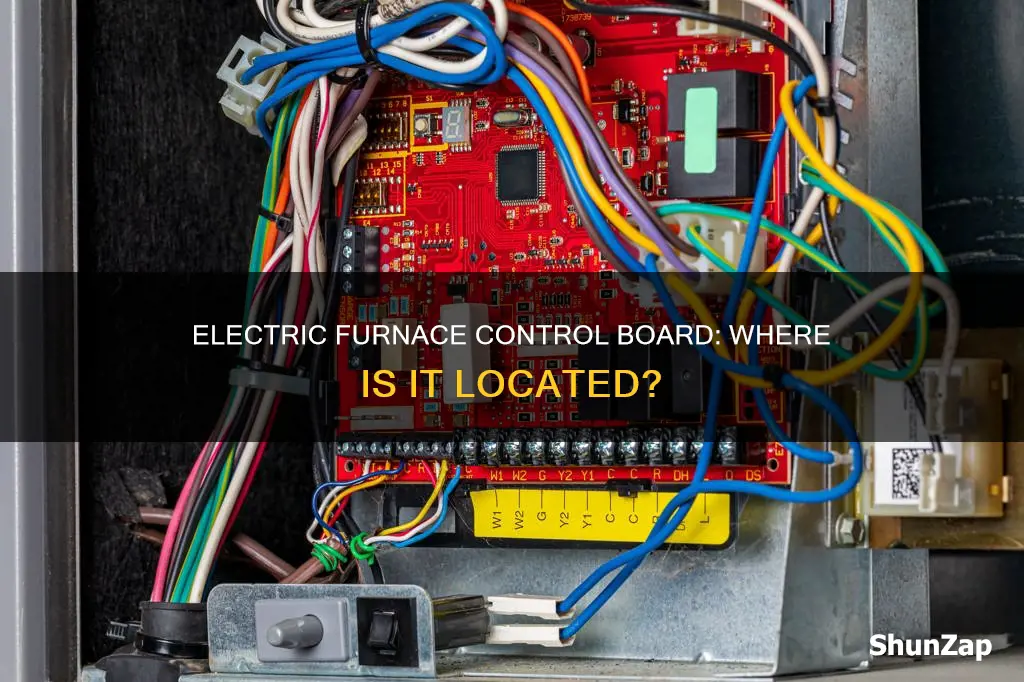

If you are determined to locate the control board yourself, you can start by consulting your furnace's manual, which should provide instructions on how to access the control board. If you are unable to locate the control board with the manual, you can try removing the panels of your furnace to visually inspect its internal components. The control board is usually located near the blower at the bottom of the access panel. It is easy to identify, as several wires are running through it, and it may have an LED indicator light.
If you are still unable to locate the control board, you can try following the wire from your thermostat to the control board. This may involve removing some panels and tracing the wire on the inside of the unit.
It is important to note that older furnaces may not have a control board. Additionally, different types of furnaces may have different control board configurations. For example, earlier furnaces may only have an ignition control board and not a fan control board.
If you encounter any issues or are unsure about anything during this process, it is always best to consult a professional for assistance.
Deckard's Android Dreams: Exploring Electric Sheep and Beyond
You may want to see also
Explore related products
Determining if the control board is faulty
Determining if an electric furnace control board is faulty can be a challenging task. The control board is typically located near the blower at the bottom of the access panel. It is often identifiable by the several wires running through it. If your furnace is malfunctioning, it is advisable to call a professional HVAC repair service first to avoid the risk of personal injury or damage to your system.
- The furnace won't start up at all, or it takes several tries before it starts.
- The burners keep turning on and off or won't shut off completely.
- The fan is continuously running even when the furnace isn't heating.
- The control panel emits a burning smell, indicating an electrical malfunction.
To determine if the control board is faulty, you can perform the following steps:
- Check if your furnace has a door switch to test the power coming into the control board. Tape the switch down to prevent electrical accidents.
- Locate the common wire (usually black with a 120VAC Hot label) connecting the transformer to the control board, and use a voltage meter to check if there is power flowing through it.
- If the voltage meter reading is 120 volts AC, the power is functioning correctly.
- If the power is adequate, the indicator light on the control board should illuminate.
- If the indicator light does not turn on, there may be an issue with the control board, and further diagnostics are required.
- Refer to your furnace manual to interpret the error indicated by the blinking pattern of the diagnostic light.
- Test the thermostat terminals on the control board by turning the furnace off and using a wire to connect and test the terminals.
- Verify the voltage readings at various points in the circuit, such as the door switch, transformer, and terminal on the control board.
- If there is no output to the motor when there should be (e.g., 24 volts on the W terminal for the inducer motor or 24 volts on the G terminal for the fan motor), the control board is likely faulty.
It is important to note that diagnosing a faulty control board can be complex, and understanding the sequence of operation for the heat to turn on is crucial. If you are unsure, it is always best to consult a licensed HVAC technician to ensure safe and accurate repairs.
Mileage Calculation Guide for Electric Scooters
You may want to see also
Explore related products
Replacing the control board
If you are qualified to do so, here is a step-by-step guide to replacing the control board of an electric furnace:
Firstly, cut off the electricity supply to the furnace. This is a crucial initial step as you will be working with wiring and electrical circuits. Next, open up the furnace and remove any parts necessary to access the control board. Take pictures of the control board and its wirings to refer to later when you are reconnecting components.
Now, you need to find a replacement control board. Look at the model number of the furnace and find the original manufacturer's board for that model. The board should have its own part number, which you can then search for online. You may be able to find the control board on a site like eBay or supplyhouse.com.
Once you have the new board, it's time to install it. The replacement control board should be screwed into the furnace in the same manner as the previous one. Reconnect the wires to the new control board, referring to your photos to guide you. Close up the furnace and put all the access panels back in place. Finally, turn the power back on and test the thermostat to see if it works.
It is important to note that diagnosing a faulty control board can be challenging. It is difficult to know if a control board is bad if you don't understand how the system it is attached to works. For a furnace, you need to know the sequence of operation for the heat to turn on. There could also be issues with other components, such as stuck relay switches, failed transistors, loose wiring, or the wrong fuse.
Electricity's Discovery: A Historical Perspective
You may want to see also
Explore related products
The control board's function
The control board in an electric furnace can be found at the front of the blower and at the rear of the lower access panel. It is easy to identify, as several wires are running through it.
The control board functions as the furnace's computer or brain, controlling all functions in the order they occur. It manages many tasks to keep the heating system operating smoothly, safely, and efficiently. It controls functions like heating cycles, ignition, and fan operations. When the thermostat detects a need for heat, it sends a signal to the furnace control board to initiate the heating process. The control board then activates the ignition system. Once the home reaches the desired temperature, the thermostat signals the control board to stop the heating process. It turns off the burners and then shuts down the blower after any residual heat is pushed into the living spaces.
The control board also plays a vital role in safety. For instance, when the flame sensor does not detect a flame, it communicates with the control board, which then turns off the gas valve and shuts down the furnace.
There are different types of control boards, such as those that control both ignition and the fan, called integrated furnace control boards. Some control boards are designed to control an ECM (Electronically Commutated Motor) multispeed blower motor, while others may control an ECM variable-speed blower.
Lightning's Nature: A Cascade of Electrical Discharges
You may want to see also
Explore related products
The control board's power supply
The control board is an essential component of any electric furnace, but it can be challenging to locate and identify, especially if you're experiencing issues with your furnace. It's advisable to call a professional HVAC repair service as the first step to avoid the risk of personal injury or damage to your system.
The power supply to the control board can be traced by following the wire from the Y terminal on the thermostat or the C terminal on the heater board. The control board can typically be found at the front of the blower and the rear of the lower access panel, and it is identified by several wires running through it.
To ensure the power connection is functioning properly, you can check the flow from the line voltage to the Molex plug via the transformer and out through the terminal strip. A properly functioning control board should allow power to the inducer motor and fan motor when there is a 24-volt signal on the respective terminals.
Additionally, the control board's power supply has a line side and an isolated DC side. The line side includes the power supply's primary side and the relays that switch the AC loads. The DC side includes the power supply's secondary side and its associated loads, such as thermistor monitoring, DC fan control, and damper control.
Building a Sturdy Electrical H-Frame: DIY Guide
You may want to see also
Frequently asked questions
The control board is typically located within the indoor unit, such as the air handler or furnace, connected to various components through wiring connections.
You can access the furnace control board by removing the outer door of the furnace, which is usually held in place by screws. You may then see electrical wires and other HVAC components. The control board is often located in the lower housing, behind another door.
The control board contains components such as relays, diodes, capacitors, and resistors, which control electricity flow and maintain voltage levels. It acts as the central command center, receiving inputs from sensors and components of the HVAC system to maintain the desired temperature and comfort levels.
Signs of a faulty furnace control board include unresponsive thermostat adjustments, component malfunctions, and frequent cycling. You can also inspect the control panel's diagnostic light, which will blink a certain number of times to indicate specific issues. For example, three flashes can indicate that the furnace's inducer pressure switch is not working.
Changing a furnace control board can be complex, and it is recommended to contact a professional technician. However, if you have the knowledge and want to attempt a DIY fix, you should first cut the power to the furnace and remove the access panels to access the control board. Take photos of the wiring setup, and then remove all connectors and wires until nothing is attached to the board. Finally, remove the board, being mindful of any switches or jumpers. When installing a new board, reconnect the wires and components, and then turn the power back on to test the new board.
