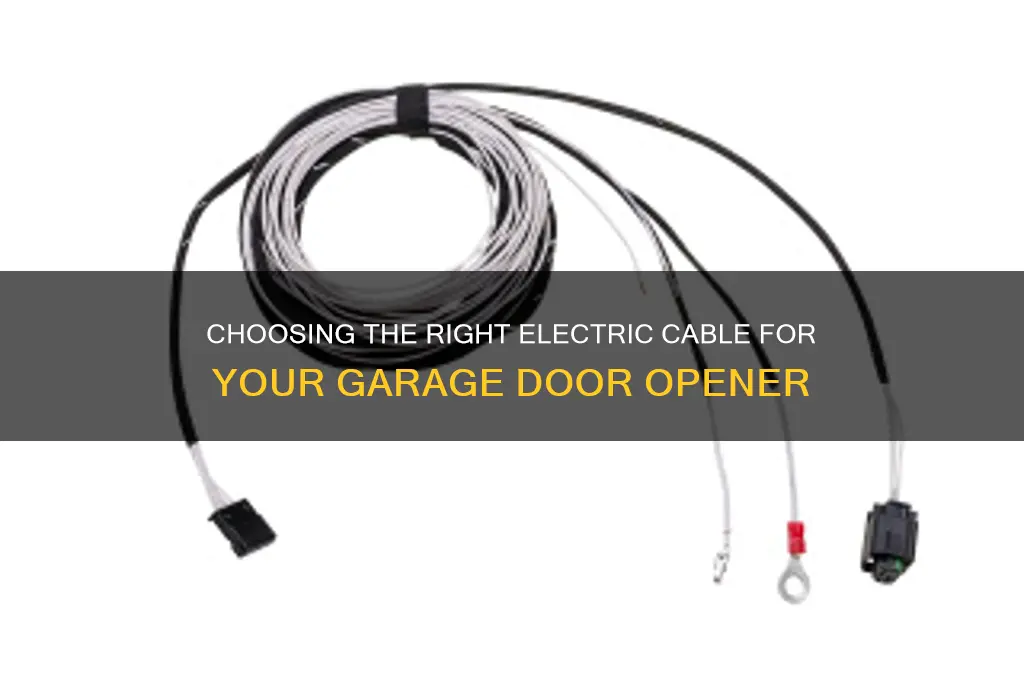

Choosing the right electric cable for a garage door opener is crucial for ensuring safety, reliability, and optimal performance. The cable must be rated to handle the specific voltage and amperage requirements of the opener, typically 110-120 volts for residential models. It should also be durable enough to withstand the mechanical stress and environmental conditions of a garage, such as temperature fluctuations and potential exposure to moisture. Common options include 14-gauge or 12-gauge stranded copper wire, with 14-gauge being suitable for most standard openers and 12-gauge recommended for longer runs or higher power demands. Additionally, the cable should be properly grounded and installed according to local electrical codes to prevent hazards like short circuits or fires. Always consult the garage door opener’s manual or a professional electrician to ensure the correct cable is selected and installed.
| Characteristics | Values |
|---|---|
| Wire Gauge | Typically 14 AWG (American Wire Gauge) for most garage door openers. Some heavy-duty models may require 12 AWG. |
| Wire Type | Stranded copper wire for flexibility and durability. |
| Insulation | PVC (Polyvinyl Chloride) or rubber insulation for protection against moisture, heat, and abrasion. |
| Voltage Rating | 300V or higher to ensure safety and compatibility with standard household voltage (120V). |
| Temperature Rating | 60°C (140°F) or higher to withstand heat generated by the garage door opener motor. |
| Length | Varies based on installation needs, typically 10-25 feet for standard garage setups. |
| Color Coding | Black, white, or red for hot wires; green or bare copper for ground wires (follow local electrical codes). |
| UL Certification | Ensure the cable is UL (Underwriters Laboratories) listed for safety and compliance. |
| Outdoor Use | If the cable is exposed to outdoor elements, use a weather-resistant or direct burial cable. |
| Connector Type | May require specific connectors or terminals depending on the garage door opener model. |
| Flexibility | High flexibility for easy routing through walls, ceilings, or tight spaces. |
| Compatibility | Check the garage door opener manual for specific wiring requirements. |
Explore related products
$10.99 $16.99
$169 $179.99
What You'll Learn
- Voltage Requirements: Match opener voltage to cable gauge for safe, efficient power delivery
- Cable Length: Choose length based on garage size and opener placement
- Wire Gauge: Use 14 or 12 AWG for standard openers; higher amps need thicker
- Indoor vs. Outdoor: Select weather-resistant cables for exposed garage environments
- Safety Standards: Ensure cables meet UL or NEC standards for garage use
Voltage Requirements: Match opener voltage to cable gauge for safe, efficient power delivery
When selecting the appropriate electric cable for your garage door opener, understanding voltage requirements is crucial. Garage door openers typically operate on either 120 volts for standard residential models or 24 volts for low-voltage systems. The voltage of your opener directly influences the type of cable you should use, as it determines the current flow and the cable’s ability to handle the electrical load safely. Using a cable with the wrong gauge can lead to overheating, reduced efficiency, or even failure of the opener. Therefore, matching the opener’s voltage to the correct cable gauge is essential for safe and efficient power delivery.
For 120-volt garage door openers, which are the most common in residential settings, a 14-gauge or 12-gauge cable is typically recommended. The gauge of a cable refers to its thickness, with lower numbers indicating thicker wires. A 14-gauge cable is suitable for most 120-volt openers because it can handle the current draw without overheating. However, if your opener has a higher power demand or if the cable run is longer than 50 feet, a 12-gauge cable is a safer choice. Thicker cables reduce voltage drop over longer distances, ensuring consistent power delivery to the opener.
In contrast, low-voltage garage door openers, such as those operating at 24 volts, require thinner cables. For these systems, an 18-gauge or 16-gauge cable is generally sufficient. Since low-voltage openers draw less current, thinner cables can safely and efficiently deliver the required power. Using a thicker cable for a low-voltage system is unnecessary and may add unnecessary cost without any performance benefit. Always refer to the manufacturer’s specifications to confirm the recommended cable gauge for your specific opener.
It’s important to consider the length of the cable run when matching voltage to gauge. Longer cable runs increase resistance, which can cause voltage drop and reduce the efficiency of power delivery. For example, a 120-volt opener with a 100-foot cable run may require a 12-gauge cable instead of a 14-gauge to maintain adequate voltage at the opener. Similarly, even a low-voltage system with an extended cable run may benefit from a slightly thicker cable to minimize power loss. Calculating voltage drop using the appropriate formula or consulting an electrician can help ensure the correct cable gauge is chosen.
Lastly, safety should always be a priority when dealing with electrical installations. Using a cable with too high a gauge (too thin) for the voltage and current requirements can pose a fire hazard due to overheating. Conversely, using a cable that is too thick may not provide any additional benefit but could complicate installation due to its stiffness. Always adhere to local electrical codes and manufacturer guidelines to ensure compliance and safety. By carefully matching the opener’s voltage to the appropriate cable gauge, you can achieve safe, efficient, and reliable power delivery for your garage door opener.
