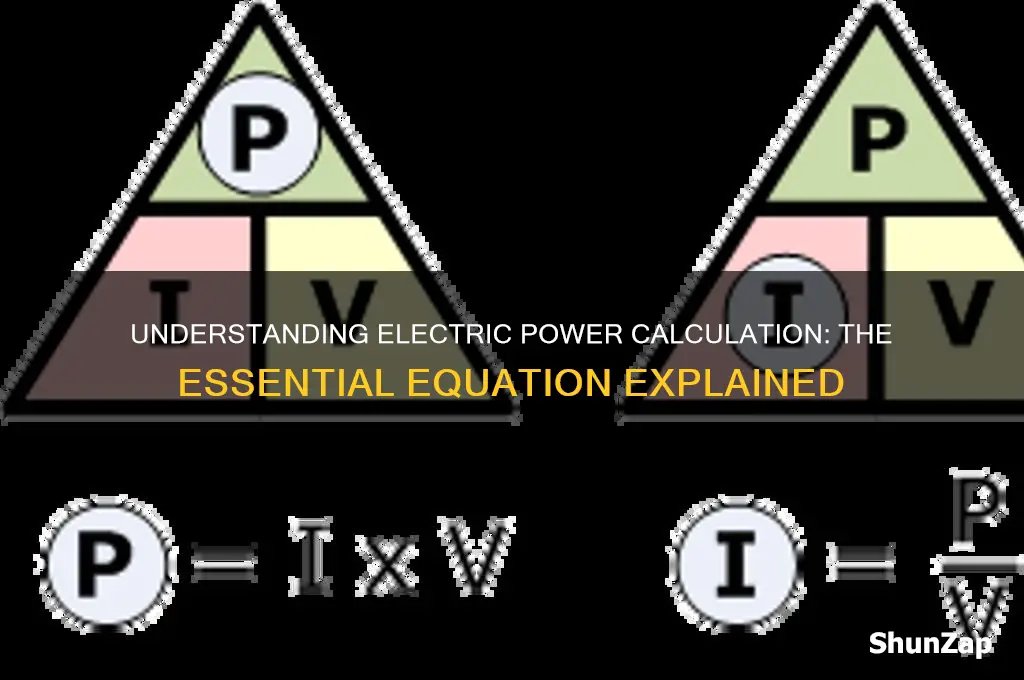

Electric power, a fundamental concept in physics and engineering, quantifies the rate at which electrical energy is transferred or converted within a circuit. The equation most commonly used to calculate electric power is P = VI, where P represents power in watts (W), V is the voltage in volts (V), and I is the current in amperes (A). This formula is derived from the relationship between energy, voltage, and current, and it applies to both direct current (DC) and alternating current (AC) systems. Additionally, in AC circuits, power can also be calculated using the formula P = VI cos(θ), where θ is the phase angle between voltage and current, accounting for power factors in more complex systems. Understanding these equations is essential for designing, analyzing, and optimizing electrical systems across various applications.
| Characteristics | Values |
|---|---|
| Equation | P = VI |
| Where: | |
| - P | Electric Power (in Watts, W) |
| - V | Voltage (in Volts, V) |
| - I | Current (in Amperes, A) |
| Alternative Forms | P = I²R (using Ohm's Law, V = IR) P = V²/R (using Ohm's Law, I = V/R) |
| Units | Watt (W) |
| Definition | The rate at which electrical energy is transferred by an electric circuit. |
Explore related products
What You'll Learn
- P = VI: Power equals voltage times current, fundamental formula for electrical power calculation
- P = I²R: Power equals current squared times resistance, derived from Ohm’s Law
- P = V²/R: Power equals voltage squared divided by resistance, alternative form using Ohm’s Law
- AC Power: Uses RMS values for voltage and current in alternating current circuits
- Three-Phase Power: Calculates power in three-phase systems using line-to-line voltage and current
P = VI: Power equals voltage times current, fundamental formula for electrical power calculation
The equation P = VI, where P represents power, V represents voltage, and I represents current, is the fundamental formula used to calculate electric power in direct current (DC) circuits. This formula is derived from the basic principles of electrical physics and provides a straightforward way to determine the rate at which electrical energy is transferred or consumed in a circuit. Power, measured in watts (W), quantifies the amount of energy used per unit of time. Voltage, measured in volts (V), represents the potential difference that drives electric charges through a conductor, while current, measured in amperes (A), is the flow rate of those charges. Together, these variables form the core relationship in electrical power calculations.
In practical applications, P = VI is essential for designing and analyzing electrical systems. For instance, when selecting components like resistors, LEDs, or motors, knowing the power consumption is critical to ensure the device operates safely and efficiently. By measuring or knowing the voltage across a component and the current flowing through it, one can easily calculate the power using this formula. This is particularly useful in troubleshooting scenarios, where understanding power dissipation helps identify overheating or inefficiency issues in a circuit.
The formula P = VI also highlights the interdependence of voltage and current in determining power. If voltage remains constant, an increase in current will result in higher power consumption, and vice versa. Similarly, for a fixed current, higher voltage leads to greater power. This relationship is vital in applications like power distribution, where voltage levels are adjusted to minimize energy losses over long distances. Understanding this interplay allows engineers and technicians to optimize systems for specific requirements.
While P = VI is primarily used for DC circuits, it can also be applied to alternating current (AC) systems under specific conditions. In AC circuits, where voltage and current vary sinusoidally, the formula remains valid if the power factor (the ratio of real power to apparent power) is considered. However, for most AC applications, the formula P = VI cos(θ) is used, where θ is the phase angle between voltage and current. Despite this, P = VI serves as the foundational concept for all power calculations, making it a cornerstone in electrical engineering.
In educational contexts, P = VI is often introduced as one of the first formulas in electrical circuits, emphasizing its importance and simplicity. Students learn to apply it in various scenarios, from calculating the power rating of household appliances to understanding energy consumption in industrial machinery. Its universality and ease of use make it an indispensable tool for anyone working with electricity, whether in theoretical studies or practical applications. Mastering this formula is the first step toward comprehending more complex electrical concepts and systems.
Electric Vehicles: Powering Profits for Forward-Thinking Companies
You may want to see also
Explore related products
P = I²R: Power equals current squared times resistance, derived from Ohm’s Law
The equation P = I²R, which states that power equals current squared times resistance, is a fundamental formula used to calculate electric power in a circuit. This equation is derived from Ohm's Law, which relates current (I), voltage (V), and resistance (R) in a simple yet powerful way. Ohm's Law is expressed as V = IR, where voltage is the product of current and resistance. By manipulating this relationship, we can derive the power equation P = I²R. This derivation begins by recognizing that power (P) in an electrical circuit is also given by P = VI, where power is the product of voltage and current. Substituting V = IR into P = VI, we get P = I(IR), which simplifies to P = I²R. This equation is particularly useful when the current and resistance values are known, allowing for a direct calculation of power dissipated in the form of heat or work.
The equation P = I²R is especially relevant in scenarios where the focus is on the power dissipated across a resistive element. For instance, in devices like heaters, toasters, or incandescent light bulbs, the power consumed is directly proportional to the square of the current flowing through the resistive component and the resistance itself. This relationship highlights the significance of current and resistance in determining energy consumption. If the current increases, the power dissipation increases exponentially due to the squared term, emphasizing the importance of managing current levels in high-power applications to avoid overheating or inefficiency.
One of the key advantages of using P = I²R is its simplicity and direct applicability to resistive circuits. Unlike other power equations, such as P = VI, which requires knowledge of both voltage and current, P = I²R only needs current and resistance values. This makes it a go-to formula for engineers and technicians working with resistive loads. Additionally, it provides insight into how changes in current or resistance impact power dissipation, making it a valuable tool for designing and troubleshooting electrical systems. For example, reducing resistance in a circuit while keeping the current constant will decrease power dissipation, which can be beneficial in energy-saving applications.
It is important to note that P = I²R is specifically applicable to purely resistive circuits or components. In circuits with reactive elements like inductors or capacitors, where impedance (not just resistance) plays a role, this equation may not provide accurate results. In such cases, the more general power formula P = VI or P = I²Z (where Z is impedance) would be more appropriate. However, for purely resistive scenarios, P = I²R remains the most straightforward and effective method for calculating power.
In practical applications, understanding P = I²R is crucial for safety and efficiency. For instance, in electrical wiring, excessive current through a resistor (like a wire) can lead to significant power dissipation, causing the wire to heat up and potentially start a fire. By using P = I²R, engineers can ensure that the current and resistance values are within safe limits to prevent such hazards. Similarly, in electronic design, this equation helps in selecting appropriate components to handle the expected power dissipation without failure. In summary, P = I²R is a powerful and essential equation derived from Ohm's Law, providing a clear and direct method to calculate electric power in resistive circuits.
Electric Vehicles: Road Tax Exemption Explained
You may want to see also
Explore related products
P = V²/R: Power equals voltage squared divided by resistance, alternative form using Ohm’s Law
The equation P = V²/R, which states that power equals voltage squared divided by resistance, is a fundamental formula in electrical engineering derived from Ohm's Law. Ohm's Law, expressed as V = IR, relates voltage (V), current (I), and resistance (R) in an electrical circuit. By manipulating this law, we can derive alternative forms to calculate electric power. Starting with V = IR, we can rearrange the equation to express current as I = V/R. Substituting this expression for current into the power formula P = VI, we obtain P = V(V/R), which simplifies to P = V²/R. This equation is particularly useful when voltage and resistance are known, allowing for direct calculation of power without needing to determine current first.
The formula P = V²/R highlights the relationship between voltage, resistance, and power in a circuit. It shows that power is directly proportional to the square of the voltage and inversely proportional to the resistance. This means that increasing the voltage across a component will result in a quadratic increase in power, while increasing resistance will decrease power. For example, if the voltage across a resistor doubles, the power dissipation quadruples, assuming resistance remains constant. This relationship is critical in designing circuits to ensure components operate within safe power limits and to optimize energy efficiency.
One of the key advantages of using P = V²/R is its simplicity and applicability in scenarios where voltage and resistance are easily measurable. In many practical situations, such as analyzing resistive circuits or calculating power dissipation in electronic components, voltage and resistance are more straightforward to measure than current. By using this equation, engineers and technicians can quickly assess power consumption or dissipation without the need for additional measurements or complex calculations. This makes it a valuable tool in troubleshooting, design, and maintenance of electrical systems.
It is important to note that P = V²/R is specifically applicable to purely resistive circuits, where voltage and current are in phase. In circuits with reactive components like inductors or capacitors, the relationship between voltage, current, and power becomes more complex due to phase differences. However, for resistive loads, this equation remains accurate and reliable. Understanding its limitations ensures proper application and prevents errors in power calculations for more intricate circuits.
In summary, P = V²/R is an alternative form of the power equation derived from Ohm's Law, offering a direct method to calculate electric power using voltage and resistance. Its simplicity and utility in resistive circuits make it an essential formula for electrical professionals. By grasping the principles behind this equation, one can effectively analyze and design circuits, ensuring optimal performance and safety. Whether in theoretical studies or practical applications, P = V²/R remains a cornerstone in the calculation of electric power.
Understanding Electric Vehicle System Error Messages
You may want to see also
Explore related products
AC Power: Uses RMS values for voltage and current in alternating current circuits
In alternating current (AC) circuits, the calculation of electric power requires a different approach compared to direct current (DC) circuits due to the continuously changing nature of voltage and current. The key to accurately determining power in AC circuits lies in using Root Mean Square (RMS) values for voltage and current. RMS values provide a way to quantify the effective voltage and current in an AC circuit, which can then be used to calculate power. The equation for electric power in an AC circuit is given by \( P = V_{\text{rms}} \times I_{\text{rms}} \times \cos(\phi) \), where \( V_{\text{rms}} \) is the RMS voltage, \( I_{\text{rms}} \) is the RMS current, and \( \cos(\phi) \) is the power factor, which accounts for the phase difference between voltage and current in reactive circuits.
The use of RMS values is essential because AC voltage and current vary sinusoidally with time, making their instantaneous values inadequate for power calculations. RMS values represent the equivalent steady DC value that would produce the same heating effect or power dissipation in a resistive load. For a sinusoidal waveform, the RMS value is calculated by taking the square root of the mean of the squared values over one complete cycle. Mathematically, for a voltage \( V(t) = V_{\text{peak}} \sin(\omega t) \), the RMS voltage is \( V_{\text{rms}} = \frac{V_{\text{peak}}}{\sqrt{2}} \). Similarly, the RMS current is derived from the peak current. This standardization allows for consistent power calculations across AC systems.
In purely resistive AC circuits, where voltage and current are in phase, the power factor \( \cos(\phi) \) is 1, simplifying the power equation to \( P = V_{\text{rms}} \times I_{\text{rms}} \). However, in circuits with reactive components like inductors or capacitors, the power factor is less than 1 due to the phase shift between voltage and current. This reduces the real power delivered to the load, as reactive components store and release energy rather than dissipating it. Thus, the full power equation \( P = V_{\text{rms}} \times I_{\text{rms}} \times \cos(\phi) \) is necessary to account for this inefficiency.
RMS values are particularly important in practical applications, such as household electrical systems, where AC power is the standard. For example, the voltage rating on electrical outlets (e.g., 120V or 230V) refers to the RMS voltage, not the peak voltage. Similarly, the current drawn by appliances is measured in RMS terms. This ensures that power calculations align with real-world energy consumption and heating effects, which are critical for safety and efficiency in electrical systems.
In summary, AC power calculations rely on RMS values for voltage and current to provide a meaningful and consistent measure of power in alternating current circuits. The equation \( P = V_{\text{rms}} \times I_{\text{rms}} \times \cos(\phi) \) encapsulates this approach, accounting for both the effective voltage and current as well as the power factor. Understanding and applying RMS values is fundamental for engineers, technicians, and anyone working with AC systems, ensuring accurate power measurements and efficient operation of electrical devices.
The Future of Electric Cars: Will Gasoline Vehicles Become Obsolete?
You may want to see also
Explore related products
Three-Phase Power: Calculates power in three-phase systems using line-to-line voltage and current
Three-phase power systems are widely used in industrial and commercial applications due to their efficiency and ability to deliver a consistent power supply. Calculating power in a three-phase system involves specific equations that account for the unique characteristics of these systems, such as line-to-line voltage and current. The primary equation used to calculate electric power in a three-phase system is derived from the general power formula but adapted for the three-phase configuration. The formula for three-phase power using line-to-line voltage (VLL) and line current (IL) is:
P = √3 × VLL × IL × cos(φ)
Here, *P* represents the active power in watts, *VLL* is the line-to-line voltage, *IL* is the line current, and *cos(φ)* is the power factor, which accounts for the phase difference between voltage and current. The factor √3 (approximately 1.732) is included because three-phase systems deliver power more efficiently than single-phase systems, and this factor ensures accurate power calculation.
It’s important to note that this equation assumes a balanced three-phase system, where all three phases have equal voltage magnitudes and are 120 degrees apart. In unbalanced systems, additional calculations or measurements may be required. The line-to-line voltage (*VLL*) is the voltage measured between any two phases, while the line current (*IL*) is the current flowing through each phase conductor.
For systems where the line-to-neutral voltage (*VLN*) is known instead of *VLL*, the relationship *VLL = √3 × VLN* can be used to convert the voltage before applying it to the power formula. This conversion is essential because three-phase systems are often designed and measured using line-to-line values, which are higher than line-to-neutral values.
The power factor (*cos(φ)*) is a critical parameter in power calculations, as it indicates how effectively the system converts electrical energy into useful work. A power factor of 1 represents ideal efficiency, while lower values indicate inefficiencies due to reactive power. In practical applications, power factor correction techniques may be employed to improve efficiency and reduce energy losses.
In summary, calculating three-phase power using line-to-line voltage and current involves applying the formula *P = √3 × VLL × IL × cos(φ)*. This equation is fundamental for assessing the performance of three-phase systems and ensures accurate power measurement in industrial and commercial settings. Understanding the components of this formula, including the √3 factor and power factor, is essential for effective power system analysis and optimization.
Are Electric Cars Truly Green? Unveiling Their Environmental Impact
You may want to see also
Frequently asked questions
The equation used is \( P = V \times I \), where \( P \) is power in watts, \( V \) is voltage in volts, and \( I \) is current in amperes.
The formula is \( P = I^2 \times R \), where \( P \) is power in watts, \( I \) is current in amperes, and \( R \) is resistance in ohms.
The equation \( P = \frac{V^2}{R} \) is used, where \( P \) is power in watts, \( V \) is voltage in volts, and \( R \) is resistance in ohms.
The equation is \( P = \frac{E}{t} \), where \( P \) is power in watts, \( E \) is energy in joules, and \( t \) is time in seconds.
The formula is \( P = \sqrt{3} \times V_{\text{line}} \times I_{\text{line}} \times \cos(\phi) \), where \( P \) is power in watts, \( V_{\text{line}} \) is line voltage in volts, \( I_{\text{line}} \) is line current in amperes, and \( \cos(\phi) \) is the power factor.
