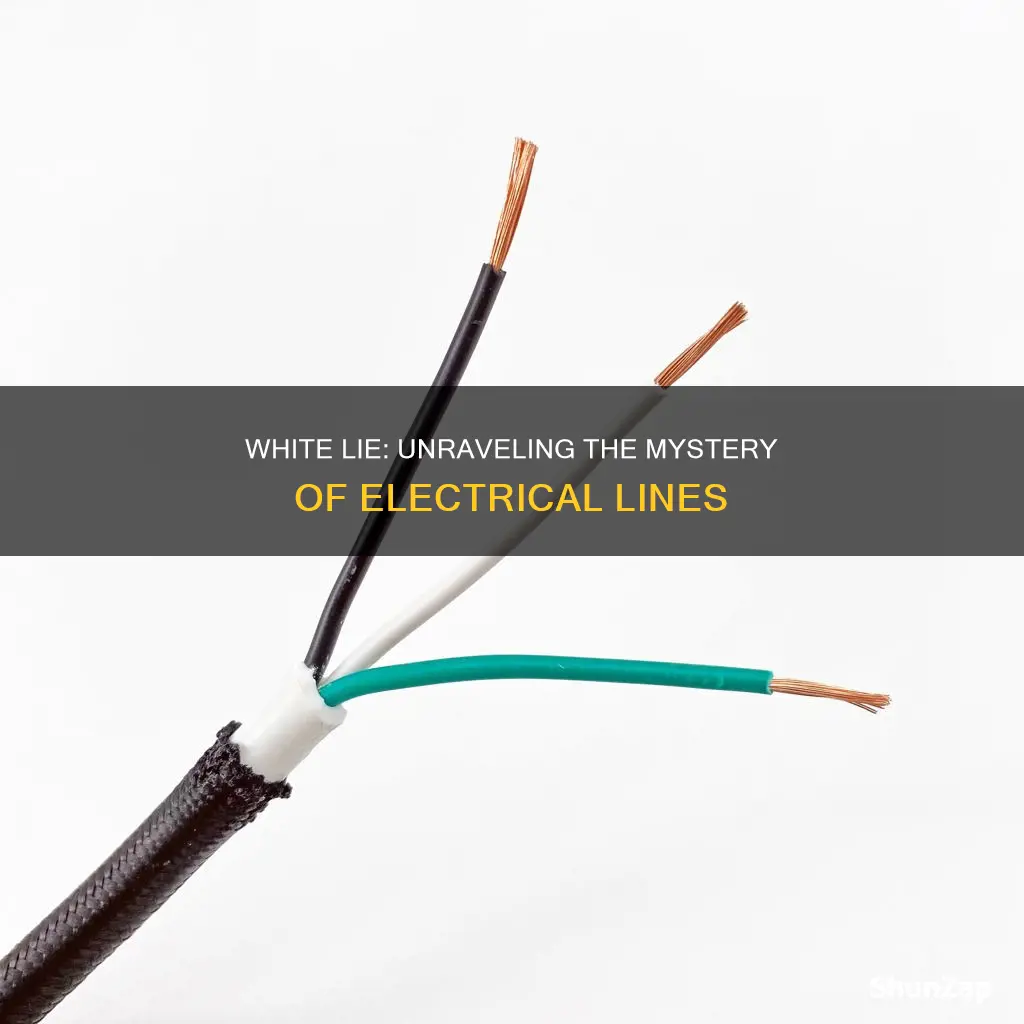

Electrical wires come in many colours, and each colour indicates a different function. In the US, the National Electrical Code (NEC) designates the colour code for electrical cables. Line wires are typically black or red and carry electricity from the power source to the electrical panel. They are always hot and require caution. Load wires, on the other hand, are often white or light-coloured and distribute electricity to outlets and fixtures. White or grey wires are neutral wires, which means they take any unused electricity and current and send it back to the breaker panel.
| Characteristics | Values |
|---|---|
| Colour | White or grey |
| Function | Neutral wire |
| Purpose | Takes unused electricity and current and sends it back to the breaker panel |
| Polarity | Positive (+) |
| Protective Ground | No |
| Hot wire | No |
| Active wire | No |
| Live wire | No |
Explore related products
What You'll Learn
White wires are 'neutral' wires
The colour of electrical wires indicates their function in a circuit. White wires are known as "neutral" wires, which means that they return any unused electricity and current to the breaker panel. This is to prevent electricity from running through you! In the US, the National Electrical Code (NEC) designates the colour code for electrical cables. "Hot" cables, which carry electricity to a light, appliance or device, are black, red, and blue. Orange is also used to indicate a hot cable in higher-voltage lines.
White wires are neutral wires, and this is the same for grey wires. In fact, the NEC allows grounded conductors to be white or grey or have three white or grey stripes on any background colour except green. However, white wires can also be used as hot wires in some applications. In these cases, the wire will be properly marked with tape around the end to indicate that it is being used as a hot wire rather than a neutral one.
In Canada, the Canadian Electric Code (CEC) governs wiring colours. The protective ground is green or green with a yellow stripe, the neutral is white, and the hot (or live/active) single-phase wires are black and red in the case of a second active. Three-phase lines are red, black, and blue.
In the UK, the IEC AC wiring colour codes are followed. The protective ground wire is green with a yellow stripe, and the neutral power conductor can be white or grey.
Audi A3: Electric Folding Mirrors, Yes or No?
You may want to see also
Explore related products
They return unused electricity to the breaker panel
In electrical wiring, white wires are neutral wires. They complete the circuit by allowing current to pass through the outlet and other loads on the circuit and return to the breaker panel. This is in contrast to the black wires, which receive power from the service panel and send it on to other loads on the circuit.
In a typical outlet, you will find black and white wires. The black wire is the line wire, which always carries a charge. The white wire is the neutral wire, which completes the circuit back to the power source. It is important to note that the voltage on the neutral wire is zero; it is the current you need to pay attention to, as it is the current that can make the wire hot enough to burn.
The breaker panel, also known as the service panel or load center, is like the switchboard for all the electricity in a home. It receives incoming power from the utility company and distributes it to each of the circuits that supply the various lights, outlets, appliances, and other devices throughout the house. The main circuit breaker can shut off the power to all the branch circuits, but it does not shut off the power from the utility company. The utility service lines and the terminals they connect to inside the panel remain live unless the utility company shuts off the service.
When working with electrical wiring, it is important to follow standard wire color codes. In the US, the National Electrical Code mandates that the grounded neutral conductor of a power system be white or grey, while the protective ground must be bare, green, or green-yellow striped. Local electrical inspectors typically use black for the first hot wire and red for the second.
Swing Dancing to Electro Swing: Getting Started
You may want to see also
Explore related products
White wires carry power back to the service panel
In electrical wiring, the white wire is the "neutral" wire. It is also sometimes referred to as a "white neutral wire". Its function is to take any unused electricity and current and send it back to the breaker panel. This is why white wires are often referred to as "return wires". They provide a return path for electricity in a circuit. Typically, they connect at the main electrical panel to a single conductive piece of metal known as a neutral bus bar.
In a basic electrical wiring setup, there are usually two cables entering an outlet box. This indicates that the outlet is not the last fixture on a circuit. One of the black wires receives power from the service panel, while the other sends it on to other loads on the circuit. The white wires then allow the current passing through the outlet and the other loads on the circuit to return to the panel.
In the US, the National Electrical Code (NEC) designates the colour code for electrical cables. "Hot" cables are black, red, and blue. Orange might also be used to indicate a hot cable in cases of higher-voltage lines. White or grey indicates a neutral wire, and green or green with a yellow stripe indicates a ground wire.
It is important to know the proper electrical terminology when working with wires. "Hot" means that the wire is carrying power from the electrical panel to its destination. A ground wire carries electricity to the ground during an abnormal electric current. Neutral wires carry electricity back to the electrical panel.
White wires are also used in network cables and some phone wiring. Each pair has a different base colour, such as blue, green, or orange. The polarity is indicated by having one wire of solid colour and the other with a white stripe on a background of the same colour.
Feit Electric T8 Tubes: Bypass Type?
You may want to see also
Explore related products
White wires are sometimes used as 'hot' wires
In electrical wiring, colour-coding is crucial for distinguishing between hot, neutral, and ground wires. Typically, black, red, blue, yellow, green, and brown wires are used as hot wires, while white wires are used as neutral wires. However, in certain cases, white wires can also be used as hot wires.
A "hot" wire carries electricity from the breaker panel to a switch or light source. It is crucial to distinguish these wires as they supply electrical current. On the other hand, a "neutral" wire allows the current to flow back to the electrical panel, completing the circuit. White wires usually serve this purpose.
In some older electrical systems, 240-volt circuits may only have three wires, including a white wire used as a "hot" conductor. This practice is also observed in switch legs or switch loops between a switch and a light fixture. When a white wire is used as a "hot" wire, it should be clearly marked on both ends with black or red electrical tape to indicate its function. This proper labelling is essential for the safety of technicians and electricians working on the wiring.
It is important to note that while white wires can be used as hot wires in specific scenarios, they must be properly identified and labelled to avoid any confusion or safety hazards. Improperly labelled white "hot" wires are a common issue found in residential electrical systems, and they should be evaluated and corrected by a licensed electrical contractor.
Additionally, it is worth mentioning that the National Electrical Code (NEC) provides guidelines for wire colours, but variations and exceptions exist. Therefore, it is always important to refer to local electrical codes and consult licensed professionals when working with electrical wiring to ensure safety and compliance with regulations.
Electric Fence Tape: Connecting the Dots
You may want to see also
Explore related products
White wires are more common than grey wires
Electrical wires are colour-coded to indicate their function and voltage. The National Electrical Code (NEC) provides guidelines for wire colours, but there are variations and exceptions. For example, white wires are sometimes used in place of black wires.
White wires are generally "neutral" wires, which means they provide a return path for electricity in a circuit. They carry unused electricity and current back to the breaker panel. White wires are commonly used alongside black wires, which are "hot" wires that carry electricity from the breaker panel to switches, light sources, or outlets. It is important not to switch black and white wires as this could trip the breaker and start a fire.
White wires can also be used as "hot" wires in certain applications, such as in a switch leg or switch loop between a switch and a light fixture. In these cases, the white wire is usually marked with red or black electrical tape to indicate that it is being used as a "hot" wire rather than a "neutral" wire.
Grey wires are also "neutral" wires, but white wires are more commonly found in most households. Both white and grey wires carry power back to the service panel and can pose a danger of electrocution if not handled properly. It is important to treat all electrical wires with caution and to understand the colour-coding system before attempting any electrical work.
In summary, white wires are more common than grey wires in household electrical wiring. Both colours indicate "neutral" wires, but white wires are more frequently used to provide a return path for electricity in a circuit. White wires may also be used as "hot" wires in certain applications when properly marked.
Electra's Unique Speech: A Strategic Pose
You may want to see also
Frequently asked questions
The white wire is the "neutral" wire. It takes any unused electricity and current and sends it back to the breaker panel.
The black wire is the "hot" wire and carries electricity from the breaker panel into the switch or light source. The red wire is used as a second path to send electricity from one switch to another. The green wire is the "ground" wire and takes electricity back to the breaker panel and outside to a rod in the ground.
The neutral wire returns electricity to the electrical panel. It is important to distinguish the neutral wire from the hot wire, which carries a live current from the electric panel to its destination.
Although the white wire is neutral, it may still carry power and can pose a danger of electrocution if not handled properly. Both hot and neutral wires can cause shocks and injury if mishandled.
