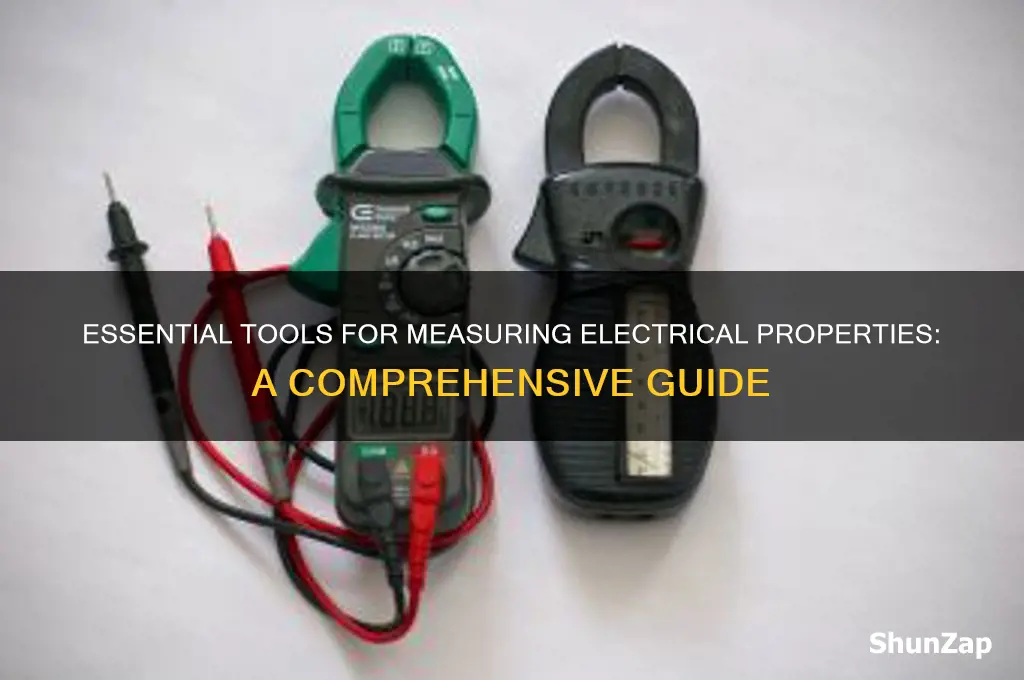

When it comes to measuring electrical properties, selecting the right tool is crucial for accurate and reliable results. The choice of instrument depends on the specific property being measured, such as voltage, current, resistance, or power. Common tools include multimeters, which are versatile devices capable of measuring multiple electrical parameters, and clamp meters, ideal for measuring current without breaking the circuit. For more specialized tasks, tools like oscilloscopes are used to visualize waveforms, while LCR meters are employed to measure inductance, capacitance, and resistance. Understanding the application and the required precision helps in determining the most suitable tool for the job.
| Characteristics | Values |
|---|---|
| Multimeter | A versatile tool for measuring voltage, current, and resistance. Digital and analog types available. |
| Clamp Meter | Measures current without breaking the circuit, ideal for high-current applications. |
| Oscilloscope | Visualizes voltage waveforms over time, useful for analyzing signal integrity and transient events. |
| LCR Meter | Specifically measures inductance (L), capacitance (C), and resistance (R) in electronic components. |
| Insulation Tester (Megohmmeter) | Tests the insulation resistance of electrical systems to ensure safety and prevent short circuits. |
| Ground Resistance Tester | Measures the resistance of electrical grounding systems to ensure proper grounding. |
| Power Quality Analyzer | Analyzes electrical power quality, including voltage, current, harmonics, and power factor. |
| Cable Tester | Checks the continuity and integrity of cables, identifying faults like shorts or open circuits. |
| Thermocouple | Measures temperature in electrical systems, often used to monitor overheating in components. |
| ESD Meter | Measures electrostatic discharge (ESD) to ensure compliance with ESD safety standards. |
| Frequency Counter | Measures the frequency of electrical signals, useful in telecommunications and electronics. |
| Signal Generator | Generates electrical signals for testing and calibrating circuits, though not a measurement tool itself. |
| Network Analyzer | Measures network parameters like impedance, reflection coefficients, and transmission characteristics. |
| Spectrum Analyzer | Analyzes the frequency spectrum of electrical signals, identifying noise and interference. |
| Data Logger | Records electrical parameters over time for long-term monitoring and analysis. |
Explore related products
What You'll Learn
- Multimeters: Measure voltage, current, resistance, and continuity in electrical circuits
- Clamp Meters: Measure current without breaking the circuit, ideal for live wires
- Oscilloscopes: Visualize voltage waveforms over time for signal analysis
- LCR Meters: Measure inductance, capacitance, and resistance in components
- Insulation Testers: Assess insulation resistance to ensure safety in electrical systems
Multimeters: Measure voltage, current, resistance, and continuity in electrical circuits
Multimeters are indispensable tools for anyone working with electrical circuits, offering the ability to measure voltage, current, resistance, and continuity. These devices are versatile and essential for troubleshooting, testing, and maintaining electrical systems. When measuring voltage, a multimeter is connected in parallel with the component or circuit to determine the electrical potential difference. This is crucial for ensuring that devices are operating within safe and optimal voltage ranges. Modern multimeters often feature auto-ranging capabilities, which automatically select the appropriate voltage range, simplifying the process for users.
To measure current, a multimeter is connected in series with the circuit, allowing it to detect the flow of electrical charge. This function is particularly useful for identifying overcurrent conditions or ensuring that components are drawing the correct amount of power. It’s important to select the correct current range to avoid damaging the multimeter or obtaining inaccurate readings. For precise measurements, some multimeters offer both AC and DC current measurement options, catering to a wide range of applications.
Resistance measurement is another critical function of multimeters, used to assess the opposition to current flow in a circuit or component. To measure resistance, the circuit must be de-energized, and the multimeter is connected directly across the component. This helps in diagnosing faulty resistors, wires, or connections. Multimeters typically display resistance in ohms, with higher values indicating greater resistance. Understanding resistance is key to ensuring circuit efficiency and safety.
The continuity test is a quick and effective way to check if a circuit or component is complete and capable of conducting electricity. When performing a continuity test, the multimeter emits an audible beep if the circuit is closed, indicating a continuous path for current. This feature is invaluable for identifying breaks in wires, faulty switches, or poor connections. It’s a time-saving tool that simplifies the process of locating issues in complex circuits.
In summary, multimeters are the go-to tool for measuring electrical properties due to their ability to handle voltage, current, resistance, and continuity tests. Their portability, accuracy, and ease of use make them essential for professionals and hobbyists alike. Whether diagnosing problems, verifying circuit functionality, or ensuring safety, a multimeter provides the data needed to make informed decisions. Investing in a high-quality multimeter is a wise choice for anyone involved in electrical work.
