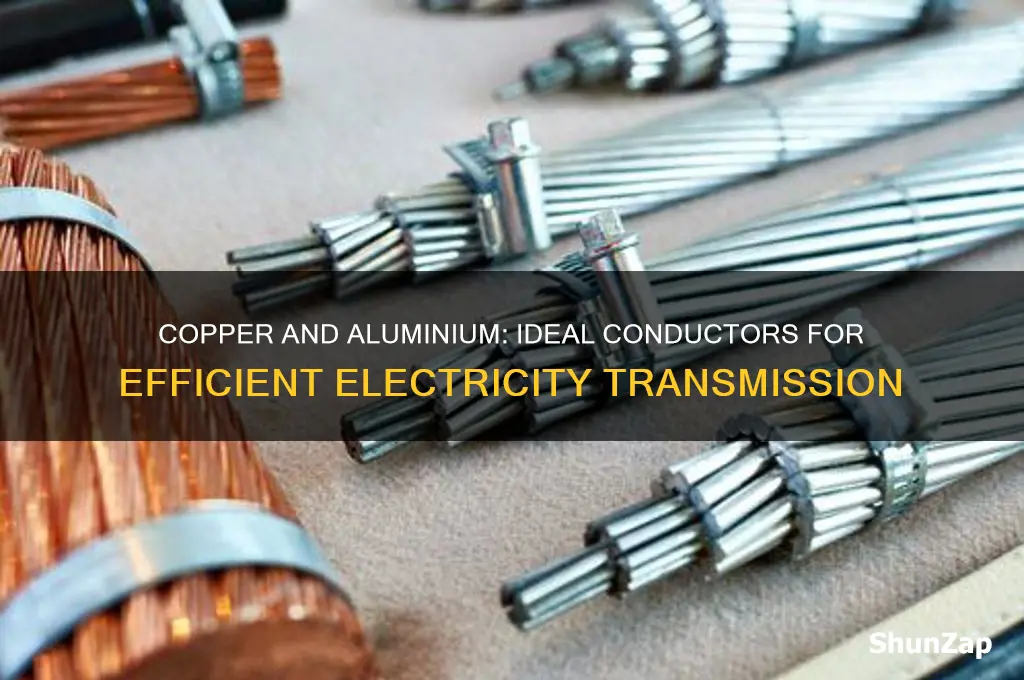

Copper and aluminum are the primary materials used for electricity transmission due to their exceptional electrical conductivity, durability, and cost-effectiveness. Copper, with its high conductivity, is ideal for high-efficiency applications, while aluminum, though slightly less conductive, is lighter and more affordable, making it suitable for long-distance power lines. Both metals exhibit excellent corrosion resistance and can be easily drawn into wires, ensuring reliable and efficient transmission of electricity over vast distances. Their widespread use in electrical grids highlights their critical role in modern energy infrastructure.
| Characteristics | Values |
|---|---|
| Conductivity | Copper: ~59.6 MS/m (highest among common metals); Aluminium: ~37.7 MS/m (lower than copper but sufficient for most applications) |
| Density | Copper: 8.96 g/cm³; Aluminium: 2.70 g/cm³ (lighter, reducing tower and support structure costs) |
| Tensile Strength | Copper: ~220-250 MPa; Aluminium: ~100-150 MPa (copper stronger, but aluminium alloys improve strength) |
| Cost | Copper: More expensive ($8,000/ton); Aluminium: Less expensive ($2,500/ton) |
| Corrosion Resistance | Copper: Excellent (forms protective oxide layer); Aluminium: Good (forms oxide layer but more susceptible to certain environments) |
| Ductility | Copper: High (easily drawn into wires); Aluminium: Very high (more flexible than copper) |
| Thermal Expansion | Copper: 16.5 μm/m·°C; Aluminium: 23.1 μm/m·°C (aluminium expands more, requiring larger clearances) |
| Weight per Unit Length | Copper: Heavier (e.g., 1 km of 1 cm² wire: ~89 kg); Aluminium: Lighter (e.g., 1 km of 1 cm² wire: ~27 kg) |
| Energy Efficiency | Copper: Higher due to better conductivity; Aluminium: Lower conductivity but compensates with larger cross-sectional area |
| Recyclability | Both highly recyclable (copper ~95%, aluminium ~75%) |
| Applications | Copper: High-efficiency, short-distance, and high-current applications; Aluminium: Long-distance transmission lines and cost-sensitive projects |
Explore related products
What You'll Learn
- High conductivity ensures efficient electricity flow with minimal energy loss over long distances
- Lightweight materials reduce infrastructure costs and simplify installation and maintenance processes
- Corrosion resistance prolongs lifespan, ensuring reliable performance in various environmental conditions
- Ductility allows easy shaping into wires, enhancing flexibility for diverse transmission needs
- Cost-effectiveness balances performance and affordability, making them ideal for large-scale use
High conductivity ensures efficient electricity flow with minimal energy loss over long distances
Copper and aluminum are the materials of choice for electricity transmission primarily due to their high electrical conductivity, which is a measure of how easily electric current can flow through a material. High conductivity is crucial for efficient electricity transmission because it directly impacts the amount of energy lost as heat during the transmission process. When electricity flows through a conductor, it encounters resistance, which converts some of the electrical energy into heat. Materials with high conductivity, like copper and aluminum, have lower resistance, minimizing this energy loss. This efficiency is especially critical for long-distance transmission, where even small losses can accumulate into significant energy waste.
The efficiency of electricity transmission is mathematically described by the formula for power loss: \( P = I^2 \times R \), where \( P \) is the power lost, \( I \) is the current, and \( R \) is the resistance of the conductor. Copper and aluminum, with their low resistivity values (approximately \( 1.68 \times 10^{-8} \, \Omega\text{m} \) for copper and \( 2.65 \times 10^{-8} \, \Omega\text{m} \) for aluminum), ensure that the resistance \( R \) remains low. This low resistance translates to minimal power loss, even when transmitting high currents over vast distances. For instance, using a highly conductive material like copper can reduce energy losses by up to 50% compared to less conductive alternatives.
Another advantage of high conductivity is the ability to use thinner wires or cables without compromising efficiency. Since copper and aluminum allow for greater current flow with less resistance, transmission lines can be designed with smaller cross-sectional areas. This not only reduces material costs but also minimizes the weight and physical footprint of the infrastructure, making installation and maintenance more feasible. For example, aluminum, being lighter than copper, is often preferred for overhead transmission lines where weight is a critical factor.
In addition to reducing energy losses, high conductivity contributes to the overall reliability and stability of the power grid. Efficient transmission ensures that electricity reaches its destination with minimal voltage drop, maintaining consistent power quality for consumers. Copper and aluminum’s ability to handle high currents without significant energy loss makes them indispensable for both high-voltage transmission lines and local distribution networks. Their reliability is further enhanced by their durability and resistance to corrosion, ensuring long-term performance in various environmental conditions.
Lastly, the use of copper and aluminum aligns with economic and environmental considerations. While copper has slightly higher conductivity than aluminum, aluminum’s lower cost and lighter weight make it a competitive alternative, especially for long-distance transmission. The efficiency provided by these materials reduces the need for additional power generation to compensate for losses, thereby lowering greenhouse gas emissions associated with electricity production. In summary, the high conductivity of copper and aluminum ensures efficient electricity flow with minimal energy loss, making them the optimal choice for modern power transmission systems.
Charging HFO 1234yf: Electric Vehicle Refrigerant Guide
You may want to see also
Explore related products
Lightweight materials reduce infrastructure costs and simplify installation and maintenance processes
The use of lightweight materials like copper and aluminum in electricity transmission is a strategic choice that significantly reduces infrastructure costs. These materials are inherently less dense than alternatives such as steel, which means that less material is required to construct transmission lines and supporting structures. For instance, aluminum, being approximately one-third the weight of copper, allows for the design of lighter towers and poles. This reduction in material usage directly translates to lower costs in procurement, transportation, and construction. Additionally, the lightweight nature of these materials enables the use of smaller, more cost-effective support structures, further decreasing the overall investment required for building and expanding electrical grids.
Lightweight materials also simplify the installation process, making it faster and more efficient. Copper and aluminum conductors are easier to handle due to their reduced weight, which minimizes the need for heavy machinery and specialized equipment during installation. This not only speeds up the deployment of new transmission lines but also reduces labor costs and the risk of workplace injuries. For example, aluminum conductors can be installed using standard equipment, whereas heavier materials might require additional resources and time. The ease of installation is particularly beneficial in remote or challenging terrains, where logistical constraints can significantly impact project timelines and budgets.
Maintenance processes are similarly streamlined when lightweight materials are used. The reduced weight of copper and aluminum conductors lessens the strain on transmission line components, such as insulators and connectors, leading to fewer failures and a longer lifespan for the infrastructure. When maintenance or repairs are necessary, the lighter materials are easier to manipulate, reducing the time and effort required to address issues. This is especially critical for overhead lines, where maintenance often involves working at height. The simplicity of handling these materials ensures that maintenance tasks can be completed more quickly, minimizing downtime and maintaining the reliability of the electrical grid.
Another advantage of lightweight materials is their impact on operational flexibility. Copper and aluminum conductors can be more easily adapted or reconfigured to meet changing demands or to integrate renewable energy sources into the grid. Their manageable weight allows for quicker adjustments to transmission routes or the addition of new lines without the need for extensive modifications to existing infrastructure. This flexibility is essential in today’s rapidly evolving energy landscape, where grids must adapt to increasing decentralization and variability in power generation. By reducing the complexity of such adaptations, lightweight materials contribute to a more resilient and future-proof electrical network.
Finally, the use of lightweight materials aligns with broader sustainability goals by minimizing the environmental footprint of electricity transmission infrastructure. The reduced material requirements and simplified installation and maintenance processes result in lower energy consumption and fewer emissions associated with construction and operation. Additionally, the durability and recyclability of copper and aluminum ensure that these materials can be reused or repurposed at the end of their lifecycle, further enhancing their environmental benefits. In this way, lightweight materials not only reduce costs and simplify processes but also support the development of a more sustainable energy infrastructure.
Electric Vehicle Stocks: Best Indian Investments?
You may want to see also
Explore related products
Corrosion resistance prolongs lifespan, ensuring reliable performance in various environmental conditions
Copper and aluminum are favored materials for electricity transmission due to their exceptional corrosion resistance, which significantly prolongs their lifespan and ensures reliable performance across diverse environmental conditions. Corrosion, the gradual degradation of materials through chemical or electrochemical reactions, can severely compromise the integrity of electrical transmission systems. Both copper and aluminum exhibit natural resistance to corrosion, primarily due to their ability to form protective oxide layers on their surfaces. For instance, copper develops a thin layer of copper oxide, while aluminum forms a stable aluminum oxide layer. These oxide layers act as barriers, shielding the underlying metal from further oxidation and environmental stressors such as moisture, pollutants, and temperature fluctuations. This inherent corrosion resistance minimizes maintenance requirements and reduces the risk of system failures, making these materials ideal for long-term use in electrical grids.
In addition to their natural protective layers, copper and aluminum can be further enhanced with coatings and alloys to improve their corrosion resistance. For example, aluminum conductors are often reinforced with steel cores (ACSR - Aluminum Conductor Steel Reinforced) to enhance mechanical strength while maintaining corrosion resistance. Similarly, copper can be treated with specialized coatings or alloys to withstand harsher environments, such as coastal areas with high salinity or industrial zones with corrosive emissions. These enhancements ensure that the materials remain effective even in the most challenging conditions, thereby extending their operational lifespan and maintaining consistent electrical performance.
The corrosion resistance of copper and aluminum is particularly critical in outdoor transmission systems, where exposure to rain, humidity, and atmospheric pollutants is inevitable. Unlike materials like iron or steel, which rust rapidly in such conditions, copper and aluminum retain their structural and conductive properties over decades. This durability is essential for minimizing downtime and repair costs, as corroded conductors can lead to increased electrical resistance, energy losses, and potential safety hazards. By choosing corrosion-resistant materials, utility providers can ensure uninterrupted power supply and reduce the need for frequent replacements or repairs.
Furthermore, the reliability of copper and aluminum in varying climates underscores their suitability for global electricity transmission networks. In cold regions, these materials resist embrittlement and maintain flexibility, while in hot climates, they withstand thermal expansion without significant degradation. Their ability to perform consistently across temperature extremes, coupled with their corrosion resistance, ensures that electrical transmission systems remain robust and efficient regardless of geographical location. This adaptability is a key factor in their widespread adoption for both overhead power lines and underground cables.
In summary, the corrosion resistance of copper and aluminum is a cornerstone of their effectiveness in electricity transmission. By naturally forming protective oxide layers and benefiting from additional treatments, these materials withstand environmental stressors that would degrade lesser conductors. This durability not only prolongs their lifespan but also guarantees reliable performance in diverse and demanding conditions. As a result, copper and aluminum remain indispensable for building and maintaining resilient electrical infrastructure worldwide.
Are Electric Vehicles Truly Cars? Debunking the Myths and Facts
You may want to see also
Explore related products
Ductility allows easy shaping into wires, enhancing flexibility for diverse transmission needs
Copper and aluminum are favored materials for electricity transmission due to their exceptional ductility, which allows them to be easily shaped into wires. Ductility is the ability of a material to deform under tensile stress without fracturing, enabling it to be drawn into thin, continuous strands. This property is crucial for manufacturing wires that can efficiently carry electrical currents over long distances. When metals like copper and aluminum are subjected to processes such as drawing or extrusion, their ductility ensures they can be elongated into wires without breaking, maintaining structural integrity. This ease of shaping simplifies the production process, reducing manufacturing costs and time, which is essential for large-scale transmission projects.
The flexibility provided by ductility is another key advantage in electricity transmission. Copper and aluminum wires can be bent, twisted, and manipulated to fit various installation requirements, such as navigating around obstacles or conforming to specific geometric layouts. This adaptability is particularly important in urban areas, where transmission lines must weave through complex environments. Additionally, ductile wires can withstand mechanical stresses during installation and operation, such as tension, vibration, or thermal expansion, without compromising their performance. This flexibility ensures that transmission systems remain reliable and durable, even in challenging conditions.
Ductility also enhances the versatility of copper and aluminum wires for diverse transmission needs. These materials can be shaped into wires of different diameters and lengths, catering to a wide range of applications, from high-voltage power lines to low-voltage household wiring. For instance, thicker wires can be produced for long-distance transmission to minimize energy loss, while thinner wires are ideal for compact, high-density installations. The ability to customize wire dimensions based on specific requirements ensures optimal efficiency and performance across various electrical systems.
Furthermore, the ductility of copper and aluminum supports the creation of stranded wires, which consist of multiple smaller wires twisted together. Stranded wires offer superior flexibility compared to solid wires, making them ideal for applications where bending or movement is frequent, such as in portable equipment or flexible connections. This design also reduces the risk of metal fatigue and breakage, extending the lifespan of the transmission lines. The ease of shaping these metals into stranded configurations highlights their ductility as a critical factor in meeting the dynamic demands of modern electrical infrastructure.
In summary, the ductility of copper and aluminum is a fundamental reason for their widespread use in electricity transmission. It enables the efficient production of wires that are not only strong and durable but also flexible and adaptable to diverse needs. This property ensures that transmission systems can be tailored to specific requirements, from large-scale power grids to intricate local networks, while maintaining high performance and reliability. By leveraging the ductility of these materials, the electrical industry can address the evolving challenges of energy distribution effectively.
Electric Cars Dominance: When Will the Gas-Powered Era End?
You may want to see also
Explore related products
Cost-effectiveness balances performance and affordability, making them ideal for large-scale use
Copper and aluminum are the primary materials used for electricity transmission due to their unique combination of performance and cost-effectiveness, which makes them ideal for large-scale applications. Cost-effectiveness is a critical factor in the selection of materials for power transmission, as the infrastructure required to deliver electricity over long distances is extensive and expensive. Both copper and aluminum offer a balance between high electrical conductivity and affordability, ensuring that the transmission system remains efficient without being prohibitively costly. This balance is essential for utilities and governments aiming to provide reliable electricity to large populations while managing budgets effectively.
One of the key reasons copper and aluminum are cost-effective is their abundance and availability. Copper, while more expensive than aluminum, is widely available and recyclable, which helps mitigate its higher initial cost. Aluminum, on the other hand, is significantly cheaper and more abundant, making it a more economical choice for long-distance transmission lines where large quantities of material are needed. The lower cost of aluminum allows for the construction of extensive transmission networks without compromising on the overall budget, a crucial aspect for large-scale infrastructure projects.
Another factor contributing to their cost-effectiveness is their durability and low maintenance requirements. Both materials are resistant to corrosion and can withstand harsh environmental conditions, reducing the need for frequent repairs or replacements. Copper, in particular, has excellent corrosion resistance, while aluminum can be treated with coatings to enhance its durability. This longevity ensures that the initial investment in transmission lines provides long-term value, further enhancing their cost-effectiveness for large-scale use.
The lightweight nature of aluminum also plays a significant role in its cost-effectiveness for electricity transmission. Aluminum is approximately one-third the weight of copper, which reduces the structural requirements for transmission towers and supports. This not only lowers construction costs but also simplifies the installation process, making it faster and more efficient. The reduced weight of aluminum conductors also minimizes transportation costs, an important consideration when deploying transmission lines across vast distances.
Finally, the electrical performance of copper and aluminum ensures that their cost-effectiveness does not come at the expense of efficiency. Copper has the highest electrical conductivity among non-precious metals, making it ideal for applications where minimal energy loss is critical. Aluminum, while less conductive than copper, still offers sufficient performance for most transmission needs, especially when larger-diameter conductors are used to compensate for its lower conductivity. This ability to balance performance with affordability makes both materials indispensable for large-scale electricity transmission systems.
In summary, the cost-effectiveness of copper and aluminum stems from their abundance, durability, lightweight properties, and electrical performance, all of which make them ideal for large-scale electricity transmission. Their ability to provide reliable and efficient power delivery while remaining affordable ensures that they remain the materials of choice for utilities worldwide, supporting the global demand for electricity in a sustainable and economically viable manner.
Lime's Electric Scooter Model: Unveiling the Brand's Preferred Ride Choice
You may want to see also
Frequently asked questions
Copper and aluminium are used for electricity transmission due to their high electrical conductivity, which minimizes energy loss during transmission. Copper has the highest conductivity, while aluminium is lighter and more cost-effective, making it a popular choice for long-distance power lines.
Copper is preferred for electricity transmission because of its superior electrical conductivity, ductility, and resistance to corrosion. Its high conductivity ensures minimal energy loss, making it ideal for high-efficiency applications, even though it is more expensive than alternatives like aluminium.
Aluminium is widely used for long-distance electricity transmission because it is lightweight, cost-effective, and has good conductivity. Its lower weight reduces the structural load on transmission towers, and its affordability makes it a practical choice for extensive power grids, despite having slightly lower conductivity than copper.
