Molly Ayala

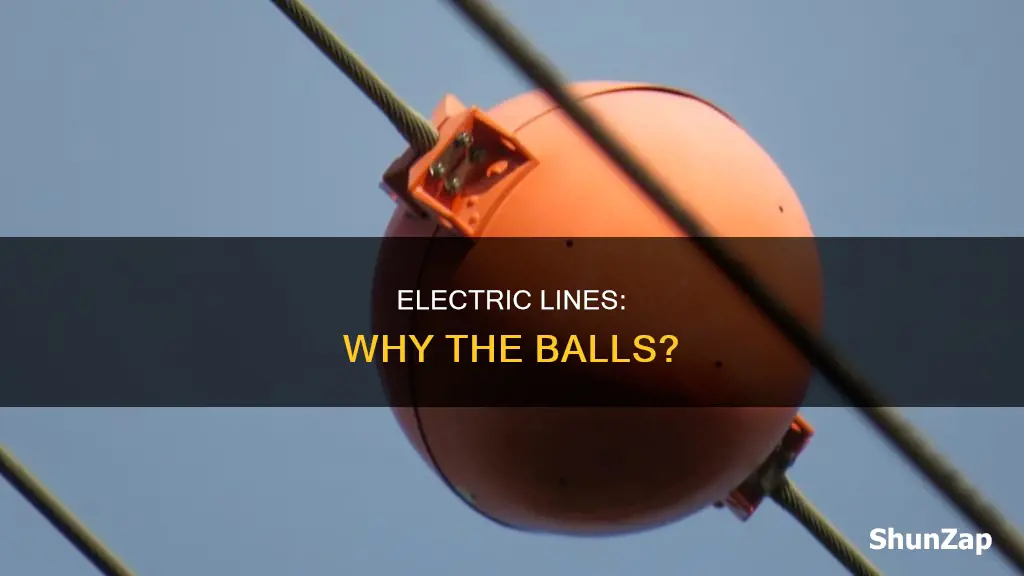

Have you ever wondered about the purpose of those brightly coloured balls on electrical lines? Known as marker balls, aerial marker balls, or visibility markers, these fluorescent spheres serve a critical function in aircraft safety. They are placed on electrical lines to increase visibility for low-flying pilots, especially in areas with dense forests, mountain ranges, or fields, where power lines may be difficult to spot.
| Characteristics | Values |
|---|---|
| Name | Aerial marker balls, visibility marker balls, marker balls |
| Purpose | To make power lines more visible to low-flying aircraft like planes and helicopters |
| Installation | Installed by specially trained people who fly up in a helicopter with special suits to maintain power lines |
| Placement | Near mountain passes, deep valleys, canyons, lakes, rivers, major freeways, open fields, and around airports |
| Diameter | 20-36 inches |
| Weight | 11-17 pounds |
| Material | Plastic |
| Colors | Yellow, orange, white, red |
Explore related products
What You'll Learn
- The balls on electric lines are called aerial marker balls
- They are used to increase visibility for pilots
- They are placed near airports, mountain passes, valleys, and major freeways
- They are made of plastic and weigh between 11 and 17 pounds
- They have fluorescent colours like orange, white, yellow, and red
The balls on electric lines are called aerial marker balls
The diameter of the balls must be at least 36 inches on wires that cross canyons, lakes, and rivers. However, the Federal Aviation Administration (FAA) allows 20-inch spheres on power lines fewer than 50 feet above ground level and within 1,500 feet of an airport runway end. The FAA recommends using "aviation orange", white, or yellow balls, with an alternating color scheme for maximum visibility. The colors are chosen to contrast well with the background landscape, making them more visible to pilots.
The use of marker balls on power lines dates back to the 1950s when the FAA recognized a growing safety concern due to the number of collisions between airplanes and power lines. In the early 1970s, then-governor of Arkansas, Winthrop Rockefeller, noticed electrical wires close to his aircraft as it was landing, which further highlighted the need for better visibility of power lines.
The marker balls are made of plastic, which is a good electrical insulator, meaning it conducts neither heat nor electricity. They weigh between 11 and 17 pounds each and are placed on the power lines by specially trained people who fly up in helicopters with special suits.
Understanding MOSFET Signal Amplification: A Technical Guide
You may want to see also
Explore related products
They are used to increase visibility for pilots
The balls on electric lines, also known as aerial marker balls, visibility markers, or marker balls, serve a critical purpose in enhancing visibility for pilots of low-flying aircraft. They are strategically placed near mountain passes, deep valleys, major freeway crossings, and airports—locations where aircraft tend to fly at lower altitudes.
These marker balls are typically made of plastic, which is a durable, non-conductive material that can withstand the elements without fading. They weigh between 11 and 17 pounds each and have a diameter of at least 20 to 36 inches, depending on their specific placement. The Federal Aviation Administration (FAA) mandates their use on power lines that cross canyons, lakes, and rivers, as well as those surrounding airports.
The colours of these marker balls are carefully selected to maximise visibility for pilots. The most commonly used colours are aviation orange, white, and yellow, as recommended by the FAA. These bright colours stand out against the background landscape, making the power lines more noticeable to pilots. Some marker balls are even coated with reflective material to enhance their visibility at night.
The placement of these marker balls is carefully regulated to ensure optimal visibility and safety. On wires that cross canyons, lakes, and rivers, the FAA requires a minimum diameter of 36 inches. For power lines less than 50 feet above ground level and within 1,500 feet of an airport runway end, the FAA allows 20-inch spheres. These balls should be spaced at roughly 200-foot intervals along regular wires and at 30- to 50-foot intervals on wires near runway ends.
The use of these marker balls on power lines dates back to the 1950s when the FAA recognised the increasing number of collisions between airplanes and power lines, especially at lower altitudes. The invention of these visibility markers has not only saved countless human lives but also benefited wildlife, such as Canadian geese, by reducing the risk of collision with power lines during landing in poor weather conditions.
Cast Iron and Electricity: Conducting or Not?
You may want to see also
Explore related products
They are placed near airports, mountain passes, valleys, and major freeways
The spherical visibility markers, or marker balls, placed on power lines are especially important near airports, mountain passes, valleys, and major freeways. These markers are placed to make the power lines more visible to aircraft pilots. Power lines tend to become almost invisible against the terrain when flying, especially in areas with mountain ranges, deep valleys, and dense forests.
Helicopters and small planes often fly low in mountain passes or over freeways while approaching airports. Hence, the marker balls are placed near these areas to ensure safe air travel. The Federal Aviation Administration (FAA) mandates that these markers should be placed on wires that cross canyons, lakes, and rivers, as well as those that surround airports. The FAA also specifies that the markers should be in "aviation orange", white, or yellow, with an alternating color scheme for maximum visibility. The diameter of the markers is also important, with larger markers required for extensive catenary wires and smaller ones for less extensive wires.
The colors of the marker balls are carefully chosen to contrast well with the background landscape, making them more visible to pilots. The bright colors like yellow, orange, red, and white commonly used for the markers stand out against the dark green or grey landscapes of forests, mountain ranges, or fields. Some marker balls are even coated with a reflective material to enhance their visibility at night.
The use of marker balls on power lines dates back to the 1950s when the FAA recognized a growing safety concern due to collisions between airplanes and power lines, particularly at lower altitudes near airports. The invention of these markers has saved countless human lives, as well as the lives of birds like Canadian geese, who would previously collide with power lines while landing in bad weather.
Opening Your Electric Garage Door Manually
You may want to see also
Explore related products
They are made of plastic and weigh between 11 and 17 pounds
The balls strung along power lines are known as marker balls, visibility markers, or aerial marker balls. They are placed on power lines to improve the power lines' visibility and prevent aircraft collisions. They are especially important near mountain passes, deep valleys, major freeway crossings, and airports, where aircraft tend to fly at lower altitudes. These markers are also useful in areas with dense forests, mountain ranges, or fields, as they make the power lines stand out against the landscape.
Marker balls are made of hard plastic, which is a good electrical insulator, meaning it conducts neither heat nor electricity. Plastic is also durable and can withstand weather conditions and exposure to UV radiation. The use of plastic is an improvement over the glass marker balls that were used in the 1950s, as those were fragile and easily broken. The plastic balls typically weigh between 11 and 17 pounds each and have a diameter of 20 to 36 inches.
The colours of the marker balls are carefully chosen to be as conspicuous as possible against the background landscape. The Federal Aviation Administration (FAA) requires that the balls be in ""aviation orange, white, or yellow," as these colours have been found to have the best visibility. However, other colours may be used depending on the location to ensure the balls stand out. Some marker balls are even coated with a reflective material to enhance their visibility at night.
The placement of the marker balls along power lines is carefully spaced to ensure optimal visibility. On regular wires, they are typically spaced at roughly 200-foot intervals. However, on wires near runway ends, the spacing is reduced to 30 to 50 feet. If there are fewer than four marker balls on a wire, all of them should be in aviation orange. Otherwise, they should alternate between orange, white, and yellow to provide the highest level of visibility to approaching aircraft.
Stringing Your Stihl Electric Trimmer: A Step-by-Step Guide
You may want to see also
Explore related products
![3/4 inch x 6 inch Ball Socket Return line with Nozzle and MPT Connector (Flexible) - [AM Brand]](https://m.media-amazon.com/images/I/61yXFp19ywL._AC_UL320_.jpg)
They have fluorescent colours like orange, white, yellow, and red
The fluorescent colours of the marker balls like orange, white, yellow, and red are chosen to provide the highest level of visibility to approaching aircraft. These colours contrast well with the background landscape, making the power lines more visible to pilots flying at low altitudes. The Federal Aviation Administration regulates these marker balls and specifies that if there are fewer than four marker balls on a given wire, they should all be "aviation orange". Otherwise, they should alternate between orange, white, and yellow.
The use of fluorescent colours also makes the marker balls more visible at night. Some marker balls are coated with a reflective material to further enhance their visibility in the dark. This feature is especially important for aircraft safety during night-time flights.
The placement of these fluorescent marker balls is carefully considered. They are often placed near mountain passes, deep valleys, major freeway crossings, and airports—locations where aircraft tend to fly at lower altitudes. By making the power lines more visible in these areas, the marker balls help ensure safe air travel.
Additionally, the diameter and spacing of the marker balls are specified by the Federal Aviation Administration. On wires that cross canyons, lakes, and rivers, the balls must have a diameter of at least 36 inches. Smaller 20-inch spheres are permitted on power lines less than 50 feet above ground level and within 1500 feet of an airport runway end. These smaller marker balls should be spaced at 30- to 50-foot intervals near runway ends, while regular wires require spacing of roughly 200 feet between each ball.
Understanding Kilowatt Pricing: How Electricity Costs are Allocated
You may want to see also
Frequently asked questions
The balls on electric lines, also known as aerial marker balls, visibility markers, or marker balls, are used to indicate the presence of power lines to pilots of low-flying aircraft.
The balls on electric lines are made of plastic, which is a good electrical insulator, meaning it does not conduct heat or electricity.
The balls are typically coloured aviation orange, white, or yellow, but can also be red. The colours are chosen to be as conspicuous as possible against the background landscape.
The balls are placed near mountain passes, deep valleys, major freeways, and airports—locations where aircraft tend to fly at lower altitudes.
The diameter of the balls must be at least 36 inches on wires that cross canyons, lakes, and rivers. The FAA allows smaller 20-inch spheres on power lines fewer than 50 feet above ground level and within 1500 feet of an airport runway.
