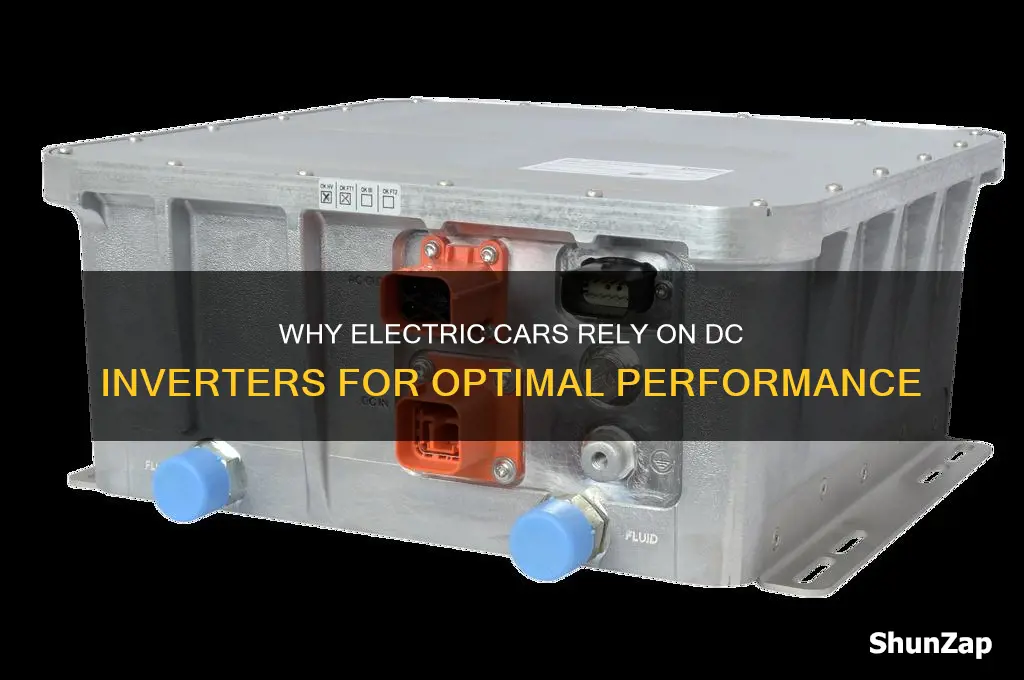

Electric cars rely on DC (Direct Current) inverters because their battery systems store energy in DC form, while the electric motors that drive the vehicle operate on AC (Alternating Current). The DC inverter acts as a critical bridge between these two systems, converting the stored DC power from the battery into the AC power required by the motor. This conversion ensures efficient energy transfer and allows precise control over motor speed and torque, optimizing performance and range. Additionally, inverters enable regenerative braking, capturing kinetic energy during deceleration and converting it back into DC to recharge the battery, further enhancing the vehicle’s efficiency. Without DC inverters, electric cars would lack the ability to harness their battery power effectively, making them impractical for modern transportation.
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
What You'll Learn
- AC Motor Compatibility: Electric cars use AC motors, requiring DC-to-AC conversion from batteries
- Battery DC Output: Batteries provide DC power, inverters transform it for motor use
- Variable Speed Control: Inverters adjust motor speed by modifying AC frequency and voltage
- Regenerative Braking: Inverters convert kinetic energy back to DC for battery recharging
- Efficiency Optimization: Inverters ensure optimal power delivery, enhancing overall vehicle efficiency
AC Motor Compatibility: Electric cars use AC motors, requiring DC-to-AC conversion from batteries
Electric cars predominantly use AC motors due to their efficiency, reliability, and ability to deliver high torque at low speeds—ideal for automotive applications. However, the energy stored in electric vehicle (EV) batteries is in direct current (DC) form, creating a fundamental mismatch. This is where DC-to-AC inverters become indispensable. Their primary role is to convert the DC power from the battery into the alternating current (AC) required by the motor, ensuring seamless operation of the vehicle’s propulsion system. Without this conversion, the AC motor would remain idle, rendering the battery’s energy unusable for driving.
The process of DC-to-AC conversion involves more than just flipping a switch. Inverters use semiconductor devices like insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs) to rapidly switch the DC current on and off, creating a pulsating waveform. This waveform is then filtered and modulated to produce a smooth, three-phase AC output that matches the motor’s requirements. The inverter also adjusts the frequency and amplitude of the AC current to control motor speed and torque, enabling precise acceleration and regenerative braking. This dynamic control is critical for optimizing performance and energy efficiency in electric vehicles.
One practical example of inverter functionality is during regenerative braking, where the AC motor acts as a generator, converting kinetic energy back into electrical energy. The inverter reverses its role here, converting the AC power generated by the motor back into DC to recharge the battery. This dual functionality highlights the inverter’s versatility and its role as a bidirectional power converter. For instance, in a Tesla Model 3, the inverter not only powers the AC motor during acceleration but also efficiently captures energy during deceleration, contributing to the vehicle’s overall range.
Despite their importance, inverters are not without challenges. They generate heat during operation, which can degrade performance and lifespan if not managed properly. Modern EVs address this through advanced cooling systems, such as liquid cooling, to maintain optimal operating temperatures. Additionally, the complexity of inverter design and control algorithms requires sophisticated software and hardware integration, adding to the vehicle’s cost. However, ongoing advancements in power electronics and materials science are steadily improving inverter efficiency and reducing costs, making them more accessible for widespread adoption.
In summary, the compatibility between AC motors and DC batteries in electric cars hinges on the critical function of DC-to-AC inverters. These devices not only bridge the power gap but also enable advanced features like regenerative braking and precise motor control. While challenges like heat management and cost persist, continuous innovation ensures that inverters remain a cornerstone of electric vehicle technology, driving the transition to sustainable transportation.
Hot Wiring a Car: Does Electrical Wire Really Matter?
You may want to see also
Explore related products
Battery DC Output: Batteries provide DC power, inverters transform it for motor use
Electric vehicle batteries, from lithium-ion to solid-state designs, inherently produce direct current (DC) power. This unidirectional flow of electrons is ideal for charging devices or powering static systems but falls short for the dynamic demands of electric motors. Motors in electric vehicles require alternating current (AC) to generate the rotating magnetic fields necessary for propulsion. This fundamental mismatch between battery output and motor input creates a critical need for DC-to-AC conversion, a task exclusively fulfilled by inverters.
Consider the inverter as a sophisticated electrical translator, bridging the gap between the battery's DC language and the motor's AC requirements. It accomplishes this through rapid switching of power semiconductors, such as insulated-gate bipolar transistors (IGBTs), which invert the DC input into a three-phase AC output. This process, known as pulse-width modulation (PWM), allows precise control over motor speed and torque by adjusting the frequency and amplitude of the AC waveform. For instance, a Tesla Model S inverter operates at frequencies up to 15 kHz, enabling seamless acceleration from 0 to 60 mph in under 2.5 seconds.
The efficiency of this conversion is paramount, as energy losses in the inverter directly impact the vehicle's range and performance. Modern inverters achieve efficiencies exceeding 95%, thanks to advancements in semiconductor materials and cooling systems. Liquid cooling, for example, is commonly employed to dissipate the heat generated during high-power operations, ensuring the inverter remains within optimal temperature thresholds (typically 60–80°C). This thermal management is crucial, as overheating can degrade components and reduce the inverter's lifespan.
Integrating the inverter into the vehicle's powertrain also involves considerations of size, weight, and cost. Compact designs, such as those using silicon carbide (SiC) transistors, offer higher efficiency and reduced thermal losses, allowing for smaller, lighter inverters. However, SiC technology remains more expensive than traditional silicon-based solutions, presenting a trade-off between performance and affordability. Manufacturers must balance these factors to meet consumer expectations for both range and price, as seen in the Nissan Leaf's inverter, which prioritizes cost-effectiveness over cutting-edge materials.
In summary, the inverter is not merely a component but a linchpin in the electric vehicle ecosystem, transforming the DC output of batteries into the AC power motors demand. Its design, efficiency, and integration are critical to achieving the performance, range, and reliability expected of modern electric vehicles. As technology evolves, so too will the inverter, driving the next generation of sustainable transportation.
Electric Vehicle Manufacturing: Annual Production Numbers Revealed
You may want to see also
Explore related products
![400W Power Inverter, FSATBTNE DC 12V to 110V AC Car Plug Adapter Outlet Converter with [65W PD USB-C] & [18W QC USB-A] Fast Charging Ports and 2 AC Outlets Car Power Inverters for Vehicles](https://m.media-amazon.com/images/I/71obrX4Rn8L._AC_UL320_.jpg)
Variable Speed Control: Inverters adjust motor speed by modifying AC frequency and voltage
Electric motors in vehicles require precise control to deliver optimal performance across varying driving conditions. Inverters play a pivotal role in this by adjusting the motor's speed through modifications to the AC frequency and voltage. This process is fundamental to the efficiency and responsiveness of electric vehicles (EVs), ensuring that the motor operates at the most suitable speed for acceleration, cruising, or regenerative braking.
Consider the scenario of accelerating from a standstill. The inverter initially supplies a low-frequency, low-voltage AC current to the motor, gradually increasing both as the vehicle gains speed. This smooth transition prevents sudden jolts and maximizes energy efficiency. Conversely, during deceleration, the inverter reduces the frequency and voltage, allowing the motor to act as a generator and convert kinetic energy back into electrical energy—a process known as regenerative braking.
The relationship between AC frequency and motor speed is linear: doubling the frequency doubles the speed, assuming the voltage remains sufficient to maintain magnetic flux. For instance, a 50 Hz AC supply typically drives a motor at 3,000 RPM (revolutions per minute), while a 100 Hz supply would theoretically achieve 6,000 RPM. However, voltage must also be adjusted to prevent saturation of the motor's magnetic core, which could lead to overheating or reduced efficiency.
Practical implementation requires sophisticated control algorithms. Modern inverters use pulse-width modulation (PWM) to simulate sine waves, ensuring smooth torque delivery and minimizing energy loss. For example, Tesla's Model S employs a 400V inverter capable of adjusting frequency from 0 to 15,000 Hz, enabling seamless acceleration from 0 to 60 mph in as little as 2.3 seconds. This level of control is unattainable with DC motors, which rely on less efficient methods like armature resistance variation.
In summary, variable speed control via inverters is essential for electric cars to achieve the performance, efficiency, and responsiveness expected of modern vehicles. By dynamically adjusting AC frequency and voltage, inverters ensure that the motor operates optimally under all driving conditions, from gentle cruising to high-speed acceleration. This capability not only enhances the driving experience but also extends the vehicle's range by maximizing energy recovery during regenerative braking.
Electric Cars: The Future of Sustainable Transportation or Just a Trend?
You may want to see also
Explore related products
Regenerative Braking: Inverters convert kinetic energy back to DC for battery recharging
Electric vehicles (EVs) harness regenerative braking as a cornerstone of their efficiency, a process where kinetic energy is recaptured during deceleration. When the driver lifts their foot off the accelerator or applies the brake, the electric motor reverses its function, acting as a generator. This transformation turns the vehicle’s motion into electrical energy, but there’s a catch: the motor generates alternating current (AC), while EV batteries require direct current (DC) for recharging. Enter the inverter—a critical component that seamlessly converts AC to DC, ensuring the recovered energy can be stored and reused. Without this device, regenerative braking would be far less effective, if not impossible, leaving EVs to rely solely on traditional friction braking and wasting valuable energy.
Consider the mechanics of this process: as the vehicle slows, the inverter rapidly switches its role from powering the motor to managing the energy flow back to the battery. This dual functionality is a testament to the inverter’s sophistication, as it must handle high-voltage currents while maintaining precision in energy conversion. For instance, in a Tesla Model 3, the inverter processes up to 400 volts during regenerative braking, optimizing energy recovery to extend the vehicle’s range. This real-world application highlights how inverters are not just passive components but active enablers of efficiency, turning every stoplight or downhill slope into an opportunity to recharge.
From a practical standpoint, drivers can maximize regenerative braking by adopting a smoother driving style. Anticipating stops and coasting early allows the system to recapture more energy, reducing wear on mechanical brakes and improving overall efficiency. Some EVs, like the Nissan Leaf, offer adjustable regenerative braking settings, letting drivers choose between stronger or milder energy recapture based on their preferences. Pairing this feature with the inverter’s efficient conversion ensures that even small adjustments in driving behavior can yield noticeable gains in battery life.
Critics might argue that regenerative braking isn’t a perfect system—it doesn’t replace traditional brakes entirely, and its effectiveness diminishes at low speeds. However, when paired with a high-performance inverter, it becomes a game-changer for EV efficiency. For example, studies show that regenerative braking can recover up to 70% of the energy typically lost during braking in conventional vehicles. This not only reduces energy consumption but also lowers the frequency of battery charging, a practical benefit for daily drivers. Inverters, therefore, are the unsung heroes of this process, bridging the gap between energy generation and storage in a way that’s both elegant and essential.
In conclusion, regenerative braking exemplifies the synergy between EV components, with the inverter playing a pivotal role in its success. By converting AC to DC, it ensures that the energy recaptured during braking is efficiently stored and reused, enhancing the vehicle’s range and sustainability. For EV owners, understanding this process underscores the importance of maintaining the inverter’s health, as its performance directly impacts the effectiveness of regenerative braking. As EVs continue to evolve, advancements in inverter technology will likely further refine this process, making it even more integral to the future of electric mobility.
Electric Cars: Effective Fossil Fuel Reduction or Green Illusion?
You may want to see also
Explore related products
Efficiency Optimization: Inverters ensure optimal power delivery, enhancing overall vehicle efficiency
Electric vehicles (EVs) rely on direct current (DC) batteries to store energy, but their electric motors operate on alternating current (AC). This fundamental mismatch necessitates the use of DC inverters, which act as the bridge between these two systems. However, their role extends beyond mere conversion; inverters are critical for efficiency optimization, ensuring that power delivery is finely tuned to the motor's demands. By dynamically adjusting voltage and frequency, inverters minimize energy losses, maximize torque output, and extend the vehicle's range—a trifecta of benefits that directly impact the driver's experience and the environment.
Consider the analogy of a runner pacing themselves in a marathon. Just as a runner adjusts their speed to conserve energy while maintaining progress, an inverter modulates the electrical output to match the motor's needs at any given moment. For instance, during acceleration, the inverter increases the frequency and voltage to deliver higher power, while cruising at a steady speed requires lower, more efficient settings. This adaptive control prevents energy wastage, ensuring that every kilowatt-hour from the battery is used effectively. Advanced inverters, such as those using silicon carbide (SiC) technology, further enhance efficiency by reducing switching losses, enabling EVs to travel up to 10% farther on a single charge compared to traditional silicon-based systems.
The efficiency gains from inverters are not just theoretical; they are measurable and impactful. For example, a study by the U.S. Department of Energy found that optimizing inverter performance can improve overall vehicle efficiency by 5–8%. This translates to real-world benefits, such as reducing charging frequency and lowering operational costs for drivers. Moreover, efficient inverters contribute to a smaller carbon footprint, aligning with the broader goal of sustainable transportation. For EV owners, this means not only saving money but also contributing to a greener planet.
To maximize the efficiency benefits of inverters, manufacturers and drivers can take specific steps. First, regular software updates for the inverter’s control algorithms can ensure it adapts to the latest efficiency optimizations. Second, maintaining optimal battery health—keeping the charge between 20% and 80%—reduces stress on the inverter and improves its performance. Lastly, driving habits matter; smooth acceleration and regenerative braking can further enhance efficiency by minimizing sudden power demands on the inverter. By understanding and leveraging these aspects, EV owners can unlock the full potential of their vehicle’s inverter, making every journey more efficient and sustainable.
Electric Car Demand Surge: Myth or Reality?
You may want to see also
Frequently asked questions
Electric cars need DC inverters because the battery provides direct current (DC) power, but the electric motor requires alternating current (AC) to operate efficiently. The inverter converts DC to AC, enabling the motor to function.
No, electric cars cannot run without a DC inverter unless they use a DC motor, which is less common. Most electric vehicles use AC motors for better performance, making the inverter essential for power conversion.
If the DC inverter fails, the electric car will lose power to the motor, rendering it inoperable. The inverter is critical for converting and regulating the electrical energy, so its failure halts the vehicle's propulsion system.
