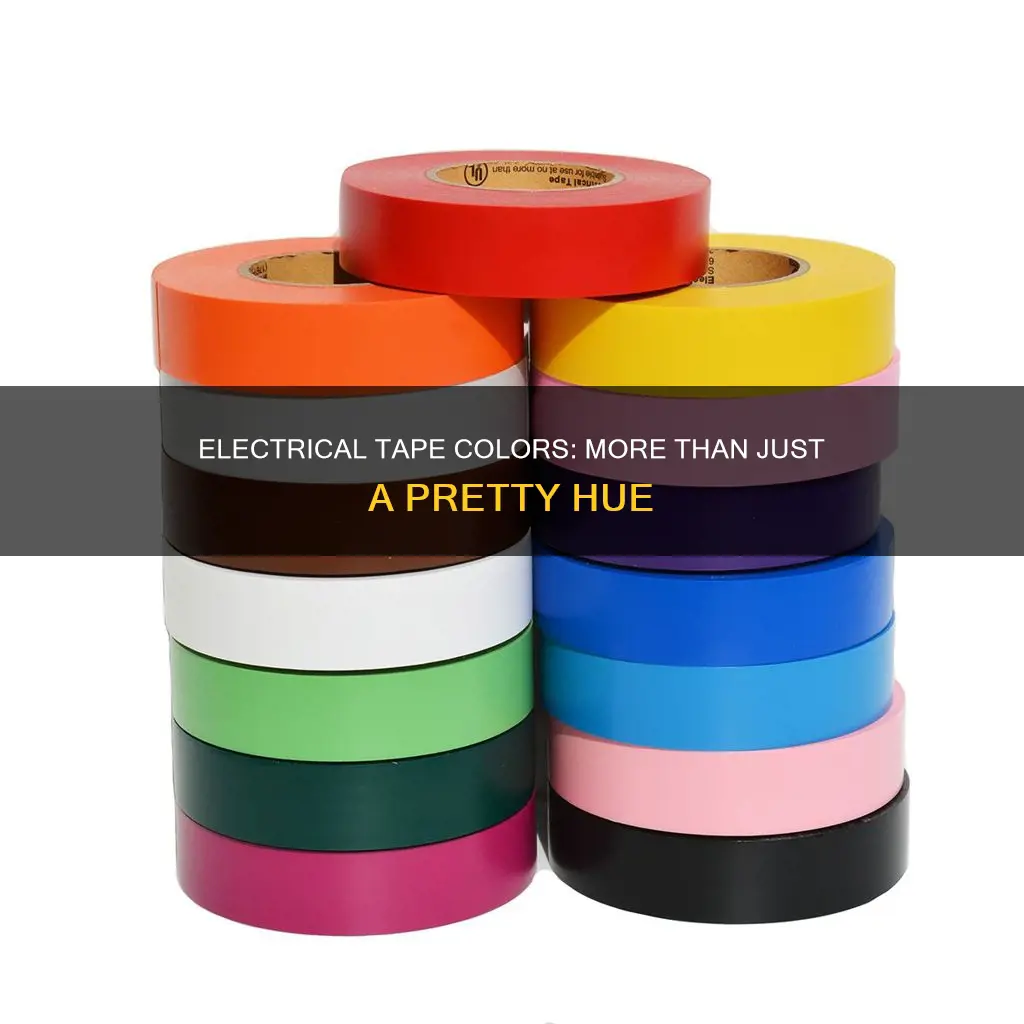

Electrical tape comes in a variety of colours, each serving a specific purpose. The primary function of electrical tape is to insulate and protect electrical connections, wires, and cables, as well as to prevent electrical shocks and short circuits. Beyond this, the different colours of electrical tape are used for colour-coding and marking. This practice, known as phasing tape, helps identify and differentiate between various phases, voltage levels, and usages of electrical wires, ensuring proper installation, maintenance, and safety.
| Characteristics | Values |
|---|---|
| Purpose | Insulate and protect electrical connections, wires, and cables |
| Other functions | Prevent electrical shocks or short circuits, create a barrier that shields them from moisture, dust, and other contaminants |
| Types | Phasing tape, electrical tape |
| Phasing tape colours | Red, yellow, blue |
| Phasing tape usage | Identify and mark different phases or conductors in electrical systems, provide a visual indication and aid in the identification of specific phases |
| Electrical tape colours | Black, white, grey, green, brown, orange, purple, violet, yellow, red, blue |
| Electrical tape usage | Insulating wires, bundling cables, marking |
Explore related products
What You'll Learn
Phasing and voltage indication
Electrical tape comes in a variety of colours, each of which represents a certain voltage level and is used for phasing tasks. Phasing tape is used to identify and mark different phases or conductors in electrical systems. It is specifically used when multiple voltage-carrying conductors or phases need to be distinguished from one another.
Technicians often come across a multitude of wires running through the same conduit, and without being labelled in some way, it can be difficult or impossible to tell them apart. Coloured phasing tape lets technicians know which wire is which and warns them of the voltage levels, so they can work safely and efficiently without wasting time tracing wires to their source.
The specific meaning of each colour varies by region. For example, in the UK, white electrical tape is not widely used as a phasing indicator, but in the US, it generally signifies "low voltage, neutral". In the UK, red tape commonly signifies "low voltage, phase A", while in the US, it usually means "low voltage, phase B".
In 3 Phase systems, black, red and blue wires are used to indicate different phases. In 1 Phase systems, only black and red are used. These wires typically have 240 V between each other and 120 V to the neutral or ground. Brown, orange and yellow serve the same purpose as black, red and blue but indicate a higher voltage system.
Induction Cooktops: Electrical Interference or Safe Cooking?
You may want to see also
Explore related products
Differentiating wires
Electrical tape is a versatile tool used by electricians and technicians to differentiate wires and ensure proper installation, maintenance, and safety of electrical circuits. The tape comes in a variety of colours, each serving a specific purpose beyond mere aesthetics. While black electrical tape is commonly used to insulate electrical wires, other colours, known as phasing tapes, are used to indicate voltage levels and phases.
Phasing tapes are typically used on wires with black insulation to mark their purpose. In the UK, red, yellow, and blue electrical tapes are commonly used to identify different phases of electrical power. For example, red electrical tape typically signifies "low voltage, phase A" in the UK, while in the US, it indicates "low voltage, phase B". Yellow tape is used for "low voltage, phase B" in the UK, whereas in the US, it denotes "high voltage, phase C". Blue tape generally indicates "low voltage, phase C" in both countries.
Green electrical tape usually represents the ground wire, which is physically connected to the earth, providing a safe path for ground-fault currents. White wires are often used to indicate the neutral or grounded conductor, serving as the centre point between different phases. In high-voltage systems, grey wires may indicate the neutral wire. Black, red, and blue tapes can also be used as phase wires, depending on the system configuration.
It is important to note that colour coding systems may vary between countries, and even within a country, different standards may exist. For example, brown tape is not commonly used as a phase indicator in the UK, but in the US, it denotes "high voltage, phase A". Therefore, it is crucial to refer to wiring diagrams, local standards, and safety guidelines before working with electrical tape and colour coding wires.
By understanding the significance of each colour, electricians can effectively use electrical tape to differentiate wires, ensuring proper installation, maintenance, and safety in electrical systems.
Inspecting Electrical Wiring: Signs of Age and Deterioration
You may want to see also
Explore related products
Safety
Electrical tape is a versatile and necessary component of any electrician's toolkit. Its primary function is to insulate electrical wires and cables, thereby preventing electrical shocks and short circuits. It also serves to protect wires and cables from moisture, dust, and other contaminants, which helps maintain the integrity of the electrical system.
Beyond its functional purpose, electrical tape is also used for colour-coding and marking. Different colours of electrical tape represent various voltage levels and phases of electrical power. This colour-coding system helps electricians and technicians easily identify and differentiate between different phases and voltage levels, reducing the risk of errors and confusion during installation, maintenance, and troubleshooting.
For example, in the UK, red electrical tape typically indicates "low voltage, phase A", while in the US, it usually signifies "low voltage, phase B". Similarly, blue electrical tape often represents "low voltage, phase C" in both the UK and the US. Green electrical tape generally signifies "earth" in the UK and "ground" in the US, providing a safe path for ground-fault currents.
It is important to select the appropriate colour of electrical tape based on its intended use and comply with industry standards. Proper usage and application techniques, such as wrapping the tape tightly around wires or cables, are also crucial to ensure a secure and uniform insulation layer. Verifying the insulation integrity after applying the tape is essential to ensure all connections and exposed conductors are properly insulated.
Overall, the use of colour-coded electrical tape enhances safety in electrical work by providing a visual indication of voltage levels and phases, facilitating proper installation, maintenance, and troubleshooting of electrical circuits.
Electricity's Circuitous Journey: How Does It Flow?
You may want to see also
Explore related products
Aesthetics
Electrical tape comes in a variety of colours, each serving a specific purpose beyond aesthetics. However, the variety of colours available for electrical tape can also be used to enhance the aesthetics of a project.
The colours can be used to colour-code wires and other components, making them visually appealing and organised. For example, in the UK, white insulation tape is often used for external applications involving white cordage, providing better aesthetics for standard domestic applications. Similarly, black electrical tape is commonly used to insulate electrical wires, creating a sleek and uniform look.
The variety of colours available for electrical tape allows for customisation and personal preference. One might prefer the subtle look of grey tape, which signifies 'low voltage, phase C' internationally, or opt for a bolder colour like red or blue, which are used to indicate different voltage levels and phases.
Additionally, the use of colour-coded electrical tape can improve the overall appearance of a project by making it easier to identify and troubleshoot electrical issues. For instance, electricians and technicians can quickly identify and resolve problems by using phasing tape, which is typically colour-coded to indicate specific phases in electrical circuits. This not only ensures functionality but can also contribute to a neat and organised aesthetic.
While the primary purpose of coloured electrical tape is functionality and safety, the variety of colours available can be leveraged to enhance the aesthetics of electrical projects, making them visually appealing, organised, and personalised.
Understanding Light and Electricity: What's the Difference?
You may want to see also
Explore related products
Insulation and protection
Electrical tape is an essential tool for electricians and contractors, primarily used to insulate and protect electrical wires, connections, and cables. It acts as a protective barrier, shielding them from moisture, dust, and other contaminants that could interfere with the electrical system's integrity and safety. This protective layer is crucial for preventing electrical shocks and short circuits, ensuring a safe working environment.
The insulation properties of electrical tape are enhanced by proper application techniques. When wrapping the tape around wires or cables, it is important to apply appropriate tension to create a secure and uniform layer. Ensuring that each layer overlaps the previous one by at least half its width is crucial for reliable insulation. Overlapping layers create a robust barrier, preventing gaps or exposed wires that could compromise safety.
Black electrical tape is commonly used to insulate electrical wires, providing a basic layer of protection. However, different colours of electrical tape serve specific purposes beyond insulation and protection. Phasing tapes, for example, are used to indicate voltage levels and wire phases. These tapes are applied to wires with black insulation to clearly mark their purpose and ensure proper installation, maintenance, and troubleshooting of electrical circuits.
The colours of phasing tapes vary in meaning across different regions, such as the UK, US, and international standards. In the UK, red electrical tape often signifies 'low voltage, phase A', while in the US, it indicates 'low voltage, phase B'. Blue tape in the UK and US indicates 'low voltage, phase C', but internationally, it represents 'neutral sheath, 230V'. Green tape typically signifies 'earth' or 'ground' in the UK and US, respectively, while yellow tape indicates different voltage levels and phases in the two countries.
Understanding the specific meanings of each colour of electrical tape is essential for proper usage. By choosing the right colour for the intended application, electricians can ensure compliance with industry standards and maintain a clear and safe work environment. Electrical tape's versatility in insulation and protection, combined with colour-coding functionality, makes it a valuable tool for any electrical project.
Chemical vs Electrical Synapses: Understanding Their Key Differences
You may want to see also
Frequently asked questions
Electrical tape comes in a variety of colours to help electricians differentiate between wires, voltage levels, and phases.
Electrical tape is used to insulate and protect electrical connections, wires, and cables. It helps prevent electrical shocks or short circuits by creating a barrier that shields wires from moisture, dust, and other contaminants.
The standard colours of electrical tape include black, white, grey, green, red, blue, yellow, brown, orange, purple, and violet.
Each colour of electrical tape represents a specific voltage level, phase, or purpose. For example, green electrical tape generally signifies the ground wire, while yellow electrical tape may indicate "low voltage, phase B".
