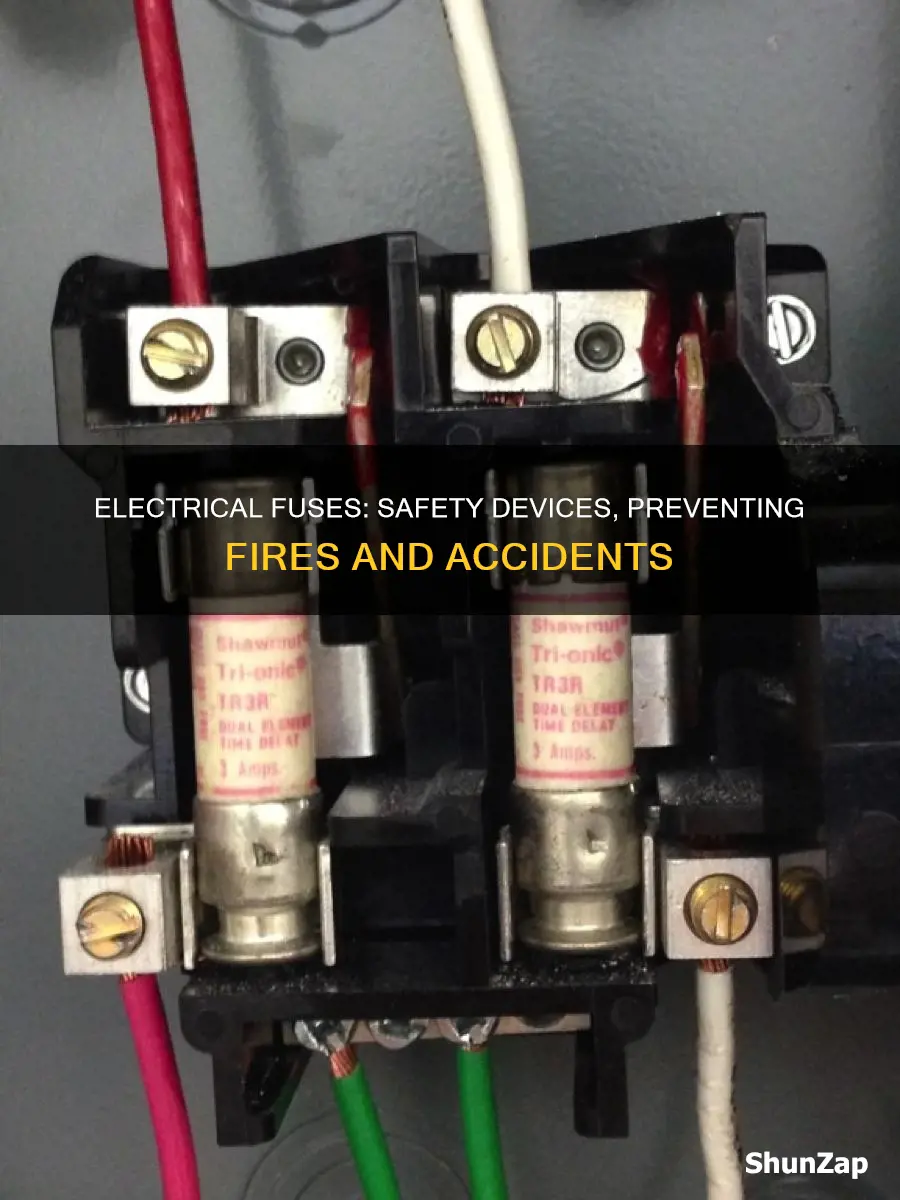

Fuses are an essential safety feature in electrical circuits, protecting them from damage caused by excess current or voltage fluctuations. They are designed to be the weakest point in a circuit, sacrificing themselves by melting and breaking the circuit in the event of a power surge or overheating, thereby preventing potential fires or explosions. Fuses are simple to use, low-cost, and act faster than circuit breakers. They are commonly used in sensitive electrical equipment, motors, and transformers, as well as in residential and industrial construction.
| Characteristics | Values |
|---|---|
| Purpose | Electrical safety device that provides overcurrent protection of an electrical circuit |
| Composition | Metal wire or strip that melts when too much current flows through it |
| Types | AC fuses, DC fuses, thermal fuses, bolted tag fuses, bottle fuses, slow-acting fuses, dual-element fuses, cylindrical fuses |
| Use Cases | Homes, vehicles, everyday appliances, industrial settings, aerospace/nuclear applications, computer motherboards, consumer equipment |
| Benefits | Simple to use, inexpensive, faster response time compared to circuit breakers, protects against fire hazards |
| Considerations | Calculating maximum current of circuit, selecting appropriate size fuse, avoiding oversized and undersized fuses |
| Limitations | Need to be replaced once operated, can be a fire risk if oversized, may blow even with low current if undersized |
Explore related products
What You'll Learn
- Fuses are safety devices that protect appliances and homes from fire hazards
- They are made from metal and melt when too much current passes through them
- Fuses are sacrificial devices and must be replaced once they've operated
- They are faster than circuit breakers but need to be replaced more often
- Fuses are used in a variety of applications, from aerospace to automobiles
Fuses are safety devices that protect appliances and homes from fire hazards
Fuses are electrical safety devices designed to protect appliances and homes from fire hazards. They are an essential component of electrical circuits, safeguarding them from damage caused by excessive current flow or overcurrent. Fuses are made of metal wires or strips that melt when too much current passes through them, interrupting the current and preventing potential fires.
Fuses are simple to use and act as hidden protectors, quietly ensuring the safety of electrical systems. They are often used in appliances and devices such as coffee makers, hair dryers, and computers to prevent overheating and potential fire hazards. For example, a fuse in a hair dryer can cut off the power supply to the heating elements if the airflow is blocked, preventing a potential fire.
Fuse selection is critical and depends on the load's characteristics. Various types of fuses are available, including fast-blow, slow-blow, and time-delay fuses, each designed to respond differently to abnormal current levels. The metal used in the fuse element is also crucial, as different metals have varying melting points, allowing for precise selection based on the desired current rating.
Compared to circuit breakers, fuses have a faster response time, reacting to abnormal current in 0.002 seconds. However, fuses need to be replaced once they have operated, while circuit breakers can be reset. Fuses are inexpensive and easy to replace, ensuring minimum downtime in the event of a blown fuse.
Overall, fuses play a vital role in protecting appliances and homes from fire hazards by interrupting the electrical current when it exceeds safe levels, making them an essential safety feature in electrical systems.
Low-Cost Electricity: Who Benefits in America?
You may want to see also
Explore related products
They are made from metal and melt when too much current passes through them
Fuses are electrical safety devices that protect electrical circuits from overcurrent or overheating. They are made of metal and are designed to melt when too much current passes through them, thereby stopping or interrupting the current. This is an essential safety feature as it prevents electrical appliances, wires, and circuits from overheating and potentially causing fires.
The metal wire or strip in a fuse, also known as a resistor, is made of a variety of metals, including tin, gold, silver, copper, zinc, aluminium, and alloys of gold and tin. The choice of metal depends on the specific application, voltage, and current demands of the electrical circuit. For example, large power fuses use fusible elements made of silver, copper, or tin to provide stable and predictable performance. Tinned copper wire, which is copper coated in a thin layer of tin to protect against corrosion, is a popular choice for resistors.
The size of the fuse is also important for its function. Fuses are designed to be smaller than the circuit conductors they protect. This ensures that the fuse will melt before the wiring or appliance is damaged. When choosing a fuse, it is important to select one that is 125% larger than the maximum current expected to flow through the circuit. This allows the fuse to blow and protect the circuit before the current gets too high.
Fuses are simple to use and trip more quickly than circuit breakers, making them ideal for sensitive electrical equipment. They are commonly used in vehicles, appliances, and electrical systems to protect against electrical faults and overloads. Fuses have been used as essential safety devices since the early days of electrical engineering, and today there are thousands of different fuse designs for specific applications.
Closing Your Electric Garage Door Manually: A Step-by-Step Guide
You may want to see also
Explore related products
Fuses are sacrificial devices and must be replaced once they've operated
Fuses are electrical safety devices that protect electrical circuits from damage caused by excessive current flow. They are often used in aerospace/nuclear applications, computer motherboards, and consumer equipment such as coffee makers, hair dryers, or transformers. They are also an integral part of electrical circuits in homes, vehicles, and everyday appliances.
A fuse is a sacrificial device, meaning it is designed to fail in a controlled manner to protect the rest of the circuit. It contains a metal wire or strip that melts when too much current flows through it, interrupting the current and preventing potential damage or hazards. Once a fuse has operated, it is an open circuit, and the device it is protecting will lose power.
The speed at which a fuse blows depends on the amount of current flowing through it and the material it is made of. Different types of fuses have different characteristics, such as fast-blow or slow-blow fuses, and the selection depends on the load's characteristics. For example, a semiconductor device may use a fast or ultrafast fuse as they heat up rapidly when there is excess current.
Fuses are typically one-time-use devices and must be replaced once they have operated. This is because, during a fault or overcurrent event, the fuse will melt to protect the circuit, and power will not be restored until it is replaced. Fuses are relatively inexpensive and easy to replace, making them a common choice for electrical circuit protection.
The Right Way to Change Electric Saw Blades
You may want to see also
Explore related products
They are faster than circuit breakers but need to be replaced more often
Fuses are electrical safety devices that protect electrical circuits and equipment from damage due to surges and overload conditions. They are an automatic means of removing power from a faulty system, often abbreviated as ADS (automatic disconnection of supply).
Fuses are faster than circuit breakers in responding to abnormal current. A fuse responds in 0.002 seconds, while a circuit breaker can take anywhere between 0.02 and 0.05 seconds. Fuses are also more cost-effective upfront.
However, fuses need to be replaced more frequently than circuit breakers. Fuses are sacrificial devices, meaning they need to be replaced or rewired after every overcurrent trip. Once a fuse has operated, it becomes an open circuit, and power will not be restored until it is replaced. Circuit breakers, on the other hand, can be reset by pulling a lever, and power is restored immediately.
The need to replace fuses more often can lead to higher overall costs in the long run. Additionally, fuses can degrade over time, causing nuisance tripping, and their replacement can be dangerous for unskilled individuals.
In summary, while fuses offer faster response times, they require more frequent replacement, which can impact the overall cost and safety of the electrical system.
Afghans' Access to Electricity: A Complex Issue
You may want to see also
Explore related products
Fuses are used in a variety of applications, from aerospace to automobiles
Fuses are simple electrical safety devices that protect electrical circuits from damage caused by excess current. They are designed to melt or blow when too much current flows through them, thereby stopping or interrupting the current. Fuses are sacrificial devices, and once they have been activated, they must be replaced or rewired, depending on their type.
Fuses are also used in consumer equipment such as coffee makers and hair dryers. A thermal fuse contains a fusible, temperature-sensitive composition that holds a spring contact mechanism normally closed. When the surrounding temperature gets too high, the composition melts, allowing the spring contact mechanism to break the circuit and prevent a fire.
In addition to aerospace, automobiles, and consumer electronics, fuses are also commonly used in homes and offices to protect electrical circuits and appliances from damage. Fuses can be found in every circuit in one form or another, and their primary job is to break the circuit if a current higher than desired is drawn, thus preventing damage due to short circuits and excess heat.
Activating the Duraflame Electric Fireplace: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Fuses are electrical safety devices that protect electrical circuits from damage caused by excessive current flow (also known as overcurrent conditions). They act as a weak link within the circuit, carrying a specific amount of current without overheating. In the case of a surge in power or a faulty connection, the metal strip in the fuse heats up rapidly and melts, stopping the current flow and protecting the circuit.
When a fuse blows, the circuit it is located in breaks and the current stops flowing through it. This results in a loss of power to the device it is fitted in. Once a fuse has blown, it is an open circuit and must be replaced or rewired, depending on its type.
Choosing the right fuse depends on the specific requirements of your electrical system. The first step is to calculate the maximum current that the circuit will draw continuously. Next, select a fuse that is 125% larger than the maximum current expected to flow through the circuit. It is important to ensure that the fuse is compatible with the current rating of your device. Other factors to consider include the speed rating of the fuse and the sensitivity of the fuse, with a more sensitive fuse being a safer option.
