Connecting Electrical Loads In Parallel: Advantages And Applications

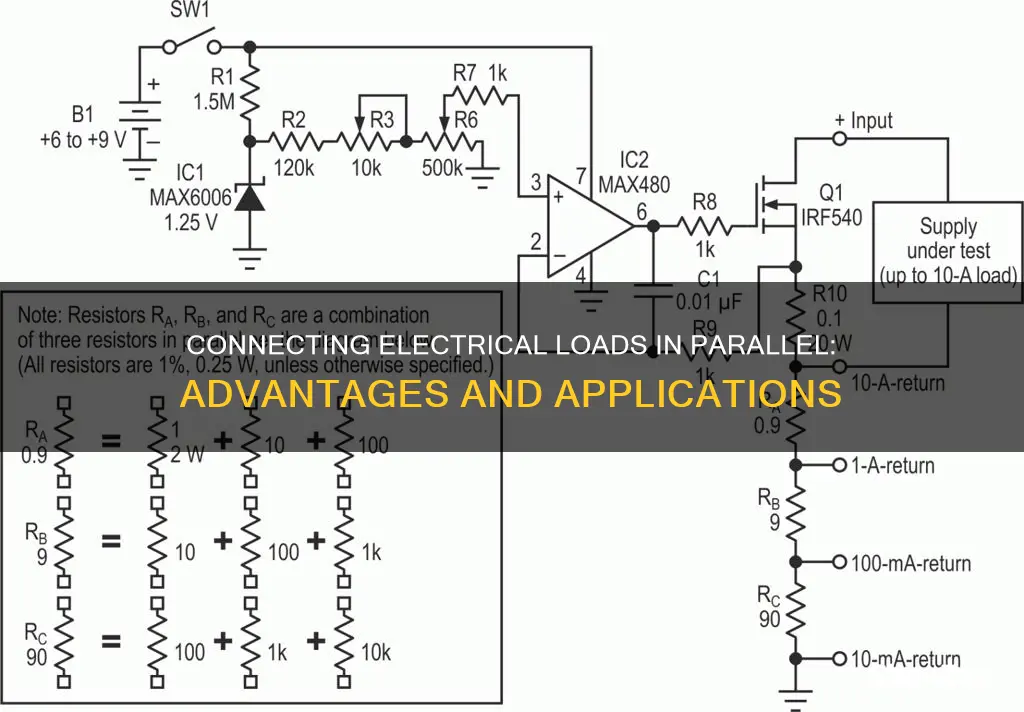

why electrical loads are connected in parallel

Electrical loads are often connected in parallel to increase the ampere-hour rating and storage capacity. Connecting electrical loads in parallel ensures that each component has the same voltage, which is equal to the voltage across the network. In a series circuit, if one component fails, the entire circuit is broken. However, in a parallel circuit, each component has its own circuit, so if one component fails, the others will still function. This makes parallel circuits more fault-tolerant than series circuits. Additionally, in a parallel circuit, the total current is the sum of the currents through the individual components, while in a series circuit, the current remains the same across all components.

Characteristics Values
Number of paths for current flow Multiple paths
Voltage Same across each component
Total current Sum of the currents through the individual components
Individual current Found by applying Ohm's law
Resistance Less than any of the individual branch resistances
Failure of one component Does not break the entire circuit

shunzap

In a series circuit, if one bulb burns out, the entire circuit is broken

Electrical loads are often connected in parallel because it is a more efficient and reliable way to distribute power. In a parallel circuit, each load acts as an independent branch circuit, with its own path for current flow. This means that if one branch or component fails, the others can still function.

Now, let's discuss the statement, "In a series circuit, if one bulb burns out, the entire circuit is broken." This statement is indeed true. In a series circuit, all the components are connected end-to-end, forming a single path for the current flow. Each component in a series circuit has the same electric current flowing through it, and the voltage across the entire network is the sum of the voltages across each component.

If one bulb in a series circuit burns out, it breaks the continuous path for the current, interrupting the flow. Since there is only one path for the current in a series circuit, the entire circuit is affected when one bulb fails. This is because, in a series circuit, every device must function for the circuit to be complete.

In contrast, a parallel circuit provides multiple paths for the current to flow. Each component in a parallel circuit has the same voltage across it, equal to the voltage across the entire network. If one bulb burns out in a parallel circuit, the current can still flow through the other paths, allowing the remaining bulbs to continue functioning.

The behaviour of series and parallel circuits in the event of a component failure highlights a key difference between the two types of circuits. In a series circuit, the failure of one component disrupts the entire system, while a parallel circuit can isolate the failure and maintain overall functionality. This is why, in many applications, particularly those requiring high reliability, loads are connected in parallel.

shunzap

In a parallel circuit, each light bulb has its own circuit

In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component. If light bulbs are connected in series, the same current flows through all of them, and the voltage drop may not be sufficient to make them glow.

In contrast, in a parallel circuit, the voltage is the same for all elements, and the total current is the sum of the currents flowing through each component. This means that the currents through the light bulbs combine to form the current in the battery, while the voltage drop is sufficient for each bulb to glow.

Parallel circuits are probably the most common type of circuit and are widely used to power the valve filaments in portable radios, for example.

How Green is Your Home's Electricity?

You may want to see also

shunzap

Parallel-connected batteries increase the ampere-hour rating

Connecting batteries in parallel increases the ampere-hour rating. This is because the batteries' ampere hours are added together, while the voltage remains the same. For example, two 6-volt 4.5 Ah batteries wired in parallel can provide 6-volt 9 amp hours (4.5 Ah + 4.5 Ah). Similarly, four 1.2-volt 2,000 mAh wired in parallel can provide 1.2-volt 8,000 mAh (2,000 mAh x 4).

Connecting batteries in parallel is a useful way to increase the overall capacity of the battery bank without increasing the voltage. This can be advantageous in situations where a higher capacity is needed, but the voltage must stay the same. For example, in a 12-volt system, connecting two 12-volt 100ah batteries in parallel will increase the amp-hours to 200ah while keeping the voltage at 12 volts.

It is important to note that when connecting batteries in parallel, all batteries should have the same voltage and amperage. Connecting batteries with different voltages and amperages in parallel can damage the batteries. Additionally, the number of batteries connected in parallel will depend on the capacity requirements of the application.

Parallel connections are also beneficial because they provide redundancy. If one battery fails, the others connected in parallel will continue to provide power. This can be especially useful in critical applications where uninterrupted power is needed.

In summary, connecting batteries in parallel is a useful way to increase the ampere-hour rating and overall capacity of a battery system while maintaining the same voltage. This can be advantageous in situations where higher capacity is needed without increasing voltage, and it also provides redundancy in case of battery failure. However, it is important to ensure that all batteries have the same voltage and amperage to avoid damage.

Joining Electrical Cables: The Right Way

You may want to see also

shunzap

The voltage is the same across each branch in a parallel circuit

In a parallel circuit, all components are connected across each other, forming exactly two electrically common nodes. A "branch" in a parallel circuit is a path for electric current formed by one of the load components (such as a resistor).

In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component. In contrast, in a parallel circuit, the voltage is the same across each of the components, and the total current is the sum of the currents flowing through each component.

In a series circuit, the current is the same for all components as the path is continuous. Therefore, series circuits are also called voltage dividers. Conversely, in a parallel circuit, the voltage is the same in each path, and the current is different for each path.

The voltage across each branch in a parallel circuit is the same. There are three separate paths (branches) for current to flow, each leaving the negative terminal and returning to the positive terminal. In a parallel circuit, each load resistor acts as an independent branch circuit, and because of this, each branch “sees” the entire voltage of the supply.

The total voltage of a parallel circuit has the same value as the voltage across each branch. For example, in a parallel circuit, if we have a 12-volt automotive battery connected to four light bulbs, the voltage drop across each bulb is 12 volts, and they all glow.

shunzap

In a series circuit, the voltage across the network is equal to the sum of the voltages across each component

In a series circuit, electrical components are connected end-to-end to form a single path for current flow. Each component in a series circuit has the same electric current flowing through it, which is equal to the current through the network.

For example, a 12-volt car battery contains six 2-volt cells connected in series, resulting in a total voltage of 12 volts. If the cells were not connected in series, the voltage of the battery would not be the sum of the cell voltages.

In contrast, in a parallel circuit, all components are connected across each other, forming two electrically common nodes, and each component has the same voltage across it, equal to the voltage across the network. The total current in a parallel circuit is the sum of the currents through the individual components, according to Kirchhoff's current law.

The difference between series and parallel circuits can be observed in a simple circuit consisting of four light bulbs and a 12-volt automotive battery. If the bulbs are connected in series, the same current flows through all of them, and the voltage drop is 3 volts across each bulb, which may not be sufficient to make them glow. However, if the bulbs are connected in parallel, the currents through the bulbs combine to form the current in the battery, while the voltage drop is 12 volts across each bulb, causing them all to glow.

Frequently asked questions

Electrical loads are connected in parallel to ensure that each component has the same voltage across it, equal to the voltage across the network. This is particularly useful when connecting light bulbs, as each bulb has its own circuit and will continue to function even if other bulbs burn out.

In a series circuit, the voltage across the circuit is the sum of the individual voltage drops across each component. In a parallel circuit, the voltage is the same for all elements.

Connecting loads in parallel ensures that if one branch or component in the circuit is opened, current will still flow to the remaining devices. This is in contrast to a series circuit, where every device must function for the circuit to be complete.
