The mean electrical axis is a crucial concept in understanding the electrical activity of the heart and is used to detect cardiac disease. It is the average of all the instantaneous mean electrical vectors occurring during the depolarization of the ventricles. The normal mean electrical axis in humans is between -30° and +90°, and it may vary by up to 35° during normal breathing. This range is different for dogs and cats. The mean electrical axis is determined by finding the lead with the tallest R wave, and it will be within 30 degrees of the positive pole of this lead. This axis is important in diagnosing arrhythmias, conduction abnormalities, ventricular hypertrophy, and the origin of arrhythmias.
| Characteristics | Values |
|---|---|
| Normal axis range | Between -30° and +90° |
| Left axis deviation range | Between -30° and -90° |
| Right axis deviation range | Between +90° and +180° |
| Extreme axis deviation range | Between -90° and 180° |
| Normal axis in dogs | Between +40° and +100° |
| Normal axis in cats | Between 0° and +160° |
| Normal axis at birth | Between +30° and +190° |
| Normal axis between 8 and 16 years | Between 0° and +120° |
| Mean electrical axis | Within 30 degrees of the positive pole of the tallest R wave |
Explore related products
What You'll Learn
- The normal range for the QRS axis in adults is between +30° and +90°
- The QRS axis is directed downward and slightly to the left
- The mean electrical axis is within 30 degrees of the positive pole of the tallest R wave
- The mean electrical axis is the average of all the instantaneous mean electrical vectors during ventricular depolarization
- The mean electrical axis can be used to detect hypertrophy, cardiac conduction disturbances, and the origin of arrhythmias
The normal range for the QRS axis in adults is between +30° and +90°
The QRS axis is a crucial component of electrocardiogram (ECG) interpretation, providing valuable insights into the electrical activity of the heart. The normal range for the QRS axis in adults is between +30° and +90°, indicating a downward and slightly leftward direction. This range is essential for identifying normal cardiac function and differentiating it from potential underlying pathologies.
The QRS axis represents the ventricular axis, which signifies the sum of individual vectors generated during ventricular depolarization. This axis is determined by evaluating the electrical signals recorded by electrodes placed on the body, specifically the left arm (lead aVL) and left foot (lead aVF), and their relationship with each other. The QRS complex, which represents ventricular depolarization, plays a pivotal role in determining the ventricular axis.
A positive QRS complex in a lead generally indicates that the ventricular axis is directed toward that lead. Conversely, a negative QRS complex suggests the axis is oriented in the opposite direction. An isoelectric QRS complex, where the positive and negative deflections are equal, results in a ventricular axis perpendicular to the lead. These interpretations are fundamental for accurate ECG analysis.
The normal range of the QRS axis in adults, between +30° and +90°, is indicative of a healthy cardiac axis. Deviations from this range can signify underlying conditions. For instance, a QRS axis less than -30° indicates a left axis deviation, while a QRS axis greater than +90° suggests a right axis deviation, both of which may be indicative of pathological changes in the heart.
It is important to note that the QRS axis can vary during normal breathing due to the associated movements of the heart. Additionally, in paediatric ECG interpretation, the normal range for the QRS axis is different, typically lying between +30° and +190° at birth and gradually moving leftward with age. Therefore, it is crucial to consider age-specific reference ranges when interpreting ECG results.
Dual Electrical Components: Twice the Power, Half the Space
You may want to see also
Explore related products
The QRS axis is directed downward and slightly to the left
The QRS axis being directed downward and slightly to the left is indicative of a normal cardiac axis. This is because the left ventricle makes up most of the heart muscle and generates the most electrical force visible on the ECG. The QRS axis is typically between -30° and +90° in a normally situated heart.
The QRS axis is determined by evaluating the vectors produced under the electrodes. This is done by interpreting the electrical signal recorded at each electrode as positive, negative, or isoelectric, and then considering their relationship with each other. A positive QRS complex in a lead has a ventricular axis that is approximately in the same direction as the lead, while a negative QRS complex in a lead has a ventricular axis that is approximately in the opposite direction of the lead. If the QRS complex is isoelectric in a lead, the ventricular axis is perpendicular (90°) to that lead.
The QRS axis can be determined using the quadrant method, which involves examining the QRS complex in both leads I and aVF. If lead I is positive and lead aVF is negative, this is a possible left axis deviation (LAD). To determine a true LAD, examine the QRS in lead II. If the QRS complex is positive in lead II, then this is a normal axis. If the QRS complex is negative in lead II, then this is an LAD.
The mean electrical axis is within 30 degrees of the positive pole of the tallest R wave. The approximate location of the mean electrical axis can be found by identifying the lead with the tallest R wave. This is usually determined using a multilead ECG.
The QRS axis is an important aspect of ECG interpretation and can provide valuable insights into underlying disease states, helping to guide the differential diagnosis and identify certain life-threatening arrhythmias.
Electricity Switches: How Do They Work?
You may want to see also
Explore related products
The mean electrical axis is within 30 degrees of the positive pole of the tallest R wave
The mean electrical axis is a crucial component of interpreting an electrocardiogram (ECG). It represents the sum of all the waves of depolarization that occur simultaneously and provides insights into the underlying health of the heart. To determine the mean electrical axis, one must first identify the lead with the tallest R wave. The mean electrical axis will be within 30 degrees of the positive pole of this lead. This method is known as the quadrant graphing technique.
In the hexaxial lead system, the X-axis is formed by lead I, which has a horizontal orientation with positivity towards the left, and the Y-axis is formed by lead aVF. The positive pole of lead I (left arm) is designated as 0 degrees, and the positive pole of lead aVF (left foot) is designated as +90 degrees. The remaining leads, aVL, aVR, and III, are positioned at -30, -150, and +120 degrees, respectively.
By examining the QRS complex, which indicates ventricular depolarization, we can determine the ventricular axis. The ventricular (QRS) axis is the sum of all individual vectors generated by the depolarization waves of ventricular myocytes. It is important to note that the QRS axis must be ±90 degrees from lead II, resulting in either +150 degrees or -30 degrees. The leftward or rightward orientation of the leads influences the determination of the axis.
Abnormal axis deviations can indicate underlying pathologies. For example, a QRS axis less than -30 degrees indicates left axis deviation, while a QRS axis greater than +90 degrees indicates right axis deviation. Extreme axis deviation, where the QRS axis ranges from -90 to 180 degrees, is also indicative of potential health issues.
To diagnose arrhythmias and conduction abnormalities, a multilead ECG is necessary to detect changes in the mean electrical axis. This allows for the identification of ventricular hypertrophy and the differentiation of the origin of arrhythmias. The interpretation of the mean electrical axis is a valuable tool in understanding the overall health of the heart and guiding diagnoses.
Understanding the Basics of Electrical N: What Does it Mean?
You may want to see also
Explore related products
The mean electrical axis is the average of all the instantaneous mean electrical vectors during ventricular depolarization
The mean electrical axis is a crucial component of electrocardiogram (ECG) interpretation and offers valuable insights into the heart's electrical axis. It is defined as the average of all the instantaneous mean electrical vectors that occur during ventricular depolarization. In other words, it represents the sum of all the mean electrical vectors generated during this process.

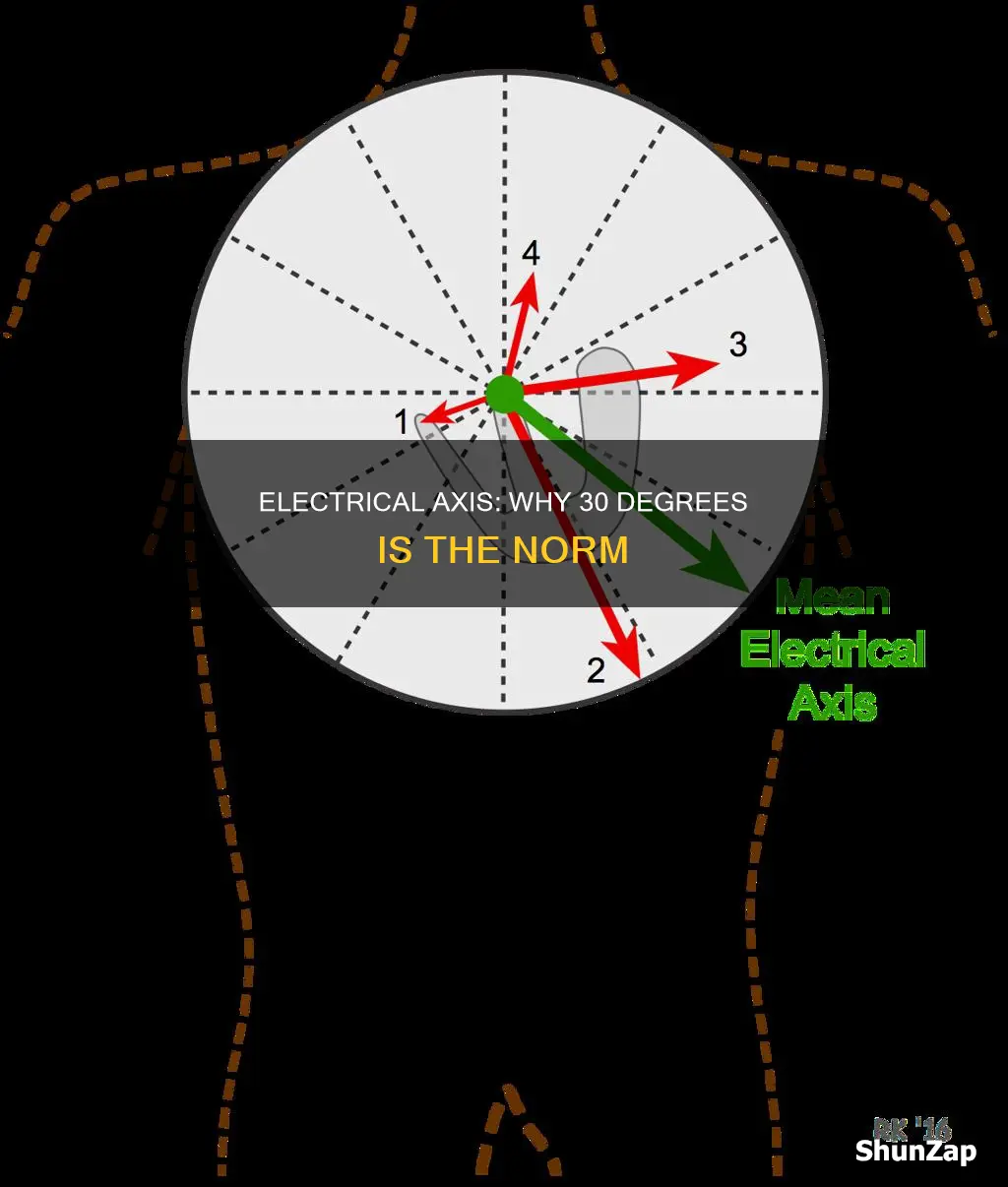

The mean electrical axis is a powerful tool for understanding the heart's electrical activity and can be visualised as a green arrow in a diagram. This axis is influenced by the sequence of ventricular activation, which can vary due to factors such as conduction defects or infarcted tissue. By examining the QRS complex, which reflects ventricular depolarization, clinicians can determine the ventricular axis. This analysis is essential for identifying abnormalities and making accurate diagnoses.
The normal range for the mean electrical axis in adults is between −30° and +90°, directed downward and slightly to the left. This range is narrower in children, with the axis lying between +30° and +190° at birth and gradually moving leftward as they age. The mean electrical axis plays a critical role in detecting conduction abnormalities, ventricular hypertrophy, and the origin of arrhythmias.
To determine the mean electrical axis, clinicians follow specific steps. They start by identifying the lead with the tallest R wave, as the mean electrical axis is typically within 30 degrees of the positive pole of this lead. Additionally, the quadrant graphing method can be employed, where the hexaxial lead system is divided into four equal quadrants by leads I and aVF. Arrows are drawn on these leads based on the predominant QRS complex deflection, allowing for a more precise determination of the mean electrical axis.
Understanding VDC Fuses in Electricity Boxes
You may want to see also
Explore related products
The mean electrical axis can be used to detect hypertrophy, cardiac conduction disturbances, and the origin of arrhythmias
The mean electrical axis is the principal vector of ventricular depolarization. It represents the sum of all the waves of depolarization that occur simultaneously. The mean electrical axis normally points towards the left ventricle, as this is the larger of the two ventricles.
Deviations in the mean electrical axis can be used to detect hypertrophy. Severe hypertrophy of the right ventricle will cause the electrical activity of the right heart to dominate over that of the left on the ECG, resulting in a right axis shift of the mean electrical axis.
The mean electrical axis can also be used to detect cardiac conduction disturbances. For example, left anterior fascicular block is the most common conduction abnormality in cats and results in a marked left axis deviation of the mean electrical axis.
Additionally, the mean electrical axis can help differentiate the origin of arrhythmias. To detect changes in the mean electrical axis, a multilead ECG is necessary. While most arrhythmias can be detected on physical examination, an ECG is required to identify the exact nature of an arrhythmia.
Understanding MSA: Electrical Safety and Maintenance
You may want to see also
Frequently asked questions
The mean electrical axis is the average of all the instantaneous mean electrical vectors occurring sequentially during depolarization of the ventricles.
The mean electrical axis is within 30 degrees of the positive pole of the tallest R wave.
The normal range for the mean electrical axis is between -30° and +90°.
The mean electrical axis is important because it can help identify underlying disease states and aid in the diagnosis of conduction abnormalities, ventricular hypertrophy, and arrhythmias.
