Electrical disconnect limits are important to ensure safety and accessibility in the event of an emergency. The National Electrical Code (NEC) outlines specific requirements for disconnecting means, which refer to devices that can disconnect the conductors of a circuit from their source of supply. These limits vary depending on the number of switches, circuit breakers, and enclosures, as well as the type of installation and service configuration. For example, the 2020 NEC allows for up to six disconnects per service, but they must be grouped in a specific manner. This ensures that power can be controlled effectively and safely, especially in emergency situations.
| Characteristics | Values |
|---|---|
| Number of disconnecting means | Six |
| Location of disconnecting means | Inside or outside the home |
| Type of disconnecting means | Switch, circuit breaker, cord and plug connection, or a group of the aforementioned devices |
| Number of switches or circuit breakers | Six |
| Location of switches or circuit breakers | Same electrical enclosure or six separate enclosures |
| Type of electrical service | One electrical service |
| Number of operations of the hand | Six |
| Type of wiring | Multiwire branch circuit |
| Type of meter | 200 amp meter main/combo with 6 2 pole spaces |
| Type of breaker | Main circuit breaker |
| Type of installation | Residential electric service installation |
Explore related products
What You'll Learn
Safety concerns over old configurations
Safety concerns have been raised over the old configuration of electrical disconnects, which have allowed up to six service disconnects in a single enclosure for decades. The 2020 NEC® code cycle saw several public inputs highlighting electrical safety hazards that exist due to the old configuration. One of the main concerns is that there are always live conductors or busbars in the service enclosure, even when all service disconnects are switched off. This means that the only way to establish an electrically safe work condition is to have the electric utility company de-energize the service at the utility transformer.
To address these safety concerns, the 2020 NEC® introduced changes to Section 230.71, now requiring each service to have only one disconnecting means unless specific requirements are met. These requirements outline four acceptable service configurations:
- Separate enclosures with a main service disconnect in each enclosure.
- Switchboards with barriers separating each vertical section and only one service disconnect in each section.
- Switchgear or metering centers with each disconnect located in a separate compartment.
- Panelboards with a main service disconnecting means in each panelboard enclosure.
These changes ensure that first responders have a suitable exterior disconnecting means in the event of an emergency, such as a natural disaster, fire, or flooding. While existing residential service installations are likely to be exempt, new installations and service upgrades will be required to incorporate a readily accessible exterior emergency disconnect.
It is important to note that these code changes may have varying levels of impact depending on the state and existing service configurations. For example, in warmer states, it is common to have an exterior all-in-one meter/service panel with a main circuit breaker and branch circuit breakers. These configurations will comply with the new code without needing additional modifications. On the other hand, colder states typically have main breaker type service panels located inside the home, requiring the installation of an exterior emergency disconnect to meet the new code requirements.
Unlocking Your GE Dishwasher: Easy Steps to Follow
You may want to see also
Explore related products
Exterior disconnects for emergencies

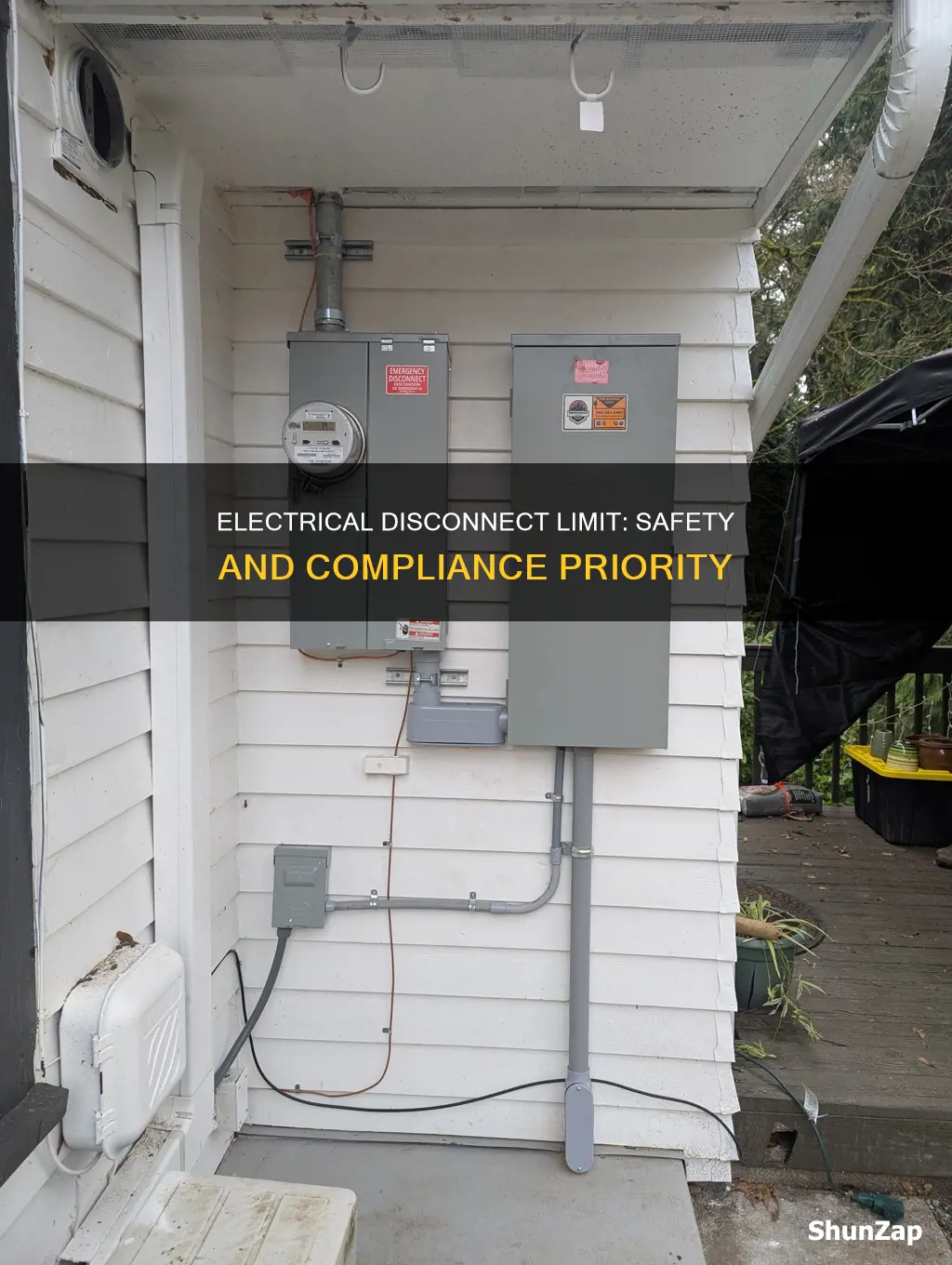

The 2020 National Electrical Code (NEC) requires an exterior emergency disconnect for one- and two-family dwelling units. This code change ensures that first responders have a suitable exterior disconnecting means in the event of a natural disaster, fire, flooding, or similar emergencies.
Previously, there was no NEC requirement for an emergency disconnect to be located inside or outside the home. However, with the adoption of the 2020 NEC, new installations and service upgrades will need to incorporate a readily accessible exterior emergency disconnect. This means that a service disconnect switch or main circuit breaker located outside the home can be used to cut off the power supply in an emergency.
The exterior emergency disconnect must be marked with a red background and white text, clearly stating "Emergency Disconnect". This marking is typically located on the outside front of the disconnect enclosure, ensuring it is easily identifiable.
In warmer states, it is common for residential electric service installations to include an exterior all-in-one meter/service panel with a main circuit breaker (service disconnect) and branch circuit breakers. In contrast, colder states often have a main breaker type service panel located inside the home, just on the opposite side of the exterior wall. While venturing outside in cold weather to reset a tripped circuit breaker may be inconvenient, these configurations can comply with the new code by installing an exterior emergency disconnect.
The exterior emergency disconnect requirement provides first responders, such as firefighters, with a means to safely and promptly remove power from one- and two-family structures without depending on the utility company to shut down the power supply.
Troubleshooting Electrical Throttle Control: A Comprehensive Guide
You may want to see also
Explore related products
$58.76
$21.94 $26.61
Disconnecting means for appliances
The National Electrical Code (NEC) defines appliances as equipment for HVAC, clothes washing, electronics, food, lighting, chemicals, or similar purposes. They are installed as part of, or in connection with, an electrical installation.
For appliances that lack a disconnecting means, one must be provided according to established guidelines. For appliances rated at 300 volt-amperes or less, the branch-circuit overcurrent device can act as the disconnecting means if it is visible from the appliance or can be locked open. For appliances exceeding this rating, the same conditions apply. Motor-operated appliances with motors over 1/8 horsepower must also have a disconnecting means that meets additional requirements.
For the 2011 NEC, the disconnecting means of appliances were broken up into three sections:
- < 300 VA or <1/8 HP
- > 300 VA
- Motor-operated appliance and > 1/8 HP
For appliances > 300 VA, the allowable disconnect can be a branch circuit disconnect switch or circuit breaker in sight or out of sight, only if it is capable of being locked. However, for motor-operated appliances > 300 VA, the disconnect can only be a switch or circuit breaker that is in sight. This means lockable disconnects are not allowed for motors > 300 VA.
Motor appliances greater than 1/8 HP require a switch or circuit breaker as the disconnecting means. This includes dishwashers, refrigerators, and microwaves. A switch is usually installed under the adjacent sink cabinet for dishwashers.
Electrical Wiring Repairs: Easy and Affordable Fixes
You may want to see also
Explore related products
Disconnecting means for transformers
Electrical disconnect limits are in place to ensure safety and easy access to power controls. For example, the 2020 NEC® requires an exterior emergency disconnect for one- and two-family dwelling units, ensuring first responders can easily cut the power supply in the event of an emergency.
Transformers are common electrical installations in residential, commercial, and industrial applications. The National Electrical Code (NEC) has outlined specific requirements for disconnecting means for transformers.
A disconnecting means is required to disconnect all transformer ungrounded primary conductors. The disconnect must be located within sight of the transformer, which means it should be visible and not more than 50 feet away. If the disconnect is located remotely, it must be lockable, and its location must be clearly marked on the transformer.
The requirement for a disconnecting means on the secondary side of the transformer is determined by the transformer secondary rules. In most cases, there is a limit of 25 feet of secondary conductors prior to an overcurrent means.
It is important to note that these requirements may vary depending on the local electrical code and the specific transformer installation. For example, the 2008 NEC did not require a primary disconnect means or labeling, while later codes added these requirements. Similarly, the 2014 NEC introduced changes related to the grounding of dry-type transformer enclosures and the use of cord-and-plug connecting locking means.
To ensure compliance with the relevant electrical codes and safety standards, it is recommended to consult with a qualified electrician or electrical engineer familiar with transformer installations.
Electrical Fires in Mobile Homes: Causes and Prevention
You may want to see also
Explore related products
Disconnecting means for generators
Electrical disconnect limits are in place to ensure safety and control over electrical systems. Now, for generators, disconnecting means are crucial to safely control and isolate the equipment from electrical circuits. Here are some detailed points about disconnecting means for generators:
- Requirements: Generators are required to have a disconnecting means, typically lockable in the open position. This allows for the complete disconnection of the generator and all associated protective devices and control apparatus from the circuits it supplies. This requirement is outlined in various electrical codes, such as the National Electrical Code (NEC) and the Florida Electrical Code.
- Exceptions: Cord- and plug-connected portable generators are often exempt from these requirements. Additionally, if a generator's driving means can be readily shut down, rendered incapable of restarting, and locked in the OFF position, it may not need a separate disconnecting means.
- Standards and Compliance: Standards like CSA C22.2 No. 100 and CSA C282 specify the design, installation, and operation criteria for generators and associated equipment. The CE Code and NEC also provide guidelines for generator disconnecting means.
- Accessibility: Disconnecting means should be readily accessible or have easily accessible operating mechanisms. This accessibility ensures that the generator can be quickly isolated if needed.
- Multiple Disconnecting Means: In some cases, multiple disconnecting means may be permitted or required for generators with multiple enclosures, panel boards, or metering compartments. These additional disconnecting means enhance the safety and flexibility of the generator setup.
- Emergency Disconnecting Means: Emergency generators may have specific requirements, such as compliance with the CSA C282 standard. This standard mandates a single lockable overcurrent device to connect the generator to the emergency electrical power supply system.
In summary, disconnecting means for generators are essential for safety and compliance with electrical codes. They allow for the complete disconnection of generators and associated equipment from electrical circuits, ensuring control and safety during operation and emergency situations.
Understanding Faraday's Law of Electromagnetic Induction
You may want to see also
Frequently asked questions
An electrical disconnect limit is the maximum number of disconnecting means or devices that can be installed per service or supply.
The limit ensures that there are not too many live conductors or busbars in the service enclosure even when all service disconnects are switched off. This helps establish an electrically safe work condition.
A disconnecting means can be a switch, a circuit breaker, a cord and plug connection, or a group of these devices.
