Jeeps are well-known for their ruggedness and off-road capabilities, but they are also notorious for their electrical issues. One common problem across several Jeep models is related to the Totally Integrated Power Module (TIPM), which is the central hub for power distribution to various systems such as the fuel pump, headlights, and power windows. Other issues include battery problems, corrosion, and damaged connectors and wires. Some of these problems can be resolved with simple fixes, such as tightening battery cables or cleaning corrosion with an electrical cleaner, while others may require more extensive repairs or replacements.
| Characteristics | Values |
|---|---|
| Affected Models | CJ models, mid-1990s and earlier |
| Cause | Dust, mud, and water corrosion of firewall electrical connector |
| Fix | Clean with electrical cleaner and toothbrush, use fine files to clean each connector |
| Cause | Clockspring damage in airbag-equipped Jeeps |
| Fix | Check for loose battery cables, ensure ground connection from battery to frame, engine block, and Jeep body |
| Fix | Test alternator output and battery power |
| Fix | Check for broken potentiometer wires, corroded resistor wire, or faulty bulbs |
| Fix | Check battery and secondary battery |
| Fix | Check for damaged plugs and wiring |
| Fix | Check for corrosion in connectors |
| Fix | Check Totally Integrated Power Module (TIPM) |
Explore related products
What You'll Learn
Battery issues
In some cases, the battery cables may be loose or not tightly connected, which can cause similar problems. Ensuring that the battery cables are securely connected and checking for any signs of corrosion on the terminals and posts is essential.
Another potential issue is a faulty Totally Integrated Power Module (TIPM). The TIPM is responsible for distributing power to various systems in the vehicle, such as the fuel pump, headlights, power windows, and windshield wipers. If the TIPM malfunctions, it can cause electrical problems throughout the Jeep.
Additionally, corrosion in connectors can lead to electrical issues. Over time, dust, mud, and water can enter the electrical connectors and cause corrosion, especially if the factory-supplied grease is inadequate. Regular visual inspections and cleaning of connectors can help prevent this issue.
While replacing the batteries may be a common response to electrical issues, it is not always necessary. Other factors, such as loose pins, damaged connectors, or damaged wires, can also contribute to electrical problems in Jeeps. It is important to thoroughly diagnose the issue before replacing parts.
Basic Sources of Electricity: Six Key Methods
You may want to see also
Explore related products
Corrosion on terminals
One of the most common issues with Jeeps is electrical problems. Jeep owners have reported a range of issues, from flickering headlights to dashboard lights turning on and off. While there can be many causes for electrical issues, one of the most important things to check is corrosion on the battery terminals and posts.
Corrosion on the terminals can cause a range of issues, including electrical gremlins, and it is important to keep them clean and free of debris. Over time, dust, mud, and water can get into the back of the firewall electrical connector and start corroding it. In some instances, the factory-supplied grease itself can be the culprit, attracting dirt and debris. To fix this, the block must be removed from the firewall and cleaned with an electrical cleaner and a toothbrush. Small files can also be used to clean each connector individually. It is important to check the voltage at the fuse block and on the engine side of the firewall, as a significant difference may indicate an issue with the block. New dielectric grease should be applied before reassembly.
In addition to the firewall connector, corrosion can also occur in other connectors. The Totally Integrated Power Module (TIPM) is a critical component in Jeep vehicles that manages the distribution of electrical power to various systems, such as the fuel pump, headlights, power windows, and windshield wipers. Issues with the TIPM can cause a range of electrical problems. It is important to check for corrosion in the TIPM connector and take preventive measures if necessary.
Another area to check for corrosion is the battery terminals. Loose battery cables can cause electrical issues, so it is important to ensure that they are tight. If the battery cables are tight, the next step is to test the output of the alternator and check for power at the battery. If there is a significant difference, further testing may be required to identify the issue.
To prevent corrosion on the terminals, it is important to regularly inspect and clean the battery connections. This includes visually inspecting the positive connection at the battery, alternator, and underhood fuse block or starter solenoid. It is also important to ensure that the ground from the battery is connected to the frame, the Jeep body, and the engine block.
By regularly inspecting and cleaning the terminals, Jeep owners can help prevent electrical issues caused by corrosion. While corrosion may not be the only cause of electrical problems in Jeeps, it is a common issue that should not be overlooked.
Transposing on the Nord Electro 6D: A Quick Guide
You may want to see also
Explore related products
Faulty Totally Integrated Power Module (TIPM)
A Totally Integrated Power Module (TIPM) is an all-in-one electrical component found in many vehicles that combines the functions of the fuse box and relay box. It is designed to streamline power distribution to various components, such as power windows, fuel pumps, and anti-theft systems, while providing diagnostic capabilities. The TIPM plays a crucial role in ensuring seamless power distribution and relay function, making it essential for a vehicle's performance and reliability.
Common issues with faulty TIPMs include turn signals not working, battery drain caused by the fuel pump running constantly, and other erratic behaviours. These issues can lead to random failures at unpredictable times, such as intermittent or complete failure, or a system component staying on all the time. For example, the fuel pump may continue running, causing battery drain. Other symptoms may include erratic warning lights, random activation or deactivation of electrical components, and frequent blown fuses.
TIPM problems can be caused by various factors, including component defects, design flaws, grounding issues, impact damage, wear and tear, software glitches, and firmware corruption. Proper grounding is crucial for reliable TIPM operation, and inadequate or corroded ground connections can lead to erratic behaviour and failure.
When dealing with TIPM issues, vehicle owners have two primary options: repairing the existing module or replacing it entirely. Advanced diagnostic tools can be used to retrieve TIPM error codes, and voltage measurements can confirm malfunctions. Repairing a faulty TIPM can be cost-effective, typically involving troubleshooting and replacing faulty circuit boards or relays. In some cases, complete module replacement may be necessary if the TIPM is beyond repair.
To prevent TIPM failures, it is important to perform regular maintenance on the vehicle's electrical system, including checking the battery, alternator, and wiring for any issues. Ensuring that seals and connectors are intact can help prevent moisture ingress, which can cause corrosion and impact TIPM performance. Additionally, it is crucial to keep the TIPM and its surroundings free from excessive heat and ensure proper ventilation to avoid potential damage from high temperatures.
Covering Electrical Tub Drains: A DIY Guide
You may want to see also
Explore related products
Damaged wiring connectors
Jeeps are known for their ruggedness and off-road capabilities, but like any vehicle, they can experience electrical issues. One of the common problems across several Jeep models is related to damaged wiring connectors. These connectors can be exposed to dirt, mud, water, and corrosion, leading to electrical problems.

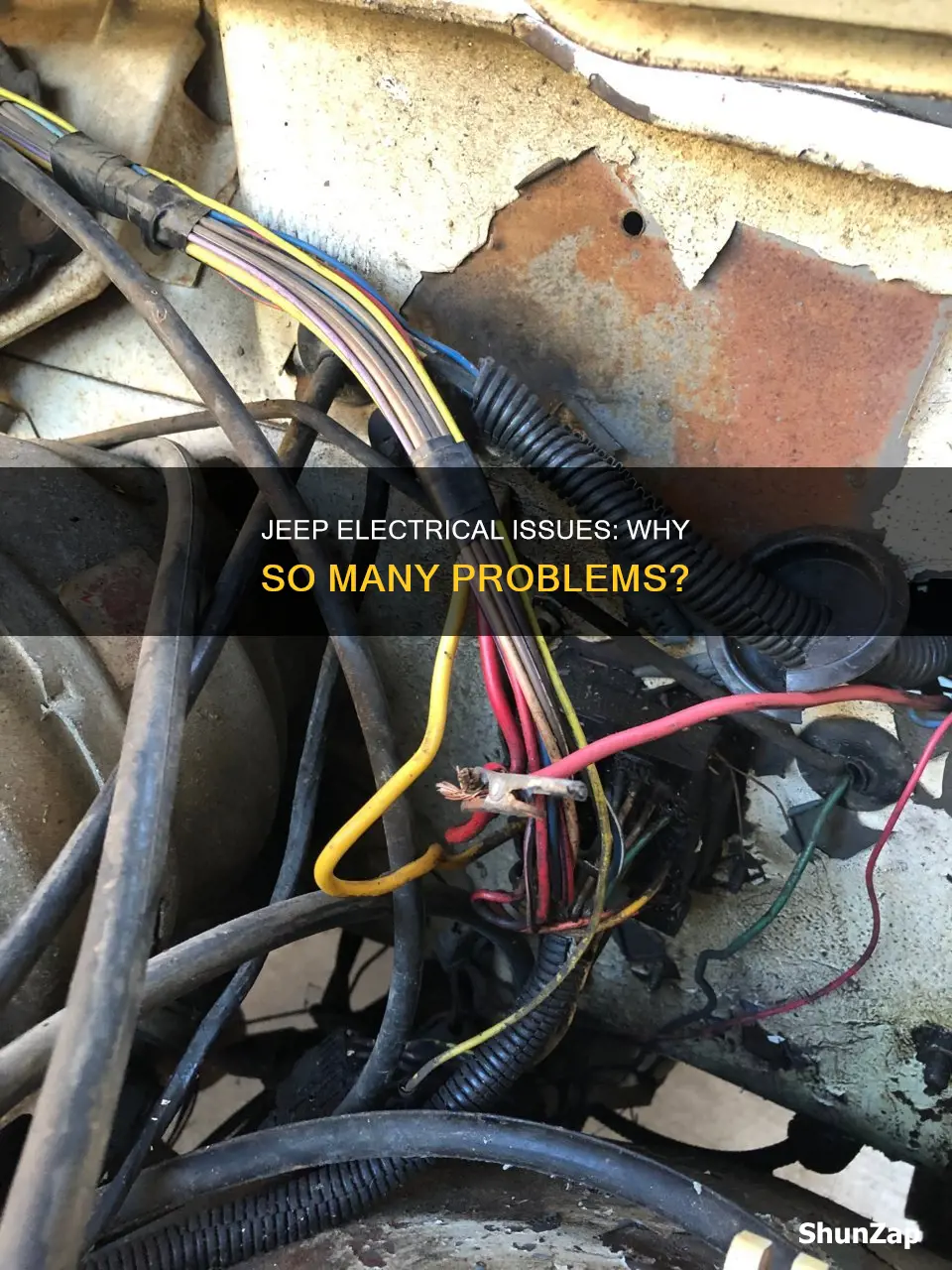

Over time, dust, mud, and water can enter the back of the firewall electrical connector and start corroding it. In some cases, even the factory-supplied grease can contribute to the issue. To address this, it is recommended to remove the block from the firewall and thoroughly clean it using an electrical cleaner and a toothbrush. Small files can be used to clean each connector individually. It is also important to check the voltage at different points to identify any significant differences that may indicate a problem in the block.
In addition to the firewall connector, other connectors in Jeeps can also be affected by corrosion. The location of some connectors, such as the MOPAR AUX switch connector, makes them susceptible to exposure to road debris and the elements. Corrosion in these connectors can lead to electrical issues in various systems throughout the vehicle.
To prevent and address these issues, it is crucial to regularly inspect and maintain the connectors. This includes visually inspecting battery connections, ensuring tight connections, and checking for corrosion. If corrosion is present, it can be removed using sandpaper or a scraping tool, being careful not to damage the wires. In some cases, dielectric grease can be applied before reassembling the connectors.
Testing Electric Golf Cart Batteries: A Step-by-Step Guide
You may want to see also
Explore related products
Faulty clocksprings
Jeep Wranglers are known for their electrical issues, and one of the common problems is a faulty clockspring. A clockspring is a spiral-wound special rotary electrical connector that allows the steering wheel to turn while maintaining an electrical connection between the steering wheel airbag, the vehicle's horn, and other devices, and the vehicle's electrical systems.
Over time, the wires inside the clockspring can become fatigued and break, causing an open circuit or a short circuit in the connected systems. This can lead to various issues, such as the airbag light turning on and staying on, the horn becoming inoperable, and the wipers ceasing to function. In some cases, a faulty clockspring can also result in electric arcing and smoke coming from the steering wheel, which can be dangerous.
To diagnose a faulty clockspring, a technician will typically use a scan tool to check the electrical system for signs of malfunction. They may also perform a test with a multimeter directly on the clockspring. If the clockspring is indeed faulty, it will need to be replaced, which can cost anywhere from $643 to $695 on average for a Jeep Wrangler.
It is important to note that repairing or replacing a clockspring can be a complex process. It involves disconnecting the battery, disarming the Supplemental Restraint System, and removing the steering wheel, trim components, and the airbag. After the clockspring has been replaced, the airbag, steering wheel, and other components need to be reinstalled, and the Supplemental Restraint System must be reset using special software.
Unveiling the Distortion in Wurlitzer Electric Pianos
You may want to see also
Frequently asked questions
Jeep vehicles are known for their ruggedness and off-road capabilities, but like any vehicle, they can experience electrical issues. One common problem across several Jeep models is related to the Totally Integrated Power Module (TIPM), which is the central hub for power distribution to components like windows, headlights, and the fuel pump. Other electrical issues may be caused by loose battery cables, a failing battery, corrosion, or damaged wires.
Electrical issues in a Jeep can manifest in various ways, such as flickering headlights, multiple warning lights turning on, or the gear shift getting stuck in park. Other signs include issues with power windows, windshield wipers, turn signals, fuel pump, or instrument cluster.
There are several troubleshooting steps you can take to address electrical issues in your Jeep. First, check that the battery cables are tight and free of corrosion. Inspect the battery connection and give it a small tug to ensure it's secure. If you suspect a failing battery, consider replacing it. Additionally, look for corrosion or damage in connectors and wires, especially those exposed to road debris and the elements.
Some Jeep models have been reported to have electrical issues. For example, the 2019 Jeep Wrangler Unlimited Sport with the 2.0L engine has been known to have issues upon starting, high idle speed, and multiple warning lights illuminating. The 2018 JL and JT models have also been associated with electrical problems tied to corrosion in connectors.
Online forums and communities, such as Jeep Wrangler Forums and Jeep Gladiator Forum, are excellent resources for learning about specific electrical issues and potential solutions. These platforms provide first-hand accounts and advice from other Jeep owners who have experienced similar problems. Additionally, YouTube mechanic channels offer troubleshooting videos that can guide you in diagnosing and resolving electrical issues in your Jeep.
