The electrical axis of the heart is a crucial aspect of ECG interpretation, reflecting the average direction of ventricular depolarization during contraction. While the electrical axis typically remains stable, pointing towards the left ventricle, deviations can occur due to right ventricular hypertrophy or intraventricular conduction blocks. These deviations provide valuable insights into potential underlying diseases and help guide differential diagnoses. The determination of the electrical axis is essential for identifying certain life-threatening arrhythmias and their subsequent management. This complex topic involves understanding vectors, which represent the magnitude and direction of action potentials generated by cardiac myocytes.
Explore related products
What You'll Learn
- The mean electrical axis is the principal vector of ventricular depolarization
- The hexaxial lead system is used to visualise the directions in which the depolarisation wave may travel
- The normal mean electrical axis in humans falls between -30° and +90°
- The mean electrical axis normally points toward the left ventricle
- The mean electrical axis is a simple and rapid diagnostic procedure
The mean electrical axis is the principal vector of ventricular depolarization
The mean electrical axis is a fundamental aspect of ECG interpretation, reflecting the average direction of ventricular depolarization during ventricular contraction. It is the principal vector of ventricular depolarization, representing the sum of all the waves of depolarization occurring simultaneously. This is important as it provides insight into the underlying disease states and helps guide the differential diagnosis towards or away from certain conditions.

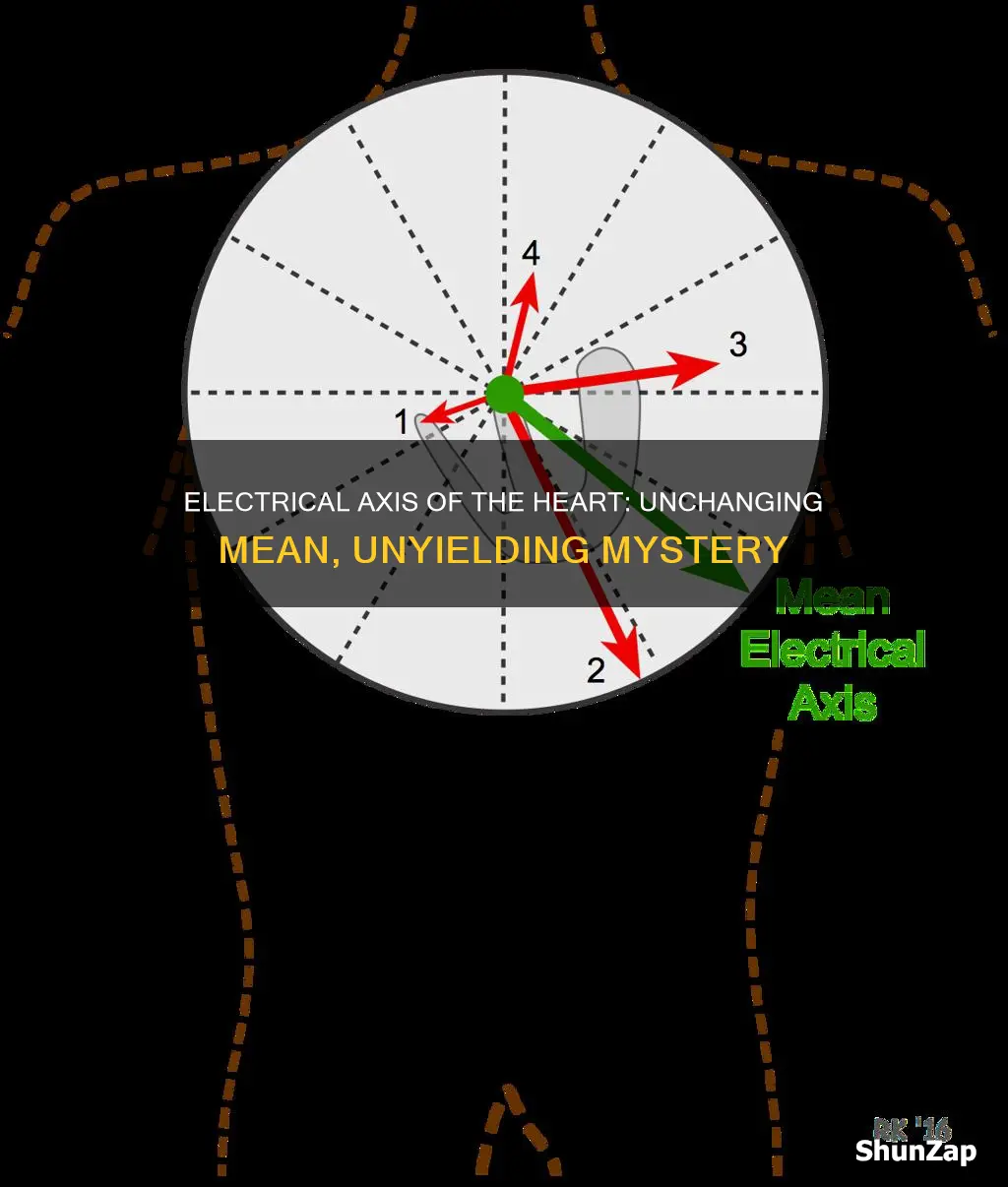

In the context of the heart, a vector represents both the magnitude and direction of the action potential generated by an individual myocyte. The mean electrical axis is the average of all the instantaneous mean electrical vectors that occur sequentially during ventricular depolarization. These vectors can be visualised using arrows, with the arrowhead pointing towards the net direction of the current flow. The length of the arrow corresponds to the voltage.
The mean electrical axis typically lies between −30° and +90°. A shift towards the left, known as a left axis deviation, occurs when the axis is less than −30°. On the other hand, a shift to the right, or right axis deviation, is observed when the axis exceeds +90°. These deviations can be indicative of various conditions, such as ventricular hypertrophy, conduction defects, or infarcted tissue.
The process of determining the mean electrical axis involves several steps. Firstly, the lead axis that exhibits equal biphasic properties, with no net deflection, is identified. Subsequently, the lead axis that is perpendicular to the biphasic lead and demonstrates a positive net deflection is located. This process aids in the determination of the mean electrical axis and facilitates the interpretation of the electrocardiogram.
