The use of √3 (approximately 1.732) in three-phase electrical systems is fundamental to their design and efficiency. In a three-phase system, three alternating currents are produced, each 120 degrees out of phase with the others, creating a balanced and continuous power flow. The factor √3 arises from the relationship between the line voltage and the phase voltage in a star (Y) or delta (Δ) connected system. Specifically, in a star configuration, the line voltage is √3 times the phase voltage, while in a delta configuration, the line current is √3 times the phase current. This factor ensures optimal utilization of conductors, minimizes losses, and maintains a constant power output, making √3 a critical constant in the mathematical and practical implementation of three-phase systems.
| Characteristics | Values |
|---|---|
| Phase Voltage to Line Voltage Ratio | In a three-phase system, the line voltage (VL) is √3 times the phase voltage (VP), i.e., VL = √3 × VP. This relationship ensures balanced voltage distribution across phases. |
| Power Factor | The use of √3 in three-phase systems optimizes power delivery, allowing for a constant power output regardless of phase angle, assuming a balanced load. |
| Efficiency | Three-phase systems using √3 are more efficient than single-phase systems, as they deliver a smoother power flow and reduce losses in transmission and distribution. |
| Balanced Load Distribution | √3 ensures that the sum of the instantaneous currents in all three phases is zero, maintaining balance and minimizing neutral current in balanced loads. |
| Mechanical Symmetry in Generators/Motors | The √3 factor aligns with the 120-degree phase displacement in three-phase systems, ensuring symmetrical mechanical design and operation of generators and motors. |
| Harmonic Reduction | The √3 relationship helps in reducing harmonic distortions in the system, improving power quality and reducing interference. |
| Standardization | √3 is a standardized factor in three-phase systems, ensuring compatibility and consistency across electrical equipment and systems globally. |
| Cost-Effectiveness | Using √3 in three-phase systems reduces the size and cost of conductors and transformers compared to single-phase systems for the same power delivery. |
| Continuous Power Delivery | The √3 factor ensures continuous and uninterrupted power delivery, as at least one phase is always delivering power in a three-phase system. |
| Scalability | Three-phase systems with √3 are easily scalable for industrial and commercial applications, providing higher power capacities with minimal infrastructure changes. |
Explore related products
What You'll Learn
- Root 3 relates voltage and line-to-line voltage in a three-phase system
- It ensures balanced power distribution across three phases efficiently
- Root 3 simplifies calculations for three-phase power and current
- It maintains constant power delivery despite phase shifts in AC systems
- Root 3 is derived from symmetrical three-phase circuit geometry

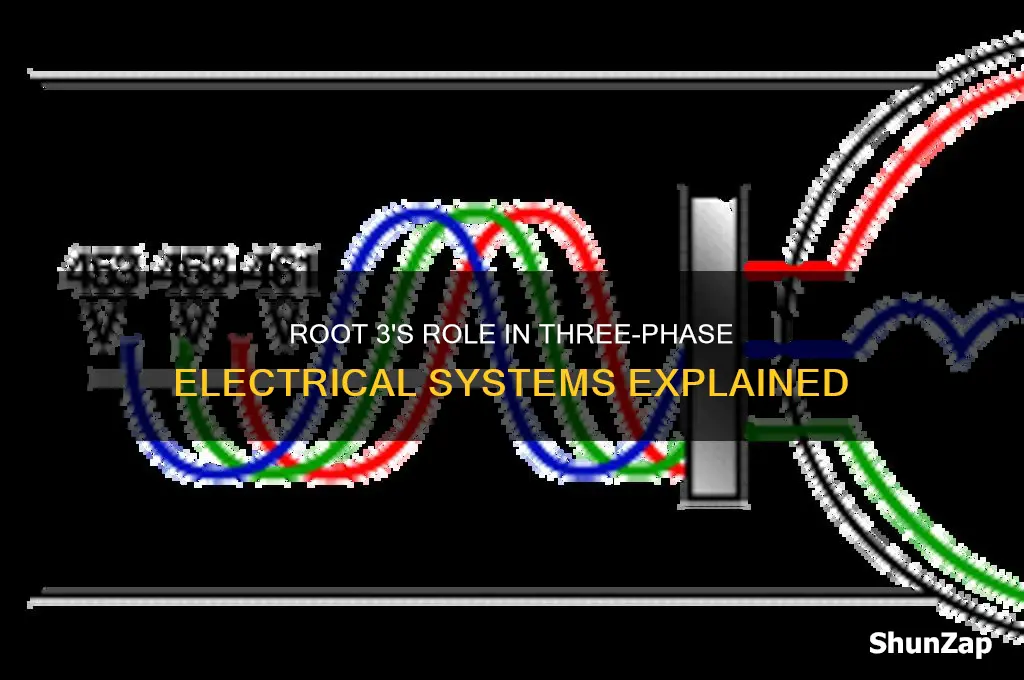

Root 3 relates voltage and line-to-line voltage in a three-phase system
In a three-phase electrical system, the relationship between phase voltage and line-to-line voltage is fundamentally tied to the square root of 3 (√3). This relationship arises from the geometry of the three-phase waveform and the way voltages are distributed across the phases. A three-phase system consists of three sinusoidal voltages that are 120 degrees out of phase with each other. When these voltages are connected in a wye (Y) or delta (Δ) configuration, the line-to-line voltage (the voltage measured between any two phases) is not simply equal to the phase voltage (the voltage from a phase to the neutral point). Instead, it is √3 times the phase voltage in a wye-connected system. This factor of √3 ensures that the system delivers the expected power while maintaining balanced voltages and currents.
The origin of the √3 factor lies in the vector relationship between the phase voltages and the line-to-line voltages. In a balanced three-phase system, the phasor diagram shows that the line-to-line voltage is the vector sum of two phase voltages separated by 120 degrees. Using trigonometry, the magnitude of this vector sum is calculated as √3 times the magnitude of one phase voltage. Mathematically, if the phase voltage is denoted as *Vph*, the line-to-line voltage *Vll* in a wye-connected system is given by *Vll = √3 × Vph*. This relationship is critical for designing and analyzing three-phase systems, as it ensures that the system operates efficiently and that the power delivered is consistent with the applied voltages.
In practical terms, the √3 factor allows engineers to relate the voltage ratings of equipment in three-phase systems. For example, if a three-phase system has a line-to-line voltage of 400V, the phase voltage in a wye configuration would be 400V / √3 ≈ 230.9V. This relationship is essential for selecting appropriate transformers, motors, and other devices that operate within the system. Without understanding the √3 factor, mismatches in voltage ratings could lead to inefficiencies, overheating, or equipment failure. Thus, the √3 relationship is not just a theoretical concept but a practical necessity in electrical engineering.
Another important aspect of the √3 factor is its role in power calculations. In a balanced three-phase system, the total power delivered is the sum of the power in each phase. However, when using line-to-line voltages and line currents, the √3 factor must be included to accurately compute the power. The formula for three-phase power is *P = √3 × Vll × Il × cos(φ)*, where *Vll* is the line-to-line voltage, *Il* is the line current, and *cos(φ)* is the power factor. This formula highlights how the √3 factor ensures that the power calculation aligns with the actual energy delivered by the system. Without this factor, power measurements would be incorrect, leading to improper system design and operation.
In summary, the √3 factor in a three-phase system is a direct consequence of the phase relationships and vector geometry of the voltages. It provides a critical link between phase voltage and line-to-line voltage, enabling accurate system design, equipment selection, and power calculations. Understanding this relationship is essential for anyone working with three-phase electrical systems, as it ensures that the system operates efficiently, safely, and reliably. The √3 factor is not just a mathematical curiosity but a foundational principle in electrical engineering.
