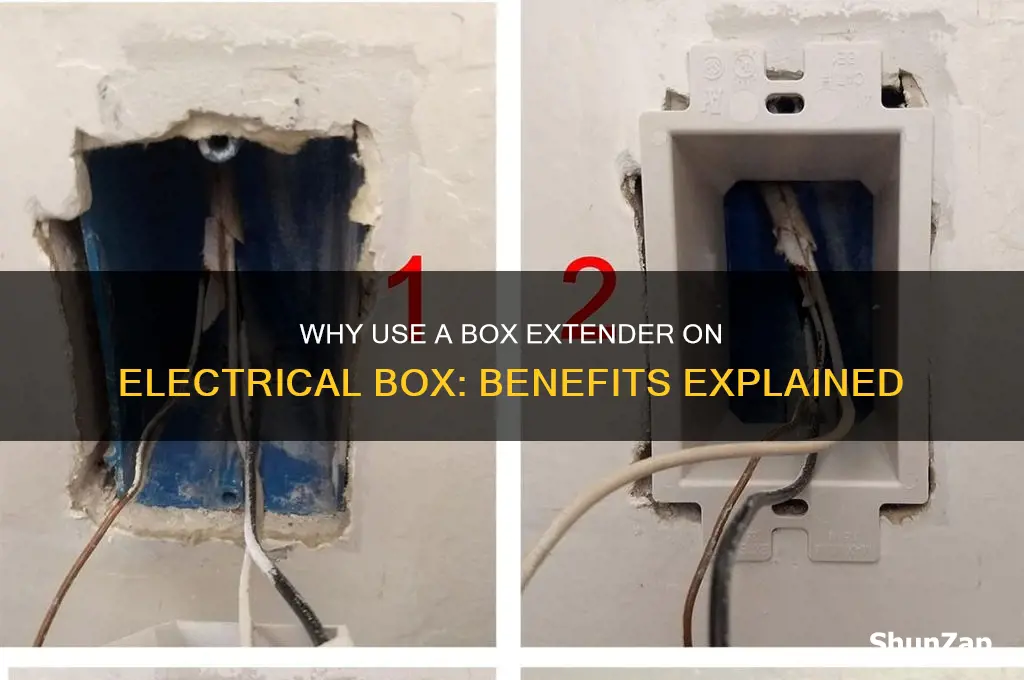

Using a box extender on an electrical box is essential when the existing box is too shallow to accommodate additional wiring, larger devices, or multiple switches and outlets safely. Electrical codes often require a minimum depth to ensure proper wire bending, prevent overcrowding, and reduce the risk of short circuits or overheating. A box extender provides the necessary additional space, ensuring compliance with safety standards and making installations easier and more secure. It’s particularly useful in older homes or when upgrading to modern fixtures, ensuring functionality and longevity while maintaining a neat and professional appearance.
| Characteristics | Values |
|---|---|
| Purpose | Provides additional depth to an electrical box to accommodate larger devices or multiple wires |
| Device Compatibility | Allows installation of larger switches, outlets, GFCIs, dimmers, or other devices that require more space |
| Wire Management | Offers more room for wire connections, reducing overcrowding and potential hazards |
| Code Compliance | Helps meet NEC (National Electrical Code) requirements for box volume and wire fill |
| Box Types | Available for various box types, including metal, plastic, new work, and old work boxes |
| Material | Typically made of durable materials like metal or plastic, ensuring longevity and safety |
| Installation | Easy to install, often requiring only a few screws to attach to the existing box |
| Depth Adjustment | Comes in different depths (e.g., 1/2", 1", 1-1/4") to suit specific needs |
| Safety | Reduces the risk of overheating, short circuits, and other electrical issues caused by cramped wiring |
| Aesthetic | Provides a neat and professional appearance by ensuring devices sit flush with the wall surface |
| Cost-Effectiveness | Affordable solution compared to replacing an entire electrical box or rewiring |
| Applications | Ideal for renovations, upgrades, or installations where existing boxes are too shallow |
Explore related products
What You'll Learn
- Increased Capacity: Allows more wires and devices in a single box, reducing clutter and improving organization
- Code Compliance: Meets NEC requirements for box fill, ensuring safety and passing inspections
- Versatility: Adapts shallow boxes for larger switches, GFCIs, or dimmers without replacing the box
- Cost-Effective: Cheaper than replacing or adding new boxes, saving time and materials
- Ease of Installation: Simple to attach, requiring minimal tools and no rewiring
Increased Capacity: Allows more wires and devices in a single box, reducing clutter and improving organization
When working with electrical installations, one of the primary reasons to use a box extender is to increase the capacity of the electrical box. Standard electrical boxes often have limited space, which can quickly become cramped when multiple wires and devices need to be installed. A box extender effectively enlarges the interior volume of the box, allowing for more wires, cables, and devices to fit comfortably. This increased capacity is particularly beneficial in complex wiring setups, such as those found in modern homes or commercial buildings, where numerous circuits and connections converge in a single location. By accommodating more components, the extender ensures that the box remains functional and safe without the need for additional boxes or rework.
The reduction of clutter is another significant advantage of using a box extender. Overcrowded electrical boxes can lead to tangled wires, difficulty in identifying specific connections, and increased risk of short circuits or other hazards. With a box extender, there is ample space to organize wires neatly, separate different circuits, and ensure that each device has its own designated area. This not only improves the aesthetics of the installation but also enhances safety by minimizing the chances of accidental damage or interference between wires. Proper organization also simplifies future maintenance, as electricians can quickly locate and work on specific components without navigating a tangled mess.
Improving organization within the electrical box is a direct result of the increased capacity provided by a box extender. When wires and devices are tightly packed, it becomes challenging to maintain a logical layout, which can lead to confusion during troubleshooting or upgrades. A box extender allows for systematic arrangement of components, such as grouping wires by circuit, positioning devices for easy access, and leaving enough space for labels or markings. This level of organization is crucial for long-term reliability and efficiency, as it ensures that the electrical system remains manageable and understandable for anyone who may need to work on it in the future.
In addition to practical benefits, the use of a box extender aligns with electrical code requirements in many jurisdictions. Electrical codes often specify minimum box volumes based on the number and type of wires and devices installed. Without sufficient space, the installation may fail inspection, leading to costly delays and rework. By using a box extender, electricians can ensure compliance with these regulations, avoiding potential legal issues and ensuring the safety and legality of the installation. This proactive approach not only saves time and money but also reinforces the overall integrity of the electrical system.
Finally, the flexibility provided by a box extender is invaluable in both new installations and retrofit projects. In new constructions, it allows for future-proofing the electrical system by providing extra space for potential upgrades or additions. In retrofit scenarios, where existing boxes may be undersized for modern requirements, a box extender offers a practical solution without the need to replace the entire box or reconfigure the surrounding structure. This adaptability makes box extenders a versatile tool in any electrician’s arsenal, ensuring that electrical boxes can meet the demands of evolving technology and usage patterns.
Electric vs. Gas Cars: Which is the Smarter Choice?
You may want to see also
Explore related products
Code Compliance: Meets NEC requirements for box fill, ensuring safety and passing inspections
When working with electrical installations, ensuring compliance with the National Electrical Code (NEC) is paramount for safety and legal adherence. One critical aspect of the NEC is the box fill requirements, which dictate the maximum number of conductors and devices allowed in an electrical box. Using a box extender on an electrical box is a practical solution to meet these requirements, ensuring that the installation is both safe and code-compliant. Box extenders increase the volume of the electrical box, providing additional space for wires and devices, which is especially crucial in situations where the original box is too small to accommodate the necessary components without overcrowding.
Overcrowding an electrical box can lead to several hazards, including overheating, insulation damage, and increased risk of electrical fires. The NEC specifies precise calculations for determining the minimum box volume required based on the number and type of conductors and devices. By using a box extender, electricians can easily achieve the necessary volume without the need for extensive rework or replacement of the existing box. This not only ensures compliance with NEC box fill requirements but also enhances the overall safety of the electrical system by preventing potential hazards associated with cramped wiring.
Another significant benefit of using a box extender is the ease of passing inspections. Electrical inspectors rigorously check for compliance with NEC standards, including box fill calculations. An overcrowded box is an immediate red flag and can result in failed inspections, costly rework, and project delays. By proactively using a box extender, electricians can demonstrate adherence to code requirements, streamlining the inspection process and reducing the likelihood of issues. This proactive approach not only saves time and money but also reinforces the professionalism and reliability of the electrical work.
Furthermore, box extenders are versatile and can be used in various applications, including new installations, renovations, and upgrades. They are available in different sizes and materials, allowing for compatibility with a wide range of electrical boxes and project requirements. Whether dealing with metal or plastic boxes, single-gang or multi-gang configurations, there is a box extender solution that can help achieve NEC compliance. This adaptability makes box extenders an indispensable tool in an electrician’s arsenal, ensuring that every project meets the necessary safety and regulatory standards.
In summary, using a box extender on an electrical box is a straightforward and effective way to meet NEC requirements for box fill, ensuring safety and facilitating successful inspections. By providing additional volume, box extenders prevent overcrowding, mitigate potential hazards, and simplify compliance with code regulations. For electricians and contractors, incorporating box extenders into their workflow is a best practice that promotes safety, efficiency, and professionalism in every electrical installation.
Electric Vehicles: Greenest Choice or Complex Question?
You may want to see also
Explore related products
Versatility: Adapts shallow boxes for larger switches, GFCIs, or dimmers without replacing the box
A box extender is an essential tool for electricians and DIY enthusiasts alike, offering a versatile solution to a common problem in electrical work: adapting shallow electrical boxes to accommodate larger devices. One of its primary advantages is the ability to adapt shallow boxes for larger switches, which is particularly useful in older homes or installations where the original boxes may not meet modern depth requirements. Instead of undertaking the costly and time-consuming process of replacing the entire box, a box extender provides a simple, efficient workaround. By attaching the extender to the existing box, you create the necessary depth to install larger switches securely, ensuring compliance with electrical codes and proper functionality.
Another significant benefit of box extenders is their ability to accommodate Ground Fault Circuit Interrupters (GFCIs), which are bulkier than standard outlets due to their internal mechanisms. GFCIs are critical for safety in areas like kitchens, bathrooms, and outdoor spaces, but their size often poses a challenge in shallow boxes. A box extender eliminates this issue by providing the additional space needed to fit the GFCI securely, without the need to cut into walls or replace the existing box. This not only saves time but also reduces the risk of damaging wiring or structural elements during installation.
Box extenders also shine when installing dimmer switches, which are increasingly popular for their energy-saving and mood-enhancing capabilities. Dimmers are typically larger than standard switches due to their electronic components, and shallow boxes often lack the depth required to house them properly. By using a box extender, you can easily adapt the existing box to fit the dimmer switch, ensuring a safe and secure installation. This versatility allows homeowners and electricians to upgrade lighting systems without the hassle of replacing the entire electrical box.
Furthermore, box extenders are compatible with a wide range of devices, making them a go-to solution for various electrical projects. Whether you're installing smart switches, USB outlets, or other modern devices that require extra space, a box extender provides the flexibility needed to complete the job efficiently. This adaptability is especially valuable in retrofit scenarios, where modifying the existing infrastructure is often more practical than starting from scratch.
In summary, the versatility of box extenders lies in their ability to transform shallow electrical boxes into functional spaces for larger devices, all without the need for box replacement. From switches and GFCIs to dimmers and beyond, box extenders offer a cost-effective, time-saving, and code-compliant solution for a variety of electrical installations. Their ease of use and broad applicability make them an indispensable tool for anyone working with electrical systems.
How We Use Electricity: Powering Daily Life and Modern Technology
You may want to see also
Explore related products
Cost-Effective: Cheaper than replacing or adding new boxes, saving time and materials
Using a box extender on an electrical box is a cost-effective solution that saves both time and money compared to replacing or adding new boxes. When an electrical box is recessed too far into the wall or doesn't provide enough depth for modern fixtures, a box extender offers a practical fix without the need for extensive rework. Replacing an electrical box often requires cutting into drywall, rewiring, and patching the wall, which can be labor-intensive and expensive. In contrast, a box extender simply attaches to the existing box, bringing it flush with the wall surface or providing additional depth, at a fraction of the cost.
The materials required for installing a box extender are minimal, typically consisting of the extender itself and a few screws. This simplicity translates to significant savings compared to purchasing a new electrical box, additional wiring, and drywall repair supplies. Moreover, the extender eliminates the need for specialized tools or professional assistance, making it an affordable DIY solution for homeowners and electricians alike. By avoiding the costs associated with replacing or adding new boxes, box extenders provide a budget-friendly alternative for electrical upgrades.
Time is another critical factor where box extenders prove their cost-effectiveness. Replacing an electrical box can take hours, involving steps like removing the old box, rewiring, and repairing the wall. In contrast, installing a box extender can be completed in just a few minutes. This time-saving aspect is particularly valuable in commercial or residential projects where minimizing downtime is essential. For electricians, this efficiency means completing more jobs in less time, increasing productivity and reducing labor costs.
Additionally, box extenders reduce material waste, further contributing to their cost-effectiveness. When replacing an electrical box, the old box is often discarded, along with any damaged drywall or wiring. Box extenders, however, repurpose the existing box, minimizing waste and the need for new materials. This eco-friendly approach aligns with cost-saving principles, as it reduces expenses associated with disposal and purchasing new components. By extending the life of the existing box, extenders offer a sustainable and economical solution.
In summary, box extenders are a cost-effective choice because they eliminate the need for expensive replacements or additions of electrical boxes. Their simplicity in installation, minimal material requirements, and time-saving benefits make them an affordable and efficient solution for electrical projects. Whether for a single home improvement task or large-scale renovations, box extenders provide a practical way to save money while achieving the desired electrical box depth or positioning. This makes them an indispensable tool for anyone looking to optimize their electrical work without breaking the bank.
Why Static Electricity Fails as a Viable Power Source
You may want to see also
Explore related products
Ease of Installation: Simple to attach, requiring minimal tools and no rewiring
One of the primary reasons to use a box extender on an electrical box is the ease of installation it offers. Box extenders are designed to simplify the process of adding depth to an existing electrical box, making it easier to accommodate larger devices or additional wiring. Attaching a box extender is straightforward and requires minimal tools, typically just a screwdriver. This accessibility ensures that both professionals and DIY enthusiasts can complete the task efficiently without the need for specialized equipment.
The installation process is remarkably simple and does not involve any rewiring, which is a significant advantage. To attach a box extender, start by turning off the power to the electrical box for safety. Remove the cover plate and device (e.g., switch or outlet) from the box. Next, align the extender with the existing box and secure it using the provided screws. The extender fits seamlessly over the original box, adding the necessary depth without altering the wiring configuration. This plug-and-play approach saves time and eliminates the complexity often associated with electrical modifications.
Another aspect of the ease of installation is the universal compatibility of box extenders. Most extenders are designed to fit standard electrical boxes, ensuring a hassle-free attachment process. Whether you’re working with a single-gang or multi-gang box, the extender can be quickly adapted to meet your needs. This versatility reduces the need for custom solutions or additional adjustments, further streamlining the installation process.
Additionally, box extenders often come with pre-drilled holes and mounting hardware, minimizing the effort required to secure them in place. The intuitive design allows for a snug fit, ensuring stability and safety once installed. Unlike more invasive modifications, such as replacing the entire electrical box, using an extender is a non-disruptive solution that maintains the integrity of the existing setup while providing the necessary functionality.
Finally, the simplicity of attaching a box extender means that projects can be completed in a fraction of the time compared to traditional methods. There’s no need to cut into walls, rewire connections, or deal with complicated assemblies. This efficiency is particularly beneficial in time-sensitive situations or when working on multiple installations. By requiring minimal tools and no rewiring, box extenders offer a practical, user-friendly solution for enhancing electrical box capacity with ease.
Electric vs. Diesel: Uncovering the Cleaner Car Choice
You may want to see also
Frequently asked questions
A box extender is a metal or plastic accessory that increases the depth of an electrical box. It is used when the existing box is too shallow to accommodate wiring, devices, or fixtures safely and in compliance with electrical codes.
It is necessary to use a box extender when the electrical box is not deep enough to hold all the wires, switches, outlets, or fixtures securely, or when additional space is needed to meet code requirements for wire bending and clearance.
Yes, box extenders are available for various types of electrical boxes, including metal, plastic, and remodel boxes. However, it’s important to choose the correct size and type of extender that matches the box and complies with local electrical codes.
When installed correctly, a box extender is safe to use. However, improper installation, such as using the wrong size or type of extender, can lead to loose connections, overheating, or code violations. Always follow manufacturer instructions and local regulations.
