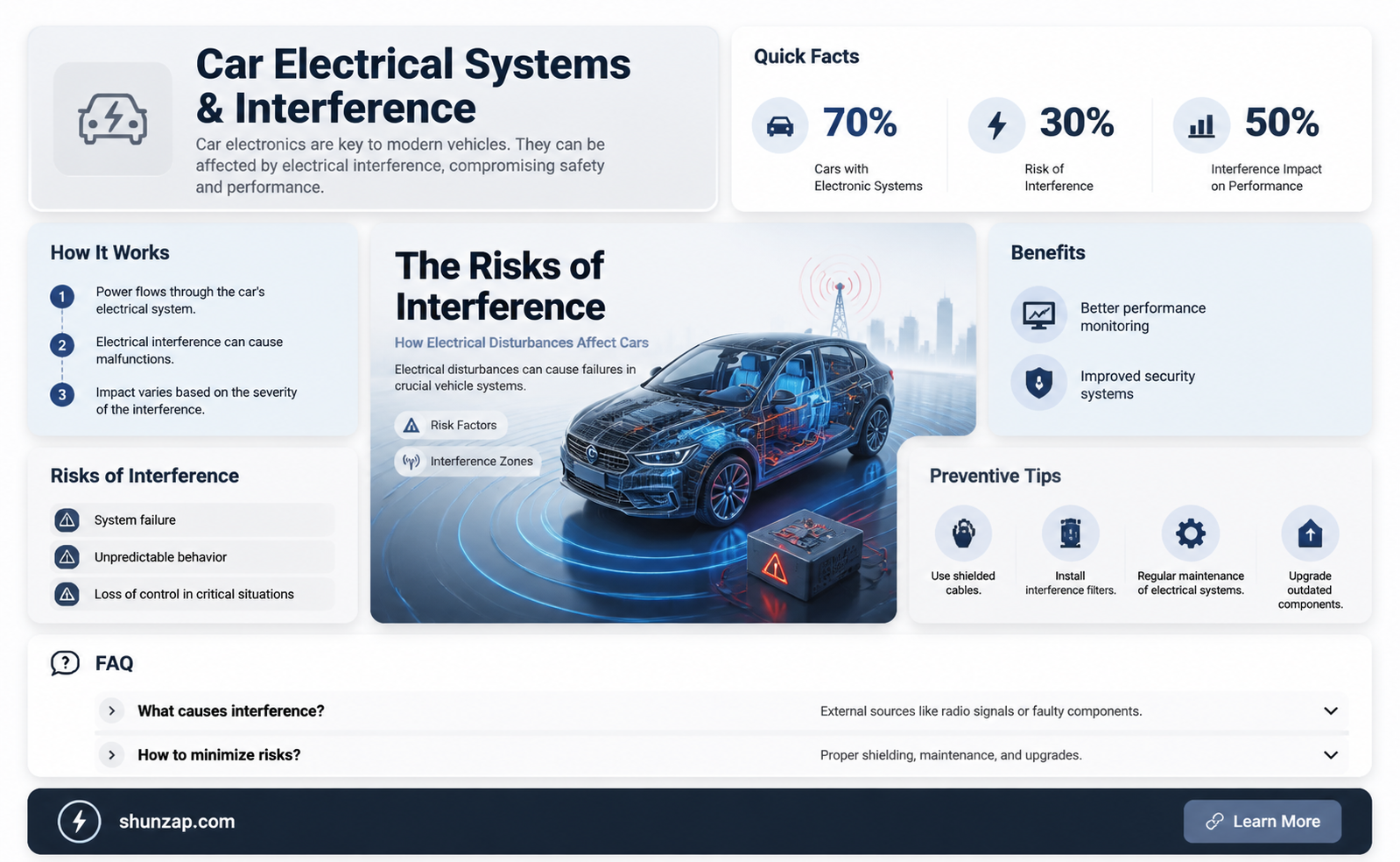

Modern vehicles are increasingly reliant on complex electrical systems, from engine management and infotainment to advanced driver-assistance systems (ADAS). While these technologies enhance performance, safety, and convenience, they also introduce vulnerabilities to electromagnetic interference (EMI). Sources of interference, such as radio signals, power lines, or even other electronic components within the vehicle, can disrupt communication between sensors, controllers, and actuators. This raises concerns about the reliability and safety of electrical systems in cars, particularly as they become more interconnected and dependent on real-time data processing. Understanding the susceptibility of automotive electrical systems to interference is crucial for ensuring their robustness and functionality in an increasingly electrified and digitally integrated transportation landscape.
| Characteristics | Values |
|---|---|
| Prone to Interference | Yes, car electrical systems are susceptible to electromagnetic interference (EMI). |
| Sources of Interference | External (e.g., radio signals, power lines) and internal (e.g., alternators, spark plugs). |
| Affected Components | Engine control units (ECUs), sensors, infotainment systems, and communication modules. |
| Frequency Range | Typically 150 kHz to 30 MHz for conducted emissions and up to GHz for radiated emissions. |
| Regulatory Standards | ISO 11452, CISPR 25, and SAE J1113-11 for EMI testing and compliance. |
| Mitigation Techniques | Shielding, grounding, filtering, and twisted-pair wiring to reduce interference. |
| Impact on Safety | Potential malfunctions in critical systems like braking or steering, posing safety risks. |
| Modern Challenges | Increased use of wireless technologies (e.g., Bluetooth, Wi-Fi) exacerbates interference. |
| Industry Trends | Growing adoption of EMI-resistant designs and materials in automotive manufacturing. |
| Consumer Awareness | Limited, but increasing with the rise of connected and electric vehicles (EVs). |
Explore related products
What You'll Learn
- EMI Sources in Vehicles: External and internal sources of electromagnetic interference in automotive electrical systems
- Shielding Techniques: Methods to protect car electronics from interference using shielding materials
- Wiring Harness Design: Impact of wiring layout and quality on reducing interference in vehicles
- Regulatory Standards: Compliance with EMC standards for automotive electrical systems to minimize interference
- Interference Diagnosis: Tools and techniques for identifying and resolving interference issues in car systems
EMI Sources in Vehicles: External and internal sources of electromagnetic interference in automotive electrical systems
Automotive electrical systems are increasingly complex, integrating advanced technologies such as electronic control units (ECUs), sensors, and communication networks. This complexity makes them susceptible to electromagnetic interference (EMI), which can disrupt functionality and compromise safety. EMI in vehicles can originate from both external and internal sources, each posing unique challenges. Understanding these sources is critical for designing robust systems that mitigate interference and ensure reliable operation.
External EMI sources are prevalent in the environment surrounding vehicles. One significant source is electromagnetic radiation from nearby electronic devices and infrastructure. For instance, radio and television broadcast towers, mobile phone networks, and radar systems emit signals that can interfere with automotive electronics. High-voltage power lines and industrial equipment also generate strong electromagnetic fields, which can couple into vehicle wiring and cause disturbances. Additionally, other vehicles equipped with powerful transmitters or faulty electrical systems can act as unintended sources of interference. Even natural phenomena like solar flares can induce electromagnetic disturbances in the Earth's magnetic field, affecting vehicle systems.
Internal EMI sources arise from within the vehicle itself, often due to the close proximity of various electronic components. High-current systems, such as alternators, starters, and electric motors, generate significant electromagnetic fields that can interfere with sensitive circuits. Switching loads, like relays and power transistors, produce transient spikes and noise, particularly during rapid on/off cycles. In-vehicle communication networks, such as CAN (Controller Area Network) and Ethernet, are also vulnerable to EMI, as signals transmitted over these networks can be corrupted by nearby electromagnetic activity. Furthermore, poor grounding and shielding practices exacerbate internal EMI, allowing noise to propagate throughout the vehicle's electrical system.
Another internal source of EMI is the integration of aftermarket devices, which are often not designed to meet automotive electromagnetic compatibility (EMC) standards. These devices, including GPS systems, dashcams, and entertainment units, can introduce additional noise into the vehicle's electrical environment. Similarly, aging or damaged wiring harnesses can act as antennas, picking up external interference or radiating noise generated within the vehicle. Even the use of wireless technologies like Bluetooth and Wi-Fi within the vehicle can lead to self-interference if not properly managed.
To address these challenges, automotive manufacturers employ various strategies, including shielding critical components, using ferrite cores to suppress high-frequency noise, and implementing grounding techniques to minimize voltage differentials. EMI filters are also integrated into power and signal lines to attenuate unwanted frequencies. Additionally, rigorous testing and compliance with standards such as ISO 11452 ensure that vehicles meet EMC requirements. However, as vehicles become more electrified and connected, the risk of EMI will continue to grow, necessitating ongoing innovation in EMI mitigation techniques.
In conclusion, automotive electrical systems are indeed prone to interference from both external and internal EMI sources. External sources include environmental electromagnetic radiation and nearby electronic devices, while internal sources stem from high-current systems, communication networks, and poor design practices. Addressing these challenges requires a multifaceted approach, combining careful design, robust testing, and adherence to EMC standards. As vehicles evolve, so too must the strategies to combat EMI, ensuring the safety and reliability of modern automotive systems.
Are Car Electrical Problems Expensive? Costs and Repair Insights
You may want to see also
Explore related products
Shielding Techniques: Methods to protect car electronics from interference using shielding materials
Car electrical systems are indeed susceptible to interference from various sources, including electromagnetic fields, radio frequency signals, and even other electronic components within the vehicle. This interference can lead to malfunctions, reduced performance, and potential safety hazards. To mitigate these issues, shielding techniques play a crucial role in protecting car electronics. One of the primary methods involves the use of electromagnetic interference (EMI) shielding materials, which are designed to block or absorb unwanted electromagnetic signals. These materials, such as conductive metals (e.g., aluminum, copper, or steel) or specialized coatings, are applied to enclosures, cables, or specific components to create a barrier against interference. For instance, wrapping sensitive wires in braided shielding or using metal enclosures for control units can significantly reduce the impact of external EMI.
Another effective shielding technique is the application of conductive paints or coatings on surfaces prone to interference. These coatings contain metallic particles that form a conductive layer, reflecting or absorbing electromagnetic waves. This method is particularly useful for larger areas or irregularly shaped components where traditional shielding materials are impractical. For example, the interior of a car’s dashboard or the exterior of an engine compartment can be coated to minimize the penetration of external signals. It’s important to ensure proper grounding of these coatings to maintain their effectiveness, as grounded shields provide a path for interference to dissipate harmlessly.
Cable shielding is another critical aspect of protecting car electronics from interference. High-frequency signals traveling through wires can both emit and receive interference, disrupting nearby components. To combat this, shielded cables are used, which consist of a conductive layer (often braided or foil) surrounding the inner conductors. This design prevents external signals from coupling into the cable and internal signals from radiating outward. In automotive applications, shielded cables are commonly used for sensor connections, data buses (e.g., CAN or LIN), and power lines to ensure reliable communication and operation.
For more comprehensive protection, enclosure shielding is employed to safeguard entire electronic modules or subsystems. This involves constructing the housing of a device using conductive materials or lining it with shielding fabrics. The enclosure acts as a Faraday cage, preventing electromagnetic waves from entering or exiting. This technique is widely used in critical systems like engine control units (ECUs), infotainment systems, and advanced driver-assistance systems (ADAS). Proper sealing of the enclosure is essential to maintain its integrity, as gaps or seams can compromise the shielding effectiveness.
Lastly, grounding and bonding are integral components of shielding techniques. A robust grounding system ensures that any intercepted interference is safely directed away from sensitive electronics. This involves connecting all shielding materials and conductive components to a common ground point, typically the vehicle chassis. Proper bonding between shielded elements minimizes voltage differentials, further reducing the risk of interference. Regular inspection and maintenance of grounding connections are necessary to address corrosion or loose connections that could degrade shielding performance. By combining these shielding methods, automotive engineers can effectively protect car electronics from interference, ensuring reliable and safe operation in increasingly complex vehicle systems.
Electric Vehicle Tax Credit: Carry Forward or Claim Now?
You may want to see also
Explore related products
Wiring Harness Design: Impact of wiring layout and quality on reducing interference in vehicles
Modern vehicles are increasingly reliant on complex electrical systems, making them susceptible to electromagnetic interference (EMI). This interference can disrupt critical functions, compromise safety, and degrade overall performance. Wiring harness design plays a pivotal role in mitigating EMI, as the layout and quality of wiring directly influence the system's susceptibility to interference. Properly designed harnesses can act as a first line of defense, minimizing the impact of electromagnetic noise generated by various vehicle components, such as engines, alternators, and electronic control units (ECUs).
The layout of wiring harnesses is a critical factor in reducing interference. Wires carrying high-current signals, such as power lines, should be segregated from those carrying low-current or sensitive signals, such as sensor inputs or communication lines. This separation prevents high-amplitude electromagnetic fields from inducing noise in adjacent wires. Additionally, routing wires away from potential sources of interference, such as ignition systems or motor controllers, further reduces the risk of EMI. Twisted pair wiring is another effective technique, as it cancels out electromagnetic fields generated by the wires themselves, minimizing radiated interference.
The quality of materials and construction in wiring harnesses also significantly impacts interference reduction. High-quality insulation materials with excellent dielectric properties can effectively shield wires from external electromagnetic fields. Shielded cables, which incorporate a conductive layer around the wires, are particularly effective in high-interference environments. Furthermore, robust connectors and secure terminations ensure that electrical contacts remain stable, preventing intermittent connections that can act as antennas for EMI. Investing in premium materials and precise manufacturing processes may increase costs but is essential for long-term reliability and performance.
Grounding and bonding strategies are integral to wiring harness design for EMI reduction. A well-designed grounding system provides a low-impedance path for electromagnetic noise to dissipate, preventing it from affecting sensitive circuits. Star grounding, where all grounds converge at a single point, is preferred over daisy-chaining, as it minimizes ground loops that can amplify interference. Proper bonding of metal components ensures that the vehicle's chassis acts as an effective Faraday cage, further shielding internal systems from external EMI.
In conclusion, wiring harness design is a critical aspect of minimizing interference in vehicle electrical systems. Thoughtful layout, high-quality materials, and effective grounding strategies collectively contribute to a robust EMI mitigation approach. As vehicles become increasingly electrified and interconnected, the importance of optimizing wiring harness design cannot be overstated. Engineers must prioritize these principles to ensure the reliability, safety, and performance of modern automotive electrical systems.
Electric Vehicles: Gearless Wonders and Why They Work
You may want to see also
Explore related products
Regulatory Standards: Compliance with EMC standards for automotive electrical systems to minimize interference
Electrical systems in modern vehicles are increasingly complex, integrating advanced technologies such as infotainment systems, ADAS (Advanced Driver Assistance Systems), and electric powertrains. This complexity makes them susceptible to electromagnetic interference (EMI), which can disrupt functionality and compromise safety. To address this, regulatory standards have been established to ensure compliance with Electromagnetic Compatibility (EMC) requirements. EMC standards are designed to minimize interference by ensuring that automotive electrical systems operate without causing or being affected by electromagnetic disturbances. Compliance with these standards is not only a legal requirement but also critical for the reliable and safe operation of vehicles.
Regulatory bodies such as the International Electrotechnical Commission (IEC), the European Union (EU), and the Federal Communications Commission (FCC) in the United States have developed specific EMC standards for automotive applications. For instance, the ISO 11452 series provides a comprehensive framework for testing and validating the electromagnetic compatibility of vehicle components. These standards define limits for electromagnetic emissions and immunity, ensuring that systems can withstand interference from both internal and external sources. Manufacturers must conduct rigorous testing to demonstrate compliance, including radiated and conducted emissions tests, as well as immunity tests against various electromagnetic phenomena like electrostatic discharge (ESD) and radio frequency (RF) signals.
Compliance with EMC standards involves a holistic approach during the design and development phases of automotive electrical systems. Engineers must incorporate shielding, filtering, and grounding techniques to mitigate interference. For example, shielded cables and enclosures can prevent electromagnetic emissions from escaping or entering sensitive components. Additionally, proper grounding practices ensure that any unwanted currents are safely directed away from critical systems. The use of ferrites and capacitors for filtering helps suppress high-frequency noise, further enhancing compatibility. These design considerations are essential to meet regulatory requirements and ensure robust performance in real-world conditions.
Regulatory standards also mandate documentation and reporting to verify compliance. Manufacturers must provide detailed test reports, including measurements and analysis, to demonstrate that their systems meet EMC criteria. This transparency ensures accountability and facilitates regulatory oversight. Furthermore, ongoing monitoring and updates to standards are necessary to address emerging technologies and potential new sources of interference. For example, the rise of electric vehicles (EVs) and their high-voltage systems has led to revised standards to account for increased electromagnetic challenges. Staying abreast of these updates is crucial for manufacturers to maintain compliance.
In conclusion, compliance with EMC standards is a cornerstone of minimizing interference in automotive electrical systems. These regulatory frameworks provide clear guidelines for testing, design, and documentation, ensuring that vehicles operate reliably and safely in an increasingly electrified and connected environment. By adhering to these standards, manufacturers not only meet legal obligations but also enhance the overall quality and performance of their products. As automotive technology continues to evolve, the importance of EMC compliance will only grow, making it a critical focus for the industry.
Electric Vehicles: Powering a Sustainable Future for Society
You may want to see also
Explore related products
Interference Diagnosis: Tools and techniques for identifying and resolving interference issues in car systems
Modern vehicles are increasingly reliant on complex electrical and electronic systems, making them susceptible to electromagnetic interference (EMI). Interference can originate from external sources like radio transmitters, power lines, or even other vehicles, as well as internal sources such as alternators, spark plugs, or faulty wiring. Diagnosing interference issues requires a systematic approach and specialized tools to pinpoint the root cause. The first step in interference diagnosis is to identify symptoms, which may include erratic behavior in infotainment systems, malfunctioning sensors, or unexpected warnings on the dashboard. Technicians often start by using multimeters and oscilloscopes to measure voltage fluctuations and signal integrity, as these tools provide real-time data on electrical activity within the vehicle's systems.
One of the most effective techniques for diagnosing interference is the use of spectrum analyzers, which can detect and visualize electromagnetic signals across a wide frequency range. By scanning the vehicle's environment and its internal systems, technicians can identify specific frequencies causing interference. For instance, broadband noise from an alternator or narrowband interference from a nearby radio transmitter can be isolated using this method. Additionally, EMI probes and antennas can be strategically placed to capture signals from different components, helping to narrow down the source of the problem. These tools are particularly useful in distinguishing between conducted interference (through wiring) and radiated interference (through the air).
Another critical tool in interference diagnosis is the use of decoupling and filtering techniques to isolate and resolve issues. Inline filters and ferrite cores can be applied to cables to suppress high-frequency noise, while capacitors and inductors can be added to circuits to reduce conducted interference. In some cases, shielding sensitive components with conductive materials or relocating cables away from noise sources can mitigate interference. Diagnostic software and vehicle-specific scanners are also invaluable, as they can read error codes and monitor system behavior to identify anomalies caused by interference. These tools often provide insights into which modules or sensors are being affected, guiding the technician to the problematic area.
For persistent or complex interference issues, more advanced techniques such as time-domain reflectometry (TDR) and network analyzers may be employed. TDR helps identify faults in wiring harnesses, such as shorts, opens, or impedance mismatches, which can contribute to interference. Network analyzers, on the other hand, assess the integrity of communication buses like CAN (Controller Area Network) or LIN (Local Interconnect Network), ensuring that data transmission is not being corrupted by external or internal noise. These tools are particularly useful in modern vehicles where multiple systems are interconnected, and interference in one area can cascade into broader malfunctions.
Finally, resolving interference issues often involves collaboration between technicians, engineers, and manufacturers. Documenting symptoms, test results, and environmental conditions can provide valuable data for root cause analysis. In some cases, firmware updates or hardware modifications may be necessary to address design flaws or vulnerabilities in the vehicle's electrical system. Regular maintenance, such as checking for loose connections or damaged wiring, can also prevent interference issues from arising. By combining the right tools, techniques, and knowledge, technicians can effectively diagnose and resolve interference problems, ensuring the reliability and safety of modern vehicle systems.
Chrysler's Electric Fleet: Exploring Their EV Offerings
You may want to see also
Frequently asked questions
Yes, car electrical systems can be prone to interference due to the presence of multiple electronic components, wiring, and external electromagnetic sources like radios, power lines, and other vehicles.
Interference in car electrical systems is often caused by electromagnetic fields (EMF) from devices like alternators, ignition systems, or external sources such as cell phones, radar, and nearby electrical equipment.
Interference can disrupt signals in sensors, radios, GPS systems, and even engine management systems, leading to issues like poor radio reception, inaccurate sensor readings, or erratic behavior in electronic components.
Yes, interference can be minimized by using shielded wiring, grounding systems properly, and installing filters or suppressors. Regular maintenance and avoiding exposure to strong external electromagnetic sources also help reduce risks.
