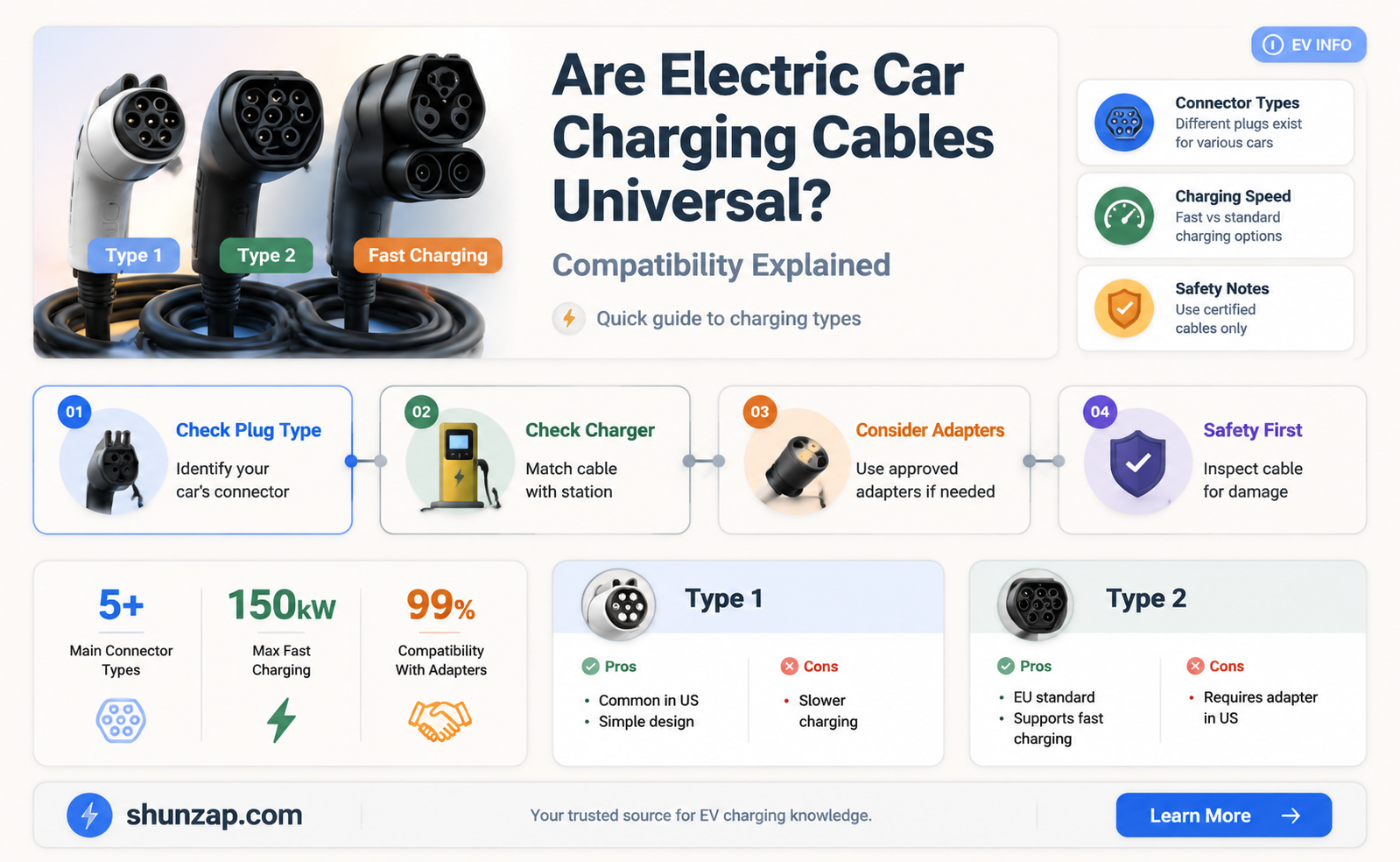

Electric car adoption is on the rise, but a common question for potential buyers is whether charging cables are universal. The short answer is no. While there are efforts towards standardization, electric vehicle (EV) charging cables are not one-size-fits-all. Different charging networks and vehicle manufacturers use various connector types, such as CCS, CHAdeMO, and Type 2, which are incompatible with each other. This lack of universality can lead to confusion and inconvenience for EV owners, especially when traveling or using public charging stations. Understanding the compatibility of charging cables is crucial for a seamless EV ownership experience.
| Characteristics | Values |
|---|---|
| Universality of Charging Cables | Not universal; compatibility depends on connector types and standards. |
| Connector Types | Type 1 (SAE J1772), Type 2 (Mennekes), CCS (Combo 1/2), CHAdeMO, Tesla |
| Charging Standards | AC (Level 1/2) and DC Fast Charging (CCS, CHAdeMO) |
| Vehicle Compatibility | Varies by manufacturer and region; Tesla uses proprietary connectors. |
| Power Levels | AC: 3-22 kW, DC: 50-350+ kW (depends on connector and vehicle). |
| Regional Variations | Type 1 (North America, Japan), Type 2 (Europe), CCS (global adoption). |
| Adapter Availability | Adapters exist for cross-compatibility (e.g., Type 1 to Type 2). |
| Standardization Efforts | CCS is becoming the global DC fast-charging standard. |
| Tesla Supercharger Network | Proprietary; adapters available for non-Tesla vehicles in some regions. |
| Future Trends | Increased adoption of CCS and potential for universal standards. |
Explore related products
What You'll Learn
- Connector Types: Different standards like CCS, CHAdeMO, and Type 2 vary globally
- Charging Speeds: Cables support varying power levels, affecting charging times
- Compatibility Issues: Not all cables work with every electric vehicle model
- Adapter Solutions: Adapters can bridge gaps between incompatible charging ports
- Standardization Efforts: Ongoing initiatives aim to unify charging cable standards worldwide
Connector Types: Different standards like CCS, CHAdeMO, and Type 2 vary globally
The world of electric vehicle (EV) charging is far from standardized, and one of the most significant challenges for EV owners is the variety of connector types used globally. Unlike traditional fuel nozzles, which are largely universal, EV charging connectors come in several different standards, each with its own design and compatibility. This lack of universality can be confusing for drivers, especially when traveling internationally or even across different regions within a country. The three most common connector types are CCS (Combined Charging System), CHAdeMO, and Type 2, each dominating specific markets and vehicle brands.
CCS (Combined Charging System) is the most widely adopted standard in Europe and North America. It combines AC and DC charging in a single connector, making it versatile for both home charging and fast-charging stations. CCS is supported by most European and American car manufacturers, including Volkswagen, BMW, and Ford. The connector has two DC pins below the AC inlet, allowing for high-speed charging up to 350 kW. This standard is backed by the European Union and is becoming the go-to choice for new EV models, ensuring faster charging times and broader compatibility across the continent.
CHAdeMO, on the other hand, is a DC fast-charging standard developed in Japan and primarily used by Asian manufacturers like Nissan, Mitsubishi, and Kia. It is one of the oldest fast-charging standards and has a significant presence in Japan and parts of the United States. CHAdeMO connectors are distinctively larger and rounder compared to CCS and are capable of delivering up to 100 kW, with newer versions aiming for 200 kW. Despite its established network, CHAdeMO is gradually being phased out in favor of CCS in many regions, as the latter offers higher power levels and is more widely supported by newer EV models.
Type 2 connectors are the standard for AC charging in Europe and are used for home and public slow-charging stations. This connector is smaller and more compact, designed for single-phase and three-phase AC charging up to 43 kW. Most European EVs come equipped with a Type 2 inlet, making it the most common connector for daily charging needs. However, Type 2 is not suitable for DC fast charging, which is where CCS comes into play. In regions where Type 2 is prevalent, public charging stations often offer both Type 2 and CCS options to cater to different charging requirements.
The variation in connector types highlights the need for a more unified approach to EV charging infrastructure. While efforts are being made to standardize connectors, especially with CCS gaining traction, the existing diversity poses challenges for both manufacturers and consumers. EV owners must be aware of their vehicle’s compatible connector types and plan their routes accordingly, especially when embarking on long journeys. Additionally, charging networks are increasingly offering adapters or multiple connector options at their stations to accommodate different EV models, though this is not always the case.
In summary, the lack of a universal electric car charging cable is evident in the global adoption of different connector standards like CCS, CHAdeMO, and Type 2. Each standard has its own advantages and regional dominance, but this diversity complicates the charging experience for EV drivers. As the EV market continues to grow, standardization efforts will be crucial to ensuring seamless charging access worldwide. Until then, understanding the specific connector requirements of one’s vehicle remains essential for a hassle-free driving experience.
The Evolution of Crude Electric Vehicles: Understanding Their Basics
You may want to see also
Explore related products
Charging Speeds: Cables support varying power levels, affecting charging times
Electric car charging cables are not universally compatible across all vehicles and charging stations, and one of the key reasons for this is the varying power levels they support, which directly impacts charging speeds. Charging cables are categorized by their power delivery capabilities, typically measured in kilowatts (kW). The most common levels are Level 1 (up to 2.4 kW), Level 2 (up to 22 kW), and DC fast charging (up to 350 kW or more). The cable’s power capacity determines how quickly an electric vehicle (EV) can charge, with higher power levels enabling faster charging times. For instance, a Level 1 cable, often used with standard household outlets, provides slow charging, adding about 5 miles of range per hour. In contrast, a Level 2 cable, commonly found at home charging stations or public chargers, can add 12-80 miles of range per hour, depending on the EV’s onboard charger.
The physical design of the cable also plays a role in its power capacity. For example, AC charging cables (used for Level 1 and Level 2 charging) have different connectors, such as Type 1 (SAE J1772) or Type 2 (Mennekes), which are not interchangeable without an adapter. DC fast-charging cables, on the other hand, use standards like CCS (Combined Charging System) or CHAdeMO, which support much higher power levels but are not compatible with AC charging ports. This incompatibility means that even if a cable fits physically, it may not support the power level required for faster charging, limiting the speed at which an EV can recharge.
The power level a cable supports is also influenced by the EV’s onboard charger and the charging station’s capabilities. For example, if a vehicle’s onboard charger is rated for 7 kW, using a Level 2 cable capable of delivering 22 kW will not charge the car any faster than 7 kW. Similarly, a DC fast-charging cable capable of 150 kW will only charge at the maximum rate supported by both the vehicle and the charging station. This interplay between the cable, vehicle, and station highlights why charging speeds are not universal and depend on the specific components involved.
Another factor affecting charging speeds is the cable’s current capacity, which is often limited by its gauge (thickness). Thicker cables can handle higher currents without overheating, allowing for faster charging. For instance, a Level 2 charging cable with a higher gauge can deliver more power than a thinner one, even if both are rated for the same maximum power level. This is particularly important for DC fast-charging cables, where high currents are necessary to achieve rapid charging times.
In summary, charging speeds are heavily influenced by the power levels supported by electric car charging cables, which are not universal. The cable’s power capacity, physical design, compatibility with the vehicle and charging station, and current-handling capabilities all play critical roles in determining how quickly an EV can charge. Understanding these factors is essential for EV owners to maximize their charging efficiency and minimize downtime, especially when relying on public charging infrastructure.
Electric Vehicles: Greener Driving, Healthier Planet?
You may want to see also
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
Compatibility Issues: Not all cables work with every electric vehicle model
When considering the question of whether electric car charging cables are universal, one quickly encounters the reality of compatibility issues. Not all charging cables work with every electric vehicle (EV) model, and this is primarily due to differences in connector types and charging standards. EVs typically use one of three main connector types: Type 1 (SAE J1772), Type 2 (Mennekes), and CCS (Combined Charging System). While Type 2 has become the standard in Europe, North America primarily uses CCS for DC fast charging and Type 1 for AC charging. This variation means a cable designed for one region or standard may not be compatible with an EV from another region or with a different connector type.
Another layer of complexity arises from the charging capabilities of both the cable and the vehicle. Some EVs support higher power levels, such as 22 kW or more, while others are limited to 3.7 kW or 7.4 kW. Using a cable rated for a lower power level than the vehicle can handle will result in slower charging times, while using a cable rated for higher power than the vehicle supports may not work at all or could potentially damage the vehicle's charging system. Therefore, it’s essential to match the cable’s specifications with the EV’s charging capabilities.
Vehicle-specific protocols further complicate compatibility. Some manufacturers, like Tesla, use proprietary connectors and require adapters to charge at non-Tesla stations. Even when using adapters, the charging speed and efficiency may be compromised. Additionally, certain EVs have unique communication protocols between the vehicle and the charging station, which not all cables support. This means a generic cable might physically fit into the charging port but fail to initiate the charging process due to incompatible communication standards.
For EV owners, understanding these compatibility issues is crucial to avoid inconvenience and potential damage. Always check the vehicle’s manual or consult the manufacturer to determine the correct connector type and charging specifications. When purchasing a charging cable, ensure it is compatible with both the EV’s connector and its charging power requirements. Public charging stations often provide cables, but bringing a personal cable can be useful—provided it is the right one.
In summary, while efforts are being made to standardize EV charging, the current landscape is far from universal. Compatibility issues stemming from connector types, charging capabilities, and vehicle-specific protocols mean that not all cables work with every electric vehicle model. EV owners must remain informed and proactive in selecting the appropriate charging equipment to ensure efficient and safe charging experiences.
Buick's Electric Future: All Models Going Electric?
You may want to see also
Explore related products
Adapter Solutions: Adapters can bridge gaps between incompatible charging ports
Electric vehicle (EV) owners often encounter compatibility issues when trying to charge their cars at different stations, as charging ports and connectors are not universally standardized. While some regions have adopted specific standards, such as CCS (Combined Charging System) in Europe and North America or CHAdeMO in Japan, the lack of a global standard means that drivers may need to rely on adapter solutions to ensure they can charge their vehicles wherever they go. Adapters play a crucial role in bridging the gap between incompatible charging ports, allowing EV owners to access a wider range of charging stations without being limited by their vehicle’s native connector.
One common adapter solution is the CCS-to-Type 2 adapter, which enables vehicles equipped with a CCS port to charge at Type 2 stations, typically found in Europe. Similarly, CHAdeMO-to-Type 2 adapters allow Japanese EVs with CHAdeMO ports to utilize the more widespread Type 2 infrastructure. These adapters are designed to maintain the safety and efficiency of the charging process, ensuring that power delivery is optimized and that communication between the vehicle and the charging station remains intact. For EV owners traveling across regions with different standards, carrying such adapters can significantly reduce range anxiety and increase charging flexibility.
Another adapter solution addresses the transition from older standards to newer ones. For instance, Tesla vehicles, which historically used proprietary connectors, can now be charged at non-Tesla stations using Tesla-to-CCS or Tesla-to-Type 2 adapters. These adapters are particularly useful as more charging networks adopt CCS as the primary fast-charging standard. Additionally, some adapters are designed to convert AC charging ports to DC fast-charging capabilities, though these are less common and often require specific technical compatibility to function safely.
When selecting an adapter, EV owners must consider factors such as power rating, compatibility with their vehicle’s charging system, and the quality of the adapter itself. Low-quality adapters can pose safety risks, including overheating or damage to the vehicle’s battery. Reputable manufacturers often certify their adapters to meet industry standards, ensuring they are safe and reliable. It’s also important to check whether the adapter supports the full range of charging speeds available at a station, as some adapters may limit the maximum charging rate.
While adapters provide a practical solution to charging incompatibility, they are not without limitations. Physical adapters can be bulky and inconvenient to carry, and they may not support all charging features, such as advanced communication protocols or plug-and-charge functionality. Furthermore, relying on adapters can sometimes lead to slower charging times or reduced efficiency. As the EV industry moves toward greater standardization, the need for adapters may diminish, but for now, they remain an essential tool for many drivers.
In summary, adapter solutions are a vital workaround for the current lack of universal charging standards in the EV ecosystem. By enabling compatibility between different charging ports, adapters empower EV owners to charge their vehicles more flexibly and confidently. However, users must choose adapters carefully, ensuring they meet safety and performance requirements. As the industry evolves, adapters will continue to play a key role in making EV ownership more convenient and accessible across diverse charging infrastructures.
Claiming Credit for Your Electric Vehicle: A Step-by-Step Guide
You may want to see also
Explore related products
Standardization Efforts: Ongoing initiatives aim to unify charging cable standards worldwide
The push for universal electric vehicle (EV) charging cables is gaining momentum, driven by the need for interoperability and consumer convenience. Standardization Efforts are at the forefront of this movement, with ongoing initiatives aiming to unify charging cable standards worldwide. One of the most significant efforts is led by the International Electrotechnical Commission (IEC), which has developed the Combined Charging System (CCS) as a global standard. CCS integrates AC and DC charging into a single connector, making it versatile for various charging needs. This standard has been widely adopted in Europe and North America, reducing fragmentation in the market and simplifying the user experience.
Another critical initiative is the CHAdeMO standard, primarily used in Asia and supported by Japanese automakers like Nissan and Mitsubishi. While CHAdeMO has been a pioneer in DC fast charging, efforts are underway to ensure compatibility with CCS through adapters and hybrid connectors. The Open Charge Alliance (OCA) is also playing a pivotal role by promoting the Open Charge Point Protocol (OCPP), which standardizes communication between charging stations and EVs, regardless of the connector type. These collaborative efforts aim to create a seamless charging experience across different regions and vehicle brands.
In the United States, the Society of Automotive Engineers (SAE) has developed the J1772 standard for Level 1 and Level 2 AC charging, which is widely used for home and public charging stations. However, the adoption of CCS for DC fast charging is increasingly becoming the norm, aligning with global trends. Meanwhile, the European Union has mandated the use of CCS for all new EV charging stations, further solidifying its position as the leading standard in the region. These regional efforts are gradually converging toward a unified global standard.
China, the world’s largest EV market, has its own GB/T standard for charging connectors, which differs from CCS and CHAdeMO. However, Chinese manufacturers are increasingly producing vehicles compatible with multiple standards, and some charging stations now support both GB/T and CCS. This flexibility reflects a growing recognition of the need for interoperability in a globalized EV market. International collaborations, such as those between the IEC and Chinese standardization bodies, are also exploring ways to harmonize these standards.
Finally, Tesla, a major player in the EV industry, has its proprietary charging connector and network, known as the Tesla Supercharger. While Tesla has begun opening its network to non-Tesla vehicles in some regions, the company has also started adopting the CCS standard in Europe for new vehicles. This shift signals a broader industry move toward standardization. Governments and industry stakeholders are increasingly incentivizing the adoption of universal standards through regulations, subsidies, and infrastructure investments, ensuring that the transition to a unified charging ecosystem is both inevitable and imminent.
In summary, Standardization Efforts are making significant strides in unifying charging cable standards worldwide. Through the work of organizations like the IEC, SAE, and OCA, and the alignment of regional standards like CCS, CHAdeMO, and GB/T, the goal of universal EV charging cables is becoming more achievable. These initiatives not only enhance convenience for EV owners but also accelerate the global transition to sustainable transportation.
Ford's Electric Vehicle Future: What's the Plan?
You may want to see also
Frequently asked questions
No, electric car charging cables are not universal. Different vehicles may require specific connectors, such as Type 1, Type 2, CCS, or CHAdeMO, depending on the make, model, and region.
It depends on the station and your vehicle. Public stations often provide cables with standard connectors (e.g., CCS or CHAdeMO), but compatibility varies. Always check your car’s charging port type before using a public charger.
No, home charging cables are not universal. They must match your car’s charging port type (e.g., Type 1 or Type 2). Some vehicles may also require a specific adapter for compatibility.
