Electric car motors have revolutionized the automotive industry, offering a cleaner and more efficient alternative to traditional internal combustion engines. One of the key advancements in these motors is the widespread use of brushless designs. Unlike brushed motors, which rely on physical contact between brushes and a commutator to transfer electrical energy, brushless motors utilize electronic commutation, typically controlled by advanced microprocessors. This innovation eliminates the wear and tear associated with brushes, resulting in higher efficiency, reduced maintenance, and longer lifespans. As a result, brushless motors have become the standard in electric vehicles, contributing to their reliability and performance while aligning with the sustainability goals of the industry.
| Characteristics | Values |
|---|---|
| Type of Motor | Brushless DC (BLDC) or Permanent Magnet Synchronous Motor (PMSM) |
| Efficiency | 90-95% (higher than brushed motors) |
| Maintenance | Low (no brushes to replace) |
| Lifespan | Longer due to reduced wear and tear |
| Noise Level | Lower (less mechanical noise) |
| Size & Weight | Compact and lightweight |
| Torque | High, especially at low speeds |
| Speed Control | Precise, via electronic commutation |
| Cooling | Often liquid-cooled for high performance |
| Cost | Higher initial cost, but lower long-term maintenance |
| Applications | Widely used in modern electric vehicles (EVs) |
| Examples | Tesla, Nissan Leaf, Chevrolet Bolt motors |
Explore related products
What You'll Learn

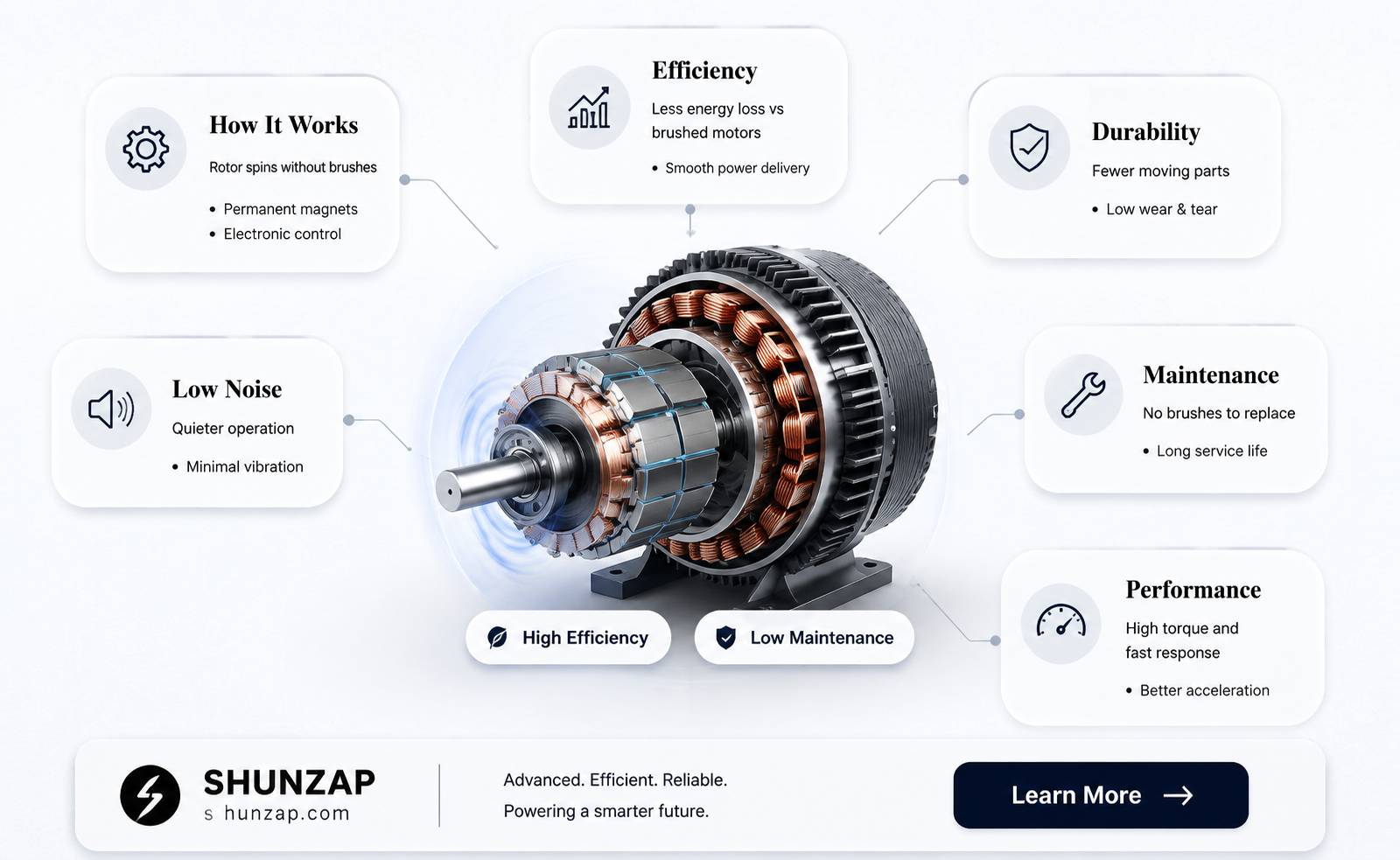

- Brushless Motor Basics: How brushless motors work in electric vehicles, key components, and efficiency
- Advantages Over Brushed Motors: Reduced maintenance, higher efficiency, and longer lifespan in electric cars
- Types of Brushless Motors: AC induction, permanent magnet, and switched reluctance motors in EVs
- Performance in EVs: Torque, speed, and power delivery characteristics of brushless motors
- Challenges and Innovations: Cost, manufacturing complexity, and advancements in brushless motor technology
Brushless Motor Basics: How brushless motors work in electric vehicles, key components, and efficiency
Electric vehicles (EVs) have revolutionized the automotive industry, and at the heart of their propulsion systems are brushless motors. These motors are preferred for their efficiency, reliability, and compact design, making them ideal for electric cars. Unlike brushed motors, which use physical brushes to transfer electrical current to the rotor, brushless motors (also known as BLDC or PMSM motors) eliminate these brushes, reducing friction, wear, and maintenance needs. This fundamental difference is why brushless motors dominate the EV market.
How Brushless Motors Work in Electric Vehicles
Brushless motors operate on the principle of electromagnetic induction. They consist of a stationary part (stator) and a rotating part (rotor). The stator contains coils of wire that, when energized with alternating current, create a rotating magnetic field. The rotor, typically equipped with permanent magnets, aligns itself with this magnetic field, causing it to spin. In EVs, an electronic controller (inverter) manages the flow of electricity to the stator coils, ensuring the rotor rotates smoothly and efficiently. This precise control allows brushless motors to deliver high torque at low speeds, a critical requirement for vehicle acceleration.
Key Components of Brushless Motors
The primary components of a brushless motor include the stator, rotor, and electronic controller. The stator is made of laminated iron cores with windings that form the electromagnetic poles. The rotor houses permanent magnets, often made of rare-earth materials like neodymium, which provide a strong and stable magnetic field. The electronic controller, or inverter, is the brain of the system. It converts the DC power from the vehicle’s battery into AC power for the stator coils and adjusts the frequency and amplitude of the current to control motor speed and torque. Sensors, such as Hall effect sensors or encoders, provide feedback to the controller to ensure precise rotor positioning.
Efficiency Advantages in Electric Vehicles
Brushless motors are highly efficient, typically converting over 90% of electrical energy into mechanical energy, compared to around 75-80% for brushed motors. This efficiency is due to the absence of brush friction and the optimized design of the stator and rotor. In EVs, this translates to longer driving ranges on a single battery charge. Additionally, brushless motors generate less heat, reducing the need for cooling systems and improving overall energy efficiency. Their compact size and lightweight construction also contribute to better vehicle performance and handling.
Role in Electric Vehicle Performance
The efficiency and power density of brushless motors make them essential for EV performance. They provide instant torque, enabling quick acceleration, and maintain high efficiency across a wide range of speeds. Regenerative braking, a feature in many EVs, is also facilitated by brushless motors. During braking, the motor acts as a generator, converting kinetic energy back into electrical energy to recharge the battery. This dual functionality further enhances the overall efficiency of electric vehicles.
In summary, brushless motors are the backbone of electric vehicle propulsion systems, offering high efficiency, reliability, and performance. Their brushless design eliminates many of the drawbacks of traditional motors, making them the ideal choice for the next generation of sustainable transportation. Understanding their basics—how they work, their key components, and their efficiency advantages—highlights why they are indispensable in the EV revolution.
Electric Vehicles: Calculating GHG Savings and Benefits
You may want to see also
Explore related products
Advantages Over Brushed Motors: Reduced maintenance, higher efficiency, and longer lifespan in electric cars
Electric car motors are predominantly brushless, and this design choice offers significant advantages over traditional brushed motors. One of the most notable benefits is reduced maintenance. Brushed motors rely on physical contact between brushes and a commutator to transfer electrical current, which leads to wear and tear over time. These brushes eventually degrade and require replacement, a task that can be both costly and time-consuming. Brushless motors, on the other hand, eliminate this mechanical contact by using electronic controllers to switch current flow. As a result, there are fewer moving parts prone to failure, drastically reducing the need for regular maintenance in electric vehicles (EVs).
Another critical advantage of brushless motors is their higher efficiency. Brushed motors suffer from energy losses due to friction between the brushes and commutator, as well as heat generated by the electrical arcing during operation. Brushless motors minimize these losses by using permanent magnets and electronic commutation, which allows for smoother and more precise control of the motor's operation. This increased efficiency translates to better energy utilization in electric cars, ultimately extending the driving range per battery charge. For EV owners, this means fewer stops for charging and lower operational costs over time.
The longer lifespan of brushless motors is another key advantage in electric cars. The absence of brushes and commutators eliminates a major source of mechanical failure, ensuring that the motor can operate reliably for a much longer period. Additionally, brushless motors generate less heat due to their efficient design, reducing thermal stress on components and further extending their durability. In contrast, brushed motors often require premature replacement due to worn-out brushes or damaged commutators, which can be a significant drawback in vehicles designed for long-term use. This longevity makes brushless motors a more cost-effective and sustainable choice for electric vehicles.
Furthermore, brushless motors offer improved performance in electric cars, which complements their other advantages. Their precise electronic control allows for faster acceleration, smoother operation, and better responsiveness compared to brushed motors. This is particularly important in EVs, where performance and drivability are key factors in consumer satisfaction. The absence of brushes also reduces noise and vibration, contributing to a quieter and more comfortable driving experience. These performance benefits, combined with reduced maintenance, higher efficiency, and longer lifespan, make brushless motors the ideal choice for modern electric vehicles.
In summary, the adoption of brushless motors in electric cars provides substantial advantages over brushed motors, particularly in terms of reduced maintenance, higher efficiency, and longer lifespan. By eliminating the need for brushes and commutators, brushless motors minimize wear and tear, energy losses, and mechanical failures, ensuring reliable and cost-effective operation. These benefits not only enhance the overall performance and durability of electric vehicles but also contribute to a more sustainable and efficient transportation ecosystem. As the automotive industry continues to evolve, brushless motors will remain a cornerstone of electric car technology.
Electric Vehicles: Greenwashing and Environmental Impact
You may want to see also
Explore related products
Types of Brushless Motors: AC induction, permanent magnet, and switched reluctance motors in EVs
Electric vehicle (EV) motors are predominantly brushless, offering higher efficiency, reliability, and longevity compared to brushed motors. Brushless motors eliminate the need for physical commutators and brushes, reducing friction, wear, and maintenance. Among brushless motors, three primary types are used in EVs: AC induction motors (ACIM), permanent magnet synchronous motors (PMSM), and switched reluctance motors (SRM). Each type has distinct characteristics, advantages, and applications in the EV industry.
AC induction motors (ACIM) are widely used in EVs due to their simplicity, robustness, and cost-effectiveness. These motors operate by inducing a current in the rotor through a rotating magnetic field created by the stator. The rotor, typically made of conductive bars, follows the stator's magnetic field, producing torque. ACIMs are favored for their ability to handle high torque at low speeds, making them suitable for heavy-duty applications. However, they rely on external sensors or algorithms for precise control and are generally less efficient than permanent magnet motors, especially at high speeds. Tesla's early models, such as the Roadster, utilized AC induction motors for their durability and performance.
Permanent magnet synchronous motors (PMSM) are the most common type of brushless motor in modern EVs, thanks to their high efficiency, power density, and torque-to-weight ratio. PMSMs use permanent magnets embedded in the rotor, which aligns with the stator's magnetic field to generate motion. This design allows for precise control and high efficiency across a wide speed range. The absence of rotor current losses in PMSMs contributes to their superior efficiency, making them ideal for maximizing range in battery-electric vehicles (BEVs). However, the reliance on rare-earth magnets (e.g., neodymium) raises concerns about cost and supply chain sustainability. Many leading EV manufacturers, including Tesla (in newer models) and Nissan (in the Leaf), employ PMSMs for their performance advantages.
Switched reluctance motors (SRM) are gaining attention in the EV industry as a cost-effective and magnet-free alternative. SRMs operate by energizing stator windings to create a magnetic field that pulls the rotor's salient poles into alignment. Their simple construction, with no magnets or rotor windings, reduces material costs and eliminates concerns about rare-earth dependency. SRMs are also highly reliable and can operate at high temperatures. However, they are inherently less efficient than PMSMs, particularly at high speeds, and produce more noise and vibration due to their reluctance-based operation. Despite these challenges, SRMs are being explored for use in low-cost EVs and specific applications where their advantages outweigh their drawbacks.
In summary, the choice of brushless motor in EVs depends on factors such as cost, efficiency, torque requirements, and sustainability. AC induction motors offer robustness and simplicity, permanent magnet synchronous motors provide high efficiency and performance, and switched reluctance motors present a magnet-free, cost-effective option. As the EV market evolves, advancements in motor technology will continue to shape the balance between these types, driving innovation and improving overall vehicle performance.
Electric Vehicles: Vulnerable to Hacking?
You may want to see also
Explore related products
Performance in EVs: Torque, speed, and power delivery characteristics of brushless motors
Electric vehicles (EVs) predominantly use brushless motors due to their superior efficiency, reliability, and performance characteristics. Brushless motors, specifically Brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM), are favored in EVs because they eliminate the mechanical commutator and brushes found in traditional brushed motors. This design reduces friction, wear, and energy loss, making them ideal for the high-efficiency demands of electric powertrains. The absence of brushes also ensures longer lifespan and lower maintenance, critical for the durability expected in modern EVs.
One of the standout performance attributes of brushless motors in EVs is their torque delivery. Brushless motors provide instant torque from zero RPM, a key advantage for electric vehicles. This characteristic enables EVs to accelerate rapidly and smoothly, often outperforming internal combustion engine (ICE) vehicles in 0-60 mph times. The torque remains consistent across a wide RPM range, ensuring strong performance in both city driving and highway cruising. This is achieved through precise electronic control of the motor's phases, allowing for optimal magnetic field alignment and force generation.
Speed capabilities of brushless motors are another critical aspect of their performance in EVs. These motors can operate at high RPMs with minimal efficiency loss, thanks to their lightweight rotor design and absence of brush-related limitations. In EVs, this translates to higher top speeds and better efficiency at cruising speeds. Additionally, brushless motors can be paired with single- or multi-speed transmissions to optimize performance across different driving conditions, though many EVs use a single-speed gearbox due to the motor's broad RPM range.
Power delivery in brushless motors is smooth and linear, contributing to the refined driving experience of EVs. The electronic control system (typically an inverter) modulates the current and voltage supplied to the motor, allowing for precise control over power output. This results in seamless acceleration and deceleration, with regenerative braking further enhancing efficiency by converting kinetic energy back into electrical energy. The ability to fine-tune power delivery also improves traction control and stability, particularly in high-performance EVs.
In summary, brushless motors in EVs excel in torque, speed, and power delivery, making them the cornerstone of electric powertrain technology. Their instant torque, high-speed capabilities, and smooth power delivery contribute to the superior performance and efficiency of electric vehicles. As EV technology continues to evolve, advancements in brushless motor design and control systems will further enhance their role in shaping the future of sustainable transportation.
Switzerland's Electric Vehicle Future: Ban or Embrace?
You may want to see also
Explore related products
Challenges and Innovations: Cost, manufacturing complexity, and advancements in brushless motor technology
The adoption of brushless motors in electric vehicles (EVs) has been a significant advancement, but it comes with its own set of challenges and opportunities for innovation. One of the primary challenges is cost. Brushless motors, particularly those used in EVs, require high-performance magnets, often made from rare-earth materials like neodymium. These materials are expensive and subject to supply chain vulnerabilities, as a significant portion of rare-earth production is concentrated in a few countries. Reducing the reliance on rare-earth magnets or finding cost-effective alternatives is a critical area of research. Innovations such as the development of ferrite-based magnets or hybrid magnet designs aim to lower costs without compromising performance, making brushless motors more accessible for mass-market EVs.
Manufacturing complexity is another hurdle in the widespread adoption of brushless motors for EVs. These motors involve intricate designs, precise assembly, and advanced control systems, which require sophisticated manufacturing processes. The integration of power electronics and sensors adds further complexity, demanding high levels of automation and quality control. Innovations in manufacturing technologies, such as automated assembly lines, 3D printing for custom components, and improved quality assurance techniques, are addressing these challenges. Additionally, standardization of motor designs and modular manufacturing approaches are being explored to streamline production and reduce costs.
Advancements in brushless motor technology itself are driving the evolution of electric car motors. One key innovation is the improvement in motor efficiency, achieved through optimized rotor and stator designs, advanced cooling systems, and enhanced magnetic materials. Higher efficiency not only extends the driving range of EVs but also reduces energy consumption, contributing to sustainability goals. Another significant advancement is the development of integrated motor systems, where the motor, inverter, and gearbox are combined into a single unit. This integration reduces size, weight, and complexity, making it easier to incorporate into vehicle designs while improving overall performance.
The control systems for brushless motors have also seen substantial innovation. Advanced algorithms and real-time monitoring enable precise control of motor speed, torque, and efficiency, ensuring optimal performance under varying driving conditions. The use of artificial intelligence (AI) and machine learning (ML) in motor control systems is emerging as a game-changer, allowing for predictive maintenance and adaptive performance tuning. These smart systems can anticipate wear and tear, optimize energy usage, and enhance the longevity of the motor, further reducing operational costs for EV owners.
Despite these advancements, thermal management remains a critical challenge for brushless motors in EVs. High-power operations generate significant heat, which can degrade performance and reduce the lifespan of motor components. Innovations in cooling technologies, such as liquid cooling systems and phase-change materials, are being developed to address this issue. Additionally, research into heat-resistant materials and designs that minimize thermal losses is ongoing, ensuring that brushless motors can operate efficiently even under demanding conditions.
In conclusion, while the challenges of cost, manufacturing complexity, and thermal management persist, ongoing innovations in brushless motor technology are paving the way for more efficient, affordable, and reliable electric car motors. These advancements not only enhance the performance of EVs but also contribute to the broader goal of sustainable transportation. As research and development continue to accelerate, brushless motors are poised to remain at the forefront of electric vehicle propulsion technology.
Electric Vehicles: Rods and Pistons, What's the Deal?
You may want to see also
Frequently asked questions
Yes, most electric car motors are brushless. Brushless DC (BLDC) or AC induction motors are commonly used in electric vehicles due to their higher efficiency, reliability, and lower maintenance requirements compared to brushed motors.
Brushless motors offer several advantages, including higher efficiency, longer lifespan, reduced noise, and lower maintenance needs. They also provide better torque and power density, which are essential for electric vehicle performance.
While the majority of electric cars use brushless motors, there are rare exceptions. Some older or specialized designs might use brushed motors, but brushless technology dominates the industry due to its superior performance and durability.
