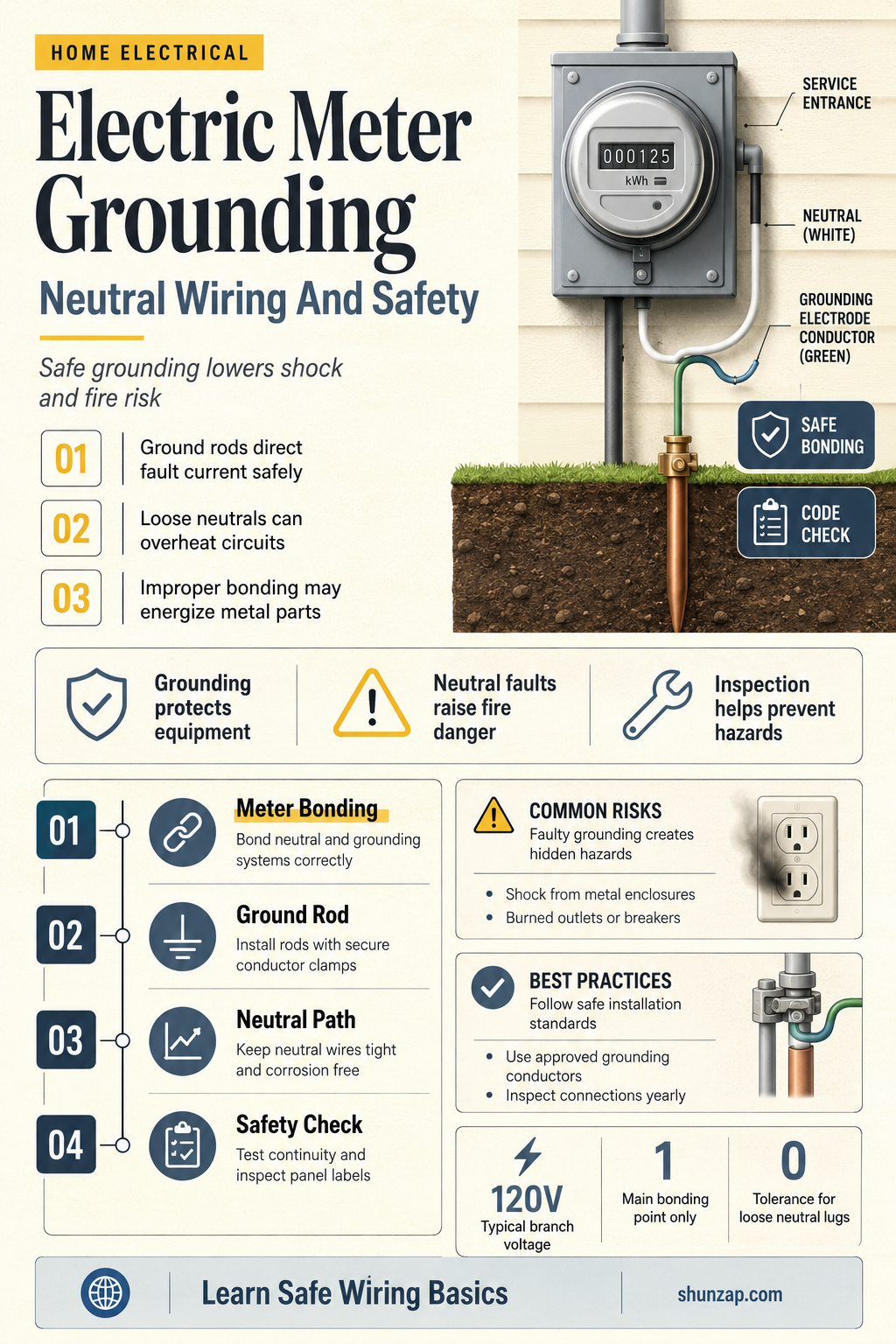

Electric meters are devices that measure electricity consumption. They are typically installed outside of buildings and are connected to the electrical supply source. While electric meters themselves do not require a ground wire to function, it is recommended to provide a solid grounding system for all metering equipment as a safety precaution. This is because electricity naturally wants to return to the ground, and a grounding system provides a safe path for this current, helping to prevent electrical faults and protecting people and equipment from electrocution and fire hazards. In a solidly grounded system, the neutral points are intentionally connected to the earth ground, and all metering equipment must be bonded to the system neutral to prevent equipment from becoming energized in a line-to-ground fault.
Characteristics and Values Table for Electric Meters Grounded Through the Neutral
| Characteristics | Values |
|---|---|
| Safety | Grounding is a safety feature that protects people and electrical equipment from unwanted currents, which can cause fatalities, electrocution, and fires. |
| Function | Grounding connects to the earth, providing a path for electricity when metal parts touch hot or neutral wires, preventing equipment from becoming energized in line-to-ground faults. |
| Regulations | The National Electrical Code (NEC) requires that electrical equipment, including metering equipment, be installed to create a low-impedance circuit facilitating overcurrent devices or ground detectors. Local regulations, such as the Tennessee electrical code, may have additional requirements for meter grounding. |
| Installation | Electricians typically connect the meter to the neutral bus bar bonded ground terminal, with the other end of the wire running to the grounding rod. The safest option is to provide all metering equipment with a solid grounding system, but this is not always necessary if the meter is installed near the utility transformer. |
| Grounding Techniques | Grounding can be achieved through various methods, including using a ground rod, bond wire, or grounding electrode conductor (GEC). The GEC can be run through the service box to the disconnect, but it is not required. |
| Hazards | Parallel paths for neutral current flow across meter equipment or through grounding conductors can create safety, fire, and power quality issues. Poor connections can lead to heating and, in severe cases, fires. |
| Maintenance | For any doubts or questions about grounding meters, it is recommended to consult an expert or the utility company, as tampering with the electric meter is penalized. |
Explore related products
What You'll Learn
Electric meters and safety
Electric meters are devices that measure how much electricity a home or business consumes. They are typically installed outside the building, and there are two main types: analog meters and smart meters. Smart meters are wireless devices that transmit data about a building's energy usage to the utility company, who can then monitor and control the grid.
While electric meters are generally considered safe, there are some safety concerns associated with their use. One key concern is the issue of grounding and bonding. Grounding refers to connecting electrical equipment to the earth, while bonding is the connection that maintains electrical continuity and conductivity. Proper grounding and bonding of metering equipment, such as cabinets, conduits, and sockets, are essential to ensure safety and prevent electrical hazards.
In a solidly grounded system, the neutral points are intentionally connected to the earth ground. The National Electrical Code (NEC) specifies that electrical equipment, wiring, and conductive materials should be installed in a way that creates a low-impedance circuit. This circuit must be capable of safely carrying the maximum ground-fault current that may occur during a line-to-ground fault. To ensure safety, all metering equipment must be bonded to the system neutral to prevent equipment from becoming energized.
Additionally, improper grounding and bonding can lead to issues with ground loops, which are common power quality problems in multifamily homes and commercial facilities. Ground loops can cause unwanted currents, creating safety hazards, fire risks, and power quality issues.
Another safety concern, particularly with smart meters, is the emission of radio-frequency radiation (RFR). Smart meters communicate wirelessly with other smart meters and the utility provider, increasing the density of man-made pulsed RFR radiation. This type of radiation has been linked to various health issues, including increased cancer risk, nervous system damage, reproductive problems, and DNA damage. Some individuals have reported experiencing symptoms such as migraines, disrupted sleep, anxiety, and electronic sensitivity after the installation of smart meters.
To address these concerns, some people have opted to replace smart meters with analog meters, citing health improvements and reduced radiation exposure. However, utility companies may resist these efforts, and there may be legal restrictions on removing smart meters. Overall, while electric meters play a crucial role in energy management, it is essential to prioritize safety by ensuring proper installation, maintenance, and addressing any potential health risks associated with their use.
UK's DWP: Electric Outage Preparedness and Response Plan
You may want to see also
Explore related products
Grounding and bonding
The National Electrical Code (NEC) states that electrical equipment and wiring, including other conductive materials likely to become energised, should be installed to create a low-impedance circuit. This circuit must be capable of safely carrying the maximum ground-fault current likely to be imposed on it from any point in the wiring system. The earth should not be used as the sole equipment grounding conductor or effective ground-fault current path. Therefore, all metering equipment (cabinets, conduits, and sockets) must be bonded to the system neutral for solidly grounded systems to prevent equipment from becoming energised in a line-to-ground fault.
To prevent unwanted currents, which can be a safety, fire, and power quality hazard, parallel paths for neutral current flow should not exist across the surfaces of meter equipment or through grounding conductors inside enclosures. Ground loops are a common power quality issue, especially in multifamily homes, and can be reduced by pulling the subpanel's ground through the ground wire connecting the Service Equipment.
A bond wire can be installed in the conduit, and if a metal conduit is used, the bond wire should be bonded to one end of the conduit, preferably the meter end. Ground electrodes are essential for lightning protection, and a ground rod enables the dissipation of lightning into the earth, stabilising system voltage to the ground.
Induction Cooktops: Electrical Interference or Safe Cooking?
You may want to see also
Explore related products
Grounding conductors
In the context of electric meters, grounding conductors play a critical role in ensuring the safe and proper functioning of metering equipment. Electric meters and their associated components, such as cabinets, conduits, and sockets, can become energised during a line-to-ground fault. To mitigate this risk, grounding conductors are utilised to redirect fault currents into the earth, preventing them from passing through the metering equipment.
The National Electrical Code (NEC) provides guidelines for the installation and usage of grounding conductors. According to the NEC, electrical equipment, including metering devices, should be installed in a manner that facilitates the operation of overcurrent devices or ground detectors. This involves creating a low-impedance circuit capable of safely carrying maximum ground-fault currents.
To achieve effective grounding, multiple techniques can be employed. One method involves utilising ground rods or electrodes, such as grids or meshes, driven into the earth. These grounding electrodes help dissipate lightning strikes and limit voltage surges. Additionally, bond wires can be installed within conduits to provide a bonding path for fault currents. It is important to ensure that the bond wire is larger than the meter control wires and properly bonded to the conduit, preferably at the meter end.
It is worth noting that separate grounding of the meter may not be necessary if it is located close to the grounded service entrance or utility transformer. However, if the meter is situated at a distance from these, it is recommended to ground it to neutralise any potential between the earth and the enclosure. Proper grounding of metering equipment is crucial to ensure the safety of individuals and the protection of sensitive electronic devices.
Range Rover's Electric Brake Controller: What You Need to Know
You may want to see also
Explore related products
Ground-fault protection
Ground faults are inadvertent contact between an energized conductor and the ground or a grounded equipment frame. The return path of the fault current is through the grounding system and any personnel or equipment that becomes part of that system. Ground faults are frequently the result of insulation breakdown, which can be caused by damp, wet, and dusty environments.
To prevent ground faults, it is important to have proper grounding and bonding in meter sockets and electrical systems. Grounding connects to the earth, while bonding is the connection established to maintain electrical continuity and conductivity. Both are essential to maintaining a building's electrical safety.
There are several methods of ground-fault protection implementation:
- Ground Fault Circuit Interrupters (GFCIs): GFCIs are commonly used in residential and commercial settings to provide protection against electric shocks by monitoring the flow of electricity in a circuit.
- Differential Relays: In industrial settings, differential relays are used for more sensitive protection against ground faults in high-voltage systems.
- Ground Fault Monitoring Systems: These systems continuously monitor electrical circuits for ground faults and provide alerts or automatically shut off power when a fault is detected.
- Receptacles: A Ground Fault Circuit Interrupter (GFCI) receptacle safeguards against electric shocks by comparing the outgoing current through the hot wire with the returning current through the neutral wire.
Electric and Gravitational Forces: Similarities in Nature's Laws
You may want to see also
Explore related products
Neutral wire
A neutral wire is a vital component of any electrical system. It carries the circuit back to the original power source, completing the circuit. It is typically identified by white or grey exterior insulation, while live or hot wires are usually covered in black or red insulation. In a well-built circuit, electricity will flow through both the hot and neutral wires to reach its destination.
The neutral wire is not "live" like the other wires in a circuit and does not carry the same voltage, so you will not get electrocuted if you touch it directly. However, an electric shock can occur if there is an imbalance between the two wires in the circuit, causing an electric arc. Therefore, it is important to connect the neutral wire to the ground as a safety measure to protect against electrical shocks and fires. This can be done by installing a bond wire in the conduit or, if using a metal conduit, bonding the wire to one end of the conduit.
In a solidly grounded system, the neutral points are connected to the earth ground as well. The National Electrical Code (NEC) states that electrical equipment and wiring should be installed in a way that creates a low-impedance circuit, facilitating the operation of overcurrent devices or ground detectors for high-impedance grounded systems.
While neutral wires are important for safety, they should not be confused with ground wires, which are typically green and serve as a safety mechanism to provide a path for electricity if any metal parts touch the hot or neutral wire.
Electrical License Transfer: Oklahoma-Texas Reciprocity Explored
You may want to see also
Frequently asked questions
Every home requires a robust grounding system, but the electric meter does not need a separate ground wire if it is installed near the utility transformer. If the meter is far from the grounded service entrance, it must be grounded to neutralize the potential between the earth and the enclosure.
Grounding is a safety feature that protects people and electrical equipment. The ground wire safely moves fault currents into the breaker panel, tripping the circuit.
You can inspect the point where the service entrance wires meet the overcurrent safety device for a service grounding point. The ground wire is usually found in the middle of the meter.
