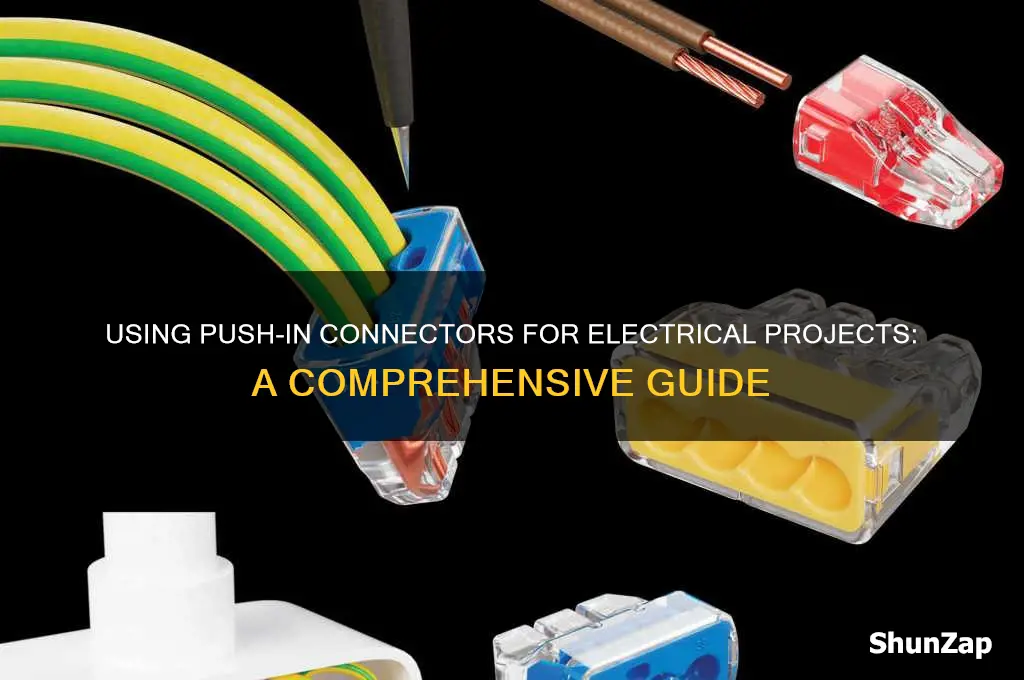

Push-in connectors have become increasingly popular in electrical installations due to their ease of use, time-saving benefits, and reliability. These connectors allow wires to be inserted directly into the terminal without the need for tools, making them ideal for both professional electricians and DIY enthusiasts. However, their suitability depends on the specific application, as factors such as current rating, wire gauge, and environmental conditions must be considered. While push-in connectors are convenient for low-voltage and light-duty applications, they may not be appropriate for high-current or vibration-prone environments. Understanding their limitations and proper usage ensures safe and efficient electrical connections.
Explore related products
What You'll Learn
- Compatibility with Wire Gauges: Check if push-in connectors support the wire gauge you're using
- Voltage and Current Ratings: Ensure connectors meet your circuit's voltage and current requirements
- Installation and Removal: Understand ease of use and reusability of push-in connectors
- Environmental Suitability: Assess if connectors are suitable for your application's conditions (e.g., moisture, heat)
- Safety Standards Compliance: Verify if connectors meet necessary electrical safety certifications
Compatibility with Wire Gauges: Check if push-in connectors support the wire gauge you're using
Push-in connectors are designed to simplify electrical connections, but their effectiveness hinges on compatibility with your wire gauge. Each connector specifies a range of wire gauges it can accommodate, typically expressed in AWG (American Wire Gauge). For instance, a common push-in connector might support 22–14 AWG wires. Using a wire gauge outside this range risks poor contact, overheating, or disconnection. Always consult the manufacturer’s specifications to ensure your wire gauge aligns with the connector’s capabilities.
Consider the practical implications of mismatched wire gauges. A 24 AWG wire, being thinner than the connector’s minimum rating, may slip out or fail to make a secure connection. Conversely, a 12 AWG wire, thicker than the maximum rating, could damage the connector’s internal mechanism or require excessive force to insert. Such mismatches compromise safety and reliability, underscoring the importance of precise gauge compatibility.
To verify compatibility, follow these steps: first, identify the AWG of your wire using a gauge tool or manufacturer markings. Next, check the push-in connector’s specifications, often found on the packaging or datasheet. If the wire gauge falls within the connector’s range, proceed with confidence. If not, opt for a connector with a suitable rating or consider alternative connection methods like screw terminals.
A comparative analysis reveals that push-in connectors excel in applications with standard wire gauges (e.g., 18–20 AWG for low-voltage electronics). However, they may falter in specialized scenarios, such as high-current systems using 10 AWG wires or delicate circuits with 26 AWG wires. In such cases, traditional connectors or custom solutions may be more appropriate. Understanding these limitations ensures optimal performance and longevity.
Finally, a descriptive example illustrates the stakes: imagine a DIY smart home project using 22 AWG wires. A push-in connector rated for 22–18 AWG ensures a snug fit, reliable conductivity, and easy installation. In contrast, a connector rated for 16–12 AWG would leave the wire loose, prone to disconnection, and potentially hazardous. This scenario highlights how gauge compatibility is not just a technical detail but a critical factor in project success.
Using Cast Iron Pans on Electric Stoves: Tips and Best Practices
You may want to see also
Explore related products
$18.08
Voltage and Current Ratings: Ensure connectors meet your circuit's voltage and current requirements
Push-in connectors simplify electrical connections, but their convenience doesn't negate the critical need to match voltage and current ratings to your circuit's demands. Exceeding these ratings can lead to overheating, melting, or even fire hazards. For instance, a connector rated for 125V used in a 240V circuit will likely fail catastrophically. Similarly, a connector designed for 5A won't safely handle a 10A load without risking damage.
To ensure compatibility, start by identifying your circuit's voltage and current requirements. Most household circuits operate at 120V or 240V, while automotive systems typically use 12V or 24V. Current draw varies widely depending on the application; a simple LED might require 0.1A, while a high-power motor could demand 20A or more. Cross-reference these values with the connector's specifications, ensuring both voltage and current ratings exceed your circuit's needs by a comfortable margin.
Consider environmental factors that could affect performance. High temperatures, vibration, or exposure to moisture may necessitate connectors with higher ratings or specialized materials. For example, a connector rated for 10A in a cool, dry environment might only safely handle 8A in a hot, humid setting. Always err on the side of caution, selecting connectors with ratings well above the anticipated maximum load.
Finally, don't overlook the importance of proper installation. Even the highest-rated connector can fail if inserted incorrectly or if the wire gauge is mismatched. Use connectors designed for your wire size, and follow manufacturer guidelines for insertion force and stripping length. Regularly inspect connections for signs of wear or overheating, replacing any components that show deterioration. By meticulously matching voltage and current ratings to your circuit's needs and adhering to best practices, you can harness the convenience of push-in connectors without compromising safety or reliability.
Hand Mixing vs. Electric Mixer: Which Works Best for Your Recipes?
You may want to see also
Explore related products
Installation and Removal: Understand ease of use and reusability of push-in connectors
Push-in connectors are designed for simplicity, but their ease of installation and removal varies by type and application. For instance, WAGO’s 221 series allows wires to be inserted without tools by simply lifting a lever, while Phoenix Contact’s PT series requires pushing the wire directly into the port with moderate force. Removal is equally straightforward: a small actuator or release button disengages the wire, though some models may require needle-nose pliers for tighter spaces. This tool-free approach reduces installation time by up to 60% compared to screw terminals, making them ideal for high-volume wiring projects like control panels or lighting systems.
Reusability is a critical factor in push-in connectors, particularly in applications requiring frequent reconfigurations. High-quality connectors, such as those from Weidmüller, are rated for 100+ insertion cycles without degradation, thanks to spring-loaded mechanisms that maintain consistent contact pressure. However, cheaper variants may wear out after 20–30 cycles, leading to loose connections. To maximize reusability, avoid over-inserting wires or using excessive force during removal, as this can deform the internal springs. For environments with vibration (e.g., industrial machinery), select connectors with vibration-proof ratings to ensure longevity.
When installing push-in connectors, follow these steps for optimal results: strip the wire to the manufacturer’s specified length (typically 8–12 mm), ensure the conductor is straight and undamaged, and insert it firmly until a click or stop is felt. For removal, locate the actuator (often a small orange or white button) and press it while gently pulling the wire. Caution: avoid twisting the wire during removal, as this can cause strand breakage or damage the connector. In confined spaces, use a dedicated removal tool to prevent slipping and accidental short circuits.
Comparatively, push-in connectors offer advantages over screw terminals and crimp connectors in terms of speed and reusability. While screw terminals require a screwdriver and can loosen over time, and crimp connectors are permanent once installed, push-in connectors provide a balance of convenience and flexibility. However, they are not suitable for high-vibration applications without additional securing measures, such as cable ties or strain relief. For outdoor or wet environments, choose IP67-rated connectors with sealed ports to prevent moisture ingress.
In practice, push-in connectors are best suited for low- to medium-current applications (up to 24 AWG wires) in controlled environments like HVAC systems, automation panels, or residential wiring. For high-current scenarios (e.g., motor controls), traditional screw terminals remain the safer choice due to their higher mechanical stability. Always verify compatibility with your wire gauge and insulation type, as mismatches can lead to overheating or connection failure. With proper handling, push-in connectors offer a reliable, reusable solution that streamlines electrical installations while maintaining safety and efficiency.
ECM Blower Motors: Energy Efficiency and Electricity Savings Explained
You may want to see also
Explore related products
![221-2401 | WAGO Lever-Nuts® Inline Splicing Connector | for Solid and Stranded Conductors | 2-Conductor with Operating levers | 24-12 AWG | Transparent housing | White Cover | [Box of 60 Pieces]](https://m.media-amazon.com/images/I/61yTGs92OcL._AC_UY218_.jpg)
Environmental Suitability: Assess if connectors are suitable for your application's conditions (e.g., moisture, heat)
Push-in connectors, while convenient, aren’t universally suited to all environments. Moisture, for instance, can compromise their integrity. In applications exposed to humidity or water, such as outdoor lighting or marine systems, the ingress of moisture can corrode internal components or create conductive paths, leading to short circuits or failures. Even connectors rated for moisture resistance (IP67 or higher) should be inspected regularly for seal degradation, especially in environments with temperature fluctuations that accelerate material fatigue.
Heat is another critical factor. Push-in connectors often use plastic housings and spring mechanisms that may degrade under prolonged exposure to high temperatures. For example, in industrial settings near furnaces or in automotive engine compartments, temperatures exceeding 85°C (185°F) can cause the plastic to warp or the springs to lose tension, reducing contact reliability. In such cases, ceramic-based or metal-housed connectors with temperature ratings up to 150°C (302°F) are more suitable. Always check the connector’s temperature rating against the expected operating conditions.
Chemical exposure further complicates suitability. In environments with solvents, acids, or oils—common in manufacturing or chemical processing—standard push-in connectors may experience material breakdown. For instance, PVC housings can dissolve in acetone, while rubber seals may swell in contact with petroleum-based oils. Opt for connectors with chemically resistant materials like polypropylene or PTFE, and ensure compatibility with specific substances in your application.
Finally, vibration and mechanical stress must be considered. In automotive or aerospace applications, where connectors are subjected to constant vibration, the push-in mechanism’s retention force may weaken over time. Reinforced designs with locking features or secondary retention methods, such as cable ties or adhesive potting, can mitigate this risk. Always test connectors under simulated environmental conditions to ensure they meet durability standards.
In summary, while push-in connectors offer ease of use, their environmental suitability hinges on careful assessment of moisture, heat, chemical exposure, and mechanical stress. Matching connector specifications to application conditions ensures reliability and prevents costly failures. When in doubt, consult manufacturer datasheets or conduct field tests to validate performance.
Using Electrical Tape on 220V Wiring: Safe or Risky Practice?
You may want to see also
Explore related products
Safety Standards Compliance: Verify if connectors meet necessary electrical safety certifications
Push-in connectors simplify electrical installations, but their safety hinges on compliance with rigorous standards. Before integrating these connectors into your project, verify they bear certifications like UL (Underwriters Laboratories), IEC (International Electrotechnical Commission), or CSA (Canadian Standards Association). These marks confirm the connectors have undergone testing for voltage ratings, current capacity, and environmental resilience, ensuring they won’t become hazards under normal or fault conditions.
Certifications aren’t just bureaucratic hurdles—they’re your safeguard against electrical failures. For instance, a UL-listed push-in connector guarantees it meets U.S. and Canadian safety benchmarks, while IEC 60320 compliance ensures international suitability. Always cross-reference the connector’s certification against the specific requirements of your region and application. A connector rated for low-voltage residential use won’t suffice in an industrial setting where higher amperage and environmental stressors are present.
To verify compliance, inspect the connector’s packaging, datasheet, or manufacturer’s website for certification logos and corresponding standards (e.g., UL 489 for circuit breakers). Be wary of generic or unbranded connectors lacking verifiable credentials—they may cut costs upfront but pose long-term risks. If in doubt, consult the certifying body’s database to confirm the product’s legitimacy.
Practical tip: Prioritize connectors with multiple certifications, as they offer broader compatibility and reliability. For example, a connector certified by both UL and VDE (Verband der Elektrotechnik) ensures compliance with both North American and European standards, making it versatile for cross-regional projects. Always align the connector’s certifications with the electrical code governing your installation to avoid legal and safety pitfalls.
Finally, remember that compliance isn’t static. Standards evolve, and connectors must meet the latest revisions to remain safe. Check the certification date and ensure it aligns with current regulations. By rigorously verifying safety certifications, you not only protect your installation but also uphold professional integrity and legal accountability.
Gorilla Glue Duct Tape: Safe for Electrical Wire Repairs?
You may want to see also
Frequently asked questions
Yes, push-in connectors are suitable for residential electrical wiring, provided they comply with local electrical codes and are used within their rated voltage and current limits. Always ensure the connectors are properly installed and compatible with the wire gauge.
Push-in connectors can be reliable if installed correctly, but they may not be as secure as screw terminals in high-vibration environments. For critical applications, screw terminals are often preferred, but push-in connectors are generally acceptable for most standard electrical installations.
Push-in connectors are not typically recommended for outdoor or wet environments unless they are specifically rated for such conditions. Always use weatherproof or waterproof connectors designed for outdoor use to ensure safety and longevity.
