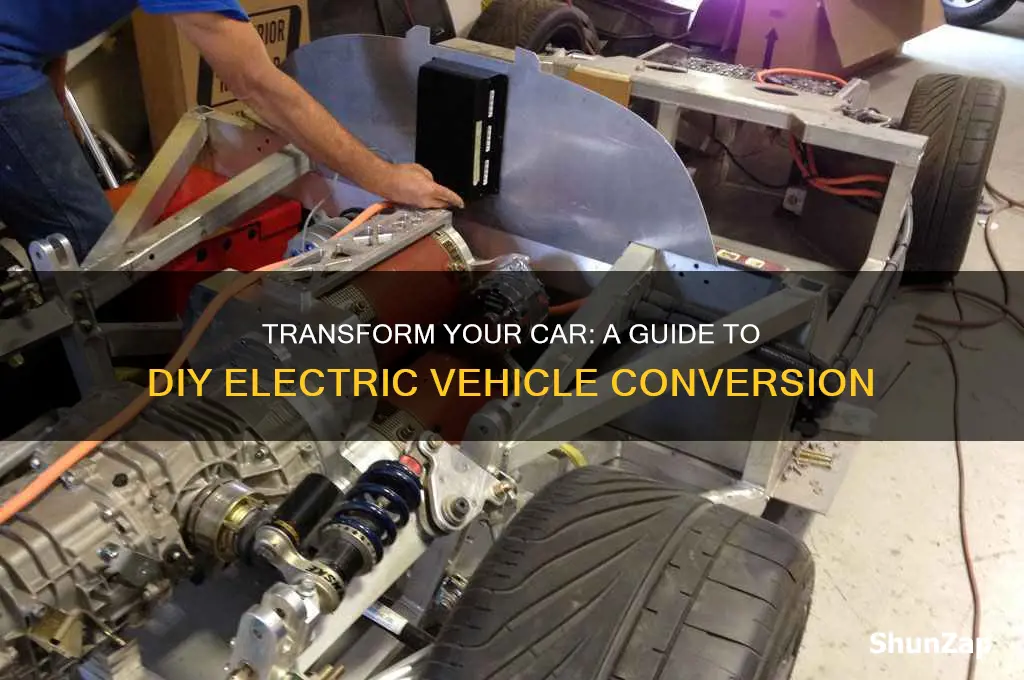

Modifying a traditional internal combustion engine vehicle to run on electricity is an increasingly popular and environmentally conscious endeavor. This process, often referred to as an electric vehicle (EV) conversion, involves replacing the car’s gasoline engine with an electric motor, batteries, and associated components. While it requires technical expertise and a significant investment, it offers benefits such as reduced emissions, lower operating costs, and the satisfaction of repurposing an existing vehicle. However, it’s essential to consider legal regulations, safety standards, and the availability of parts and resources before embarking on such a project. For those with the skills and determination, converting a car to electric power can be a rewarding way to contribute to a greener future while extending the life of an older vehicle.
Explore related products
$12.95
What You'll Learn
- Battery Types: Compare lithium-ion, lead-acid, and solid-state batteries for electric vehicle conversions
- Motor Selection: Choose between AC and DC motors based on efficiency and power needs
- Charging Systems: Install home charging stations or adapt portable charging solutions for convenience
- Controller Setup: Integrate motor controllers to manage power flow and vehicle performance
- Legal Compliance: Ensure modifications meet local regulations and safety standards for road legality
Battery Types: Compare lithium-ion, lead-acid, and solid-state batteries for electric vehicle conversions
Converting a conventional car to electric power hinges on selecting the right battery, a decision that shapes performance, cost, and longevity. Among the contenders, lithium-ion, lead-acid, and solid-state batteries dominate discussions, each with distinct advantages and trade-offs. Lithium-ion batteries, the current industry standard, offer high energy density (100–265 Wh/kg) and a long cycle life (1,000–2,000 cycles), making them ideal for daily driving. However, their cost ($150–$250 per kWh) and thermal management requirements can deter DIY enthusiasts. Lead-acid batteries, the oldest option, are affordable ($50–$100 per kWh) and widely available, but their low energy density (30–50 Wh/kg) and shorter lifespan (300–500 cycles) limit their practicality for long-range conversions. Solid-state batteries, though still emerging, promise higher energy density (300–400 Wh/kg) and improved safety, but their current cost and availability make them a future-looking choice rather than a present solution.
For DIY electric vehicle (EV) conversions, lead-acid batteries often serve as the entry point due to their simplicity and cost-effectiveness. A typical conversion might use 12V deep-cycle batteries wired in series to achieve the desired voltage (e.g., 72V or 96V). However, their weight and space requirements demand careful planning—a 20 kWh lead-acid system can weigh over 1,000 lbs, significantly affecting handling and range. To mitigate this, consider using AGM (Absorbent Glass Mat) lead-acid batteries, which offer better vibration resistance and can be mounted in various orientations. Always ensure proper ventilation and secure mounting to prevent acid leaks or short circuits.
Lithium-ion batteries are the go-to for those prioritizing performance and efficiency. A 20 kWh lithium-ion pack, weighing around 400 lbs, can deliver twice the range of an equivalent lead-acid setup. When sourcing cells, opt for reputable brands like LG Chem, Panasonic, or Tesla modules, and use a Battery Management System (BMS) to monitor voltage, temperature, and balance charging. DIYers should be cautious of second-life EV batteries, as their state of health (SoH) can vary widely—test each cell individually and avoid those below 80% capacity. Proper thermal management, such as liquid cooling or forced air systems, is critical to prevent overheating and extend lifespan.
Solid-state batteries, while not yet mainstream, represent the future of EV conversions. Their non-flammable electrolyte and higher energy density could revolutionize DIY projects, but current prototypes are expensive and hard to source. Enthusiasts tracking this technology should focus on developments from companies like QuantumScape or Solid Power, which are nearing commercialization. Until then, solid-state remains a speculative option, best suited for experimental builds rather than practical daily drivers.
In summary, the choice of battery type depends on budget, technical skill, and desired performance. Lead-acid batteries offer accessibility but compromise on efficiency, lithium-ion delivers a balance of power and practicality, and solid-state holds promise for the future. For most DIY conversions, lithium-ion remains the sweet spot, provided safety and thermal management are prioritized. Always consult local regulations and safety standards when undertaking such a project, and consider joining EV conversion communities for hands-on advice and troubleshooting.
Jaguar's Electric Four-Wheel Drive: Reality or Future Concept?
You may want to see also
Explore related products
Motor Selection: Choose between AC and DC motors based on efficiency and power needs
Electric vehicle conversions demand careful motor selection, and the choice between AC and DC motors hinges on efficiency and power requirements. AC motors, particularly induction and permanent magnet variants, dominate the EV market due to their higher efficiency at high speeds and ability to deliver consistent torque across a wide RPM range. For instance, Tesla’s Model S uses an AC induction motor, achieving efficiencies of up to 90% under optimal conditions. This makes AC motors ideal for highway driving, where sustained high speeds are necessary. However, their complexity and reliance on sophisticated controllers can increase initial costs and maintenance demands.
In contrast, DC motors offer simplicity and cost-effectiveness, making them a viable option for DIY conversions or low-budget projects. Brushed DC motors, while less efficient than AC counterparts (typically 75-85% efficiency), are easier to integrate into existing vehicle systems due to their straightforward design. For example, a small commuter car converted for urban use might prioritize the lower cost and simpler control requirements of a DC motor over the peak efficiency of an AC system. However, DC motors tend to lose efficiency at higher speeds, limiting their suitability for long-distance or high-performance applications.
The power needs of the vehicle are another critical factor. AC motors excel in delivering high power outputs, making them suitable for larger vehicles or those requiring rapid acceleration. A DC motor, while capable of high torque at low speeds, may struggle to maintain power delivery at higher RPMs. For instance, a converted SUV or truck might benefit from an AC motor’s ability to handle sustained loads, whereas a lightweight city car could suffice with a DC motor’s torque-focused performance.
Practical considerations also play a role. AC motors require advanced electronic controllers (inverters) to manage the alternating current, adding complexity to the conversion process. DC motors, on the other hand, can be controlled with simpler circuitry, often using off-the-shelf components. For DIY enthusiasts, this can significantly reduce the learning curve and project costs. However, the trade-off lies in the motor’s long-term efficiency and performance, which may impact the vehicle’s overall range and drivability.
Ultimately, the choice between AC and DC motors depends on the specific use case and project constraints. For high-efficiency, high-performance conversions, AC motors are the superior choice, despite their complexity. For budget-conscious or simplicity-driven projects, DC motors offer a practical alternative, particularly for vehicles with modest power demands. Careful evaluation of efficiency, power needs, and technical expertise will guide the optimal motor selection for any electric vehicle conversion.
Slickline vs. Electric Wireline: Choosing the Right Tool for Well Operations
You may want to see also
Explore related products
Charging Systems: Install home charging stations or adapt portable charging solutions for convenience
Modifying your car to run on electricity isn’t just about swapping engines—it’s about ensuring you can reliably power your vehicle. Charging systems are the backbone of this transition, and choosing the right setup can make or break your EV experience. Home charging stations offer convenience and efficiency, while portable solutions provide flexibility for on-the-go needs. The key is to assess your lifestyle, driving habits, and infrastructure before committing to either.
Installing a home charging station is the most practical option for daily drivers. Level 2 chargers, which require a 240-volt outlet, can fully charge most EVs in 4–8 hours, making overnight charging seamless. Brands like ChargePoint, Tesla Wall Connector, and JuiceBox offer models with Wi-Fi connectivity and scheduling features to optimize energy costs. Installation typically costs $500–$1,500, including electrical upgrades, but tax incentives and utility rebates can offset this expense. Pro tip: Hire a certified electrician to ensure compliance with local codes and safety standards.
For those without garage access or frequent travelers, portable charging solutions are a lifesaver. Level 1 chargers plug into standard 120-volt outlets and deliver 2–5 miles of range per hour, ideal for emergencies or occasional use. However, they’re too slow for primary charging. Portable Level 2 chargers, like the Lectron or EVSE Adapter, offer faster speeds when paired with a 240-volt outlet, though availability of such outlets outside the home is limited. Caution: Always check the amperage rating of your outlet to avoid overloading circuits.
Comparing the two, home charging stations are an investment in long-term convenience, while portable solutions are a tactical workaround. For instance, a homeowner with a 30-mile daily commute benefits from a Level 2 home charger, whereas a renter with sporadic access to charging might rely on a portable Level 1 unit supplemented by public stations. The takeaway? Tailor your choice to your living situation and driving needs.
Finally, consider future-proofing your setup. Smart chargers with load-balancing capabilities can integrate with solar panels or home battery systems, reducing reliance on the grid. Apps like PlugShare or ChargeHub can help locate public charging stations when portable solutions fall short. By blending home and portable options strategically, you can ensure your electric-modified car stays charged, no matter where life takes you.
Uber's Electric Self-Driving Cars: What's the Plan?
You may want to see also
Explore related products
Controller Setup: Integrate motor controllers to manage power flow and vehicle performance
Modifying a car to run on electricity involves more than swapping an internal combustion engine for an electric motor. A critical component of this transformation is the motor controller, which acts as the brain of the electric powertrain. Its primary function is to regulate the flow of electrical energy from the battery to the motor, ensuring optimal performance, efficiency, and safety. Without a properly integrated motor controller, the vehicle’s power delivery, acceleration, and overall drivability would be compromised.
The first step in controller setup is selecting the right motor controller for your specific application. Motor controllers come in various sizes and configurations, with power ratings typically ranging from 50 kW to 200 kW for passenger vehicles. The controller’s voltage and current limits must align with your battery pack and motor specifications. For instance, a 72V motor controller paired with a 144V battery system would require a step-up transformer or a controller designed for higher voltage inputs. Always consult the manufacturer’s datasheet to ensure compatibility and avoid overheating or damage.
Once the controller is selected, the next phase involves physical installation and wiring. The controller should be mounted in a location with adequate ventilation, away from heat sources and moisture. High-current cables connecting the battery, controller, and motor must be properly sized to minimize energy loss and prevent overheating. For example, a 100 kW system might require 150 mm² (AWG 4) cables to handle the current draw efficiently. Secure all connections with appropriate lugs and insulation, and use a multimeter to verify continuity before powering up the system.
Calibration is a critical step often overlooked by DIY enthusiasts. Most motor controllers come with programmable parameters such as torque limits, regenerative braking strength, and thermal thresholds. These settings must be fine-tuned to match the vehicle’s characteristics and the driver’s preferences. For instance, increasing the regenerative braking level can improve energy recovery but may require adjustments to the braking system to prevent jerkiness. Advanced controllers often feature CAN bus communication, allowing integration with the vehicle’s existing dashboard or a custom display for real-time monitoring of power flow and diagnostics.
Finally, safety should be the top priority throughout the controller setup process. High-voltage systems pose significant risks, including electric shock and fire hazards. Install a pre-charge circuit to limit inrush current when the system powers on, and incorporate a contactor or relay to isolate the battery pack when the vehicle is off. A DC fast-blow fuse or circuit breaker should be placed between the battery and controller to protect against short circuits. Regularly inspect all components for signs of wear or damage, and conduct load testing in a controlled environment before hitting the road. With careful planning and execution, a well-integrated motor controller can transform your vehicle into a reliable, high-performance electric machine.
Electric Vehicle Tax Credit: Where to Find It on Returns
You may want to see also
Explore related products
Legal Compliance: Ensure modifications meet local regulations and safety standards for road legality
Modifying a car to run on electricity is an ambitious project, but it’s not a legal free-for-all. Every jurisdiction has its own rules governing vehicle modifications, and electric conversions are no exception. In the U.S., for instance, the National Highway Traffic Safety Administration (NHTSA) and the Environmental Protection Agency (EPA) set federal standards, while individual states may add their own requirements. In California, the California Air Resources Board (CARB) mandates emissions compliance even for electric vehicles. Globally, the European Union’s Whole Vehicle Type Approval (WVTA) framework dictates that any modification must meet safety and environmental standards. Ignoring these regulations can result in fines, vehicle impoundment, or even legal action. Before welding the first battery pack, research local laws to ensure your project doesn’t become a legal nightmare.
Compliance isn’t just about avoiding penalties—it’s about safety. Electric vehicle (EV) conversions involve high-voltage systems, which, if improperly installed, can pose fire or electrocution risks. Regulatory bodies often require third-party inspections to verify that the conversion meets safety standards, such as those outlined in ISO 6469 for EV safety. For example, in the UK, the Single Vehicle Approval (SVA) test ensures that modified vehicles comply with construction and use regulations. Similarly, in Australia, the Modified Vehicle Safety Regulations demand that all alterations, including electrical systems, pass a rigorous engineering certification. These inspections typically assess battery placement, wiring integrity, and insulation to prevent short circuits. Skipping these steps not only jeopardizes legality but also endangers lives.
Navigating the legal landscape requires meticulous documentation. Keep detailed records of every component used, including manufacturer specifications and compliance certifications. For instance, lithium-ion batteries must meet UN 38.3 testing standards for transportation safety. In some regions, like Germany, the TÜV (Technical Inspection Association) requires a detailed technical report of the conversion process. This report should include schematics, load calculations, and proof of compliance with standards like ECE R100 for EV safety. Additionally, notify your insurance provider of the modification, as failure to do so could void your policy. Proper documentation not only facilitates inspections but also protects you in case of disputes or accidents.
Finally, consider the long-term implications of non-compliance. While a DIY electric conversion might seem cost-effective upfront, illegal modifications can devalue your vehicle or make it unsellable. In some cases, unregistered modifications can complicate registration renewals or prevent participation in government incentive programs for EVs. For example, the U.S. federal tax credit for electric vehicles (up to $7,500) is only available for factory-built EVs, not aftermarket conversions. Similarly, in Canada, provincial rebates often exclude vehicles that don’t meet Transport Canada’s safety standards. By ensuring your conversion complies with all regulations, you not only stay on the right side of the law but also maximize the benefits of your investment.
Electric Cars and Lubricants: Do They Really Need Oil?
You may want to see also
Frequently asked questions
Yes, in most regions, it is legal to modify your car to run on electricity, but you must comply with local regulations, safety standards, and vehicle registration requirements. Check with your local DMV or transportation authority for specific guidelines.
The cost varies widely, typically ranging from $5,000 to $20,000 or more, depending on the car, components used, and whether you do it yourself or hire a professional. DIY conversions can be cheaper but require technical expertise.
Key components include an electric motor, battery pack, motor controller, charging system, and adapters for the drivetrain. You may also need to modify the braking system, cooling system, and other components for compatibility.
The range depends on the battery capacity and efficiency of the conversion. Most DIY conversions achieve 50–150 miles per charge, but this can vary based on the car’s weight, aerodynamics, and driving conditions.
