Molly Ayala

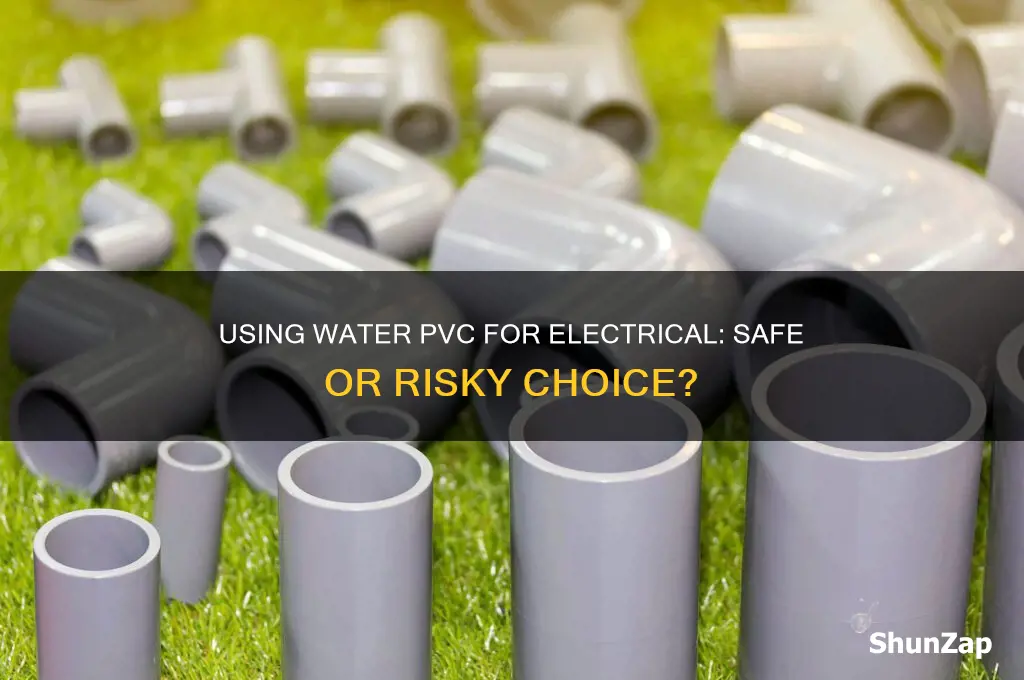

When considering the use of water PVC (polyvinyl chloride) for electrical applications, it is crucial to understand the differences between plumbing-grade PVC and electrical-grade PVC. While both types share similar material properties, they are designed for distinct purposes. Plumbing-grade PVC is not rated for electrical use due to its lack of insulation properties and potential safety hazards, such as melting or fire risks when exposed to high temperatures or electrical currents. In contrast, electrical-grade PVC, often referred to as PVC conduit, is specifically manufactured to meet safety standards for electrical wiring, offering better insulation, heat resistance, and protection against electrical faults. Therefore, using water PVC for electrical purposes is not recommended and could violate building codes, posing significant risks to both property and personal safety. Always consult local regulations and use materials specifically approved for electrical applications.
| Characteristics | Values |
|---|---|
| Material Compatibility | Not suitable for electrical wiring; water PVC is designed for plumbing and may degrade when exposed to electrical heat or chemicals. |
| Code Compliance | Does not meet electrical code requirements (e.g., NEC/NFPA 70) for electrical conduit; using it for wiring is illegal in many jurisdictions. |
| Insulation Properties | Poor electrical insulation; water PVC lacks the necessary properties to safely contain electrical currents. |
| Temperature Resistance | Lower temperature tolerance compared to electrical PVC; may melt or deform near electrical components. |
| Chemical Resistance | Not designed to resist chemicals associated with electrical systems, potentially leading to degradation. |
| Fire Safety | Higher fire hazard; water PVC is less flame-retardant than electrical-grade PVC. |
| Durability | Prone to cracking or brittleness when used in electrical applications due to improper material composition. |
| Cost | Cheaper than electrical PVC, but using it for wiring voids warranties and poses safety risks. |
| Common Misuse | Often mistakenly used for low-voltage projects (e.g., outdoor lighting), but remains unsafe and non-compliant. |
| Recommended Alternative | Use electrical-grade PVC (Schedule 40 or 80) or EMT conduit for wiring applications. |
Explore related products
What You'll Learn
- PVC Types: Not all PVC is suitable for electrical use; check ratings
- Safety Standards: Ensure compliance with NEC and local electrical codes
- Temperature Limits: Verify PVC can handle wire heat without warping
- Chemical Resistance: Assess if PVC withstands electrical insulation materials
- Installation Tips: Properly secure and protect PVC for electrical applications
PVC Types: Not all PVC is suitable for electrical use; check ratings
When considering the use of PVC for electrical applications, it’s crucial to understand that not all PVC types are created equal. PVC, or polyvinyl chloride, is a versatile material used in various industries, including plumbing and electrical. However, the PVC used for water pipes (commonly referred to as water PVC) is not designed or rated for electrical use. Water PVC is typically thinner, less durable, and lacks the necessary insulation properties required for safely containing electrical wires. Using it for electrical purposes could lead to safety hazards, such as short circuits or fires, due to its inability to withstand heat and electrical currents.
The key to determining whether a PVC product is suitable for electrical use lies in its ratings and certifications. Electrical-grade PVC, often labeled as "PVC Conduit" or "Electrical PVC," is specifically manufactured to meet stringent standards for insulation, heat resistance, and durability. It is thicker, more rigid, and often includes additives that enhance its ability to protect electrical wires from environmental factors like moisture, chemicals, and physical damage. Always look for products that comply with industry standards, such as those set by the National Electrical Code (NEC) in the United States, to ensure they are safe for electrical applications.
Water PVC, on the other hand, is optimized for fluid transport and is not subjected to the same rigorous testing as electrical-grade PVC. It may degrade when exposed to high temperatures or electrical currents, compromising its structural integrity. Additionally, water PVC often lacks the necessary markings or certifications that indicate it is safe for electrical use. Using it in electrical installations could void warranties, fail inspections, or worse, pose serious safety risks.
To avoid confusion, carefully examine the product labeling and specifications before purchasing PVC for any project. Electrical-grade PVC will typically have clear markings indicating its suitability for electrical applications, such as "Schedule 40" or "Schedule 80" ratings, which denote wall thickness and pressure resistance. It may also include UL (Underwriters Laboratories) listings or other certifications that confirm its compliance with safety standards. If in doubt, consult with a professional or refer to manufacturer guidelines to ensure the correct type of PVC is being used.
In summary, while PVC is a widely used material, not all types are interchangeable. Water PVC is not suitable for electrical use due to its design and lack of necessary ratings. Always opt for electrical-grade PVC, which is specifically engineered to meet the demands of electrical installations. By checking ratings, certifications, and product specifications, you can ensure the safety and compliance of your electrical projects while avoiding potential hazards associated with using the wrong type of PVC.
Using Toothpicks in Electric Smokers: Tips and Safety Guide
You may want to see also
Explore related products
Safety Standards: Ensure compliance with NEC and local electrical codes
When considering the use of water PVC (Polyvinyl Chloride) for electrical applications, it is crucial to prioritize safety and ensure compliance with established standards. The National Electrical Code (NEC) and local electrical codes are the primary guidelines that dictate the appropriate materials and practices for electrical installations. These codes are designed to minimize risks such as electrical fires, shocks, and other hazards. Water PVC, typically used for plumbing, is not inherently approved for electrical use unless it meets specific criteria outlined in these standards. Therefore, understanding and adhering to these regulations is essential before using any material for electrical purposes.
The NEC, published by the National Fire Protection Association (NFPA), provides detailed requirements for electrical wiring and materials. According to NEC Article 352, which covers nonmetallic conduit and tubing, only certain types of PVC are approved for electrical use. Water PVC, often referred to as Schedule 40 or Schedule 80 PVC, is not listed as an acceptable material for electrical conduit unless it is specifically manufactured and labeled for this purpose. Using non-approved materials can lead to code violations and pose significant safety risks. Always verify that the PVC is rated for electrical use and bears the appropriate markings, such as "Electrical Nonmetallic Tubing (ENT)" or "PVC Conduit."
Local electrical codes may impose additional requirements or restrictions beyond the NEC. These codes can vary by jurisdiction and are often influenced by regional climate, environmental factors, and local safety priorities. Before proceeding with any electrical installation, consult the local building department or a licensed electrician to confirm compliance with all applicable regulations. Failure to meet local code requirements can result in failed inspections, fines, or the need to rework the installation, leading to unnecessary costs and delays.
Proper installation practices are equally important in ensuring safety and compliance. When using approved PVC for electrical applications, follow the NEC guidelines for securing, supporting, and protecting the conduit. This includes maintaining proper bending radii, using compatible fittings, and ensuring the conduit is adequately protected from physical damage and environmental exposure. Additionally, the NEC specifies the maximum number of conductors allowed in a conduit and the fill capacity, which must be strictly adhered to prevent overheating and other hazards.
In summary, while water PVC may seem similar to electrical-rated PVC, it is not automatically suitable for electrical use. Compliance with the NEC and local electrical codes is non-negotiable to ensure safety and legality. Always use materials specifically approved for electrical applications, verify local requirements, and follow proper installation practices. By doing so, you can avoid potential hazards and ensure that your electrical system meets the highest safety standards.
Using Oral-B Electric Toothbrush with Braces: Safe and Effective Tips
You may want to see also
Explore related products
Temperature Limits: Verify PVC can handle wire heat without warping
When considering the use of water PVC (Polyvinyl Chloride) for electrical applications, one critical factor to evaluate is its ability to withstand the heat generated by electrical wires without warping or degrading. PVC is commonly used in plumbing due to its durability and resistance to water, but its suitability for electrical wiring depends largely on its temperature limits. Standard water PVC is typically rated to handle temperatures up to about 140°F (60°C), which is sufficient for most plumbing applications. However, electrical wires can generate heat, especially under high-current conditions, and this heat must be within the PVC’s temperature tolerance to prevent warping or damage.
To verify if water PVC can handle wire heat without warping, it’s essential to understand the specific temperature ratings of the PVC in question. Electrical-grade PVC, often referred to as PVC conduit, is specifically designed to withstand higher temperatures, typically up to 176°F (80°C) or more, depending on the manufacturer. This is because electrical-grade PVC is formulated with additives that enhance its thermal stability. In contrast, standard water PVC may not have these additives, making it less reliable for electrical applications where heat dissipation is a concern. Always check the manufacturer’s specifications to ensure the PVC meets the required temperature thresholds.
Another consideration is the type of wire being used and the expected heat output. For low-voltage or low-current applications, the heat generated may be minimal, and standard water PVC might suffice. However, for high-current or high-power applications, the heat can be significant, and using water PVC could lead to warping, melting, or even fire hazards. In such cases, electrical-grade PVC or other materials like HDPE (High-Density Polyethylene) or metal conduits are safer and more appropriate choices. It’s crucial to assess the specific demands of the electrical system before selecting the conduit material.
Testing the temperature limits of water PVC in a controlled environment can provide practical insights. For example, running a high-current test through wires encased in water PVC and monitoring the temperature with a thermometer can help determine if the material remains stable. If the PVC shows signs of warping, softening, or discoloration, it’s a clear indication that it cannot handle the heat and is unsuitable for the application. Such tests should be conducted with safety precautions, including proper ventilation and fire safety measures.
In conclusion, while water PVC is a versatile material, its use for electrical applications must be approached with caution, particularly regarding temperature limits. Standard water PVC may not be able to handle the heat generated by electrical wires without warping, especially in high-demand scenarios. Always opt for electrical-grade PVC or alternative materials when in doubt, and consult manufacturer specifications and industry standards to ensure compliance and safety. Proper evaluation of temperature limits is essential to prevent potential hazards and ensure the longevity of the electrical system.
Stranded Wire in Electrical Panels: Safe Practices and Code Compliance
You may want to see also
Explore related products
Chemical Resistance: Assess if PVC withstands electrical insulation materials
When assessing the chemical resistance of PVC (polyvinyl chloride) in the context of electrical insulation, it's crucial to understand the material's inherent properties and how they interact with common electrical insulation materials. PVC is widely recognized for its durability and resistance to a variety of chemicals, making it a popular choice in both plumbing and electrical applications. However, the specific formulation of PVC used in water pipes (often referred to as water PVC) may differ from that used in electrical insulation. Electrical-grade PVC is typically engineered to withstand higher temperatures and resist degradation from chemicals commonly found in electrical environments, such as oils, solvents, and acids. Therefore, while water PVC shares many properties with electrical PVC, it is essential to verify its compatibility with electrical insulation materials before use.
One key aspect of chemical resistance is PVC's ability to withstand exposure to oils and coolants, which are frequently present in electrical systems. Electrical-grade PVC is designed to resist swelling, cracking, or degradation when in contact with these substances, ensuring long-term insulation performance. Water PVC, while resistant to many chemicals, may not have the same level of protection against these specific compounds. For instance, mineral oils and synthetic coolants can cause some types of PVC to become brittle or lose their insulating properties over time. To assess suitability, consult manufacturer specifications or conduct material compatibility tests to ensure water PVC can endure the chemical environment of the intended electrical application.
Another critical factor is PVC's resistance to acids and bases, which may be encountered in industrial electrical settings. Electrical-grade PVC typically exhibits excellent resistance to dilute acids and bases, maintaining its structural integrity and insulating capabilities. Water PVC, while generally resistant to household chemicals, may not perform as well under prolonged exposure to stronger industrial chemicals. For example, sulfuric acid or sodium hydroxide could potentially degrade water PVC, compromising its ability to insulate electrical components effectively. Therefore, it is imperative to evaluate the specific chemicals present in the application environment and compare them against the known chemical resistance profile of water PVC.
Temperature resistance is also a vital consideration when assessing PVC's compatibility with electrical insulation materials. Electrical-grade PVC is formulated to retain its properties at elevated temperatures, often up to 105°C (221°F) or higher, depending on the formulation. Water PVC, while suitable for lower-temperature applications, may not maintain its insulating properties at the higher temperatures often found in electrical systems. Prolonged exposure to heat can cause water PVC to soften, deform, or degrade, potentially leading to electrical failures. Thus, ensuring that the temperature requirements of the electrical application align with the capabilities of water PVC is essential for safe and effective use.
Finally, it is important to consider the long-term stability of PVC in electrical environments, particularly its resistance to oxidation and UV radiation. Electrical-grade PVC often includes additives that enhance its resistance to these factors, ensuring it remains effective over time. Water PVC, while durable in its intended applications, may lack these additives, making it more susceptible to degradation when used in electrical insulation. Oxidation from exposure to air or UV radiation from outdoor environments can weaken PVC, reducing its ability to insulate electrical components. To mitigate these risks, apply protective coatings or select PVC specifically formulated for electrical use if water PVC is deemed insufficient.
In conclusion, while water PVC shares many beneficial properties with electrical-grade PVC, its chemical resistance and suitability for electrical insulation applications must be carefully evaluated. Factors such as exposure to oils, acids, bases, temperature, and environmental conditions play a significant role in determining its effectiveness. Always refer to manufacturer guidelines, conduct compatibility tests, and consider the specific demands of the electrical application to ensure safe and reliable performance. When in doubt, opt for PVC explicitly designed for electrical insulation to guarantee the highest level of chemical resistance and long-term durability.
Using Sand to Extinguish Electrical Fires: Safe or Risky?
You may want to see also
Explore related products
Installation Tips: Properly secure and protect PVC for electrical applications
When using PVC (polyvinyl chloride) intended for water applications in electrical projects, it's crucial to ensure proper installation to maintain safety and functionality. While water PVC can be used for electrical purposes in some cases, it must be handled differently due to its thinner walls and lack of specific electrical certifications. Start by selecting the appropriate size and type of PVC conduit for your electrical wiring needs. Ensure the conduit is rated for the environment it will be installed in, such as indoor, outdoor, or underground applications. Always verify local building codes and regulations to confirm compliance, as some jurisdictions may restrict the use of water PVC for electrical installations.
Proper securing of the PVC conduit is essential to prevent damage and ensure longevity. Use PVC straps or clamps specifically designed for electrical installations to secure the conduit to walls, ceilings, or other surfaces. Avoid over-tightening, as this can deform the thinner walls of water PVC, compromising its integrity. Maintain consistent spacing between securing points, typically every 3 to 4 feet, to provide adequate support and prevent sagging. For outdoor installations, consider using UV-resistant straps or clamps to protect against sun damage, as prolonged exposure can degrade the material over time.
Protecting the PVC conduit from physical damage is another critical aspect of installation. When running conduit through areas prone to impact, such as garages or workshops, use protective covers or shields to safeguard the PVC. For underground installations, bury the conduit at the recommended depth (usually 18 to 24 inches) and use warning tape to mark its location. Additionally, ensure that the conduit is properly sealed at all joints and entry points to prevent moisture intrusion, which can damage electrical wiring. Use PVC cement and compatible fittings to create watertight connections, and consider applying a silicone sealant for added protection in wet environments.
Inspecting and maintaining the PVC conduit regularly is vital to ensure its continued safety and effectiveness. Periodically check for signs of wear, cracking, or damage, especially in outdoor or high-traffic areas. Replace any compromised sections promptly to avoid electrical hazards. Keep the conduit clear of debris and obstructions, as blockages can interfere with airflow and heat dissipation, potentially causing overheating. By following these installation tips, you can safely and effectively use water PVC for electrical applications, ensuring a secure and protected system that meets both functional and regulatory requirements.
Using Milk in Electric Warmers: Safety Tips and Best Practices
You may want to see also
Frequently asked questions
No, water PVC (polyvinyl chloride) is not suitable for electrical wiring. It is designed for plumbing and does not meet the safety standards required for electrical conduit.
Using water PVC for electrical wiring poses significant risks, including fire hazards, electrical shorts, and code violations. It lacks the necessary insulation and durability for electrical applications.
For electrical wiring, use PVC conduit specifically designed for electrical applications, such as Schedule 40 or Schedule 80 PVC conduit. These meet safety standards and are approved for electrical use.
