Electric cars do not typically have batteries directly on the wheels; instead, their batteries are usually located in the vehicle's underbody or chassis to optimize weight distribution and safety. This placement helps maintain a low center of gravity, enhancing stability and handling. While some innovative designs might explore wheel-mounted batteries for specific applications, such as in-wheel electric motors, this is not the standard configuration for most electric vehicles (EVs) on the market today. The primary battery pack in EVs powers the electric motor(s), which then drives the wheels, ensuring efficient energy use and performance.
| Characteristics | Values |
|---|---|
| Battery Location | Typically located in the floor (underbody) of the vehicle, not directly on the wheels. |
| Purpose of Underbody Placement | Optimizes weight distribution, lowers center of gravity, and maximizes interior space. |
| Wheel-Mounted Batteries | Rare; some experimental or specialized designs may incorporate small batteries near wheels for specific functions (e.g., in-wheel motors), but not common in mainstream EVs. |
| Examples of Underbody Batteries | Tesla Model S, Nissan Leaf, Chevrolet Bolt, and most modern EVs. |
| Advantages of Underbody Placement | Improved stability, better handling, and enhanced safety in crashes. |
| Disadvantages of Wheel-Mounted Batteries | Uncommon due to challenges in weight distribution, cooling, and mechanical stress on wheels. |
| Future Trends | Research into in-wheel motors with integrated batteries, but not yet widely adopted in production vehicles. |
| Impact on Range | Battery location does not directly affect range; total battery capacity and efficiency are key factors. |
| Charging Considerations | Battery location does not impact charging methods or times. |
| Maintenance | Underbody batteries are designed for durability and require minimal maintenance. |
Explore related products
What You'll Learn
Battery Placement in Electric Vehicles

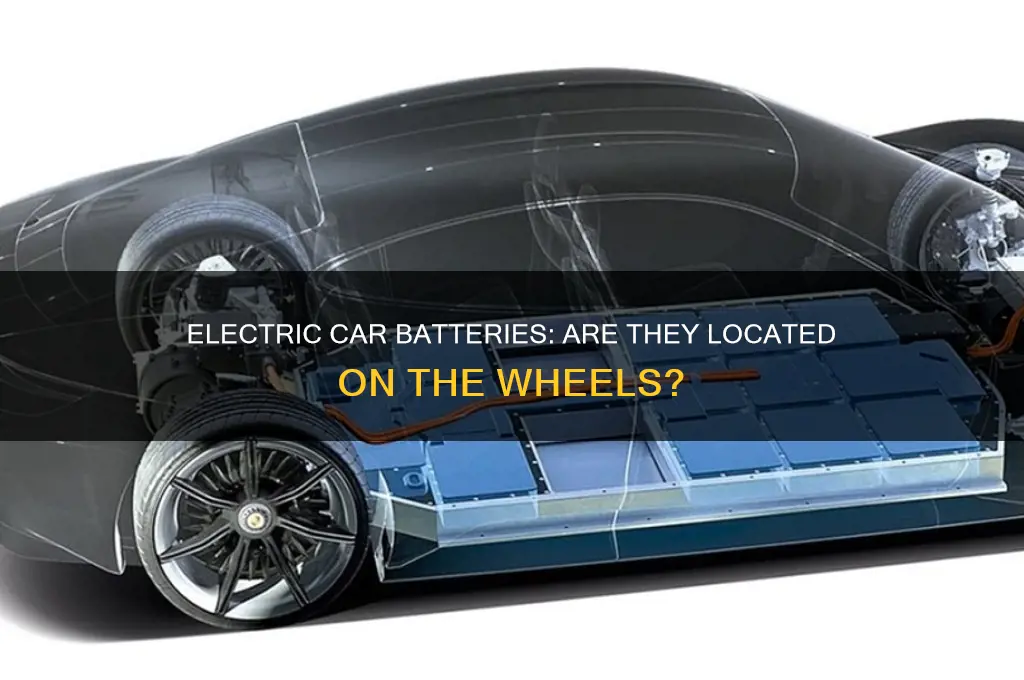

Electric vehicle (EV) batteries are not typically placed on the wheels, but their positioning is a critical design consideration. Most EVs house their batteries in a centralized underfloor location, forming a flat, heavy "skateboard" chassis. This placement lowers the center of gravity, enhancing stability and handling. For instance, Tesla’s Model S and Porsche’s Taycan utilize this layout, which also maximizes cabin and cargo space. Wheel-mounted batteries, while rare, have been explored in prototypes like the Michelin Active Wheel, which integrates motors and batteries into the wheel hubs. However, this design remains experimental due to challenges like unsprung mass and thermal management.
The underfloor battery placement offers several advantages beyond stability. It distributes weight evenly across the vehicle, improving traction and reducing body roll during corners. Additionally, this layout protects the battery from road debris and impacts, a crucial safety feature. However, it also raises the vehicle’s floor, which can affect aerodynamics and interior design. Engineers must balance these trade-offs, often using advanced materials and cooling systems to optimize performance. For example, the Nissan Leaf’s battery pack is encased in a reinforced steel structure, ensuring safety without compromising efficiency.
While wheel-mounted batteries are not mainstream, they represent a frontier in EV innovation. The concept reduces the need for long drivetrain components, potentially increasing efficiency and simplifying design. However, the unsprung mass—the weight not supported by the suspension—can degrade ride quality and tire wear. Prototypes like the Protean Electric in-wheel motor system demonstrate potential, but practical challenges like heat dissipation and durability remain. For now, this technology is more suited to specialized applications, such as urban delivery vehicles or concept cars, rather than mass-market EVs.
For EV owners and enthusiasts, understanding battery placement can inform expectations about performance and maintenance. Underfloor batteries require periodic inspections for damage or corrosion, especially in regions with harsh weather. Wheel-mounted systems, if they become viable, would demand new maintenance protocols, such as monitoring individual wheel units for balance and efficiency. As EV technology evolves, staying informed about these design choices will help consumers make educated decisions and adapt to emerging trends in the industry.
Electric Cars in Floods: Do They Pose an Explosion Risk?
You may want to see also
Explore related products
Wheel-Mounted Batteries: Pros and Cons
Electric cars traditionally house their batteries in the chassis, but the concept of wheel-mounted batteries—placing energy storage directly within the wheels—has emerged as a novel approach. This design shifts the battery’s weight to the wheels, altering the vehicle’s dynamics and potentially improving performance. For instance, in-wheel motors combined with integrated batteries reduce drivetrain complexity, as seen in prototypes like the Protean Electric system. However, this innovation raises questions about balance, safety, and practicality, making it a topic of both intrigue and scrutiny in the EV industry.
One of the most compelling advantages of wheel-mounted batteries is their ability to enhance handling and traction. By placing the battery mass at the wheels, the vehicle’s unsprung weight increases, which can improve road grip and stability, particularly in high-speed cornering or slippery conditions. For example, the Michelin Uptis airless tire concept integrates energy storage, showcasing how this design could revolutionize both tire and battery technology. However, this benefit comes with a trade-off: increased unsprung weight can lead to harsher ride quality, as the suspension struggles to absorb road imperfections effectively.
From a safety perspective, wheel-mounted batteries introduce unique challenges. Batteries in the wheels are more exposed to impact during collisions, raising concerns about fire risks or chemical leaks. Additionally, the rotational forces experienced by the battery during driving could accelerate wear and tear, potentially shortening its lifespan. Manufacturers would need to develop robust protective casings and advanced cooling systems to mitigate these risks, adding complexity and cost to the design.
Despite these challenges, wheel-mounted batteries offer intriguing possibilities for space optimization and weight distribution. By eliminating the need for a central battery pack, designers can free up valuable chassis space for additional features, such as larger cabins or extra storage. This could be particularly beneficial for compact urban EVs, where every inch counts. However, the practicality of this design hinges on advancements in battery technology, such as higher energy density and improved durability, to ensure the system remains efficient and reliable.
In conclusion, wheel-mounted batteries represent a bold step in EV innovation, offering potential benefits in handling, space utilization, and drivetrain simplicity. Yet, they also introduce significant engineering hurdles related to safety, ride comfort, and durability. As research and development continue, this concept may evolve into a viable solution for niche applications, such as high-performance EVs or specialized vehicles, rather than becoming a mainstream standard. For now, it remains a fascinating experiment at the intersection of automotive and battery technology.
Faraday's Electric Motor: Revolutionary Applications and Historical Impact
You may want to see also
Explore related products
Impact on Vehicle Balance and Handling
Electric cars often place their batteries in the floor of the vehicle, creating a low center of gravity that enhances stability. However, the concept of mounting batteries directly on the wheels is a niche innovation, primarily explored in experimental or specialized designs. This approach redistributes weight dynamically, shifting mass to the wheels to improve traction during acceleration or cornering. For instance, the in-wheel motor and battery systems in some prototypes aim to optimize weight distribution for better handling. While this idea is not mainstream, it illustrates how battery placement can fundamentally alter a vehicle’s balance.
Analyzing the impact of wheel-mounted batteries reveals both advantages and challenges. By placing batteries closer to the wheels, engineers can reduce unsprung mass—the weight not supported by the suspension—which traditionally includes components like brakes and axles. Lower unsprung mass improves suspension responsiveness, allowing the vehicle to better absorb road irregularities and maintain tire contact. However, adding batteries to the wheels increases this mass, potentially compromising ride quality and handling precision. The trade-off between traction and suspension performance becomes critical in such designs.
From a practical standpoint, drivers of vehicles with wheel-mounted batteries would notice a distinct handling characteristic. The added weight at the wheels could enhance grip during high-speed maneuvers or slippery conditions, as more mass presses the tires against the road. However, this benefit comes with a caveat: increased unsprung mass may lead to harsher impacts on uneven surfaces, reducing comfort and potentially causing faster tire wear. Manufacturers would need to fine-tune suspension systems to mitigate these effects, possibly incorporating advanced dampers or adaptive technologies.
Comparatively, traditional electric vehicles with underfloor batteries excel in balance due to their low and centralized mass. Wheel-mounted batteries represent a departure from this norm, introducing a unique handling profile that prioritizes traction over smoothness. For racing or off-road applications, this configuration could be advantageous, but it may not suit everyday driving. Enthusiasts seeking precision handling might appreciate the innovation, while casual drivers could find it less forgiving.
In conclusion, while wheel-mounted batteries are not standard in electric vehicles, their potential impact on balance and handling is significant. This design shifts the paradigm from centralized weight distribution to a more dynamic, wheel-focused approach. For engineers and drivers alike, understanding this trade-off is essential. If implemented thoughtfully, such systems could redefine vehicle dynamics, but they require careful calibration to avoid compromising ride quality. As the automotive industry explores new possibilities, wheel-mounted batteries remain a fascinating, if specialized, area of innovation.
Electric Vehicles: The Dark Side of the Revolution
You may want to see also
Explore related products
![ExpertPower 12v 33ah Rechargeable Deep Cycle Battery [EXP1233 ]](https://m.media-amazon.com/images/I/61o4jS-ia5L._AC_UL320_.jpg)
Technological Feasibility of In-Wheel Batteries
Electric vehicles (EVs) traditionally house their batteries in a centralized pack, often under the floor or in the chassis. However, the concept of in-wheel batteries—placing energy storage directly within the wheels—has emerged as a potential game-changer. This design could theoretically reduce vehicle weight, improve handling, and increase interior space by eliminating the need for a large, centralized battery pack. But is this innovation technologically feasible?
From an engineering perspective, in-wheel batteries face significant challenges. The primary concern is thermal management. Batteries generate heat during operation, and the confined space within a wheel offers limited room for cooling systems. Overheating can degrade battery performance and pose safety risks. Additionally, the mechanical stresses experienced by wheels—such as vibrations, impacts, and rotational forces—could compromise battery integrity. For instance, lithium-ion batteries, commonly used in EVs, are sensitive to physical stress, which could lead to reduced lifespan or failure.
Despite these hurdles, advancements in battery technology and materials science offer promising solutions. Solid-state batteries, for example, are less prone to thermal runaway and can withstand higher mechanical stresses compared to their liquid-based counterparts. These batteries also have a higher energy density, allowing for smaller, more compact designs suitable for in-wheel applications. Furthermore, integrating smart cooling systems, such as phase-change materials or microfluidic channels, could address thermal management issues. Prototypes from companies like Protean Electric and Michelin have already demonstrated the potential of in-wheel motors combined with compact energy storage, though full battery integration remains experimental.
Another critical factor is the impact on vehicle dynamics. In-wheel batteries could lower the center of gravity, enhancing stability and handling. However, the added weight in the wheels could increase unsprung mass, negatively affecting ride quality and suspension performance. Engineers must strike a balance between these trade-offs, possibly through lightweight materials like carbon fiber or advanced composites for wheel structures. Simulation tools and real-world testing will be essential to optimize designs before mass production.
In conclusion, while in-wheel batteries present formidable technical challenges, they are not beyond the realm of possibility. With continued research and innovation, this technology could revolutionize EV design, offering benefits such as improved efficiency, enhanced performance, and greater design flexibility. However, success will depend on overcoming thermal, mechanical, and dynamic obstacles, likely requiring breakthroughs in battery chemistry, cooling systems, and materials engineering. For now, in-wheel batteries remain a fascinating concept on the horizon of EV evolution.
Electric Cars on Hills: Do They Roll Back?
You may want to see also
Explore related products
Comparison with Traditional Battery Locations
Electric vehicles (EVs) typically house their batteries in the chassis, often under the floor, to optimize weight distribution and lower the center of gravity. This contrasts sharply with traditional internal combustion engine (ICE) vehicles, where the battery is usually small and located under the hood or in the trunk, primarily for starting the engine. The strategic placement in EVs enhances stability and handling, a critical factor for performance and safety.
Consider the Tesla Model S, where the battery pack is integrated into the floor, creating a flat, low-slung design that improves aerodynamics and reduces rollover risk. In contrast, a conventional gasoline car like the Toyota Camry positions its 12V lead-acid battery in the engine bay, a location chosen for convenience rather than performance optimization. This difference highlights how EV battery placement is engineered for efficiency, whereas traditional setups are often constrained by legacy design choices.
From a practical standpoint, the underfloor battery layout in EVs offers additional benefits, such as freeing up cabin and trunk space. For instance, the Nissan Leaf’s battery placement allows for a spacious interior and a 24 cubic feet trunk capacity, comparable to many ICE compact cars. Conversely, the battery in a traditional ICE vehicle, though smaller, occupies space that could otherwise be utilized for storage or mechanical components, limiting design flexibility.
However, this innovative placement isn’t without challenges. Repairing or replacing an underfloor battery in an EV can be more complex and costly than swapping out a 12V battery in an ICE vehicle. For example, a Tesla battery replacement can run upwards of $10,000, whereas a standard car battery replacement typically costs under $200. This trade-off underscores the need for long-term reliability in EV battery design to mitigate such expenses.
In summary, while traditional battery locations in ICE vehicles prioritize simplicity and accessibility, EV battery placement focuses on performance, efficiency, and space utilization. This comparison reveals how advancements in EV design are reshaping automotive engineering, though they introduce new considerations for maintenance and cost. Understanding these differences helps consumers and manufacturers alike navigate the evolving landscape of electric mobility.
Eco-Friendly Electric Cars: Benefits, Savings, and Sustainable Future Explained
You may want to see also
Frequently asked questions
No, electric cars do not have a battery on each wheel. Instead, they typically have a single, large battery pack located in the chassis, often under the floor, to optimize weight distribution and space.
While some experimental or concept vehicles have explored in-wheel battery designs, it is not common in production electric cars. Most rely on centralized battery packs for efficiency and practicality.
In most cases, electric car wheels do not contain battery components. However, some designs may include in-wheel electric motors, which are separate from the main battery pack.
