Electric cars, like their traditional internal combustion engine counterparts, are equipped with fuses as a critical component of their electrical systems. These fuses serve as protective devices, safeguarding the vehicle’s intricate network of circuits from overcurrent and short circuits that could otherwise damage sensitive components or pose safety risks. In electric vehicles (EVs), fuses are particularly important due to the high-voltage systems powering the battery and motor, ensuring that any electrical faults are quickly isolated to prevent potential hazards. Understanding the role and location of fuses in an electric car is essential for both maintenance and troubleshooting, as they play a vital role in maintaining the reliability and safety of the vehicle’s electrical infrastructure.
| Characteristics | Values |
|---|---|
| Do Electric Cars Have Fuses? | Yes |
| Purpose of Fuses | Protect electrical circuits from overcurrent, short circuits, and electrical faults |
| Types of Fuses in Electric Cars | Blade fuses, high-voltage fuses, bolt-in fuses, and specialized fuses for battery management systems |
| Location of Fuses | Typically found in the fuse box(es), often located in the cabin, trunk, or near the battery |
| High-Voltage Fuses | Used in high-voltage systems (e.g., battery packs, inverters) to handle large currents and ensure safety |
| Low-Voltage Fuses | Used in 12V systems for accessories, lighting, and infotainment |
| Fuse Ratings | Vary based on the circuit's current requirements (e.g., 5A, 20A, 100A for high-voltage systems) |
| Maintenance | Regularly inspect fuses for damage or corrosion; replace if blown or faulty |
| Safety Considerations | High-voltage fuses require professional handling due to the risk of electric shock |
| Differences from ICE Cars | Electric cars use more high-voltage fuses due to their complex electrical systems |
| Examples of Fuse Usage | Protecting battery modules, charging systems, electric motors, and auxiliary components |
Explore related products
What You'll Learn
- Fuse Types in Electric Vehicles: Different fuses used in EVs for various electrical systems
- Fuse Box Location: Where to find the fuse box in electric cars
- Fuse Replacement Process: Steps to safely replace a blown fuse in an EV
- Fuse vs. Circuit Breaker: Differences between fuses and circuit breakers in electric vehicles
- Common Fuse Issues: Typical problems caused by blown fuses in electric cars
Fuse Types in Electric Vehicles: Different fuses used in EVs for various electrical systems
Electric vehicles (EVs) rely heavily on electrical systems to operate, and like traditional internal combustion engine (ICE) vehicles, they require fuses to protect these systems from overcurrent and short circuits. Fuses in EVs are critical components that safeguard the intricate network of electrical circuits, ensuring safety and preventing damage to expensive components. The types of fuses used in electric vehicles vary depending on the specific application, voltage levels, and current requirements of different systems. Understanding these fuse types is essential for maintenance, troubleshooting, and ensuring the longevity of EV electrical systems.

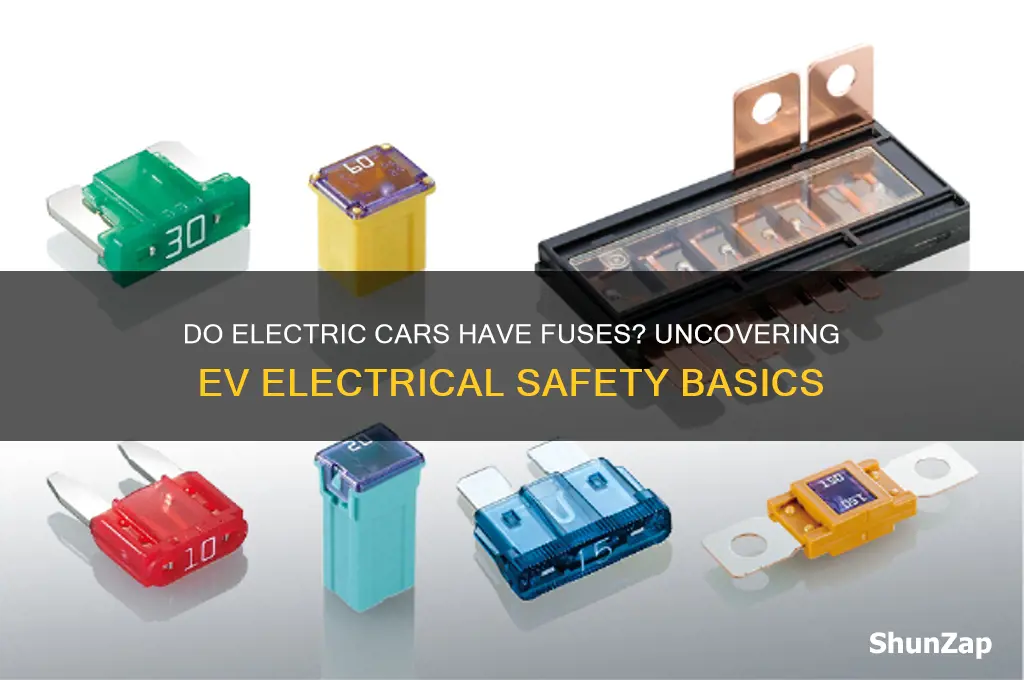

One common type of fuse found in electric vehicles is the blade fuse, which is widely used in both ICE and EV systems. Blade fuses are compact, easy to replace, and typically protect low-voltage circuits such as interior lighting, infotainment systems, and accessory power outlets. In EVs, blade fuses are often located in the fuse box, which is usually positioned near the battery or under the dashboard. These fuses are designed for 12V or 24V systems and are rated for currents ranging from a few amperes to 30 amperes, depending on the circuit they protect.
For higher-voltage systems, such as the traction battery and electric motor, high-voltage fuses are employed. These fuses are specifically designed to handle the elevated voltage levels found in EV powertrains, often ranging from 400V to 800V. High-voltage fuses are typically located near the battery pack or within the power electronics module. They are critical for protecting the vehicle from catastrophic failures, such as battery shorts or inverter malfunctions. These fuses are often larger and more robust than blade fuses, with ratings that can exceed 200 amperes to handle the significant current demands of the electric drivetrain.
Another important fuse type in EVs is the resettable fuse, also known as a polyfuse or PPTC (Polymer Positive Temperature Coefficient) device. Unlike traditional fuses that must be replaced after blowing, resettable fuses automatically reset once the overcurrent condition is resolved. These fuses are commonly used in applications where accessibility is limited or where frequent fuse replacement would be impractical. For example, resettable fuses may protect the charging system or certain battery management circuits. Their ability to self-reset makes them particularly useful in ensuring uninterrupted operation of critical EV systems.
In addition to these, cartridge fuses are sometimes used in electric vehicles, especially in older or specialized designs. Cartridge fuses are cylindrical and often used in higher-current applications. They are less common in modern EVs compared to blade or high-voltage fuses but may still be found in auxiliary systems or legacy components. Regardless of the type, all fuses in EVs are carefully selected based on the specific requirements of the circuit they protect, ensuring compatibility with the vehicle’s electrical architecture.
Lastly, fuse links or fusible links are used in EVs for high-current protection, particularly in the main power distribution circuits. These fuses are designed to melt and disconnect the circuit in the event of an extreme overcurrent, such as a direct short circuit. Fuse links are often integrated into the battery cables or main power lines, providing a last line of defense against electrical faults that could damage the battery or other critical components. Their high-current ratings and rapid response time make them essential for maintaining the safety and reliability of EV electrical systems.
In summary, electric vehicles utilize a variety of fuse types to protect their complex electrical systems. From blade fuses for low-voltage circuits to high-voltage fuses for the powertrain, each type plays a crucial role in ensuring the safety and functionality of the vehicle. Understanding these fuse types is vital for anyone involved in the maintenance, repair, or design of electric vehicles, as they directly impact the reliability and performance of these advanced transportation systems.
