Molly Ayala
As the popularity of electric vehicles (EVs) continues to rise, many owners are exploring cost-effective and convenient ways to charge their cars at home. One increasingly popular option is building a do-it-yourself (DIY) electric car charger, which allows enthusiasts to customize their charging setup while potentially saving money compared to purchasing a pre-made unit. A DIY charger typically involves assembling components like a charging station, wiring, and safety features, often using open-source designs or kits. However, it requires a solid understanding of electrical systems and adherence to local regulations to ensure safety and compliance. For those with the skills and confidence, a DIY electric car charger can be a rewarding project that enhances the EV ownership experience.
Explore related products
What You'll Learn
- Charger Types: Level 1, 2, and 3 chargers explained for home DIY electric vehicle charging setups
- Safety Measures: Essential precautions, grounding, and circuit protection for safe DIY electric car charger installation
- Materials Needed: List of tools, cables, connectors, and components required for building a DIY charger
- Installation Steps: Step-by-step guide to wiring, mounting, and testing your DIY electric car charger
- Cost Breakdown: Estimated expenses for materials, permits, and tools for a DIY charger project
Charger Types: Level 1, 2, and 3 chargers explained for home DIY electric vehicle charging setups
Electric vehicle (EV) owners often seek cost-effective and efficient charging solutions, making DIY home charging setups an appealing option. Understanding the differences between Level 1, Level 2, and Level 3 chargers is crucial for tailoring your setup to your needs. Each level offers distinct advantages, power outputs, and installation requirements, ensuring you can choose the best fit for your lifestyle and vehicle.
Level 1 chargers are the simplest and most accessible option for DIY enthusiasts. These chargers operate on a standard 120-volt household outlet, delivering approximately 1.4 to 1.9 kilowatts (kW) of power. This translates to about 2 to 5 miles of range per hour of charging, making it ideal for plug-in hybrid vehicles or EVs with shorter daily commutes. The primary advantage of Level 1 charging is its plug-and-play nature—no specialized equipment or electrical upgrades are typically required. However, its slow charging speed may not suit those with longer daily drives or the need for rapid recharging. For instance, fully charging a 60 kWh battery EV could take over 30 hours, emphasizing the need to plan charging sessions carefully.
In contrast, Level 2 chargers offer a significant upgrade in power and efficiency, operating on 240-volt circuits similar to those used for electric dryers or stoves. These chargers deliver 3.7 to 19.2 kW, providing 10 to 60 miles of range per hour. This makes Level 2 charging suitable for most EV owners, especially those with dedicated home parking. DIY installation of a Level 2 charger requires careful planning, including assessing your home’s electrical capacity and potentially upgrading wiring or the electrical panel. Costs vary, but a basic Level 2 charging station can range from $500 to $1,200, with installation adding $1,000 to $2,500 depending on complexity. Despite the initial investment, the convenience and faster charging times often justify the expense for daily drivers.
Level 3 chargers, also known as DC fast chargers, are the most powerful but least practical for home DIY setups. These chargers deliver 40 to 350 kW, adding 3 to 20 miles of range per minute. However, they require specialized high-voltage equipment and substantial electrical infrastructure, typically found in commercial settings. The cost of a Level 3 charger can exceed $50,000, and installation involves significant electrical upgrades, making it impractical for residential use. While Level 3 chargers are ideal for public charging networks, home DIY enthusiasts should focus on Level 1 or Level 2 solutions for feasibility and cost-effectiveness.
When deciding on a DIY charging setup, consider your vehicle’s battery capacity, daily driving habits, and budget. For example, a Nissan Leaf with a 40 kWh battery may suffice with a Level 1 charger if driven less than 50 miles daily, while a Tesla Model 3 with a 60 kWh battery would benefit from a Level 2 charger for quicker replenishment. Always consult a certified electrician to ensure your home’s electrical system can handle the load, and adhere to local building codes for safety. With the right setup, a DIY home charger can provide convenience, savings, and peace of mind for years to come.
Electric Vehicles: Environmental Impact and Unseen Adversities
You may want to see also
Explore related products
Safety Measures: Essential precautions, grounding, and circuit protection for safe DIY electric car charger installation
Installing a DIY electric car charger can save costs, but it demands meticulous attention to safety. Grounding is non-negotiable. Without proper grounding, electrical faults can lead to shocks, fires, or damage to your vehicle. Use a grounding rod driven at least 8 feet into the earth, connected to the charger’s grounding terminal with a #6 AWG copper wire. Verify the ground’s effectiveness with a multimeter—resistance should be less than 25 ohms. Skip this step, and you risk turning your charger into a hazard.
Circuit protection is your second line of defense. Overloading can melt wires or start fires. Install a dedicated circuit breaker sized to the charger’s amperage rating—typically 30 to 50 amps for Level 2 chargers. Add a residual-current device (RCD) to detect ground faults and cut power within milliseconds. For outdoor installations, use a weatherproof enclosure rated NEMA 3R or higher to shield components from moisture and debris. Neglecting these protections can void warranties or worse, cause catastrophic failure.
Precautions during installation are equally critical. Work with the main power supply turned off and verify de-energization with a non-contact voltage tester. Use insulated tools and wear rubber-soled shoes to minimize shock risk. Route cables away from heat sources and sharp edges, securing them with UV-resistant cable ties. Label all wires clearly to avoid confusion during assembly. Rushing this process invites errors that could compromise safety long-term.
Finally, regular maintenance ensures longevity and safety. Inspect connections monthly for corrosion or looseness, tightening as needed. Test the RCD quarterly by pressing its test button—if it doesn’t trip, replace it immediately. Annually, check the grounding system’s resistance and verify the circuit breaker’s functionality. A well-maintained charger not only protects your investment but also safeguards your home and family. Skimp on maintenance, and you’re gambling with safety.
Electric Car Heater Use: Impact on Battery Life and Efficiency
You may want to see also
Explore related products
Materials Needed: List of tools, cables, connectors, and components required for building a DIY charger
Building a DIY electric car charger requires a precise selection of materials to ensure safety, efficiency, and compatibility with your vehicle. At the core of this project are high-amperage cables, typically rated for 32 to 50 amps, depending on your charging needs. These cables must be durable, weather-resistant, and capable of handling the electrical load without overheating. For instance, a 240-volt Level 2 charger will demand thicker gauge wires (e.g., 6 AWG) compared to a lower-power setup. Always prioritize cables certified for EV charging applications to avoid risks like melting or fire hazards.
Next, connectors play a critical role in bridging the charger to your vehicle. The most common connector type is the SAE J1772, which is standard for North American EVs. This connector requires a compatible plug and socket, along with a locking mechanism to prevent accidental disconnection. For Tesla owners, an adapter or a Tesla-specific connector (e.g., NACS) may be necessary. Ensure the connector is rated for the same amperage as your cables to maintain consistency in the system’s capacity.

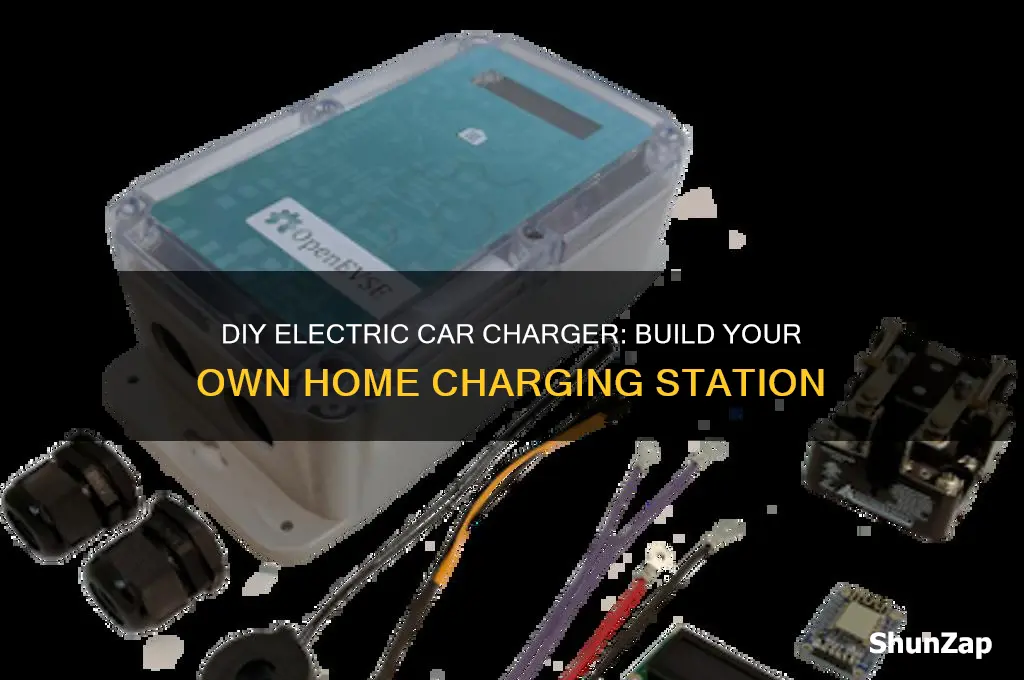

The control unit is the brain of your DIY charger, regulating voltage, current, and safety features like ground fault protection. A programmable microcontroller or a pre-built EV charging module (e.g., OpenEVSE) can serve this purpose. Components like relays, contactors, and circuit breakers are essential for managing power flow and protecting against overloads. For example, a 50-amp contactor paired with a 60-amp breaker provides a safety buffer while handling high-current charging.
Tools are equally vital for assembly and installation. Basic electrical tools like wire strippers, crimpers, and multimeters are indispensable. A torque wrench ensures secure connections, while a conduit bender helps route cables safely. If mounting the charger outdoors, weatherproof enclosures and sealing materials are non-negotiable to protect against moisture and corrosion. For precision, invest in a digital multimeter to verify voltage and continuity during setup.
Finally, safety components cannot be overlooked. Ground fault circuit interrupters (GFCIs) and residual-current devices (RCDs) are critical for detecting leaks and preventing shocks. A sturdy mounting bracket and strain reliefs secure the charger to a wall or post, reducing wear on cables. While the material list may seem extensive, each component serves a specific function, ensuring your DIY charger is not only functional but also compliant with electrical codes and safe for long-term use.
When Will the US Embrace Chinese Electric Cars?
You may want to see also
Explore related products
Installation Steps: Step-by-step guide to wiring, mounting, and testing your DIY electric car charger
Before embarking on a DIY electric car charger installation, it's crucial to understand the components involved: a charging station, wiring, a circuit breaker, and a mounting bracket. The wiring typically consists of 8-10 gauge stranded copper wire, rated for 40-50 amps, depending on your charging needs. A 50-amp circuit breaker is commonly used to protect the circuit, while the mounting bracket should be sturdy enough to support the charger's weight, usually around 10-15 pounds.
Wiring the Charger: A Delicate Dance
To begin wiring, strip ½ inch of insulation from the wire ends using a wire stripper. Connect the wires to the charger's terminal block, ensuring the black (hot) wire connects to the brass-colored screw, the white (neutral) wire to the silver-colored screw, and the green or bare copper (ground) wire to the green screw. Tighten the screws securely, but be cautious not to overtighten, as this can damage the wires. Next, route the wires through the mounting bracket, leaving enough slack for connections. Use cable ties to secure the wires every 12-18 inches, maintaining a neat and organized appearance.
Mounting the Charger: Location, Location, Location
Choose a mounting location that's easily accessible, protected from the elements, and at least 12 inches away from any combustible materials. Mark the mounting holes on the wall, ensuring they're level and aligned with the bracket's holes. Drill pilot holes using a ¼ inch drill bit, then secure the bracket to the wall using 2-inch wood screws. Attach the charger to the bracket, making sure it's firmly in place. For added stability, consider using a silicone adhesive to secure the bracket to the wall, allowing 24 hours for the adhesive to cure.
Testing and Safety Checks: Better Safe than Sorry
Before testing, verify all connections are tight and secure. Turn off the circuit breaker, then use a voltage tester to confirm the wires are not live. Once confirmed, turn on the breaker and plug in your electric vehicle. Monitor the charger for any unusual noises, smells, or sparks during the first 10-15 minutes of charging. If everything appears normal, allow the vehicle to charge for at least 30 minutes, checking the charger's temperature periodically. It should remain cool to the touch, with a maximum temperature of 120°F (49°C). If any issues arise, immediately shut off the breaker and consult a professional electrician.
Cautions and Best Practices: Navigating Potential Pitfalls
When working with electrical systems, always prioritize safety. Wear insulated gloves and safety goggles during installation. Avoid working in wet or damp conditions, and never touch exposed wires or terminals while the power is on. If you're unsure about any aspect of the installation, consult the charger's manual or seek guidance from a qualified electrician. Remember, a poorly installed charger can pose serious risks, including electrical shock, fire, or damage to your vehicle's battery. By following these steps and exercising caution, you can successfully install a DIY electric car charger, enjoying the convenience and cost savings of home charging.
Top UK Appliances Draining Your Energy Bills: What to Watch
You may want to see also
Explore related products
Cost Breakdown: Estimated expenses for materials, permits, and tools for a DIY charger project
Building a DIY electric car charger can save you money, but understanding the costs upfront is crucial. Let's break down the expenses into three main categories: materials, permits, and tools.
Materials form the backbone of your project. A Level 2 charger, which charges faster than a standard household outlet, typically requires a charging station unit, a circuit breaker, wiring, and a mounting bracket. The charging station itself can range from $300 to $800, depending on features like amperage (16A to 40A) and smart connectivity. A 50-amp double-pole breaker will cost around $20–$50, while heavy-duty outdoor-rated wiring (6-gauge or thicker) can add $50–$150. Don’t skimp on quality here—subpar materials can compromise safety and efficiency.
Permits are often overlooked but essential. Most localities require a permit for electrical work, especially when installing a high-amperage circuit. Permit fees vary widely by region, typically ranging from $50 to $200. Some areas may also mandate an inspection after installation, adding another $100–$300. Check with your local building department early to avoid delays or fines.
Tools are a one-time investment that can serve multiple projects. Basic electrical tools like wire strippers, a voltage tester, and a drill are necessary, costing around $50–$100 if you don’t already own them. For more specialized tasks, you might need a conduit bender ($30–$80) or a torque wrench ($20–$60). Renting tools can be an option if you’re on a tight budget, but owning them pays off if you plan future DIY projects.
Total Estimated Cost: A DIY Level 2 charger project typically ranges from $500 to $1,500, excluding labor. While this is significantly cheaper than hiring a professional (which can cost $1,000–$2,500), it requires confidence in your electrical skills and a commitment to safety. Always prioritize quality materials and compliance with local codes to ensure a reliable and safe charging solution.
Electric Locomotive Motors: Types, Functions, and Applications Explained
You may want to see also
Frequently asked questions
A DIY electric car charger is a charging station for electric vehicles that you build and install yourself, typically using components like a charging unit, wiring, and a mounting system.
Building your own electric car charger can be safe if done correctly, following all local electrical codes, using proper materials, and ensuring the installation is inspected by a certified electrician.
The basic components include a charging unit (Level 1 or Level 2), appropriate wiring, a circuit breaker, a mounting bracket, and a weatherproof enclosure for outdoor installations.
The cost varies depending on the type of charger (Level 1 or Level 2) and components used, but it typically ranges from $200 to $800, excluding installation and inspection fees.
Yes, most localities require a permit for installing an electric vehicle charger. Check with your local building department to ensure compliance with regulations and safety standards.
