The 98 Electric Club Car DS is a popular golf cart model known for its reliability and ease of maintenance. One common question among owners is whether this model is equipped with a fuse box, which is essential for protecting the electrical system from overloads and short circuits. Understanding the location and function of the fuse box can help troubleshoot electrical issues and ensure the cart operates safely. In the case of the 98 Electric Club Car DS, the fuse box is typically located under the rear seat, providing easy access for inspections and replacements. Familiarizing oneself with this component is crucial for maintaining the cart’s performance and longevity.
| Characteristics | Values |
|---|---|
| Year & Model | 1998 Club Car DS Electric |
| Fuse Box Presence | Yes, it has a fuse box. |
| Fuse Box Location | Typically located under the rear seat or in the battery compartment. |
| Fuse Box Function | Protects electrical circuits from overcurrent. |
| Common Fuses | Includes fuses for lights, accessories, controller, and other components. |
| Fuse Ratings | Varies by circuit (e.g., 10A, 15A, 20A). |
| Maintenance | Regularly check for blown fuses and replace as needed. |
| Replacement Parts | Fuses and fuse box components are available from Club Car dealers or parts suppliers. |
| Troubleshooting | Blown fuses may indicate a short circuit or overloaded component. |
| User Manual Reference | Refer to the 1998 Club Car DS manual for specific fuse box details. |
Explore related products
What You'll Learn

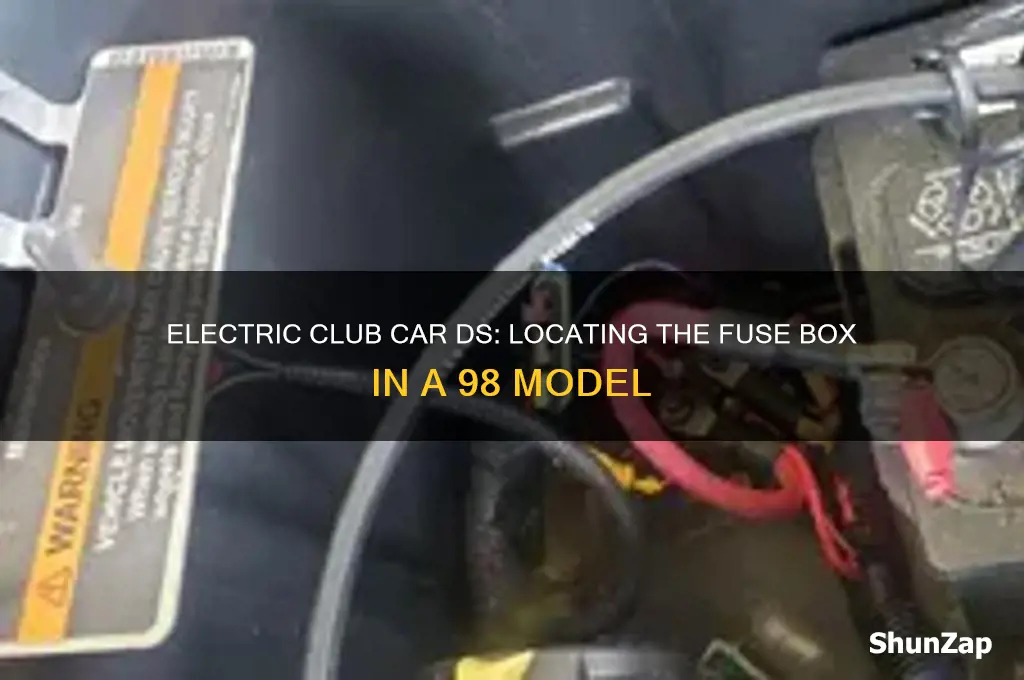

Fuse box location in 98 Club Car DS
The 1998 Club Car DS electric model indeed comes equipped with a fuse box, a critical component for protecting the vehicle’s electrical system. Locating this fuse box is straightforward once you know where to look. It is typically situated beneath the rear seat, on the passenger side of the vehicle. To access it, lift the seat cushion and remove the plastic cover that shields the fuse box. This design ensures the fuses are protected from dirt and moisture while remaining accessible for maintenance.
For those unfamiliar with golf cart mechanics, understanding the fuse box layout is essential. The 98 Club Car DS fuse box houses several fuses, each corresponding to different electrical circuits. Common fuses include those for the battery charger, lights, and accessories. A diagram on the fuse box cover or in the owner’s manual identifies which fuse controls what function. Always refer to this diagram before replacing a fuse to avoid misdiagnosing an issue.
When troubleshooting electrical problems, the fuse box is often the first point of inspection. Start by checking for blown fuses, which appear charred or broken. Use a fuse puller tool to remove and inspect them safely. Replace blown fuses with ones of the same amperage rating—typically 15 or 20 amps for this model. Avoid using higher-rated fuses, as they can cause wiring damage or fire hazards. Regularly inspecting the fuse box can prevent minor issues from escalating into major repairs.
Comparing the 98 Club Car DS to newer models, the fuse box location remains consistent, reflecting the vehicle’s reliable design. However, older models may have corrosion or wear around the fuse box terminals. To mitigate this, clean the terminals with a wire brush and apply dielectric grease to ensure a secure connection. This simple maintenance step can extend the life of the electrical system and improve reliability.
In conclusion, the fuse box in a 98 Club Car DS is a vital yet accessible component. By familiarizing yourself with its location, layout, and maintenance, you can ensure your golf cart operates smoothly. Whether troubleshooting or performing routine checks, the fuse box is a key area to master for any Club Car owner.
Electric Vehicles: Are They in Their Prime?
You may want to see also
Explore related products
Common fuse issues in electric Club Car DS
The 1998 electric Club Car DS does indeed have a fuse box, typically located under the rear seat on the passenger side. This compact yet crucial component houses fuses that protect the vehicle’s electrical circuits from overcurrent. Understanding common fuse issues in this model can save you time and frustration, as blown fuses are a frequent culprit behind electrical malfunctions.
One prevalent issue is a blown main fuse, often caused by overloading the system or a short circuit. Symptoms include a completely non-responsive vehicle, as this fuse controls power to the entire system. To diagnose, locate the 40-amp main fuse in the fuse box and check for a broken filament or discoloration. Replacement requires a fuse of the same amperage rating, and it’s wise to inspect wiring for damage to prevent recurrence.
Another common problem is a blown controller fuse, which can cause the vehicle to lose power or fail to accelerate. This 30-amp fuse protects the motor controller, and its failure may stem from excessive current draw during heavy use or a faulty controller. Testing with a multimeter confirms continuity; if none exists, replace the fuse and monitor performance. Persistent issues warrant a controller inspection by a professional.
Less frequently, the accessory fuse may blow, affecting features like lights, horns, or chargers. This 15-amp fuse is more susceptible to overloads from aftermarket accessories or wiring faults. Troubleshooting involves checking connected devices for malfunctions and ensuring proper installation. Always match the fuse rating to the circuit’s requirements to avoid repeated failures.
Preventive maintenance is key to minimizing fuse issues. Regularly inspect the fuse box for corrosion, loose connections, or signs of overheating. Keep spare fuses of the correct amperage ratings in your vehicle for quick replacements. By addressing these common problems proactively, you can ensure your 1998 electric Club Car DS remains reliable and efficient.
Recuperation in Electric Vehicles: Efficiency and Performance Benefits
You may want to see also
Explore related products
Fuse box diagram for 98 Club Car DS
The 1998 Club Car DS electric model indeed comes equipped with a fuse box, a critical component for protecting the vehicle’s electrical system from overcurrent. Located under the rear seat, the fuse box houses several fuses that safeguard various circuits, including those for the battery charger, lights, and accessories. Understanding the fuse box diagram is essential for troubleshooting electrical issues, as it identifies which fuse corresponds to each component. For instance, a blown fuse in the charging circuit can prevent the batteries from charging properly, while a faulty headlight fuse will leave you driving in the dark.
Analyzing the fuse box diagram reveals a straightforward layout, typically featuring 5 to 7 fuses, each rated for a specific amperage. The diagram, often found in the owner’s manual or on a label near the fuse box, labels each fuse by function (e.g., "charger," "lights," "accessories"). For example, the charger fuse is usually rated at 30 amps, while the headlight fuse might be 10 amps. Cross-referencing the diagram with the fuse ratings ensures you replace a blown fuse with the correct type, preventing potential damage to the electrical system.
To access the fuse box, lift the rear seat by pulling the latch located at the front edge. The fuse box cover is secured with a clip or screw, which can be removed with a flathead screwdriver. Inspect each fuse visually; a blown fuse will have a broken or melted wire inside. Use a fuse puller (often included in the fuse box) to extract the damaged fuse and replace it with one of the same amperage. Avoid using a higher-rated fuse, as this can lead to overheating and fire hazards.
A practical tip for owners is to keep a set of spare fuses in the golf cart, as blowing a fuse during a round of golf or while running errands can be inconvenient. Additionally, regularly inspecting the fuse box for corrosion or loose connections can prevent intermittent electrical issues. If you encounter recurring blown fuses, it may indicate a deeper problem, such as a short circuit, which requires professional diagnosis.
In conclusion, the fuse box diagram for a 98 Club Car DS is a vital tool for maintaining the vehicle’s electrical integrity. By familiarizing yourself with its layout and function, you can quickly address common issues and ensure your golf cart remains reliable. Whether you’re replacing a fuse or performing routine maintenance, this knowledge empowers you to keep your Club Car running smoothly.
Neighborhood Electrical Vehicles: Affordable, Sustainable, and Cost-Effective
You may want to see also
Explore related products
Replacing fuses in a 98 Club Car DS
The 1998 Club Car DS, a stalwart of the golf cart world, does indeed come equipped with a fuse box, a critical component for protecting its electrical system. Located under the rear seat, this fuse box houses several fuses that safeguard various circuits, from the headlights to the battery charger. Understanding its layout and function is the first step in troubleshooting electrical issues.
Replacing a blown fuse in your 98 Club Car DS is a straightforward task that requires minimal tools and technical know-how. Begin by lifting the rear seat to access the fuse box. You’ll find it secured with a few screws or clips, which can be removed with a standard screwdriver. Inside, the fuses are typically labeled, making it easy to identify which one corresponds to the malfunctioning component. Always replace a fuse with one of the same amperage rating to avoid overloading the circuit.
While the process is simple, caution is key. Before handling any electrical components, ensure the cart is turned off and the key is removed to prevent accidental shocks or short circuits. Inspect the fuse box for signs of corrosion or damage, as these issues can cause recurring problems. If a fuse blows repeatedly, it’s a red flag indicating a deeper electrical issue that warrants further investigation.
A practical tip for Club Car DS owners is to keep a spare set of fuses in your maintenance kit. Common fuse ratings for this model include 10A, 15A, and 20A, so having a variety on hand can save you a trip to the store when a fuse fails. Additionally, familiarize yourself with the fuse box diagram, often found in the owner’s manual or printed on the fuse box cover, to streamline future replacements.
In conclusion, replacing fuses in a 98 Club Car DS is a simple yet essential skill for maintaining your golf cart’s reliability. By understanding the fuse box’s location, following safety precautions, and keeping spares handy, you can quickly address electrical issues and keep your cart running smoothly. Regularly inspecting the fuse box during routine maintenance can also prevent unexpected breakdowns, ensuring your Club Car DS remains a dependable companion on the course or around your property.
Planning an Electric Vehicle Road Trip: What You Need to Know
You may want to see also
Explore related products
Troubleshooting fuse box problems in 98 Club Car DS
The 1998 Club Car DS electric model indeed features a fuse box, a critical component for protecting the vehicle's electrical system. Located under the rear seat, this fuse box houses blade-type fuses that safeguard various circuits, including those for lights, chargers, and controllers. Understanding its layout and function is the first step in troubleshooting any electrical issues.
When diagnosing fuse box problems, start by inspecting the fuses for visible damage. A blown fuse will have a broken or melted wire inside. Use a multimeter to test each fuse for continuity if visual inspection is inconclusive. Replace any faulty fuses with ones of the correct amperage, typically 10 to 30 amps depending on the circuit. Always refer to the owner’s manual or fuse box diagram for accurate specifications.
Intermittent electrical issues often stem from loose connections or corrosion in the fuse box. Clean the fuse terminals with a wire brush and dielectric grease to ensure proper conductivity. Check the fuse box’s mounting to confirm it’s secure, as vibrations from driving can loosen connections over time. If problems persist, inspect the wiring harness for damage or wear, particularly near the battery and controller.
For persistent fuse failures, the root cause may lie in a short circuit or overloaded component. Disconnect non-essential accessories and test the system to isolate the issue. Common culprits include faulty light switches, damaged charger cables, or a malfunctioning motor controller. Addressing these underlying issues is crucial to prevent repeated fuse blowouts and potential damage to the vehicle’s electrical system.
Regular maintenance can prevent many fuse box problems. Inspect the fuse box and its components every six months, especially in humid or corrosive environments. Keep a spare set of fuses in your golf cart’s storage compartment for quick replacements. By staying proactive and methodical, you can ensure your 98 Club Car DS remains reliable and safe to operate.
Measuring Electrical Power: Understanding the Right Units to Use
You may want to see also
Frequently asked questions
Yes, a 1998 electric Club Car DS is equipped with a fuse box to protect the electrical system.
The fuse box on a 1998 electric Club Car DS is typically located under the rear seat, near the battery compartment.
The fuse box protects the electrical circuits by interrupting the flow of electricity if a circuit overloads, preventing damage to the wiring and components.
