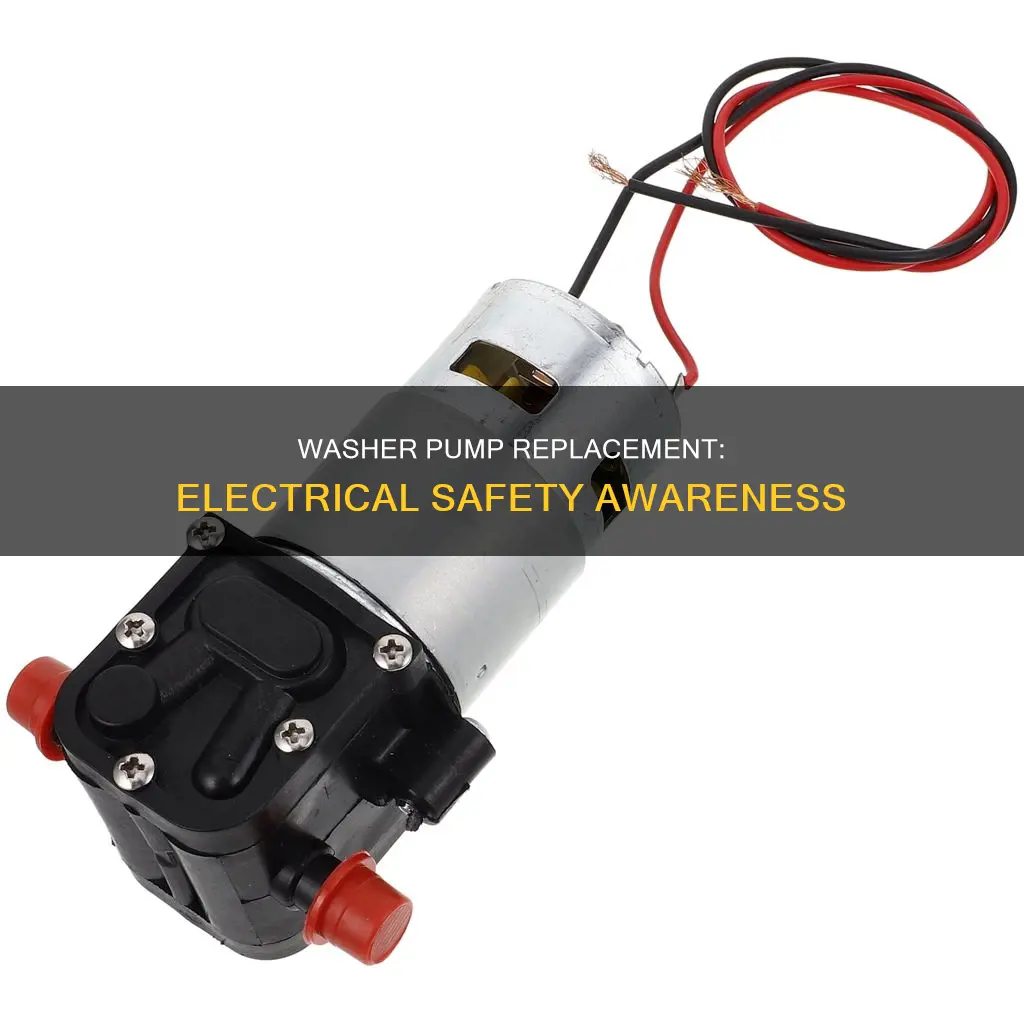

The windshield washer pump is a small DC electric motor with an impeller-style pump submerged in the washer fluid. It is designed to transfer the washer fluid from the washer reservoir to the washer nozzles. The pump is electric and is usually placed at the bottom of a washer reservoir. The washer pump pulls very little current. The replacement procedure involves disconnecting the battery, removing the washer reservoir, and installing a new pump. The new pump is installed into the washer reservoir, and the reservoir is then reinstalled into the engine compartment. The harness is plugged into the washer pump, and the washer fluid line is connected to the reservoir. Finally, the washer fluid is refilled, and the vehicle is tested.
| Characteristics | Values |
|---|---|
| Ease of replacement | Replacing a windshield washer pump is not very difficult if there is good access to its location. In most cars, the pump just pops out and the new pump pops in into the rubber sleeve installed in the fluid reservoir. |
| Cost | A new windshield washer pump (motor) costs from $15 to $35. A repair shop may charge $50-$150 labor to replace it. The diagnostic fee is usually separate. |
| Common problems | Regular wear and tear, electrical system issues (e.g. blown fuse, faulty switch, or bad BCM), frozen washer fluid, and faulty wiring or other electrical issues can cause the windshield washer pump to malfunction. |
| Troubleshooting | Check for power and ground at the washer pump connector. If there is no or low voltage at the pump when the switch is activated, the electric circuit must be checked. |
Explore related products
What You'll Learn
Windshield washer pump replacement
A windshield washer pump is designed to transfer washer fluid from the washer reservoir to the washer nozzles. The pump is electric and is usually placed at the bottom of the washer reservoir. Operating the pump with no washer fluid can cause the gears inside to seize up. Similarly, activating the motor with frozen fluid can cause the motor contacts to burn. Both scenarios can lead to an uneven fluid spray or a complete lack thereof.
To replace a windshield washer pump, follow these steps:
- Install a nine-volt battery saver into your cigarette lighter to keep your vehicle's settings current. If you do not have a nine-volt battery saver, you can skip this step, but you will have to reset all your vehicle settings afterward.
- Disconnect the battery. Open the vehicle's hood and remove the ground cable from the battery's negative terminal, disabling power to the ignition and windshield wiper systems. Remember to wear protective gloves when handling the battery.
- Locate the washer reservoir and remove the bolts securing it to the fender or body of the vehicle.
- Remove the connection to the washer pump. If there is a harness plug, remove it. If not, use side cutters to cut the wires.
- Remove the washer fluid line from the reservoir.
- Pull the washer reservoir from the vehicle and take out the washer pump.
- Install the new washer pump into the reservoir.
- Install the reservoir back into the vehicle, securing it to the fender or body in the engine compartment.
- Plug in the harness to the washer pump. If you had to cut the wires, strip the wires to the harness and the pump with a wire stripper. Insert butt connectors and crimp the wires.
- Install the washer fluid line to the reservoir. If you removed a clamp, use needle-nose pliers to reinstall it.
- Refill the washer fluid. If the fluid is concentrated, follow the instructions on the bottle to dilute it with distilled water.
- Test the vehicle. Operate the windshield washer pump switch and observe the nozzle for fluid. Listen for the pump activation and check the bottom of the reservoir for leaks with a flashlight. If the pump is still malfunctioning, there may be electrical issues or other problems.
The cost of a new windshield washer pump ranges from \$15 to \$35. Labor charges for pump replacement can vary from \$50 to \$150, with separate diagnostic fees. Additionally, online forums indicate that the cost of a replacement pump can be as low as \$16, while garages may quote significantly higher prices for the entire assembly replacement.
