Ovens heated with natural gas or propane that have a continuous pilot flame are often fitted with a safety feature called a thermocouple. This small probe, located over the pilot flame assembly, measures heat and detects temperature variations. A faulty thermocouple can cause erratic and uncontrolled temperature changes in the oven. Electric ovens, on the other hand, do not require thermocouples as they do not rely on a pilot flame for heating.
| Characteristics | Values |
|---|---|
| What is a thermocouple? | A small probe that measures heat. |
| What does it do? | It detects temperature variations and can be used to open or close a valve based on the temperature. |
| What type of ovens have thermocouples? | Ovens heated with natural gas or propane that rely on a continuous pilot flame. |
| What problems can a faulty thermocouple cause? | The pilot light won't turn on or won't stay lit, erratic and uncontrolled temperature changes, the oven won't cook food evenly. |
| How to fix a faulty thermocouple? | Have the oven serviced and the thermocouple replaced by a professional technician. |
Explore related products
What You'll Learn
An electric oven does not have a thermocouple

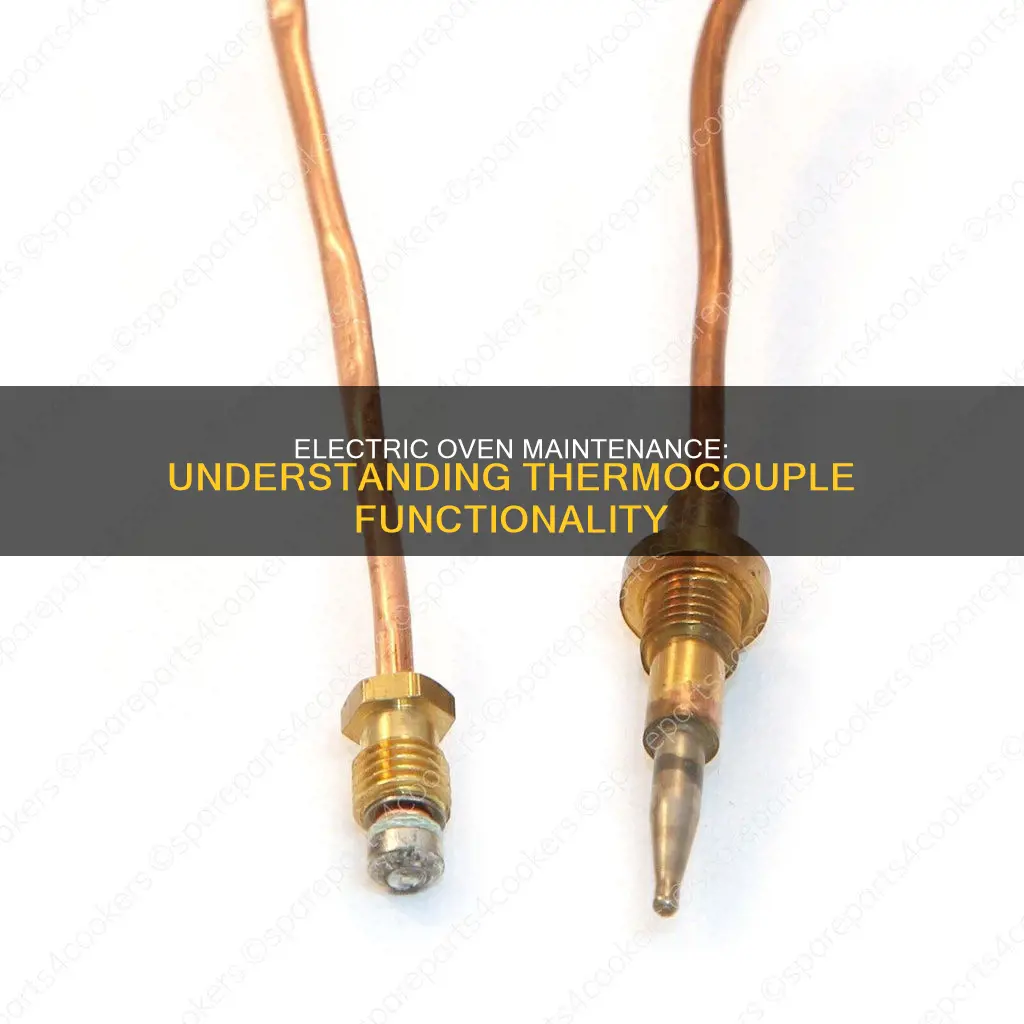

A thermocouple is a small probe that is positioned directly over the opening of the pilot assembly. It is connected to a safety valve by a tube protecting two wires made of different metals. The probe detects temperature variations based on changes in the voltage running between each wire. This is due to the discovery by T.J. Seebeck in 1831 that heating one junction of a closed circuit made of two different metals causes an electric current to flow through the circuit. The magnitude of the current depends on the difference between the hot and cold junctions.
The thermocouple is an important component in gas ovens as it helps to regulate the temperature and ensure safe operation. A faulty thermocouple can cause the safety valve to open and close inconsistently, leading to erratic and uncontrolled temperature changes in the oven. This can result in common oven problems such as the oven getting hotter than desired or not cooking food evenly.
While an electric oven does not have a thermocouple, it may have other similar components that help regulate the temperature and ensure safe operation. These components may vary depending on the brand and model of the oven. It is important to consult the oven's manual or a trained appliance technician to understand the specific components and their functions.
In summary, an electric oven does not have a thermocouple as it is a feature specific to gas ovens with a continuous pilot flame. Electric ovens operate differently and have their own set of components and safety features. It is always important to refer to the oven's instructions or seek professional help for any maintenance or repair work.
Electrical Synapses: Synaptic Cleft's Existence Explored
You may want to see also
Explore related products
A thermocouple is a safety feature for gas ovens
Ovens heated using natural gas or propane that rely on a continuous pilot flame are often equipped with a safety feature called a thermocouple. This device measures heat and detects when the pilot flame goes out, which is important as an extinguished pilot light can be hazardous.
A thermocouple is a small probe that sits directly over the opening of the pilot assembly. It is made up of two wires that lead from the probe to the top of a safety valve, which is mounted on the gas line between the oven thermostat and the pilot assembly. The two wires are made of different metals, and this allows the probe to detect temperature variations based on changes in voltage between each wire.
The greater the difference between the hot and cold junctions, the greater the magnitude of the current. This electrical current can then be used to perform work, such as opening or closing a valve based on the temperature at the probe end of the thermocouple. If the pilot flame won't stay lit, it's important to check that the tip of the probe rests in the flame. If it does, the problem may be a defective thermocouple, a bad connection, or a failure of the electromagnet that holds the safety valve open.
A faulty oven thermocouple can cause the safety valve to open and close constantly, leading to erratic and uncontrolled temperature changes in the oven. This can cause issues such as the oven getting hotter than desired or not cooking food evenly. Therefore, it is important to have a functioning thermocouple in gas ovens to ensure safety and proper functioning.
How to Prime Your Electric Start Snowblower
You may want to see also
Explore related products
$11.22 $12.49
The thermocouple measures heat and detects pilot flame extinguishment
Ovens heated with natural gas or propane that rely on a continuous pilot flame are often fitted with a safety feature called a thermocouple. This device measures heat and detects pilot flame extinguishment. The thermocouple is a small probe that terminates directly over the opening of the pilot assembly. A tube protecting two wires leads from the probe to the top of a safety valve, which is mounted on the gas line between the oven thermostat and the pilot assembly. The two wires leading from the probe are made of different metals, allowing the probe to detect temperature variations based on changes in the voltage running between each wire. When the pilot flame is lit, the heat from the flame sends a voltage through the thermocouple that keeps the gas line open. The greater the difference between the hot and cold junctions, the greater the magnitude of the current.
If the pilot light goes out, the thermocouple cools and the voltage generated drops to zero. This causes the safety valve to close, shutting off the gas flow to the pilot and the main gas valve. A faulty oven thermocouple can cause the safety valve to open and close inconstantly, leading to erratic and uncontrolled temperature changes in the oven. This can be caused by a dirty thermocouple, loose wires, or the need for recalibration. It is important to note that thermocouples are not designed to last as long as the oven or furnace they are installed in, so they will need to be replaced periodically.
To test if a thermocouple is functioning correctly, a volt-ohm meter or a digital multimeter can be used. If the pilot light will not stay lit, ensure that the tip of the probe rests in the flame itself. If the tip is not in the flame or has buildup on it, it can put out a lower voltage and, below a specific threshold, it will not open the valve. In this case, the thermocouple may need to be cleaned with sandpaper or a scrubber to remove any rust, corrosion, or grime.
Dehumidifiers and Electricity: How Much Power Do They Consume?
You may want to see also
Explore related products
It is a small probe with two wires made of different metals
An oven thermocouple is a small probe with two wires made of different metals that terminate directly over the opening of the pilot assembly. The probe is protected by a tube that encloses the wires and leads from the probe to the top of a safety valve. This safety valve is mounted on the gas line between the oven thermostat and the pilot assembly.
The use of two wires made of different metals is essential to the functioning of the thermocouple. This configuration allows the probe to detect temperature variations based on changes in the voltage running between the wires. In 1831, T.J. Seebeck discovered that heating one junction of a closed circuit made of two different metals causes an electric current to flow through the circuit. The magnitude of the current is directly proportional to the difference between the hot and cold junctions of the circuit. This electrical current can be harnessed to perform tasks, such as opening or closing a valve based on the temperature at the probe end of the thermocouple.
The thermocouple plays a crucial role in maintaining the desired temperature within the oven. By accurately measuring the temperature, the thermocouple ensures that the oven heats up to the desired level and cooks food evenly. A faulty thermocouple can lead to erratic and uncontrolled temperature changes in the oven, resulting in potential safety hazards. Therefore, it is essential to have a properly functioning thermocouple and to seek professional servicing and replacement if any issues arise.
It is important to note that not all ovens have thermocouples. Typically, ovens heated with natural gas or propane that rely on a continuous pilot flame are equipped with this device as a safety feature. The thermocouple measures the heat and detects when the pilot flame goes out, helping to prevent potential hazards caused by an extinguished pilot flame.
Electric Rechargers and Cables: Sustainable Recycling Methods Explored
You may want to see also
Explore related products
A faulty thermocouple can cause erratic temperature changes
A thermocouple is a temperature-measuring device that works by taking the difference in voltage between two junctions. It is made up of two wires, each made from a different metal, which are joined at the tip. This is known as the measuring junction. The wires then connect to a body of a known temperature, called the reference junction. Thermocouples are used in ovens heated with natural gas or propane to measure heat and detect when the pilot flame goes out.
A faulty thermocouple can lead to erratic temperature changes in an oven. This can be caused by a short circuit, a damaged sheath, or improper installation. For example, if the thermocouple is not properly connected to the safety valve, it can cause the valve to open and close erratically, resulting in uncontrolled temperature fluctuations. Other common oven problems that may be related to a faulty thermocouple include a pilot light that won't turn on or stay lit, the oven getting hotter than desired, and uneven cooking.
To diagnose a faulty thermocouple, you can perform a root-cause analysis by checking the thermocouple with a thermocouple reader or a multimeter to measure the voltage or temperature. You can also swap the thermocouple with another one to see if the problem persists. If the thermocouple is faulty, it is recommended to hire a professional technician to service the oven and replace the thermocouple.
It is important to note that there are various types of thermocouples, such as types K, J, N, E, T, R, S, and B, each with different ranges, accuracies, and electrical outputs. Choosing the wrong type of thermocouple for your specific application can also lead to measurement errors. Therefore, it is crucial to select the appropriate thermocouple type and ensure proper installation to avoid erratic temperature changes caused by a faulty thermocouple.
Electricity's Impact: Revolutionizing the Factory System
You may want to see also
Frequently asked questions
No, an electric oven does not have a thermocouple. Ovens heated with natural gas or propane that rely on a continuous pilot flame are often fitted with a thermocouple, a safety feature that measures heat and detects when the pilot flame goes out.
A thermocouple is a small probe that terminates directly over the opening of the pilot assembly. It consists of a tube protecting two wires made of different metals, leading from the probe to the top of a safety valve. The probe detects temperature variations based on changes in the voltage running between each wire.
You can confirm if your oven has a thermocouple by locating the probe over the pilot flame assembly. If the pilot flame won't stay lit, ensure that the tip of the probe rests in the flame. If the probe is functioning correctly, the issue may be related to other components connected to the thermocouple.
