The height of ground bars in electrical installations is a topic that has sparked some debate among electrical professionals. While some individuals seek to determine whether there are specific height requirements for mounting ground bars, others question the classification of ground bars as busbars. Busbars, in the context of electricity, are analogous to manifolds in plumbing, serving as devices for distributing and combining current. Despite the lack of a clear consensus, electrical professionals emphasize the importance of proper grounding and compliance with industry standards.
Explore related products
What You'll Learn
Ground bars and busbars
Ground bars are crucial for separating grounds and neutrals in electrical systems. When installing a sub-panel, for instance, a ground bar is necessary to ensure proper grounding and prevent electrical issues. Ground bars are available at electrical distributors and can be mounted using screws.

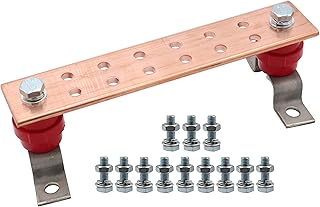

Busbars, on the other hand, are conductive bars used for bonding and grounding equipment. They provide a central attachment point for connections. Busbars come in various kits with different configurations, including insulators, mounting brackets, and hardware. These kits ensure that busbars can be properly installed and isolated from the surrounding equipment or walls, controlling the current path.
The ICT Primary Bonding Busbar (PBB) and Secondary Bonding Busbar (SBB) are examples of specific busbar types. The PBB provides a central attachment point for ICT bonding backbones, equipment, and the building's ground electrode system. Similarly, the SBB caters to ICT systems located in data rooms. Both types of busbars feature hole patterns that accommodate two-hole lugs as per industry standards.
Additionally, busbars can be customized to fit unique requirements. Customization options include varying hole patterns, lug shapes, bar sizes, and plating. This versatility ensures that busbars can be tailored to specific applications, whether it's for a standard electrical cabinet or a large-scale solar or wind farm.
Consolidated Electrical Distributors: Public Sales Access?
You may want to see also
Explore related products
Ground bar mounting
Ground bars are available at most electrical distributors and come with screws to mount them. The mounting location is usually marked with a stamped ground symbol and 'anti-turn nubs' at that location in the enclosure. It is important to note that the power should be turned off and verified as off before beginning any installation or maintenance work.
If there are no mounting holes, a #26 drill bit can be used to drill two 0.147-inch diameter holes using the grounding bar as a template. It is crucial to prevent metal shavings from falling onto the interior components during drilling. The interior should be removed before drilling to avoid this issue. Once the holes are drilled, the interior can be re-installed, and the equipment grounding label applied.
Some ground bars are designed to mount only to pre-punched holes in an accompanying panel, and it is not advisable to mix brands or create your own tapped holes. However, if a suitable mounting location cannot be found, it may be necessary to create your own. This can be done by marking the desired location, drilling holes, and using self-tapping screws to secure the ground bar.
It is important to adhere to the maximum number of connections per lug, as specified in the ground bar's manual or instructions. Additionally, when installing a terminal bar to the enclosure, a bolt and nut with appropriate washers can provide better conductivity and ensure a reliable bond.
Electric Razor Shaving: Can It Cause Acne?
You may want to see also
Explore related products
Ground bar placement
Ground bars are essential for safety and functionality in electrical systems. Proper ground bar placement is crucial to ensure optimal performance and maintain a safe environment. Here are some detailed instructions and considerations for ground bar placement:
Firstly, it is important to select the appropriate ground bar that meets your specific requirements. Ground bars come in different sizes and configurations, offering various numbers of terminals, such as 9, 15, or 16 terminals. Choose a ground bar that is compatible with your specific panel brand, as they are not universally interchangeable between brands like Eaton or Siemens.
When placing the ground bar, the primary objective is to prevent interference with service entrance cables, feeder cables, or branch circuit wires. Look for areas indicated by ground symbols as the designated spots for ground bar installation. It is crucial to avoid obstructing other cables and wires, ensuring they have clear pathways for wiring. This facilitates easier installation, maintenance, and optimal functionality.
The ground bar should be aligned with the designated nubs and screw holes. When securing the ground bar, use a torquing screwdriver set to 30 pound-inches to tighten the screws. This specification remains consistent whether you are using the installation method with two nubs and one screw or opting for two screws without nubs. A secure and safe connection is crucial to prevent any hazards.
In some cases, you might need to create your own mounting spot if there isn't a designated place to mount the ground bar. This involves marking the spot, drilling, and tapping the holes. Ensure that you follow the manufacturer's instructions and comply with relevant codes and requirements, such as those mentioned in the UL panels.
Additionally, consider the lengths of all the ground wires when deciding on the placement of the ground bar. This ensures that the wiring can be safely and efficiently connected without causing any obstructions or hazards.
By following these guidelines, you can ensure proper ground bar placement, contributing to the overall safety and efficiency of your electrical system.
Electric Fire Safety: Do They Deplete Room Oxygen?
You may want to see also
Explore related products
Ground bar screws
When it comes to ground bar screws, there are a few key considerations. Firstly, the type and size of the screws must be appropriate for the ground bar and the electrical panel. Most ground bars come with screws specifically designed for mounting, and it is essential to use the correct screws to ensure a secure and reliable connection. Using the wrong type of screw can lead to unsafe conditions and non-compliance with electrical standards.
One important specification mentioned in discussions about ground bar screws is the thread count. For panels, it is typically required to use a screw that engages with at least two threads, resulting in a minimum of 32 threads per inch. This ensures a secure connection and helps prevent issues such as loose screws or inadequate contact.
The material and coating of the screws are also important factors. Grounding screws made of steel and coated with zinc plate chrome are commonly used. This combination provides durability, corrosion resistance, and reliable electrical conductivity. It is worth noting that different applications may have specific requirements for screw materials to ensure compatibility with the environment and maintain performance over time.
In addition to the screws themselves, the method of installation and placement should be carefully considered. As highlighted in an online forum discussion, some electricians prefer to have the screws accessible after the drywall is installed, making it easier to switch out wires or make adjustments if needed. However, this may require cutting holes in the wall, impacting the aesthetics and potentially creating additional work. Ultimately, the decision on screw placement should balance ease of access, functionality, and compliance with electrical standards.
The Depth of Electrical Conduit Burial: How Deep is Enough?
You may want to see also
Explore related products
Ground bar requirements
Ground bars are an important part of electrical systems to ensure electrical safety. While there are no clear height requirements for ground bars, there are other requirements that must be met.
The National Electrical Code (NEC) covers the minimum requirements for grounding and bonding. Article 250 of the NEC, in particular, discusses the requirements for solidly grounded, alternating current electrical systems of less than 1,000 volts. Proper grounding and bonding practices are important as they protect personnel from electrical shock hazards and ensure the electrical system operates correctly.
Grounding clamps are used to connect the grounding electrode conductor (ground wire) to the ground rod. The ground wire should be attached to the ground rod and in the "V" of the acorn clamp, opposite the bolt side of the clamp. The acorn clamp is the most commonly used clamp for ground rod connections and is approved for direct burial applications.
The ground rod, also known as a grounding electrode, is used to connect the grounding system of electrical systems to the earth ground. Copper is the most common material used for residential installations due to its excellent conductivity. Ground rods come in varying thicknesses (diameters), including 3/8", 5/8", 1/2", 3/4", and 1". For 200 Amp services, a #4 grounding electrode conductor is required.
To ensure safety, it is recommended to have a grounding resistance of 25 ohms or less, which may require more than one ground rod. When installing multiple ground rods, they must be at least six feet apart, according to the NEC. It is also important to consider the lengths of all the ground wires when deciding on the placement of the ground bar.
Audi Q5: Electric Folding Mirrors, Yes or No?
You may want to see also
Frequently asked questions
A ground bar is a device for distributing and combining current.
There is no specific height requirement for a ground bar. However, it must be "accessible for connection and inspection".
Ground bars are available at most electrical distributors that carry Cutler Hammer gear.
The standard equipment ground bars used in QO and Homeline Load Centers are: PK3GTA1, PK4GTA, PK5GTA, PK7GTA, PK9GTA, PK12GTA, PK15GTA(L), PK18GTA(L), PK23GTA(L), and PK27GTA(L).
